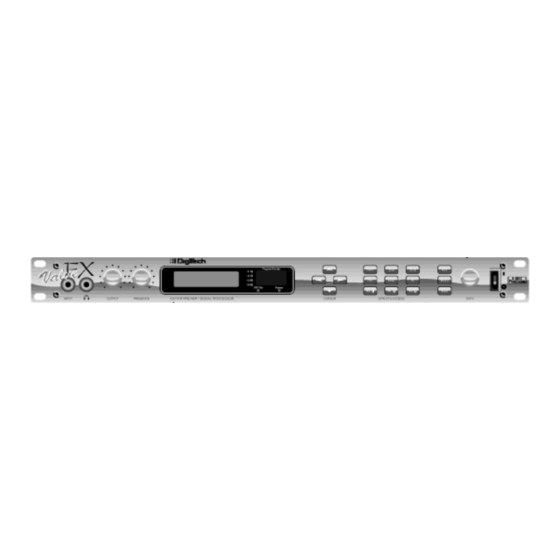

DigiTech VALVEFX Owner's Manual

Guitar preamp/signal processor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
A Harman International Company
S-DISC
™
P
ROCESSING
Valve FX
Guitar Preamp/
Signal Processor
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VALVEFX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DigiTech VALVEFX

Summary of Contents for DigiTech VALVEFX

  • Page 1 A Harman International Company S-DISC ™ ROCESSING Valve FX Guitar Preamp/ Signal Processor Owner's Manual...

  • Page 2: Table Of Contents

    Valve FX Owner’s Manual Table Of Contents.............1 Introduction ...............3 Safety Precautions ............3 Lithium Battery Warning............4 Warranty................4 SECTION 1 - STARTUP Supplying Power ...............6 Front Panel Controls ............6 Input................6 Headphone Output.............6 Main Output Level ............6 Presence Control............6 Display Window............7 Cursor Keys..............7 Effects Access............8 Global Buttons............8 Data Wheel ..............8...
  • Page 3 Valve FX Owner’s Manual Modulation Effects ............37 Choruses ..............37 Flangers..............38 Phasers...............39 Tremolos ..............39 Auto Panners ..............39 Mixers................40 More ..................41 Noise Gates..............41 DSP Level ..............42 Wahs................42 Duckers ..............42 Phase Inverter ............43 SECTION 5 - THE UTILITY MENU Utility Menu ...............44 MIDI Sub-Menu ..............44 MIDI Channel ..............44 Send Prg (Program Change) ..........45 Prg Send Map..............45...

  • Page 4: Introduction

    Valve FX Owner’s Manual INTRODUCTION Congratulations, and thank you for your purchase of the DigiTech Valve FX Guitar Preamp / Signal Processor. The Valve FX combines the world’s most powerful digital signal processor, the S-DISC™ with real tube distortion or one of our three most popular solid state distor- tion types.

  • Page 5: Lithium Battery Warning

    1. The warranty registration card must be mailed within ten days after purchase date to validate this warranty. 2. DigiTech warrants this product, when used solely within the U.S., to be free from defects in materials and workmanship under normal use and service.
  • Page 6 DigiTech neither assumes nor authorizes any person to assume for it any obligation or liability in connection with the sale of this product. In no event shall DigiTech or its dealers be liable for special or consequential damages or from any delay in the perfor- mance of this warranty due to causes beyond their control.

  • Page 7: Section 1 - Startup

    Valve FX Owner’s Manual SECTION 1 - STARTUP SUPPLYING POWER Line Conditioning - The Valve FX, like any piece of computer hard- ware, is sensitive to voltage drops, spikes, and surges. Interference such as lightning or power “brownouts” can seriously, and in extreme cases, permanently damage the circuitry inside the unit.

  • Page 8: Display Window

    Valve FX Owner’s Manual 5) Display Window - The display window shows all current operating and programming information and is comprised of several parts: the LCD display, the input level meter, the Program number indica- tor, and the Bypass and DSP Clip indicator LEDs. The LCD display shows all Program names, Parameters and Parameter values, and is the communication interface between you and the Valve FX.

  • Page 9: Effects Access

    1) AC Line Input - This is the power cord receptacle. 2) Foot Controller - This 5-pin DIN plug is for connecting the optional DigiTech Control One foot controller. THIS IS NOT A MIDI PORT. CONNECTING A DEVICE OTHER THAN THE DIGITECH CONTROL ONE FOOT CONTROLLER TO THIS JACK MAY DAMAGE THE DEVICE.

  • Page 10: Outputs

    Valve FX Owner’s Manual 5) Outputs - These are the main left and right audio outputs of the Valve FX. Use both outputs when possible since Programs are set up to take advantage of stereo effects. When the Output mode is set to mono, either output can be used.
  • Page 11 Valve FX Owner’s Manual Section 1 - Startup...

  • Page 12: Section 2 - Basic Operations

    Valve FX Owner’s Manual SECTION 2 - BASIC OPERATIONS MAIN OPERATING MODE After the Valve FX powers-up, the current Program title screen is dis- played. This is the main operating mode for the Valve FX from which any of the operating Parameters can be easily reached and modified. PARAMETER ARCHITECTURE The Program’s Parameter architecture in the Valve FX has been designed to be a linear series of items rather than a multiple-level...

  • Page 13: Accessing Factory Programs

    Valve FX Owner’s Manual ACCESSING FACTORY PROGRAMS There are four methods for recalling Programs. The first method uses the <UP> and <DOWN> Cursor keys. The procedure is as follows: • From the title screen, press the <UP> Cursor key. Note that the Program shown in the display changes and the number shown in the LED display increments by one each time the <UP>...

  • Page 14: Section 3 - Programming

    Valve FX Owner’s Manual SECTION 3 - PROGRAMMING USING THE FUNCTION KEYS The Valve FX has three Function keys that perform several functions in different menus. They are located in the bottom row of the Effects Access keys and they share buttons with the <MOD ¡>, <MIX ™>, and <MORE £>...

  • Page 15: The Effects Access Keys

    Valve FX Owner’s Manual THE EFFECTS ACCESS KEYS The Effects s are used to jump to specific places in menus. For example, if a Program contains several delays and you want to change the delay time on only one of them, you could press the <DLY/SMP>...
  • Page 16 Valve FX Owner’s Manual Program 105 (Infusion) has a Whammy™, a chorus, and a 200 mil- lisecond stereo delay. Let’s suppose that in order to work in your application, it needs to have a 425 millisecond delay. Using this Program as an example for Program modification, the procedure for changing the delay time is as follows: •...

  • Page 17: Basic Program Creation

    Valve FX Owner’s Manual • Press the <RIGHT> Cursor key once. The cursor moves to the milliseconds position. • Using the <UP> Cursor key, scroll until the last two digits of the delay time read 25. The delay time is now set at .425 seconds. If you change Programs at this point, either through MIDI or via the front panel, any modifications that you have made to the Program will be lost.

  • Page 18: Storing And Naming Programs

    Valve FX Owner’s Manual • Use the <UP> and <DOWN> Cursor keys to select the Algorithm you want to use with the Program. The LED display now shows the Algorithm number as you scroll up or down. • Use the <RIGHT> and <LEFT> Cursor keys to begin modifying the Parameters of the currently selected Algorithm to suit your purpose.
  • Page 19 Valve FX Owner’s Manual functions. The <REV> and <PITCH> keys allow you bump an entire name or section of a name either left or right in one-space increments. The procedure is as follows: • In Name mode, use the <RIGHT> and <LEFT> Cursor keys to place the cursor underneath the character to be moved.
  • Page 20 Valve FX Owner’s Manual The Store function can also be used to copy Programs from one mem- ory location to another. If no changes have been made to the select- ed Program and the <STORE> key is pressed, the Valve FX is placed in Name mode;...

  • Page 21: Section 4 - Effects And Parameters About The Effects Library

    Valve FX Owner’s Manual SECTION 4 - EFFECTS AND PARAMETERS ABOUT THE EFFECTS LIBRARY The Effects Library consists of all the effects Modules you can find in the Valve FX. Broken down into individual categories, specific Modules and their abbreviated library names are as follows: Analog Effects Module Name Module Abbrv.
  • Page 22 Valve FX Owner’s Manual The Distortion Parameters are as follows: Dist On / Bypass ...Turns the Module on or off. When Modules are turned off, their Parameters disappear from the Parameter menu. To see the Parameters, you must turn the Module on. Distortion Type ....Selects the type of distortion to be used in the Program.

  • Page 23: Equalizers

    Low Q settings affect a wider number of frequencies when the selected band is boosted or cut. DigiTech Audio Precision STD AMPL (dBr) vs FREQ (Hz) 20.000 15.000...

  • Page 24: Cabinet Emulator

    Valve FX Owner’s Manual CABINET EMULATOR The Valve FX’s programmable Cabinet Emulator circuitry allows you to use it in both recording and live situations without lugging heavy amps and/or cabinets around. Just connect the Valve FX outputs to a mixing console and kick in the Cabinet Emulator. No miking hassles, no heavy equipment;...

  • Page 25: Reverbs

    Valve FX Owner’s Manual Reverbs Module Name Module Abbrv. Description BigVerb Studio-quality reverb. MFX Reverb MVerb Reverb used in multi-effects Algorithms. Gated Reverb GtRvb Professional gated reverb BIGVERB / MFX REVERB Bigverb is the flagship reverb Module of the Valve FX. It contains 14 Parameters, giving exceptional soundfield and tonal shaping control over reverberation.
  • Page 26 Valve FX Owner’s Manual EARLY REFLECTIONS INITIAL SOUND SUBSEQUENT REVERBERATIONS T I M E EARLY RFLCT PREDELAY RV PRE-DELAY RV SIZE The BigVerb’s ER SPREAD, ER SHAPE and ER DIFFUSION controls allow you to modify the build/decay of the early portion of the rever- beration envelope and the relative reverberation time of the midrange reverb frequencies.
  • Page 27 Valve FX Owner’s Manual Now that we better understand all the aspects and properties of Reverb, the Parameters of the Reverb modules are as follows: Reverb On / Off .....Turns the Module on or off. ER Predelay ....Controls the length of time before the early reflections are heard.
  • Page 28 Valve FX Owner’s Manual RV Predelay ....Controls the amount of time before the first room reverberations are heard. In an actual acoustic space, the amount of reverberation predelay depends largely on the shape and size of the room and the placement of both listener and sound source within the room.

  • Page 29: Gated Reverb

    Valve FX Owner’s Manual GATED REVERB Gated reverbs usually include adjustable thresholds to set the point at which the reverberations will be gated (cut off). The Valve FX’s RV DECAY TIME control behaves in somewhat the same way, except that instead of setting the length by level (threshold), the length is set by time (in milliseconds).
  • Page 30 Valve FX Owner’s Manual Gated reverbs can be found in the <REVERB> library, and their Parameters are as follows: Gated Reverb On / Off..Turns the Module on or off. Reverb Pre-Delay ..Sets the amount of time before the reverbera- tions are heard. Adjustable from 0 to 100 mil- liseconds.

  • Page 31: Delays/Sampler

    Valve FX Owner’s Manual Delays/Sampler Module Name Module Abbrv. Description Mono Delay x.x 1-tap digital delay 2Tap Delay x.x 2TDly 2-tap digital delay 4Tap Delay x.x 4TDly 4-tap digital delay Stereo Delay SDly Stereo digital delay Modulated Delay ModDly Digital delay with pitch modulation Sampler Smpl1.5 1.5 second sampler...
  • Page 32 Valve FX Owner’s Manual the right of the decimal), you will increase the delay time in increments of 100 milliseconds. Pressing the <RIGHT> Cursor key moves the cursor to the third position to the right of the decimal point, or millisec- onds position.

  • Page 33: Sampler

    Valve FX Owner’s Manual SAMPLER The Valve FX offers a studio-grade sampler Module. It uses a 40 kHz sample rate for great sound quality. Sample recording and playback can be triggered from the external Valve FX switching device, or via MIDI (through continuous controller linkages).
  • Page 34 Valve FX Owner’s Manual Smpl Triggr Levl....Sets the level at which the audio signal will trigger the sample. Variable from 0 to 100. Smpl Direct Levl....Sets the level of the dry (non-effected) sound. Variable from 1 to 100. Smpl Start Point.....Determines the point at which the sample will begin playing after it has been recorded.

  • Page 35: Pitch Shifters

    Both notes are constant in pitch, but subtle additions in richness and overtones can be heard. DigiTech’s exclusive Whammy™ allows you to create mind-bending dive bombs and pitch bends with the continuous controller pedal on the optional Control One foot controller or by using MIDI Continuous Controllers.

  • Page 36: Detuners

    Valve FX Owner’s Manual Pitch Shft Amount..Sets the interval of semitones between the original note and the pitch shifted note. Variable from -24 to +24 (4 octaves). Pitch Detune....Determines the amount of detuning applied to the shifted note. Variable, in cents, from -100 to +100.

  • Page 37: Arpeggiators

    Valve FX Owner’s Manual Whammy Pedal .....The WHAMMY PEDAL Parameter reflects the current setting of the continuous control device used to control the whammy effect. This Parameter can be modified manually using the Valve FX’s stand-alone whammy pedal. As the Parameter is modified, the pitch of the original note will change in intervals according to the setting of the WHAMMY FUNCTION.

  • Page 38: Modulation Effects

    Valve FX Owner’s Manual Mod (Modulation Effects) Module Name Module Abbrv. Description Mono Chorus 1-in / 1-out chorus Dual Chorus DCho 1-input / 2-output dual chorus 4 Phase Chorus 4PCho 1-input/4-output chorus w/ 4 independent delay times Mono Flange Mono flange Dual Flange DFla 1-input / 2-output dual flange...

  • Page 39: Flangers

    Valve FX Owner’s Manual out of the turnaround points. TRIANGLE is a linear chorus effect, and ramps the pitch of the wave up and down with no slowing at turn- around points. LOGARITHMIC and EXPONENTIAL waveforms are more dramatic in their effect on the signal (waveform selection is not available in 4 Phase Chorus).

  • Page 40: Phasers

    Valve FX Owner’s Manual PHASERS Effect On / Off ....Turns the Module either on or off. When Modules are turned off, their Parameters dis- appear from the Parameter menu. To see the Parameters, you must turn the Module on. Phaser Level ....Controls the overall level of the phaser. Variable from 0 to 100.

  • Page 41: Mixers

    Valve FX Owner’s Manual Mixers (mono) Mixers (stereo) Mixers (3-out) Module Abbrv. Description Module Abbrv. Description Module Abbrv. Description 2-in / 1-out mixer 3-in / 2-out mixer 3-in / 3-out mixer 3-in / 1-out mixer 4-in / 2-out mixer 4-in / 3-out mixer 5-in / 1-out mixer 5 in / 2-out mixer 5 in / 3-out mixer...

  • Page 42: More

    Valve FX Owner’s Manual More Module Name Module Abbrv. Description Silencer™ Noise Gate Mono noise gate Stereo Ducker SDuc Stereo input / output automatic ducker Phase Inverter Inverts signal phase Traditional Wah TWah Vintage wah effect Automatic Wah AWah Automatic amplitude-based wah effect NOISE GATES The Valve FX utilizes Silencer™...

  • Page 43: Dsp Level

    Valve FX Owner’s Manual NG Attenuation....Sets the amount of attenuation (noise floor reduction) when the gate is closed. Varies from 100 dB (below the level of the ungated noise floor) to 0 dB (no attenuation). NG Delay Time....Allows placement of a slight delay on the source signal after the gate is triggered.

  • Page 44: Phase Inverter

    Valve FX Owner’s Manual Duc Hold Time ....Controls the amount of time before the ducker disengages after the signal has stopped. Varies from 0.000 to 5.000 seconds. Duc Attenuation ....Adjusts the amount of level attenuation applied to the ducked effects when the duck- er is engaged (ducker is engaged when the input level exceeds the setting of CONTROL THRESHOLD).

  • Page 45: Section 5 - The Utility Menu

    Valve FX Owner’s Manual SECTION 5 - THE UTILITY MENU UTILITY MENU The Utility section of the Valve FX contains several functions, including MIDI setup, footswitch setup menu, display contrast, output setting, cabinet emulation mode, sales banner setup, and the factory Program restore menu.

  • Page 46: Send Prg (Program Change)

    Valve FX Owner’s Manual • Press Function key 1 once. The display reads: ¡MIDI Channel:1 ™Send Prg: Off ≥ Note that a cursor appears under the MIDI Channel num- ber. • Using the <UP>/<DOWN> Cursor keys, Function key 1, or the Data wheel select the channel on which you want the Valve FX to receive MIDI data.
  • Page 47 Valve FX Owner’s Manual devices are set to Disabled , no Program Changes will be sent out the MIDI port. To set up external devices: • From the Program title screen press the <UTILITY> button once. The display reads: ¡MIDI Contrst:4 ™Foot £Tuner...

  • Page 48: Prg Rcv Map

    Valve FX Owner’s Manual • Press the <RIGHT> Cursor key once. The display reads: ¡Device # Send ™Prg:1 £As:1 This screen tells you that when the Valve FX sends or receives MIDI Program Change number 1, the selected device will be sent Program Change number 1 on its designated MIDI channel.

  • Page 49: Continuous Controller Links

    • Press Function key 2 ( Prg Rcv Map ) once. The display reads: ¡Rcv MIDI Prg ™As ValveFX: • The cursor appears under Rcv MIDI Prg . This display means that MIDI Program Change number 1 is currently set to activate Program number 1 on the Valve FX.
  • Page 50 Valve FX Owner’s Manual • Using the <RIGHT> Cursor key, scroll until the display reads: ¡CC Assignments ≤™Disp CC's:Off≥ • Press Function key 1 once. The display reads: ¡LocalCC Link:1 ™Assign • Using the <UP>/<DOWN> Cursor keys, select which of the 10 possible CC Links you want to assign to the Parameter.
  • Page 51 Valve FX Owner’s Manual NOTE: The Minimum CC Value Maximum CC Value Parameters allow you to limit the range of the continu- ous controllers in the full on and full off positions. The values you select on these two screens determine the behavior of the continuous controller.
  • Page 52 Valve FX Owner’s Manual Let’s back up to the LocalCC Link screen for a moment and tackle another scenario: if the Local Link number you want already has a CC assignment, the LocalCC Link display will read: ¡LocalCC Link:1 ™New£[PARAM NAME] This screen gives you the option of either reassigning the link ( ™New or selecting a different Local CC Link number along with the...

  • Page 53: Display Ccs

    Valve FX Owner’s Manual The default CC numbers and how they are used as effect groups on the Valve FX are as follows: CC # Function Control One Patch # Compression On / Off Distortion On / Off Modulation/Pitch On / Off Delay On / Off Reverb On / Off 0 (10)

  • Page 54: Midi Program Dump

    Valve FX Owner’s Manual • Press Function key 1 once. The display reads: Dump MIDI Data? Press ™ for Yes • To dump a copy of the entire contents of the Valve FX memory, press Function key 2. To abort the operation, press <EXIT>. •...

  • Page 55: Midi Merging

    Valve FX Owner’s Manual • Using the <UP>/<DOWN> Cursor keys, select the Program number location in which you want the dumped Program to appear. • Press Function key 3 to start the dump. The display briefly reads: * Sending * Program ### To abort the operation press the <EXIT>...

  • Page 56: Patch Assignment

    Valve FX Owner’s Manual The submenus included under the Foot Controller setup menu are: Patch Assignment, Continuous Control Pedal, Program List Assignment, and LED Assignment. PATCH ASSIGNMENT The Patch Assignment option allows any Patch in any Bank of the Control One foot controller to recall a Valve FX Program number. To illustrate, let’s set Patch 7 of Bank 4 to recall Program 150 on the Valve FX.

  • Page 57: Program, Bank Up/Down

    Valve FX Owner’s Manual • Finally, use the <UP/DOWN> Cursor keys or the Data wheel to select Program 150. The display should now read: ¡Bank 4 ™Patch 7 ™(PROG.NAME) 150 • Press <UTILITY> to exit to your last position in the Program. Now, when you’re in Bank 4, pressing Patch footswitch #7 on the Control One foot controller will recall Program #150 on the Valve FX.

  • Page 58: List Up / Down

    Valve FX Owner’s Manual This function is especially useful if you want to use the CC pedal with a Program in more than one way. For example, you can control the level of a Delay linked to CC 4. Then, in real time, reassign the pedal to CC 10 which will control any Parameter in the Program linked to CC 10 (like a Reverb level).

  • Page 59: Continuous Control Pedal

    Valve FX Owner’s Manual number in the List, press Function key 2 once and use the Data wheel to scroll to the desired Program number. • When you are finished adjusting your List, press the <UTILITY> key once to exit to your last position in the Program. CONTINUOUS CONTROL PEDAL This series of menus and submenus allows setup of the continuous controller pedal(s) of the Control One foot controller.

  • Page 60: Cc Transmit Channel

    Valve FX Owner’s Manual number, or you can change the MIDI channel(s) on which the internal or external pedal will transmit MIDI CC messages to other MIDI devices (using the MIDI Out port). • To change the internal or external CC pedals’ default MIDI CC number, press the appropriate Function key.

  • Page 61: Pedal Calibration

    Valve FX Owner’s Manual • Press Function key 2. The display reads: ¡Assign Pedal CC ™Calibrate Pedal • Press Function key 1. The display reads: ¡IntPedal:CC ™ExtPedal:CC 16≥ • Press the <RIGHT> Cursor key. The display reads: ¡Int Xmit:Ch 1 ≤™Ext Xmit:Off ≥...
  • Page 62 Valve FX Owner’s Manual • From the Program, press the <UTILITY> key once. The display reads: ¡MIDI Contrst:4 ™Foot £Tuner ≥ • Press Function key 2. The display reads: ¡Patches ™CC Ped £PrgList Assign≥ • Press Function key 2 once. The display reads: ¡Assign Pedal CC ™Calibrate Pedal •...

  • Page 63: Led Assignment

    Valve FX Owner’s Manual LED ASSIGNMENT The LED indicators of the Control One foot controller can be set up to function in one of three ways. In the LED Normal mode, the LED above the currently selected Patch will light. In LED Reversed mode, all LEDs on the foot controller except the currently selected Patch are lit.

  • Page 64: Tuning From The Foot Controller

    Valve FX Owner’s Manual • Begin tuning your instrument. As you tune, the note name is shown on the top line of the display, while vertical bars appear on the second line of the display and begin strobing. If the note is sharp, the bars will strobe from left to right.

  • Page 65: Adjusting The Lcd Contrast

    Valve FX Owner’s Manual When you scroll down from 427 Hz, you will also find alternate tun- ings. Alternate tunings are A , G, and G . When you use any of the alternate tunings as your reference, tune your instrument so that the display shows normal tuning (E, A, D, G, B, E for guitars) and the Valve FX will do the rest (the display shows normal tuning, but you’ll actually be tuning to your selected reference key).

  • Page 66: Cabinet Emulation

    Valve FX Owner’s Manual CABINET EMULATION Each Program in the Valve FX has a local Cabinet Emulation setting that lets you customize each Program’s output sound by choosing from 10 different full-bore guitar stack sounds; 3 warm cabinets, 3 medium cabinets, 3 bright cabinets, and one full-range cabinet for maximum frequency response.

  • Page 67: Reinitializing The Valve Fx

    Valve FX Owner’s Manual • Press the <RIGHT> Cursor key again. The display now reads: ¡Sales:Off ≤™Reinitialize • Press Function key 1 to turn the sales banner on or off. • When you are finished, press the <UTILITY> key to exit to your last position in the Program.
  • Page 68 Valve FX Owner’s Manual followed by Are You Sure? ™Yes £Cancel • This is your last chance to change your mind. To abort the operation, press Function key 3. To restore all Programs to orig- inal factory condition, press Function key 2. The display briefly reads: Resetting.

  • Page 69: Section 6 - Appendix

    Valve FX Owner’s Manual SECTION 6 - APPENDIX SPECIFICATIONS A/D Converter: 16 bit PCM D/A Converter: 16 bit PCM Sampling Frequency: 40 kHz DSP Section: Architecture: Static-Dynamic Instruction Set Computer (S-DISC™) Digital Signal Path Width: 24 bits (144.5 dB) Internal Data Path Width: 48 bits (289 dB) Dynamic Delay Memory: 64k x 24 bits (1.68 seconds) Static Delay Memory: 256 24-bit registers (6.55 milliseconds) Data ALU Processing: 10.0 MIPS...

  • Page 70: Factory Algorithm Diagrams

    Valve FX Owner’s Manual FACTORY ALGORITHM DIAGRAMS Following are block diagrams of all the Factory Algorithms. These diagrams show all of the input and output information associated with each Module, as well as the signal path routings for each of the 33 Algorithms.
  • Page 71 Valve FX Owner’s Manual Algorithm #6 DCho -> 2TDly -> 2 Pans DCho 3 x 1 2TDly 5 x 2 Dual Chorus Mono 3 x 1 Mixer 2-Tap Delay 1.4 Stereo 5 x 2 Mixer Auto Panner Inp 1 Out 1 Inp 1 Out 1 Inp 1...
  • Page 72 Valve FX Owner’s Manual Algorithm #10 Wah -> Wham -> Cho -> Dly TWah Wham DCho 3 x 2 Traditional Wah Whammy Dual Chorus Stereo 3 x 2 Mixer Inp 1 Out 1 Inp 1 Out 1 Inp 1 Out 1 Inp 1 Out 1 LEFT INPUT...
  • Page 73 Valve FX Owner’s Manual Algorithm #14 Mod Dly -> Revrb MDly 2 x 3 MVRB 4 x 2 Modulation Delay 2 x 3 Mixer MFX Reverb Stereo 4 x 2 Mixer Inp 1 Out 1 Inp 1 Out 1 Out 1 Inp 1 Out 1 Inp 1...
  • Page 74 Valve FX Owner’s Manual Algorithm #18 DCho -> 4TDly -> Pan 5 x 1 Mono 5 x 1 Mixer Out 1 Inp 1 Inp 2 Inp 3 Inp 4 Inp 5 DCho 3 x 3 4TDly 6 x 2 Dual Chorus 3 x 3 Mixer 4-Tap Delay 1.4 Stereo 6 x 2 Mixer...
  • Page 75 Valve FX Owner’s Manual Algorithm #20 DFla -> 4TDly -> Pan 5 x 1 Mono 5 x 1 Mixer Inp 1 Out 1 Inp 2 Inp 3 Inp 4 Inp 5 DFla 3 x 3 4TDly 6 x 2 Dual Flange 3 x 3 Mixer 4-Tap Delay 1.4 Stereo 6 x 2 Mixer...
  • Page 76 Valve FX Owner’s Manual Algorithm #22 Gated Reverb GtRvb 3 x 2 Gated Reverb Stereo 3 x 2 Mixer Inp 1 Out 1 Out 1 Inp 1 LEFT INPUT Left In 1 Out L LEFT MAIN Out 2 Inp 2 Out 2 Right In 2...
  • Page 77 Valve FX Owner’s Manual Algorithm #28 Dly -> Dual Chorus 2 x 1 DCho 4 x 2 Mono Delay 1.0 Mono 2 x 1 Mixer Dual Chorus Stereo 4 x 2 Mixer Inp 1 Out 1 Inp 1 Out 1 Inp 1 Out 1 Inp 1...
  • Page 78 Valve FX Owner’s Manual 5 x 1 Mono 5 x 1 Mixer Algorithm #32 Out 1 Inp 1 Inp 2 Pitch -> 4TDly -> Pan Inp 3 Inp 4 Inp 5 2 x 1 4TDly 5 x 2 Mono 2 x 1 Mixer 4-Tap Delay 1.4 Stereo 5 x 2 Mixer Mono Pitch Shift...

  • Page 79: Block Diagram

    Valve FX Owner’s Manual BLOCK DIAGRAM Following is a simplified block diagram of the Valve FX. Section 6 - Appendix...

  • Page 80: Factory Program List

    Valve FX Owner’s Manual FACTORY PROGRAM LIST Top Ten Classic 70’s O Solo Mio Pop Alternative Classic Phase 6 Voice Chorus Crunch Hall Pan British Metal Vintage Amp 12 String Strum Virtual Wah Studio Clean Deep Phase Soloing 4ths Detune w/Pan Boxed In Whammy Deluxe Clean X...

  • Page 81: Midi Implementation Chart

    Valve FX Owner’s Manual Function... Transmitted Recognized Remarks Basic Default 1-16 1-16 Memorized Channel Channel 1-16 1-16 Default Mode 3 Mode 3 Messages Mode Altered Note Number True Voice Velocity Note ON Note OFF After Key's Touch Ch's Pitch Bender Control Default Channel 1 Change...
  • Page 82 Telephone (801) 566-8800 FAX (801) 566-7005 International Distribution: 7 Farmington Road Amherst, New Hampshire 03031 U.S.A. FAX (603) 672-4246 DigiTech™, S-DISC™, Whammy™ and Silencer™ are registered trademarks of DOD Electronics Corporation Copyright © 1994 DOD Electronics Corporation Printed In U.S.A. 9/94 Manufactured in the U.S.A.
