8
REAR PANEL CONNECTIONS
1
120 V
60 Hz
30 WATTS
FUSE:
200 mA 250 V
SLOW BLOW
Section 1 - Startup
7) Effects Access - This group of buttons allows you to jump directly
to the first Parameter of Modules in the currently selected
Algorithm. The buttons in this group are: <EXIT>, <CMP/DIST>,
<EQ>, <REVERB>, <DLY/SMP>, <PITCH>, <MOD>, <MIX>, and
<MORE>. Also included in this section and sharing buttons with
the <MOD>, <MIX>, and <MORE> buttons are the Function keys
(indicated by ¡, ™,and £) which act as menu selection keys in the
Utility menus. The <EXIT> key is used for backing out of multi-level
submenus one level at a time or returning to the title screen
(depending where you currently are in the menus).
8) Global Buttons - Buttons in this group are: <STORE>, <UTILITY>,
and <BYPASS>. These buttons perform global functions, including
those required for storing Programs, Utility functions such as LCD
contrast and footswitch setup, MIDI setups (including transmit and
receive maps), and global bypass.
9) Data Wheel - Increments (clockwise) or decrements (counter-
clockwise) through Programs, Algorithms, or Parameter values.
10) Power Switch - Turns the unit on or off.

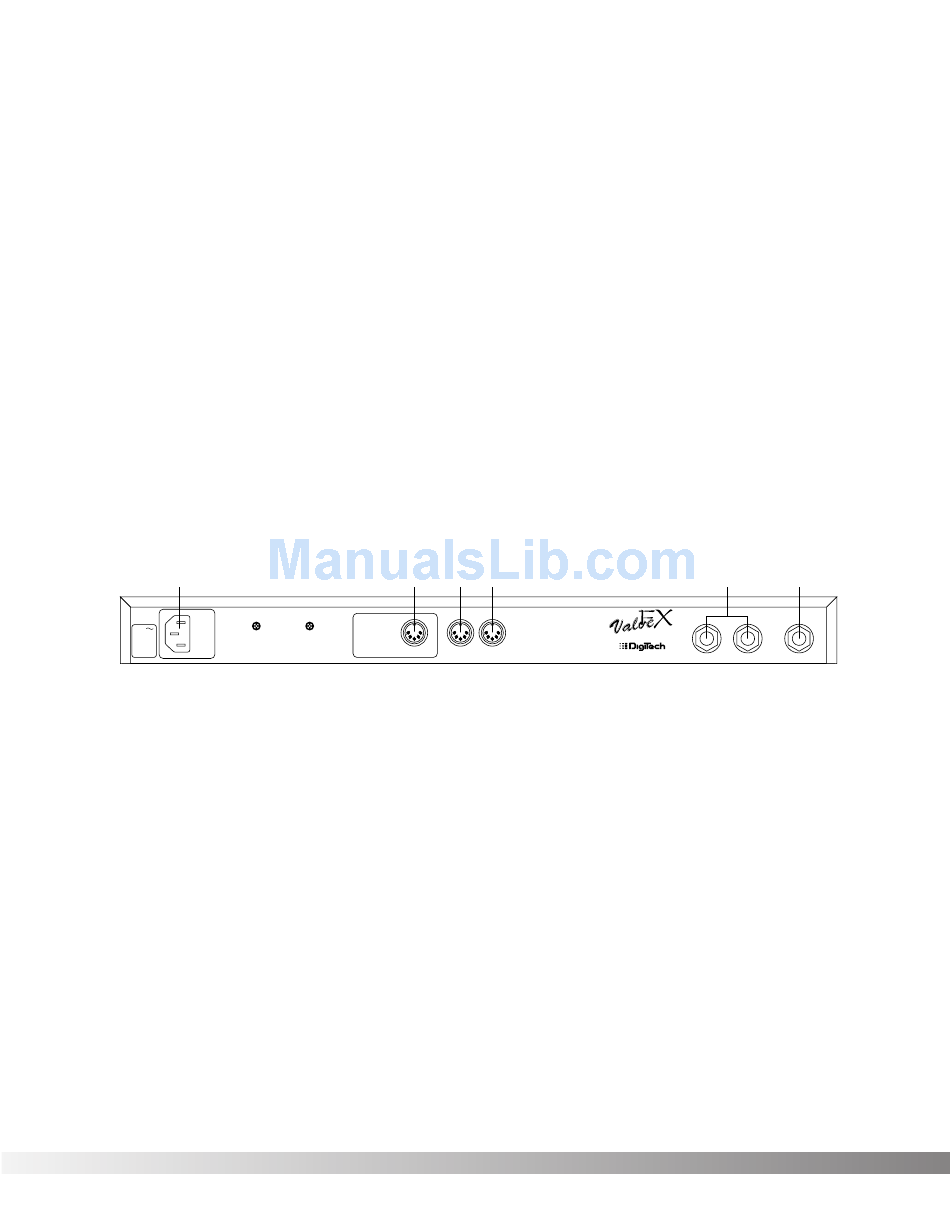

The Valve FX rear panel connectors and functions are as follows:
2
3
4
WARNING:
This
CAUTION:
jack is not a MIDI
RISK OF FIRE REPLACE ONLY
connection.
WITH SAME TYPE FUSE.
Connecting a MIDI
ATTENTION:
device to this jack
FUSIBLE DE RECHANGE DE
may damage the
MEME TYPE.
FOOTSWITCH
MIDI
MIDI
device.
IN
OUT
1) AC Line Input - This is the power cord receptacle.
2) Foot Controller - This 5-pin DIN plug is for connecting the optional
DigiTech Control One foot controller. THIS IS NOT A MIDI PORT.
CONNECTING A DEVICE OTHER THAN THE DIGITECH CONTROL
ONE FOOT CONTROLLER TO THIS JACK MAY DAMAGE THE
DEVICE. A standard MIDI-type 5-pin DIN connector was chosen
for the Control One foot controller connector because cables are so
readily available.
3) MIDI In - The MIDI In port allows the Valve FX to respond to incom-
ing MIDI messages, including Program Change, Continuous
Control, and System Exclusive data.
4) MIDI Out - Sends out MIDI data generated by the Valve FX to
other devices. It can also pass MIDI data received by the Valve
FX's MIDI In to other devices.
Valve FX Owner's Manual
5
TO REDUCE THE
MANUFACTURED
USA
UTILISER UN
IN THE
BY
SALT LAKE CITY, UTAH
LEFT (MONO)
6
RIGHT
INPUT
