Summary of Contents for DigiTech RP155

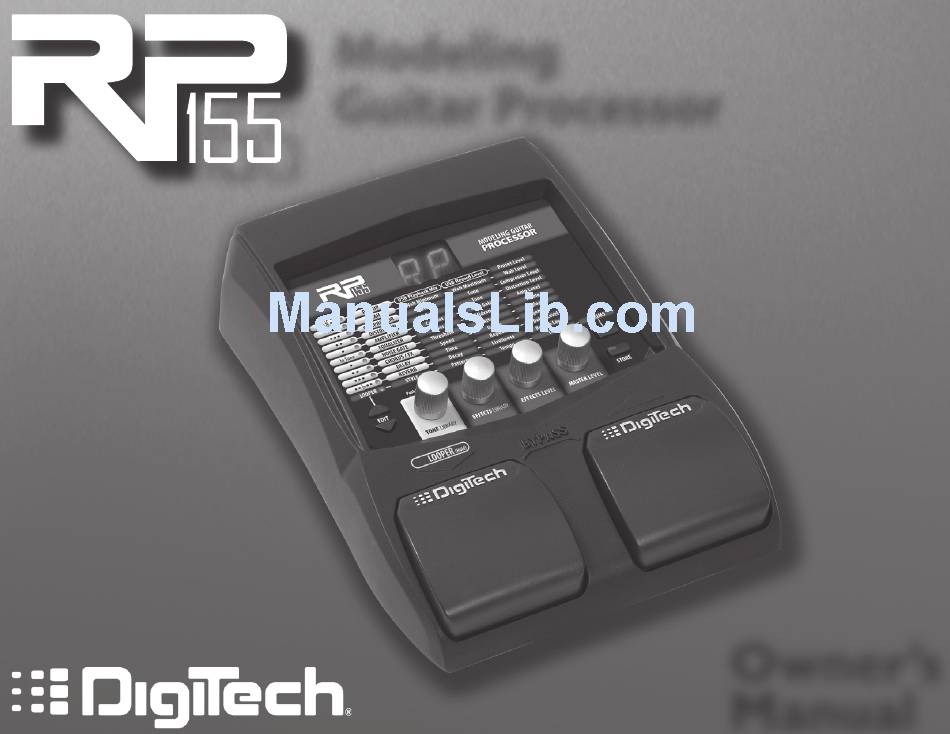

- Page 1 Modeling Guitar Processor Owner’s Manual...
- Page 2 If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling. Private households in the 25 member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated...
-
Page 3: Declaration Of Conformity
Vice-President of Engineering 8760 S. Sandy Parkway Sandy, Utah 84070, USA Date: January 02, 2009 European Contact: Your local DigiTech Sales and Service Office or Harman Music Group 8760 South Sandy Parkway Sandy, Utah 84070 USA Ph: (801) 566-8800 Fax: (801) 568-7583... -
Page 4: Table Of Contents
Mono Operation - Amplifier ........12 Envelope Filter .............30 Stereo Operation ............13 Auto Ya™ ..............30 Applying Power ..............15 Step Filter ..............31 DigiTech Whammy™ ..........31 Section Two - Editing Functions Pitch Shift ..............32 Detune ................32 Editing/Creating Presets ..........16 Harmony Pitch Shifting ..........33 Storing/Copying a Preset..........18... - Page 5 Section Four - Other Functions Phrase Looper ..............36 Drum Machine ..............37 Optional Passive Volume/ Continuous Control Pedal ...........38 Factory Reset ..............38 Section Five - Appendix Specifications ..............39 Tone LIbrary ..............41 Effects Library ..............42...
- Page 6 1. The warranty registration card must be mailed within ten days after purchase date to validate this warranty. 2. DigiTech warrants this product, when used solely within the U.S., to be free from defects in materials and workmanship under normal use and service.
-
Page 7: Section One - Introduction
Industries, Inc. Other product names modeled in this product are trademarks of their respective companies that do not endorse and are not associated or affiliated with DigiTech or Harman International Industries, Inc. They are trademarks of other manufacturers and were used merely to identify products whose sounds were reviewed in the creation of this product. -
Page 8: About The Rp155
About the RP155 Performance Mode When you first apply power to the RP155, it powers up in Performance mode. Performance mode provides access to all of the presets within the RP155 via the Up and Down Footswitches. Knob 1 selects a tone from the Tone Library, Knob 2 selects an effect combination from the Ef- fects Library, Knob 3 adjusts the Effects Level, and Knob 4 adjusts the Master Level (volume). - Page 9 Display shows note played Top LEDs indicate note is sharp Green LED indicates note is in tune Bottom LEDs indicate note is flat In Tuner mode, you can change your tuning reference. The default factory setting is A=440 Hz (displayed as 40). Rotating Knob 1 selects alternate and dropped tunings. Alternate tunings are A=453Hz to A=427 Hz (displayed as 53 to 27).
-
Page 10: Tone Library Knob
Master Level Knob This knob controls the overall output volume of all of the RP155’s presets. X-Edit Editor/Librarian You can edit your RP155 with your computer, using the X-Edit Editor/Librarian. Download X-Edit , USB drivers, and documentation from www.digitech.com. -
Page 11: Presets
Presets Presets are named and numbered locations of programmed sounds which reside in the RP155. Presets are recalled with the Footswitches. The active effects in each preset are indicated by lighted LEDs in the Effect Matrix. The RP155 comes with 50 User presets (1-50) and 50 Factory presets (51-00). -
Page 12: A Guided Tour Of The Rp155
A Guided Tour of the RP155 Front Panel... - Page 13 1. Footswitches These two Footswitches are used to select presets, access the Tuner, enable the Phrase Looper, and Bypass the RP155. The Footswitch on the right will select the next preset up, and the Footswitch on the left will select the next preset down. Pressing both Footswitches together will bypass the currently selected preset.
- Page 14 Effects Level Knob (Knob 3) 1. In Performance mode, this knob adjusts the overall level of post amp model effects (Cho- rus/Mod, Delay, and Reverb). 2. When editing a preset, this knob modifies the parameter listed in the column directly above it for the selected Effect row.
- Page 15 5. Display The Display provides information for different functions depending on the mode that has been selected. In Performance mode, the Display will show the currently selected preset number. In Edit mode, the Display will show the value of the parameter being adjusted. In Tuner mode, the Display will show the note played.
-
Page 16: Rear Panel
Rear Panel 1. Input Connect your instrument to this high-impedance TS input. 2. Amp / Mixer This button optimizes the RP155’s outputs for use when plugged into a guitar amp or a mixer/ recording device. When set to Mixer (“In” position), the outputs are optimized for connecting to a mixer, recording device or headphones. - Page 17 RP155 to record via any DAW recording application. Knobs 2 and 3 also control the direct/play- back mix and USB record level when USB is connected and the Pickup Row is selected. Note: You can download the X-Edit Editor/Librarian software and USB drivers at www.digitech.com. 7. Power Input Connect only the DigiTech PS0913B power supply to this jack.
-
Page 18: Getting Started
Getting Started Making Connections There are several different connection options available with the RP155. Before connecting the RP155, make sure that the power to your amplifier and the RP155 is turned off. There is no power switch on the RP155. To turn the RP155 on or off, connect or disconnect the included PS0913B power supply from the Power Input jack. -
Page 19: Stereo Operation
Stereo Operation For stereo operation connect the guitar to the Input of the RP155. Connect one cable to the RP155’s Left (Mono) output, and another cable to the RP155’s Right output. Connect one cable to the input of one amplifier, channel of a mixer, or power amp. Connect the second cable to a second amplifier, second channel of a mixer, or power amp. - Page 20 Stereo Mixer Setup Outputs Instrument Input Mixer Computer Recording Setup Amp/Mixer switch set to Mixer Powered Powered Studio Monitor Studio Monitor Amp/Mixer switch Outputs set to Mixer Instrument Input...
-
Page 21: Applying Power
Applying Power Before applying power to anything, set your amp(s) to a clean tone and set the tone controls to a flat EQ response (on most amps, this would be 0 or 5 on the tone controls). Then follow the steps listed below. -
Page 22: Section Two - Editing Functions
Section Two - Editing Functions Editing/Creating Presets The RP155 is designed to make preset editing and creation easy and intuitive. When creating your own sound, you must first start with an existing preset. Note that the preset you begin with doesn’t have to be in the memory location you intend to have it reside, since you can store it to any User preset location during the store procedure. - Page 23 To edit and create a custom preset: 1. Use the Footswitches to select the preset you wish to edit. If you are trying to find some- thing different from the existing presets, begin by using the Tone Library, Effects Library, and Effects Level knobs to get close to a sound you want.
-
Page 24: Storing/Copying A Preset
Storing/Copying a Preset Once the preset has been modified to your liking, you may store your settings to any of the 50 User preset locations (presets 1-50). The following steps outline the procedure for storing changes to a preset or copying a preset to a different location: 1. -
Page 25: Section Three - Models And Parameters
Section Three - Models and Parameters About the Models The RP155 can be thought of as several different “virtual” amplifiers and individual, high-tech stompboxes in a single programmable package. With stompboxes, the order in which they are connected affects the overall sound. The RP155 has placed the Amp and Effect models in an order for optimum results. -
Page 26: Model Definitions
Preset Level - Knob 4 adjusts the volume level for each preset individually. Wah is an effect controlled by an Expression Pedal making the guitar sound as if it’s saying “Wah.” Wah Model - Knob 1 selects the Wah model. Values include: FR (DigiTech Full Range ®... -
Page 27: Compressor
Compressor models on and off. Sustain - Knob 2 adjusts the amount of sustain. Ranges from 0 to 99. Tone/Attack - Knob 3 adjusts the tone for the DigiTech Compressor, or attack for the Boss CS-2. Ranges from 0 to 99. -
Page 28: Distortion
DigiTech and DOD are trademarks of Harman International Industries, Inc. Other product names modeled in this product are trademarks of their respective companies that do not endorse and are not associated or affiliated with DigiTech or Harman International Industries, Inc. They are trademarks of other manufacturers and were used merely to identify products whose... - Page 29 Knobs 2, 3, and 4 have the following functions for the various Distortion models: Distortion Knob 2 Knob 3 Knob 4 (X-Edit Model (Gain) (Tone) (Level) (X-Edit (X-Edit only) only) only) Drive Tone Level Drive Tone Level Gain Level Distortion Filter Level Gain...
-
Page 30: Amplifier
DigiTech is a trademark of Harman International Industries, Inc. Other product names modeled in this product are trademarks of their respective companies that do not endorse and are not associated or affiliated with DigiTech or Harman International Industries, Inc. They are trademarks of other manufacturers and were used merely to identify products whose sounds were... -
Page 31: Cabinet
G12-T70 ® DigiTech and Johnson Amplification are trademarks of Harman International Industries, Inc. Other product names modeled in this product are trademarks of their respective companies that do not endorse and are not associated or affiliated with Digi- Tech or Harman International Industries, Inc. They are trademarks of other manufacturers and were used merely to identify products whose sounds were reviewed in the creation of this product. -
Page 32: Noise Gate
A Noise Gate (GA) is designed to eliminate noise while you are not playing; this model also includes an Auto Swell (SW), which provides an automatic volume swell effect. Gate Model - Knob 1 selects between the DigiTech noise gate or the volume swell effect. -
Page 33: Chorus/Fx
Speed - Knob 2 adjusts the rate (Speed) of the modulation. Ranges from 0 to 99. Depth - Knob 3 adjusts the Depth of the modulation. Ranges from 0 to 99. Level - Knob 4 controls the level of the effect (DigiTech Chorus models only). Ranges from 0 to 99. -
Page 34: Flanger
A Flanger uses the same principle as a Chorus but uses a shorter delay time and adds regeneration (or repeats) to the modulating delay. This results in an exaggerated up and down sweeping motion to the effect. The RP155 includes the following Flanger Effect models: fL (the DigiTech Flanger), and mx (based on an MXR Flanger). -
Page 35: Vibrato
Vibrato (vB) A Vibrato effect modulates the pitch of the incoming signal at an even rate. Speed - Knob 2 adjusts the rate (Speed) at which the pitch modulates. Ranges from 0 to 99. Depth - Knob 3 adjusts the intensity (Depth) of the modulating pitch. Ranges from 0 to 99. Rotary Speaker (RO) Rotary Speaker is an emulation of a device that included a spinning horn and woofer. -
Page 36: Panner
Panner (PA) An Auto Panner modulates the sound from left to right at an even rate. Speed - Knob 2 adjusts the rate (Speed) at which the signal pans from side to side. Ranges from 0 to 99. Depth - Knob 3 adjusts the intensity (Depth) of the changing pan. Ranges from 0 to 99. Waveform - Knob 4 selects a waveform: tr, Si, or Sq (Triangle, Sine, or Square). -
Page 37: Step Filter
As the Pedal is moved, the note bends either up or down. When DigiTech Whammy is selected, it is automatically placed before the Amp modeling as shown in the block diagram on page 19. -
Page 38: Pitch Shift
Pitch Shift (Ps) A Pitch Shifter copies the incoming signal, then shifts the pitch of the copy to a different note. The shifted note is then mixed back with the original signal, sounding as if two guitars were playing different notes. Shift Amount - Knob 2 selects the interval of the shifted pitch. -
Page 39: Harmony Pitch Shifting
Harmony Pitch Shifting (HA) Harmony Pitch Shifting makes a copy of the incoming signal, and then changes the pitch of the copied note to a diatonically correct interval specified by the Amount parameter. A Harmony Pitch Shifter sharpens or flattens the shifted pitch in order to keep the specified interval within the selected key and scale creating a true harmony. -
Page 40: Delay
Analog Delay), dd (DigiTech Digital Delay), md (DigiTech Modulated Delay), pd ® (DigiTech Pong Delay), and td (DigiTech Tape Delay). Press this knob to turn the Delay mod- els on and off. Knobs 2, 3, and 4 have the following functions for the various Delay models:... -
Page 41: Reverb
Reverb Using reverb in recorded program material gives the listener a sense that the material is being per- formed in an actual room or hall. It is this similarity to actual acoustic spaces that makes reverber- ation a useful tool in recorded music. The RP155 features genuine Lexicon reverbs, whose rich, ®... -
Page 42: Section Four - Other Functions
Section Four - Other Functions Phrase Looper The RP155 features a built-in 20 second Phrase Looper for creating on the fly performance loops of the music you play. The Phrase Looper can be accessed any time during performance and used with any of the RP’s presets. -
Page 43: Drum Machine
While the Phrase Looper is active, the left Down Footswitch cannot be used to select presets. The right Up Footswitch can still be used navigate through all of the RP’s presets. To select the next preset up, press the right Up Footswitch quickly to advance to the next preset. To select a previous preset, press and hold the right Up Footswitch and the presets will slowly scroll back- wards until the footswitch is released. -
Page 44: Optional Passive Volume/Continuous Control Pedal
Optional Passive Volume/Continuous Control Pedal Connect a passive volume or continuous control pedal to the RP155’s Control In jack to control the RP155’s Volume, Wah, or Whammy™ in real time with your foot. Turn on the Wah or Wham- my to control it with the optional pedal, or turn on both the Wah and the Whammy to control both simultaneously. -
Page 45: Specifications
Section 5 - Appendix Specifications General Specifications A/D/A Converter: 24-bit high performance audio Sampling Frequency: 44.1 kHz DSP Section: AudioDNA2™ DSP Processor Simultaneous Effects: 11 Preset Memory: 50 User Presets (1-50) / 50 Factory Presets (51-00) Phrase Looper: 20 seconds of record time Drum Machine: 60 Patterns "... - Page 46 Digital Connections: Universal Serial Bus (USB): Type B, supports USB1.1 Full Speed (12 Mbps Bandwidth USB 2.0 compatible) RP155 USB Recording Specifications: Sample Rate: 44.1 kHz Bit depth: supports 16-bit or 24-bit (depends on setup in Recording Software) Power Requirements: US and Canada: 120 VAC, 60 Hz Adapter: PS0913B-120 Japan: 100 VAC, 50/60 Hz Adapter: PS0913B -100 Europe: 230 VAC, 50 Hz Adapter: PS0913B -230...
-
Page 47: Tone Library
Tone Library Overdrive Rock Wah Rock 1 Chunky Rock 2 Smooth Blues 1 Heavy Blues 2 Clean 1 Metal 1 Clean 2 Metal 2 British 1 Country 1 British 2 Country 2 American 1 Warm Drive American 2 Crunch Tube Drive Texas Tone Distortion Rockabilly... -
Page 48: Effects Library
Effects Library Chorus Chorus + Digital Delay Phaser Chorus + Delay + Reverb Flanger Flanger + Analog Delay Pitch Phaser + Tape Delay Tremolo Phaser + Mod Delay Rotary Phaser + Room Reverb Envelope Filter Digital Delay + Hall Reverb Digital Delay Analog Delay + Spring Analog Delay... - Page 52 Printed in China ©2009 Harman International Industries, Incorporated, all rights reserved. DigiTech and the RP155 are trademarks of the Harman Music Group. Other product names modeled in this product are trademarks of their respective companies that do not endorse and are not associated or affiliated with DigiTech. They are trademarks of other manu- facturers and were used merely to identify products whose sounds were reviewed in the creation of this product.
