MIDI AND AUDIO SETUPS

5) Outputs - These are the main left and right audio outputs of the
Valve FX. Use both outputs when possible since Programs are set
up to take advantage of stereo effects. When the Output mode is
set to mono, either output can be used.
6) Input - This is the audio input to the Valve FX. Plug your instru-
ment in here. This input is disengaged when the front panel input
is used.

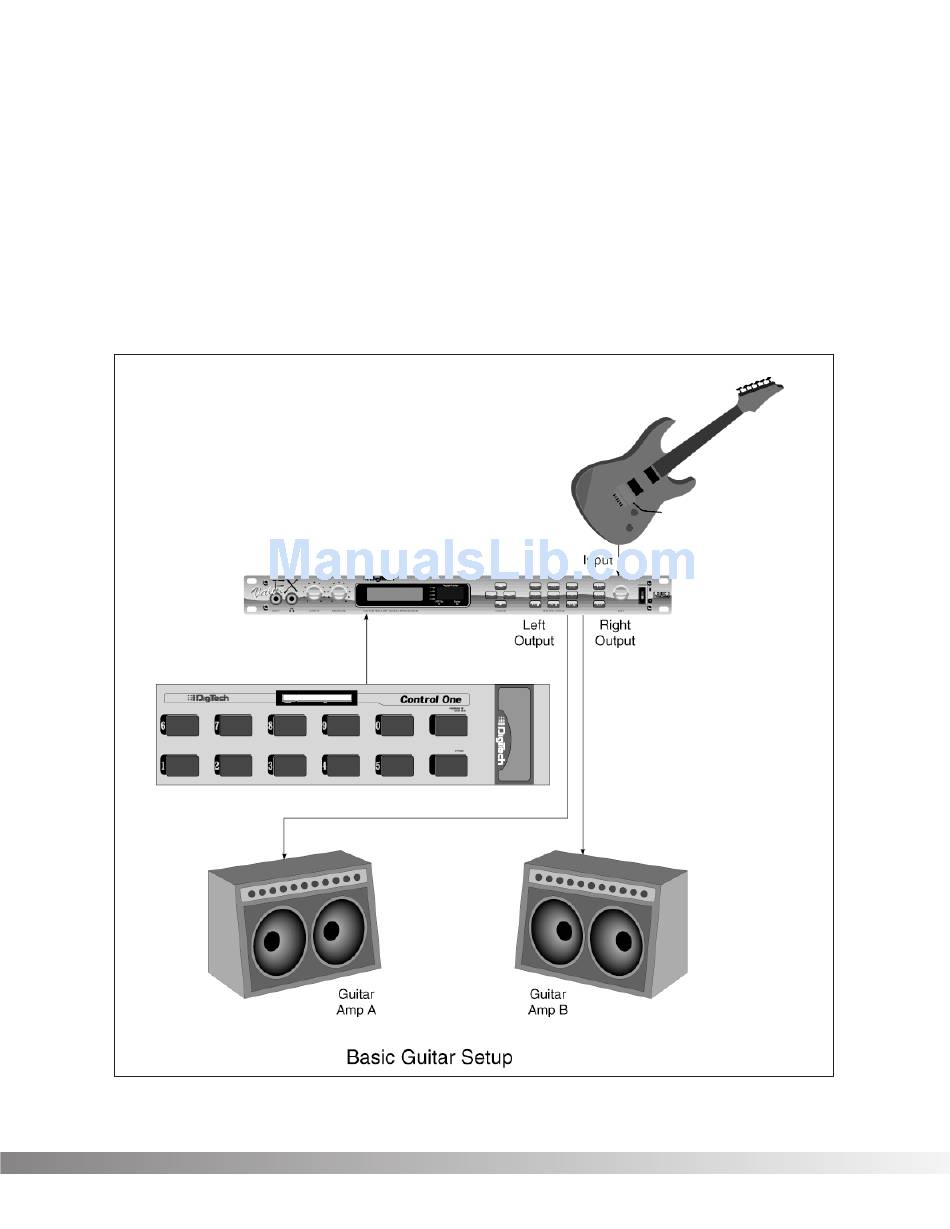

The following diagrams show possible MIDI and audio routing setups
for the Valve FX.
9
Section 1 - Startup
