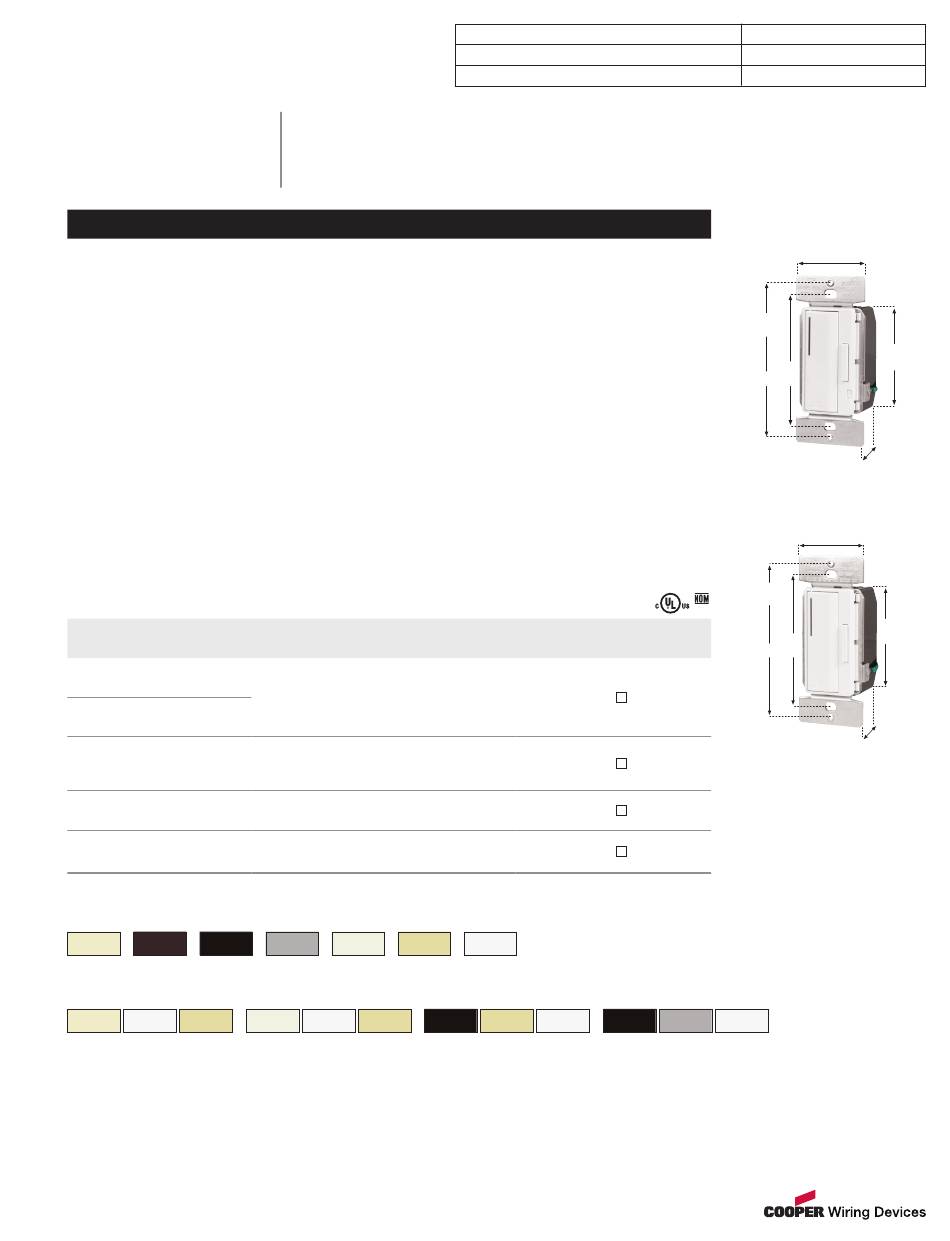

Eaton ACCELL AL Series Manual

Wallbox Lighting Controls
ACCELL AL Series
Smart Dimmers
ACCELL Smart Dimmers
Features
• Electro-mechanical push pad for ON/OFF
operation with separate DIM/BRIGHT bar
• Preset feature allows user to return to
previous light setting when turning lights ON
• Master/Accessory units for multi-location
control
• Amber LED at bottom of LED display
indicates ON/OFF load status
• Seven step green LED display on push pad
indicates selected light level – and reduces
brightness when OFF (nightlight feature)
• Pressing and holding push pad for 2 seconds
when dimmer is OFF brings light to full
brightness without affecting preset levels
• Offers a 10 second delayed-OFF feature by
pressing and holding push pad for 2 seconds
when dimmer is ON
ACCELL Smart Dimmers, Wire Leads
Rating Compatible
Watt V/AC Lamp Types
Dimmable
300 120
LED/CFL
INC, HAL, FLR,
600 120
MLV, ELV
- 120 -
- - -
- - -
Color Ordering Information
For ordering devices, include Cat. No. followed by the color code: A (Almond), B (Brown), BK (Black), GY (Gray) LA (Light Almond), V (Ivory), W (White)
A B BK
(Almond) (Brown) (Black)
Color Kit Color Combinations and Ordering Suffixes (for select models):
A W V
C1 Color Kit
A (Almond), W (White), V (Ivory)
Specifications and availability subject to change without notice.
TESTING & CODE COMPLIANCE
• cULus Listed to UL1472, file no. E47967
• NOM Certified
Single-Pole & Multi-Location
300W Dimmable LED, Dimmable Compact Fluorescent (CFL)
600W/VA Incandescent (INC)/Halogen (HAL), Dimmable Fluorescent (FLR),
Magnetic Low-Voltage (MLV), Electronic Low-Voltage (ELV)
• Digital circuitry provides aesthetically pleasing
soft-ON/fade-OFF that extends lamp life
• Programmable rapid start feature ensures
lamp start-up even at low dim levels
• Adjustable low-level trim setting for optimal
lamp compatability
• Air-gap switch disconnects power from load,
forcing an OFF condition
• Adjustable high-level trim setting for additional
energy savings
• Color change kits are available to allow for
quick changes and less inventory
• Tri-color packaging which provides one unit
box with three color faceplates
Description
Smart Dimmer Master, All-Load, Single-
Pole/Multi-Location with Presets and LEDs.
Neutral Required.
Accessory Dimmer, Multi-Location
with Presets and LEDs. Must be used with
AAL06.
Master Dimmer Color Change Faceplate
Accessory Dimmer Color Change Faceplate
GY LA V
(Gray) (Lt. Almond) (Ivory)
LA W V
C2 Color Kit
LA (Light Almond), W (White), V (Ivory)
MATERIAL CHARACTERISTICS
• Environmental: Flammability meets UL 94 requirements; V2 rated
• Temperature Rating: 0ºC to 40ºC (32°F to 104°F)
www.cooperwiringdevices.com
Project Name:
Project Number:
Catalog Number:
Color Suffix Catalog No.
C1, C2, C4,
C5
A, B, BK, C1,
C2, GY, LA,
V, W
A, B, BK, GY,
LA, V, W
A, B, BK, GY,
LA, V, W
W
(White)
BK V W BK
C4 Color Kit
BK (Black), V (Ivory), W (White)
Page 1
Prepared By:
Date:
Type:
3.70"
(94.0mm)
3.21"
(81.5mm)
AAL06
3.70"
(94.0mm)
426
3.21"
(81.5mm)
AAL06-___
ARD
ARD-___
AMC-___-BP
ARC-___-BP
GY W
C5 Color Kit
BK (Black), GY (Gray), W (White)
1.80"
(45.7mm)
2.59"
(65.8mm)
1.25"
(31.8mm)
1.80"
(45.7mm)
2.59"
(65.8mm)
1.25"
(31.8mm)
