curt 11602 Manual

11602
4/12/2010
GROSS LOAD CAPACITY WHEN USED AS A WEIGHT CARRYING HITCH:
***DO NOT EXCEED VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY.***
WARNING: ALL NON-TRAILER LOADS APPLIED TO THIS PRODUCT MUST BE SUPPORTED BY 18050 STABILIZING STRAPS.
** FAILURE TO PROPERLY SUPPORT NON-TRAILER LOADS WILL VOID PRODUCT WARRANTY**
HAVING INSTALLATION QUESTIONS? CALL TECHNICAL SUPPORT AT
Parts List
ITEM QTY PART NUMBER
1 4
3/8-16 X 1 1/2 HEX BOLT
2 4 3/8" WASHER
3 7 3/8" LOCK WASHER
4 7 3/8 - 16 HEX NUT
5 3 CM-SP1 .250 x 1.50 x 2.00" SQUARE HOLE SPACER
6 3 3/8-16 x 1 1/2 CARRIAGE BOLT
7 1 3_8 FISHWIRE 3/8" FISHWIRE
2
HITCH WEIGHT: 13 LBS.
INSTALL TIME
30
PROFESSIONAL: MINUTES
60
NOVICE (DIY): MINUTES
INSTALL NOTES:
- DRILLING REQUIRED
- TEMPORARILY REMOVE
LICENSE PLATE
- FISHWIRE HARDWARE

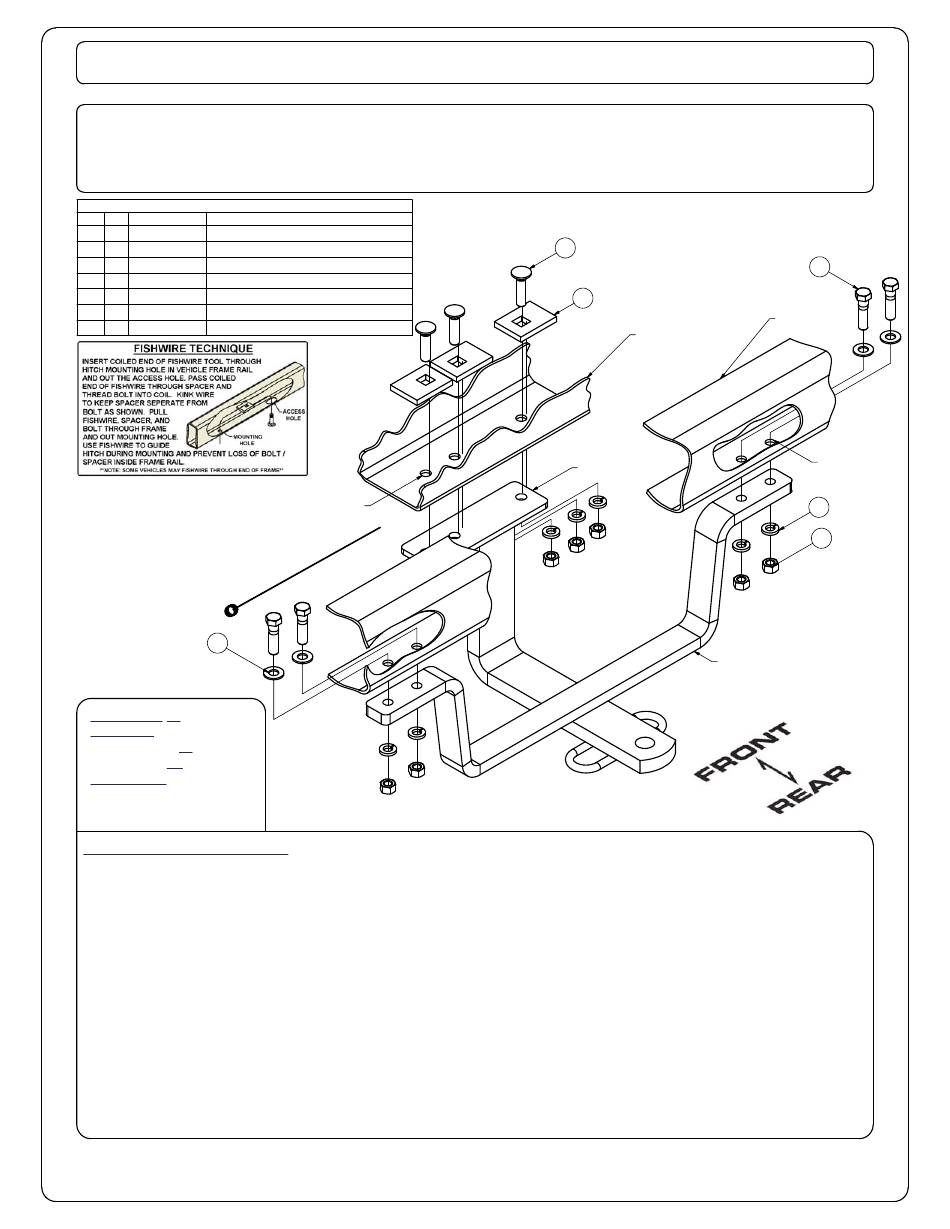

INSTALLATION STEPS
1. Temporarily remove the license plate. On the underside of the vehicle's rear bumper next to the license plate
recess, remove (3) fasteners on both sides that attach the bumper beam to the vertical stiffeners inside
the channel.
2. The hitch bumper bracket will bolt up to the same holes. These holes must be drilled to accept 3/8" fasteners.
Drill up through the hitch bumper bracket to open the holes.
3. Using hitch as a template mark and drill the vehicle's box section for 3/8" fasteners. The 3/8" fastener
and CM-SP1 spacer on the passenger side need to be fishwired into the vehicle's box section. Drill a 1" hole
through the bottom of the box section just outboard of the hitch tail bracket to fishwire this hardware.
4. Bolt the hitch in place using fasteners as shown. Torque all 3/8" fasteners to 30 lb-ft.
5. Reinstall license plate.
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE THAT ALL FASTENERS
ARE TIGHT AND THAT ALL STRUCTURAL COMPONENTS ARE SOUND.
Curt Manufacturing Inc., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective,
Curt Manufacturing Inc., may repair or replace the product, at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of
this product voids the warranty. Curt Manufacturing Inc.'s liability is limited to repair or replacement of products found to be defective, and specifically excludes liability for incidental or
consequential loss or damage.
217318
81-85 MAZDA RX-7
DESCRIPTION
DRILLED HOLES
1,000 LBS. TRAILER WEIGHT &
1-800-798-0813
6
5
REAR BOX
SECTION
TAIL BRACKET
100 LBS. TONGUE WEIGHT.
1
BUMPER BEAM
DRILLED HOLES
(BOTH SIDES)
3
4
BUMPER BRACKET
