Delta RS4200 Assembly Instructions

bike hanger
Assembly instructions
1

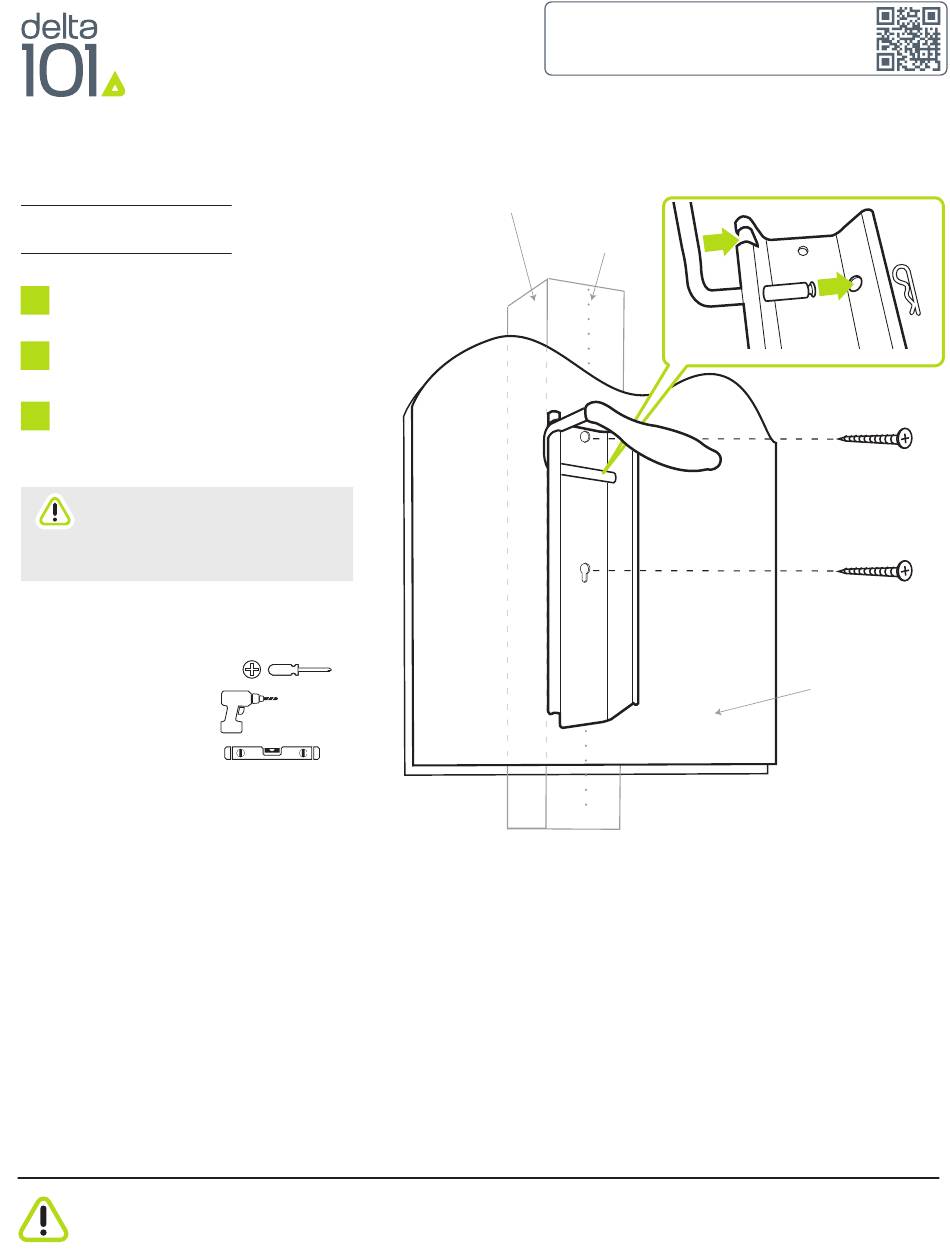

Locate stud beneath wallboard.
2
Slide hook into base and lock into pin.
Position plate at desired height and
3
screw into place. (screws should be
in center of wall stud)
IMPORTANT SAFETY NOTE
Make sure hook is secured to base
using locking pin, and that the plate
is mounted level
Tools Required
Phillips Head Screwdriver
Hand Drill 1/8"(3mm)
Spirit Level
Way of locating studs within the wall
(see hardware store for advice)
WARNING
Do not exceed maximum total weight limit of 18kg/40lbs. Incorrect wall mounting could result in items falling and injury
to persons. Avoid mounting in a position where personal injury could result from walking into protruding rack.
RS4200
Assembly video
Visit designbydelta.com/downloads
STUD
STUD
CENTERLINE
WALLBOARD
