curt 13524 Manual

13524
7/2/2020
GROSS LOAD CAPACITY WHEN USED AS A WEIGHT CARRYING HITCH:
***DO NOT EXCEED VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY.***
Parts List
ITEM QTY PART NUMBER DESCRIPTION
1 4 10-10487 M12 - 1.25 x 50 HEX BOLT
2 4 30-00149 WASHER,S-CON,1/2,YZ
2
HITCH WEIGHT: 24 LBS.
INSTALL TIME
PROFESSIONAL: 10 MINUTES
NOVICE (DIY): 20 MINUTES
INSTALL NOTES:
-NO DRILLING REQUIRED

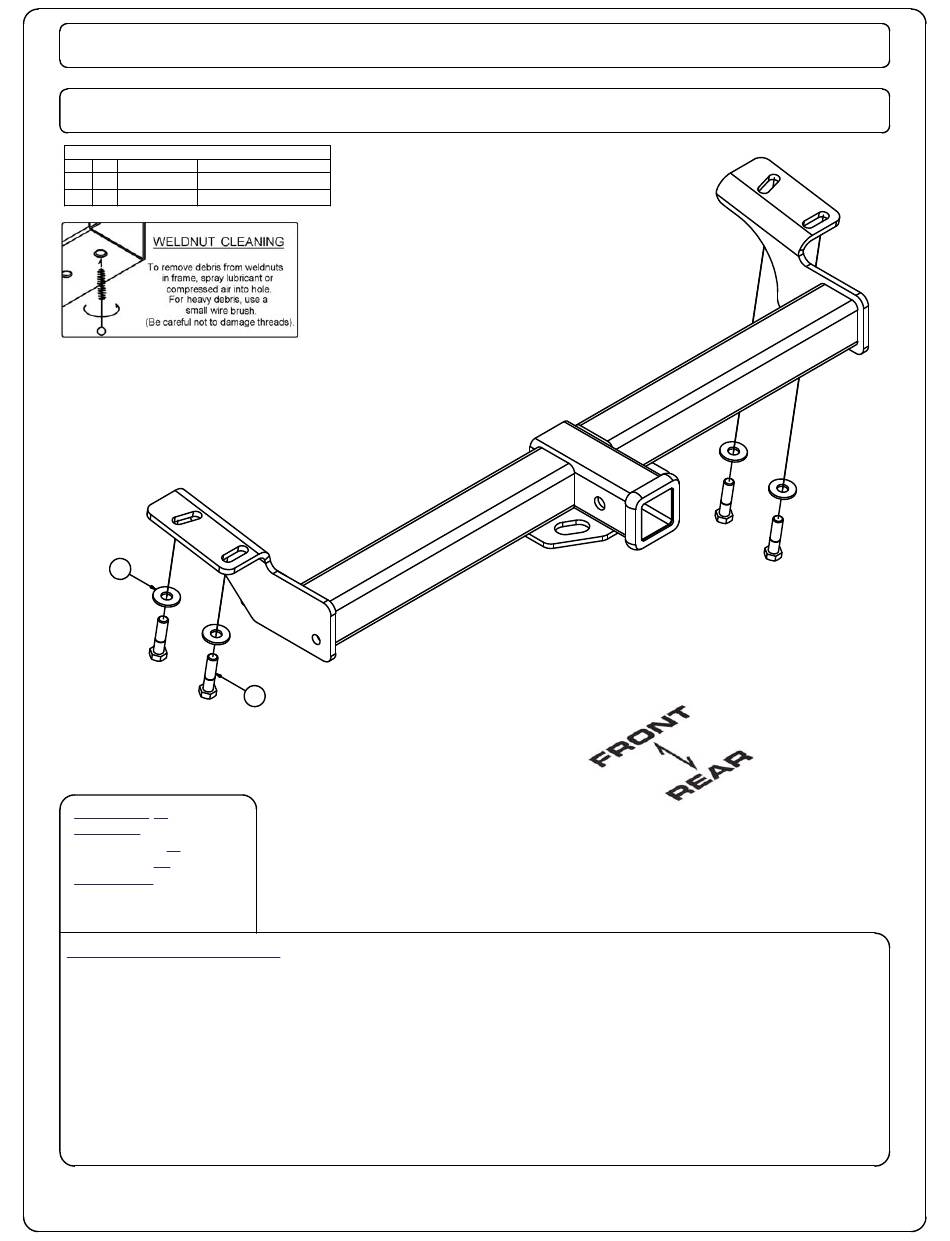

INSTALLATION STEPS
1) Remove tow hooks if present.
2) Remove the two rearmost M12 fasteners from the vehicle frame. (both sides)
3) Raise the hitch into position and loosely reinstall the two M12 fasteners.
4) Tighten all fasteners. Torque fastener to 110 ft-lbs.
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE THAT ALL FASTENERS
ARE TIGHT AND THAT ALL STRUCTURAL COMPONENTS ARE SOUND.
Curt Manufacturing LLC., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective,
Curt Manufacturing LLC., may repair or replace the product, at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of
this product voids the warranty. Curt Manufacturing LLC.'s liability is limited to repair or replacement of products found to be defective, and specifically excludes liability for incidental or
consequential loss or damage.
96-05 TOYOTA RAV 4
1
4,000 LBS. TRAILER WEIGHT & 400 LBS. TONGUE WEIGHT.
