curt 13575 Manual

13575
7/10/2020
GROSS LOAD CAPACITY WHEN USED AS A WEIGHT CARRYING HITCH:
***DO NOT EXCEED VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY.***
ITEM QTY PART NUMBER
1 6 10-10419
2 6 30-00149
3 2 10-10440
4 2 30-00148
DRIVER SIDE
FRAME RAIL
EXISTING WELDNUTS
(ALL)
HITCH WEIGHT: 30 LBS.
INSTALL TIME: 30 MINUTES
INSTALL NOTES:
- NO DRILLING REQUIRED
INSTALLATION STEPS

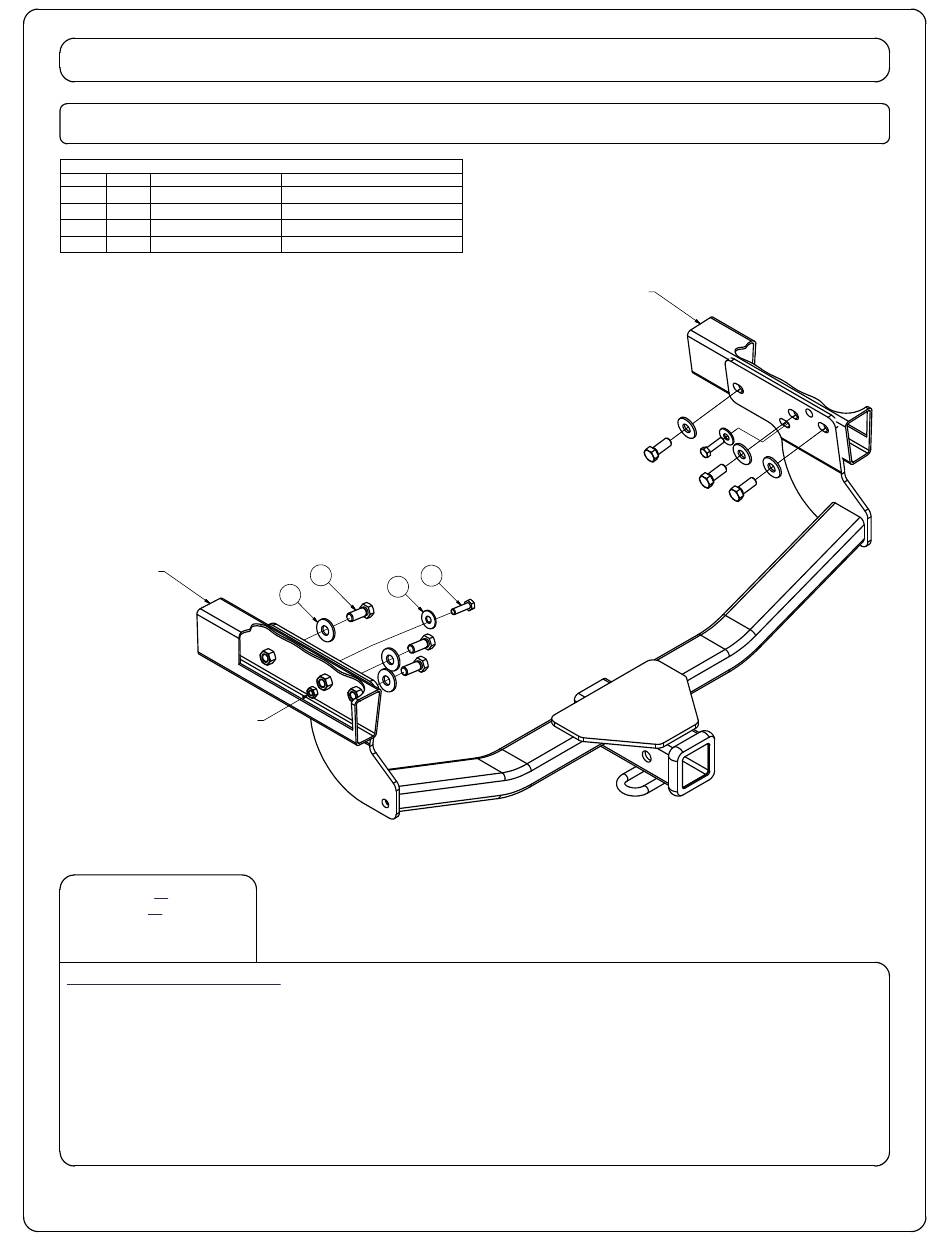

1) Raise hitch into position.
2) Attach, finger tight, with (3) M12 hex bolts and 1/2" conical toothed washers and (1) M8 hex bolt with
a 3/8" conical washer per side.
3) Torque all M12 hardware to 86 ft.-lb. and all M8 hardware to 23 ft.-lb.
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE THAT ALL FASTENERS
ARE TIGHT AND THAT ALL STRUCTURAL COMPONENTS ARE SOUND.
Curt Manufacturing Inc., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective,
Curt Manufacturing Inc., may repair or replace the product, at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of
this product voids the warranty. Curt Manufacturing Inc.'s liability is limited to repair or replacement of products found to be defective, and specifically excludes liability for incidental or
consequential loss or damage.
MAZDA CX-9
Parts List
DESCRIPTION
HHCS,M12x1.25,30,CL10.9,YZ
WASHER,S-CON,1/2,YZ
HHCS,M8x1.25,30,CL10.9,YZ
WASHER,S-CON,3/8,YZ
1
4
2
4000 LBS. TRAILER WEIGHT &
PASSENGER SIDE
FRAME RAIL
3
400 LBS. TONGUE WEIGHT.
