Sutcliffe Play BARK PARK WUF003 Jump Through Installation Instructions

Hide thumbs
1
2
3
4
5

Advertisement

Quick Links

Download this manual
BARK PARK
WUF003 Jump Through
Installation Instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the BARK PARK WUF003 Jump Through and is the answer not in the manual?

Questions and answers

Related Manuals for Sutcliffe Play BARK PARK WUF003 Jump Through

Summary of Contents for Sutcliffe Play BARK PARK WUF003 Jump Through

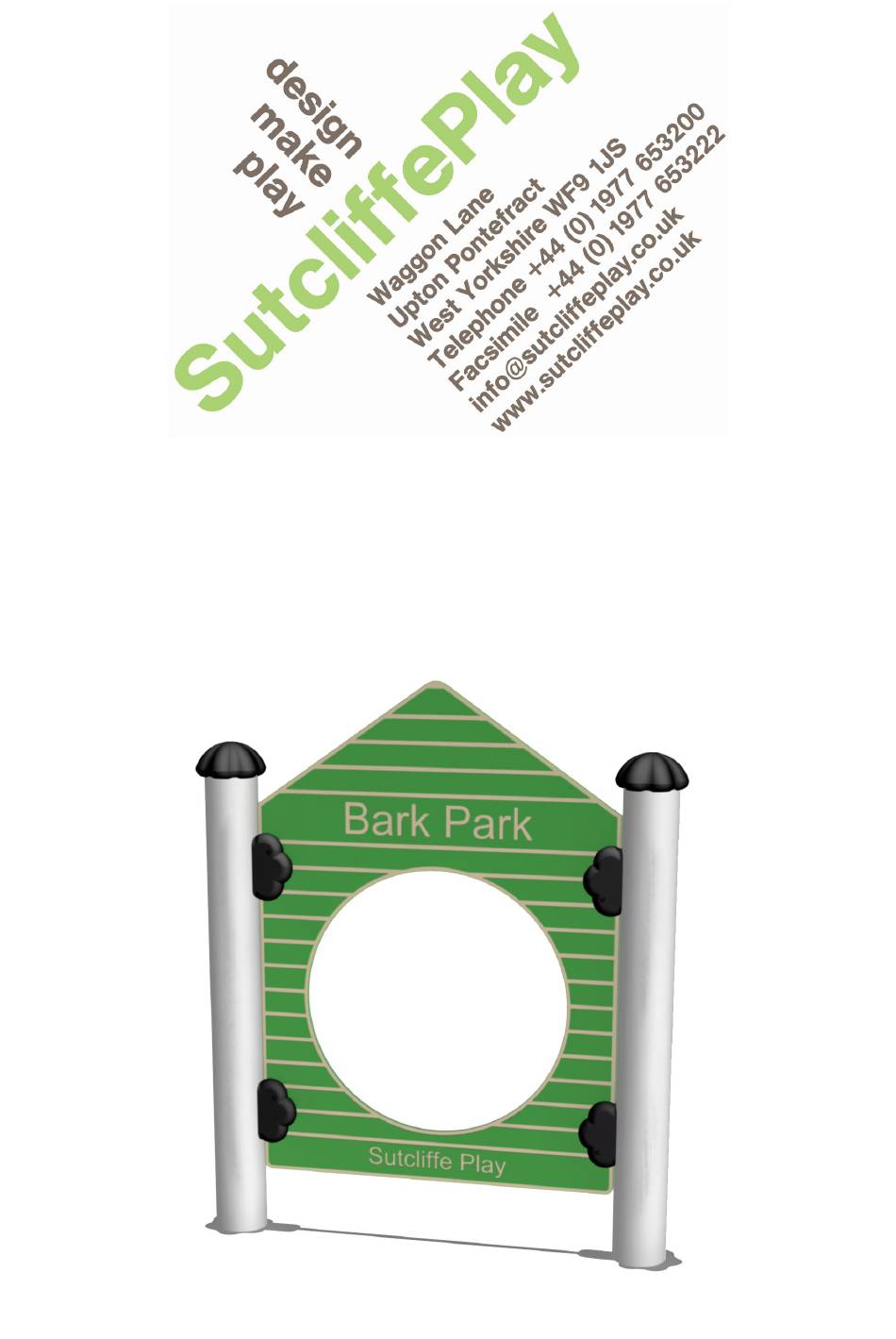

  • Page 1 BARK PARK WUF003 Jump Through Installation Instructions...

  • Page 2: Parts List

    WUF003 Jump Through Installation Procedure Check using the Parts List that none of the components are missing. Plan the final position of the Jump Through ensuring there is sufficient space.* Sort and identify parts before assembly. Both posts are identical. Excavate the foundation holes in accordance with the plan on Page 4.** Position 2 x 300 long spragging irons into the holes provided in each post and stand in the foundation holes.
  • Page 3 Page 3...
  • Page 4 WUF003 Jump Through Fixings and Foundation Plan 1000mm WUF013 PANEL STS295 No.12 SELF TAP SCREW LKN320 M10 NYLOC NUT DZS001 BLACK PANEL COVER WSR040 M10 PLAIN WASHER PZS001 PLASTIC BASE WSR420 M10 SERRATED WSR DZS003 MOUNTING BRACKET HSS510 M10 HEX SET SCREW Page 4...
  • Page 5 WUF003 Jump Through Maintenance Instructions Recommended Regular Inspection and Maintenance Interval Days Check stability of structure, tighten connections if required. Check all uprights at ground level for corrosion and/or rot. Replace any defective parts. Check all painted elements for damage, rub down and repaint or replace as required.
