Sutcliffe Play Mini Town Mansion MTU009 Installation Instructions Manual

Loose fill / wet pour
Hide thumbs

Advertisement

Quick Links

Download this manual

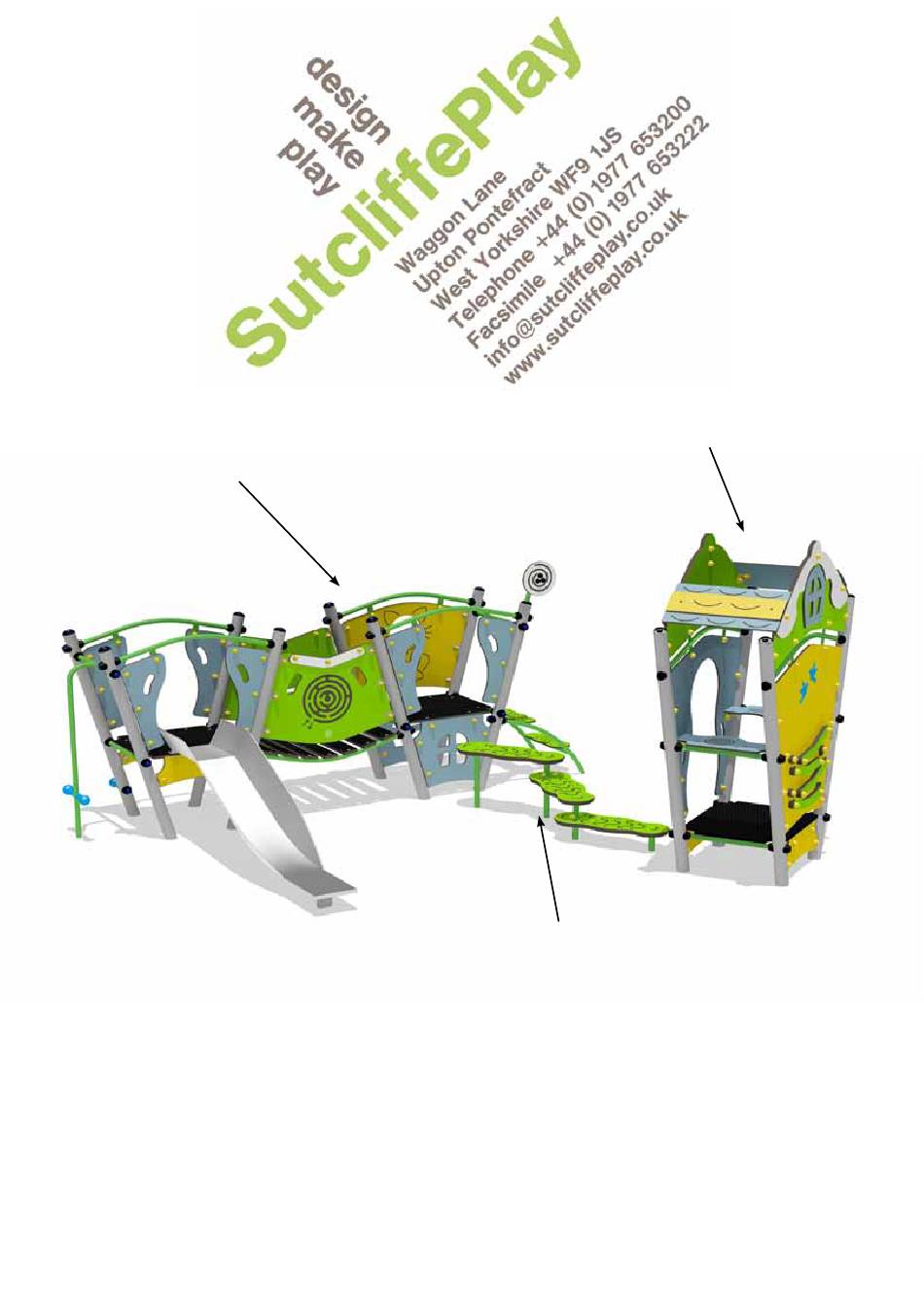

TEA SHOP SECTION
VILLA SECTION
WRIGGLER INCLINE
SECTION
Mini Town Mansion
MTU009 / MTW009
(loose fill / wet pour)
Installation Instructions
Rev 01
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Mini Town Mansion MTU009 and is the answer not in the manual?

Questions and answers

Related Manuals for Sutcliffe Play Mini Town Mansion MTU009

Summary of Contents for Sutcliffe Play Mini Town Mansion MTU009

  • Page 1 TEA SHOP SECTION VILLA SECTION WRIGGLER INCLINE SECTION Mini Town Mansion MTU009 / MTW009 (loose fill / wet pour) Installation Instructions Rev 01 Page 1...
  • Page 2 3. Excavate the foundation holes in accordance with the plan and play level, ensuring the intended safety surface area is level. If you are installing on to any significant gradient, please seek the advice of Sutcliffe Play prior to installation.
  • Page 3 MTU/MTW009 Mini Town Mansion Installation Instruction VILLA SECTION 6. Offer up final two posts (800013 x 2), repeating Fig.1 to assemble deck, Fig.2 for Curved Rails. Then attach Wriggler Steps, Straight Rail and Climbing Pegs (MTA032 x 2) to post these posts, see Fig.3 / 8 / 9. 7.
  • Page 4 MTU/MTW009 Mini Town Mansion Parts List VILLA SECTION Posts x 8 800008 x 1, 800009 x 1, 800010 x 1, Pogo Climber Spiral Spinner 800011 x 1, 800012 x 2, 800013 x 2 MTA021 x 1 MTA024 x 1 Straight Rail Climbing Pegs Bridge Support Rails MTI020 x 1...
  • Page 5 MTU/MTW009 Mini Town Mansion VILLA SECTION Parts List Cat / Dog Panel MPP021 x 1 Wriggler Step Frame Infill Panel MTI025 x 1 MPP020 x 6 Bridge Maze Panel Bridge Side Panel MPP019 x 1 MPP029 x 1 Rev 01 Page 5...
  • Page 6 MTU/MTW009 Mini Town Mansion VILLA SECTION Parts List Bridge Hand Rail MPP031 x 2 Under Deck Support Under Deck Window Bridge Slat MPP027 x 2 MPP028 x 2 MPP032 x 7 Rolling Flower MPP030 x 2 Wriggler Step Panel Deck Panel MPP026 x 2 MPP033 x 2 Rev 01...
  • Page 7 MTU/MTW009 Mini Town Mansion VILLA SECTION Parts Assembly Fig.1 MPP033 Deck MCS321 XZS012 WSR045 CZS004Y HHB542 DZS009 M10 x 110 Hex Head Bolt LKN320 XZS013B Fig.2 Fig.3 Metalwork MTA024 Windmill Spinner WSR045 HHB542 M10 x 110 Hex Head Bolt WSR045 HHB542 M10 x 110 Hex Head Bolt...
  • Page 8 MTU/MTW009 Mini Town Mansion Parts Assembly VILLA SECTION Fig.4 MCS316 M10 x 30 Countersink Bolt HSS512 M10 x 35 Hex Head Bolt CZS004Y DZS009 Fig.5 LKN320 DZS009 CZS004Y MPP020 Infill Panel Rev 01 Page 8...
  • Page 9 MTU/MTW009 VILLA SECTION Mini Town Mansion Parts Assembly LKN320 DZS009 Fig.6 CZS004Y HHB516 M10 x 45 Hex Head Bolt Bridge Hand Rail MPP031 Bridge Side Panels MPP019 / 029 DZS005 DZA195 Fig.7 LKN320 DZS009 WSR270 WSR270 HHB526 M10 x 70 Hex Head Bolt DZS005 Rolling Flower Panel...
  • Page 10 MTU/MTW009 VILLA SECTION Mini Town Mansion Parts Assembly Fig.8 Wriggler Step MPP026 MCS321 M10 x 35 Countersink Bolt Wriggler Step Frame MTI025 DZS009 LKN320 CZS004Y Fig.9 XZS013B XZS012 LKN340 Peg Climber WSR045 MTA032 Rev 01 Page 10...
  • Page 11 MTU/MTW009 VILLA SECTION Mini Town Mansion Parts Assembly HSS512 LKN320 CZS004Y Fig.10 M10 x 35 DZS009 Hex Head Bolt Cat / Dog Panel MPP021 CZS004Y Fig.11 Under Deck MCS321 Support Panel M10 x 35 Countersink MPP027 Bolt DZS009 PZA705 LKN320 CZS004Y Rev 01 Page 11...
  • Page 12 MTU/MTW009 VILLA SECTION Mini Town Mansion Parts Assembly Fig.12 HHB542 M10 x 110 Hex Head Bolt Stainless Steel Chute TSL938 DZS005 DZS005 LKN320 Chute Pedestal DZS009 PED100 Fig.13 DZS009 FIX159 M10 x 40 Security Bolt WSR040 LKN320 HSS512 M10 x 35 CZS004Y Hex Head Bolt Rev 01...
  • Page 13 MTU009 Mini Town Mansion Loose Fill Installation Additional supports for loose fill installation: MTA001GAL MTA002GAL Bolt MTA001GAL to post legs and MTA002GAL to activity plates with their attached fixings to lengthen them for concrete beneath 300mm loose fill. Rev 01 Page 13...
  • Page 14 Minitown Mansion MTU009 / MTW009 (loose fill / wet pour) Tea Shop Section Installation Instructions Rev 01 Page 1...
  • Page 15 3. Excavate the foundation holes in accordance with the plan and play level, ensuring the intended safety surface area is level. If you are installing on to any significant gradient, please seek the advice of Sutcliffe Play prior to installation.
  • Page 16 MTU/MTW009 Tea Shop Section Installation Instruction 6. Offer up Drainer & Cooker panels (MPP038 & MPP039), attaching each panel to the deck support rails. Then using the steel angle brackets supplied (PZA705) attach to the door and Pots & Pans panels see Pages 15 & 16. 7.
  • Page 17 MTU/MTW009 Tea Shop Section Parts List POTS AND PANS PANEL DECK PANEL DOOR PANEL MPP036 x 1 MPP033 x 1 MPP035 x 1 ROOF DETAIL PANEL WINDOW PANEL GABLE PANEL MPP040 x 2 MPP037 x 2 MPP042 x 2 UNDER DECK PANEL DRAINER PANEL COOKER PANEL MPP027 x 2...

  • Page 18: Roof Panel

    MTU/MTW009 Tea Shop Section Parts List ROOF TILE PANEL ROOF PANEL MPP047 x 2 MPP041 x 2 FRONT PANEL 1 SPACER PANEL 1 MPP045 x 1 MPP044 x 1 FRONT PANEL 2 SPACER PANEL 2 MPP046 x 3 MPP043 x 3 Rev 01 Page 5...
  • Page 19 MTU/MTW009 Tea Shop Section Parts List CURVED RAIL DECK RAIL MTI033 x 2 MTI023 x 4 STEEL BIRD PLATE STEEL ANGLE BRACKET DZA641 x 2 PZA705 x 12 MARBLE END STOP RUBBER BUCKET MZA203 x 1 Rev 01 Page 6...

  • Page 20: Rubber Cap

    MTU/MTW009 Tea Shop Section Parts List RUBBER CAP RUBBER POST MOULDING RUBBER MOULDING XZS013 x 12 MZS001 x 4 XZS012 x 24 POSTS MTP120 x 4 Rev 01 Page 7...

  • Page 21: Frame Assembly

    MTU/MTW009 Tea Shop Section Parts Assembly FRAME ASSEMBLY For assembling the Frame, you will need the following fixings from the kit: 1 - Curved Rail (MTI033) x 2 2 - Deck Support Rail (MTI023) x 4 3 - Rubber Post Moulding (XZS012) x 24 4 - Form G Washer (WSR045) x 12 5 - M10 x 100 Hex Head Bolt (HHB542) x 12 6 - Moulded Rubber Cap (XZS013B) x 12...
  • Page 22 MTU/MTW009 Tea Shop Section Parts Assembly DECK ASSEMBLY x 1 For assembling the Deck panel, you will need the following fixings from the kit: 1 - Deck Panel (MPP033) x 1 2 - Deck Support Rail (MTI023) Attached To Frame x 2 3 - Steel Angle Bracket PZA705 (Attached to Deck Support Panels) 4 - M10 x 35 Countersunk Screw (MCS321) x 8 5 - Stepped Washers (DZS009) x 8...
  • Page 23 MTU/MTW009 Tea Shop Section Parts Assembly Panels To Posts And Rails For assembling the panels to the posts and rails, you will need the following fixings from the kit: 1 - Yellow Nut Caps (CZS004Y) x 20 2 - M10 x 35 Hex Head Bolt (HSS512) x 10 3 - Stepped Washers (DZS009) x 20 4 - M10 Nylon Lock Nuts (LKN320) x 10 Rev 01...
  • Page 24 MTU/MTW009 Tea Shop Section Parts Assembly GABLE ASSEMBLY x 2 For assembling the Gable panels, you will need the following fixings from the kit: 1 - Gable Panel (MPP042) x 2 2 - Roof Detail Panel (MPP040) x 2 3 - Window Panel (MPP037) x 2 4 - Yellow Nut Caps (CZS004Y) x 18 5 - M10 Nylon Lock Nuts (LKN320) x 12 6 - Stepped Washers (DZS009) x 18...
  • Page 25 MTU/MTW009 Tea Shop Section Parts Assembly ROOF ASSEMBLY x 2 For assembling the Roof panels, you will need the following fixings from the kit: 1 - Roof Tile Panel (MPP047) x 2 2 - Large Roof Panel (MPP041) x 2 3 - Steel Angle Bracket (PZA705) x 4 4 - Yellow Nut Caps (CZS004Y) x 8 5 - M10 x 50 Hex Head Bolt (HHB518) x 4...
  • Page 26 MTU/MTW009 Tea Shop Section Parts Assembly DOOR ASSEMBLY x 1 For assembling the Door panel, you will need the following fixings from the kit: 1 - Door Panel (MPP035) x 1 2 - Angle Bracket (Attached To Cooker And Drainer Panels) 3 - M10 Nylon Lock Nuts (LKN320) x 2 4 - Stepped Washers (DZS009) x 4 5 - Yellow Nut Caps (CZS004Y) x 4...
  • Page 27 MARBLE RUN ASSEMBLY x 1 MTU/MTW009 Tea Shop Section Parts Assembly For assembling the Marble Run, you will need the following fixings from the kit: 1 - Pots/Pans Panel (MPP036) x 1 2 - Marble Run Spacer A (MPP043) x 3 3 - Front Marble Panel A (MPP046) x 3 4 - Marble Run Spacer B (MPP044) x 1 5 - Front Marble Panel B (MPP045) x 1...
  • Page 28 MTU/MTW009 Tea Shop Section Parts Assembly COOKER PANEL ASSEMBLY x 1 For assembling the Cooker panel, you will need the following fixings from the kit: 1 - Cooker Panel (MPP038) x 1 2 - Deck/Panel Support Rail (MTI023) Attached To Frame 3 - Steel Angle Bracket (PZA705) x 2 4 - M10 x 35 Countersunk Screw (MCS321) x 4 5 - M10 x 35 Hex Head Screw (HSS512) x 1...
  • Page 29 MTU/MTW009 Tea Shop Section Parts Assembly DRAINER PANEL ASSEMBLY x 1 For assembling the Drainer panel, you will need the following fixings from the kit: 1 - Drainer Panel (MPP039) x 1 2 - Deck/Panel Support Rail (MTI023) Attached To Frame 3 - Steel Angle Bracket (PZA705) x 2 4 - M10 x 35 Countersunk Screw (MCS321) x 4 5 - Stepped Washers (DZS009) x 4...
  • Page 30 MTU/MTW009 Tea Shop Section Parts Assembly DECK SUPPORT ASSEMBLY x 2 For assembling the Deck support panel, you will need the following fixings from the kit: 1 - Under Deck Panel (MPP027) x 1 2 - Steel Angle Bracket (PZA705) x 2 3 - Stepped Washers (DZS009) x 4 4 - M10 Nylon Lock Nuts (LKN320) x 2 5 - Yellow Nut Caps (CZS004Y) x 4...
  • Page 31 MTU009 Tea Shop Section Loose Fill Installation Extension Pedestal for loose fill installation: MTI003 - EXTENSION PEDESTAL Bolt MTI003GAL to post legs with their attached fixings to lengthen them for loose fill installation Wet Pour Installation Loose Fill Installation Rev 01 Page 18...
  • Page 32 Wriggler Incline Parts List Mini Town MTI031 x 1 MTI027 x 1 MTI029 x 2 MTI028 x 1 MTI030 x 1 MPP034 x 3 MPP025 x 3 Rev 01 Page 2...
  • Page 33 Wriggler Incline Mini Town Parts Assembly For assembling the Wriggler Platform, you will need the following fixings from the kit: M10 x 50 Countersink Bolts (MCS335) x 8 M10 x 45 Countersink Bolts (MCS331) x 3 M10 x 60 Hex Head Bolts (HSS522) x 4 M10 Nylon Lock Nuts (LKN320) x 15 Stepped Washers (DZS009) x 19 Yellow Nut Caps (CZS004Y) x 19...
  • Page 34 MTU/MTW009 Mini Town Mansion Maintenance Instructions NB: The warranty is invalidated if these instructions are not followed. All wood needs annual inspection and retreatment where required. Recommended Regular Inspection and Maintenance Interval Days Check stability of structure, tighten connections if required. Check rotating and pivot points for wear and smooth running, lubricate or replace if required.

This manual is also suitable for:

Mini town mansion mtw009
