EVM User's Guide: DP83867 DP83869
ASPEED Ethernet PHY Evaluation Module
Description
The ASPEED Ethernet PHY EVM is a daughter card
intended to connect to ASPEED's AST2600 EVB
to show how the DP83867 and DP83869 Ethernet
PHYs can be used in a Board Management Controller
(BMC) system. The EVM contains four PHYs each
capable of 10/100/1000Mbps data rate.
SNLU353 – OCTOBER 2024
Submit Document Feedback
Features
Applications

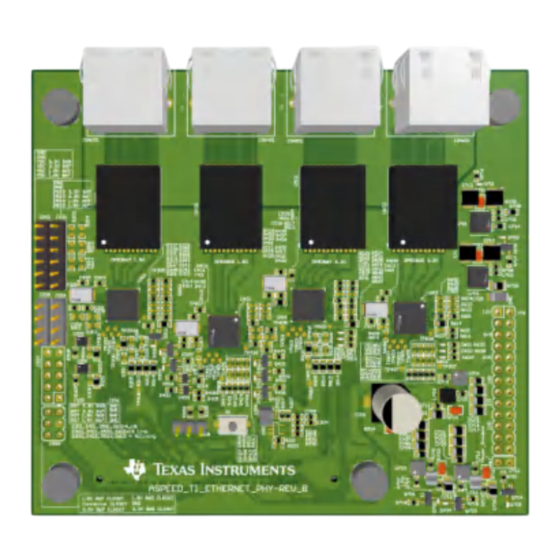

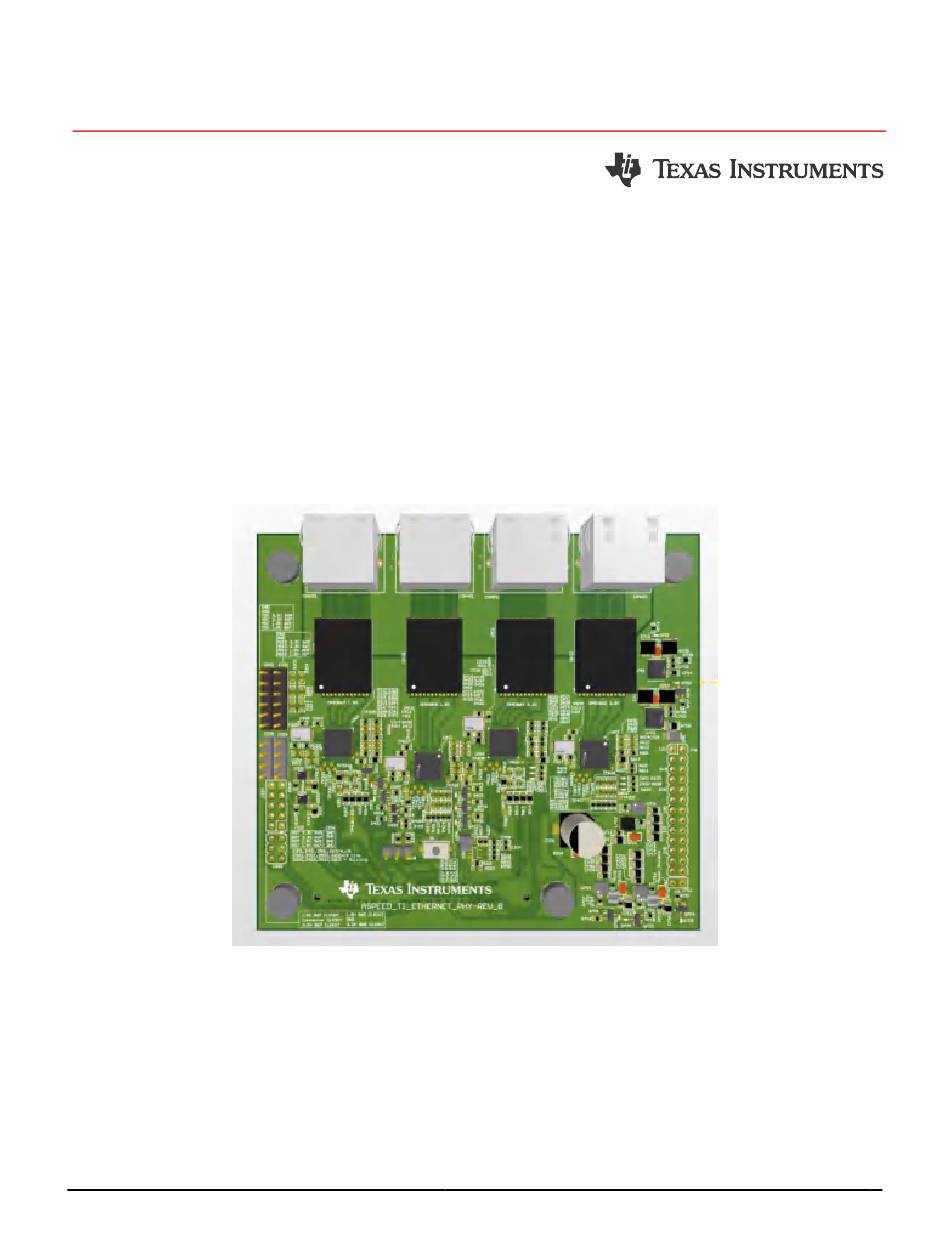

ASPEED Ethernet PHY EVM Top View
Copyright © 2024 Texas Instruments Incorporated
RGMII interface for each PHY
USB2MDIO support
Support for VDDIO = 1.8V or 3.3V
Status LEDs:
– Link Status
– Link Activity
Manual reset
Server diagnostic testing
Server monitoring
Running mactest utility
ASPEED Ethernet PHY Evaluation Module
Description
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP83867 and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments DP83867

  • Page 1 RGMII interface for each PHY intended to connect to ASPEED’s AST2600 EVB • USB2MDIO support to show how the DP83867 and DP83869 Ethernet • Support for VDDIO = 1.8V or 3.3V PHYs can be used in a Board Management Controller •...
  • Page 2: Specification

    1 Evaluation Module Overview 1.1 Introduction The ASPEED Ethernet PHY EVM helps the user evaluate the features of Texas Instruments’ DP83867 and DP83869 in a Board Management Controller (BMC) context. This User’s Guide details how to properly operate and configure the EVM. The guide also includes hardware and software setup instructions for the ASPEED AST2600 EVB which the EVM is intended to connect to.
  • Page 3 First, open the following file: [BUILD_DIR]/openbmc/build/evb-ast2600/tmp/work/evb_ast2600-openbmc-linux- gnueabi/u-boot-aspeed-sdk/v2019.04+git/git/drivers/phy/Kconfig c. Then, edit the Kconfig file by adding the lines circled below. d. Second, add the DP83867 and DP83869 driver files to the proper directory. Open this TI-maintained repository and copy the DP83867.c and DP83869.c files.
  • Page 4 Then, make sure that the output of the command matches the output below to confirm that the Ethernet PHY drivers have been properly bound. ASPEED Ethernet PHY Evaluation Module SNLU353 – OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 5 To change the IPv4 address of a specific PHY, run the following command in Tera Term: 1. ifconfig eth0 [IPv4_ADDRESS] 2. Note: the above command affects eth0 (the name assigned to the DP83867 PHY with VDDIO = 1.8 V). To configure other PHYs, use the names eth1, eth2, eth3. The block diagram in...
  • Page 6 PHY. Additionally, for 100 Mbps tests, these pockets are larger in area because the timing requirements are more relaxed. Figure 2-1. mactest Output for 1 Gbps MAC Interface ASPEED Ethernet PHY Evaluation Module SNLU353 – OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 7 “GND” pins. The 12V connection is the top left pin in J701, while GND pins are any pins on the outer side of the header. Figure 3-1. Power Rail for Standalone Operation SNLU353 – OCTOBER 2024 ASPEED Ethernet PHY Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 8: Status Leds

    LEDs are active when there is any receive or transmit activity. The link status and link activity LEDs for the DP83867 with VDDIO = 1.8V is shown below (the silkscreen designators are D302 and D303).
  • Page 9 EVM using the J701 jumper header as described here. Once the board is powered on this rail, the user can connect jumper wires from a microcontroller like Texas Instruments's LaunchPad here. Connect the LaunchPad's MDC/MDIO jumpers to the EVM's MDC/MDIO jumpers of the desired PHY. Please reference the silkscreen below for jumper selection.
  • Page 10: Manual Reset

    This is achieved by driving the active-low pins of each PHY to LOW. The reset circuitry also has an automatic reset that is triggered when VCC (OVDD_3V3) falls below 2.93V. Figure 3-6. Manual Reset Push Button ASPEED Ethernet PHY Evaluation Module SNLU353 – OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 11 PHY. The software is available to download along with the user's guide in the link: USB2MDIO. SNLU353 – OCTOBER 2024 ASPEED Ethernet PHY Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 12 P3_CLKOUT MAC4LINK GPIOF3 P2_CLK125 P1_CLKOUT P2_CLK125 P2_CLK125 R226 125M_CONN_CLK P4_CLK125 P4_CLK125 TSW-103-08-G-S P4_CLK125 P3_CLKOUT 1.0k TSW-105-07-G-D 802-10-006-10-001000 Figure 5-1. Schematic : Connectors ASPEED Ethernet PHY Evaluation Module SNLU353 – OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 13 R344 SN74LVC1G07DCKR P1_GPIO1 2.49k 5.76k ANEG Disable MP1_1V8 R345 R346 P1_RXCTL 2.49k 5.76k Figure 5-2. Schematic : DP83867 with VDDIO = 1.8V SNLU353 – OCTOBER 2024 ASPEED Ethernet PHY Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 14 P2_MD0_P P2_MD0_P_b U403A TD4- MX4- R408 R409 HX5008FNL P2_RST P2_RST_PHY CHASSISGND SN74LVC1G07DCKR CHASSISGND Figure 5-3. Schematic : DP83869 with VDDIO = 1.8V ASPEED Ethernet PHY Evaluation Module SNLU353 – OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 15 R539 R540 P3_GPIO1 2.49k 5.76k ANEG Disable MP3_3V3 R541 R542 P3_RXCTL 2.49k 5.76k Figure 5-4. Schematic : DP83867 with VDDIO = 3.3V SNLU353 – OCTOBER 2024 ASPEED Ethernet PHY Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 16 P4_MD0_N_b TD4+ MX4+ 0.1µF 1000pF R637 P4_MD0_P P4_MD0_P_b TD4- MX4- HX5008FNL CHASSISGND CHASSISGND Figure 5-5. Schematic : DP83869 with VDDIO = 3.3V ASPEED Ethernet PHY Evaluation Module SNLU353 – OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 17 126 Drill / 236Pad 126 Drill / 236Pad H703 H704 126 Drill / 236Pad 126 Drill / 236Pad Figure 5-6. Schematic : DC Power SNLU353 – OCTOBER 2024 ASPEED Ethernet PHY Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 18 4.75V-23V 3.3V (500mA) 2.5V (1A) 1.1V (1A) 869 only 1V (1A) 867 only 1.8V (1A) Figure 5-7. Schematic : Power Calculations ASPEED Ethernet PHY Evaluation Module SNLU353 – OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 19: Additional Information

    Additional Information 6 Additional Information 6.1 Trademarks All trademarks are the property of their respective owners. SNLU353 – OCTOBER 2024 ASPEED Ethernet PHY Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
