www.ti.com

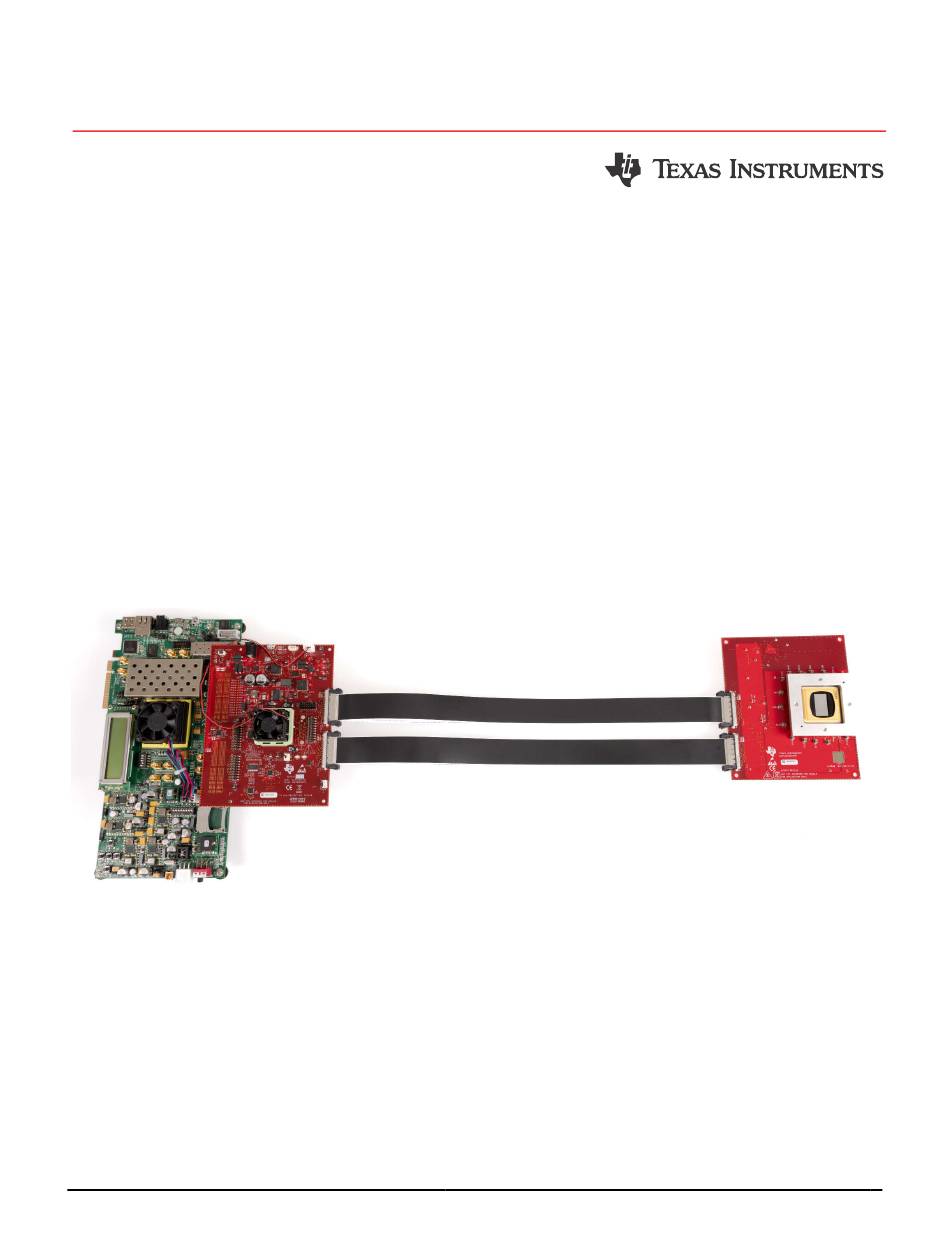

EVM User's Guide: DLPM980E2EVM
DLPM980E2 PLM Evaluation Module (EVM)
Description
®
The DLP

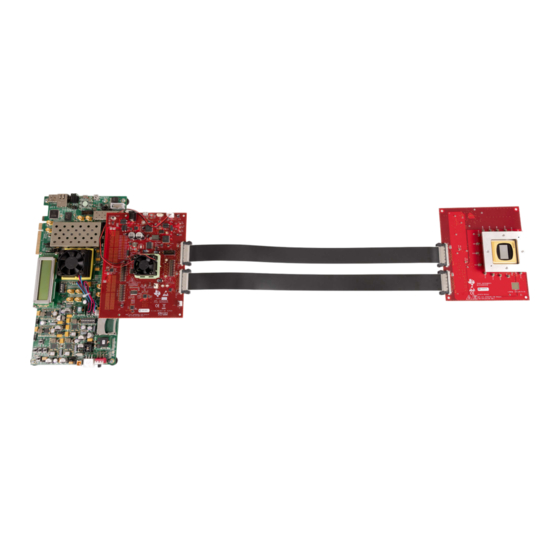

DLPM980E2EVM Evaluation Module
(EVM) offers a reference design to enable faster
development of the DLPM980E PLM with the
DLPC641 PLM controller. The controller receives
high-speed bit-plane data from an external source via
the AMD Aurora 64B/66B interface and formats the
bit-plane data prior to loading into a DLPM980E2EVM
for display on the DLPM980E PLM.
Get Started
1. To order the DLPM980E2EVM, visit the
DLPM980E2EVM Product Page.
2. Refer to the
TI E2E DLP products forum
or assistance.
DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025
Submit Document Feedback
Features
DLPM980E Phase Light Modulator (PLM) for
advanced light steering applications
Includes a DLPC641 PLM Controller board that
utilizes 32 HSSI output data lanes with up to
3.2Gb/s per data lane
Applications
PLM pre-modulator high dynamic range (HDR)
system
Augmented Reality
3D printing and additive manufacturing
Dynamic grayscale marking and coding
Industrial printing
for help
High-speed imaging and display
Copyright © 2025 Texas Instruments Incorporated
(AR) and
virtual reality
DLPM980E2 PLM Evaluation Module (EVM)
Description
(VR)
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the DLPM980E2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments DLPM980E2

  • Page 1 Description EVM User's Guide: DLPM980E2EVM DLPM980E2 PLM Evaluation Module (EVM) Description Features ® The DLP DLPM980E2EVM Evaluation Module • DLPM980E Phase Light Modulator (PLM) for (EVM) offers a reference design to enable faster advanced light steering applications development of the DLPM980E PLM with the •...
  • Page 2 Flex Cables—Four are needed to support the DLPM980E PLM board • HPC FMC Connectors—Two for an attached Apps FPGA or other front-end board DLPM980E2 PLM Evaluation Module (EVM) DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 3 2 Red General use FPGA Reset Switch 2 Green General use Figure 1-1. DLPC641 PLM Controller Block Diagram DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 DLPM980E2 PLM Evaluation Module (EVM) Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 4 Variety of block mode selections • Continuous monitoring of system performance and status • Data location on PLM • Block addressing DLPM980E2 PLM Evaluation Module (EVM) DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 5 The Apps FPGA / front end board, power supply (with cable), and USB cable are NOT included within the DLPM980E2EVM kit and will need to be purchased separately. Figure 2-1. DLPM980E2EVM Connectors (Top View) DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 DLPM980E2 PLM Evaluation Module (EVM) Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 6 Table 2-1. Power Connector Pins Description Supply Range Input supply 12+ V DC –5%/+10% Ground Ground DLPM980E2 PLM Evaluation Module (EVM) DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 7 Table 2-3. DLPC641 I C Secondary Address Selection Table C Secondary C_ADDR_SEL[1] C_ADDR_SEL[0] address 0x0F 0x0E 0x0D 0x0C DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 DLPM980E2 PLM Evaluation Module (EVM) Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 8 Table 2-4. JTAG Boundary Scan Connector Pins Description Supply Range Ground Supply Voltage 1.8V Ground 1.8V Ground 1.8V Ground 1.8V Ground 1.8V Ground Ground DLPM980E2 PLM Evaluation Module (EVM) DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 9 C Connector Pins Description Supply Range C SCL 3.3V C SDA 3.3V 3.3V supply 3.3V Ground Ground Ground DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 DLPM980E2 PLM Evaluation Module (EVM) Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 10 Ground GPIO_3P3_5 3.3V Ground GPIO_3P3_6 3.3V Ground GPIO_3P3_7 3.3V Ground 3.3V Supply 3.3V Ground 3.3V Supply 3.3V Ground DLPM980E2 PLM Evaluation Module (EVM) DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 11 Ground GPIO_1P8_5 1.8V Ground GPIO_1P8_6 1.8V Ground GPIO_1P8_7 1.8V Ground 1.8V Supply 1.8V Ground 1.8V Supply 1.8V Ground DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 DLPM980E2 PLM Evaluation Module (EVM) Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 12 Before powering on the DLPM980E2EVM, make sure J18 is connected to the FanSink to prevent damaging the DLPC641 Controller. Table 2-10. Fan Connector Pins Description Supply Range Ground Power Power DLPM980E2 PLM Evaluation Module (EVM) DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 13 SW2 is a contact switch that resets the DLPC641 Controller code running on the DLPM980E2EVM. When SW2 is released, the DLPC641 Controller boots from reset. DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 DLPM980E2 PLM Evaluation Module (EVM) Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 14 Indicator that the Phase-Locked Loop (PLL) clock circuity of the controller is locked. DMD HSSI sync error Indicator on whether a DMD HSSI sync error was detected. DLPM980E2 PLM Evaluation Module (EVM) DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 Submit Document Feedback...
  • Page 15 If desired, customers can use shorter PLM Flex Cables offered by JAE Electronics. Please see the other PLM Flex Cable connector options below: • JF08R0R051030UA - 12" cable length • JF08R0R051020UA - 8" cable length DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 DLPM980E2 PLM Evaluation Module (EVM) Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 16 Figure 2-4. Flex Cable Connections Between PLM Board and Controller Board Figure 2-5. Standalone DLPC641 Controller Board and DLPM980E PLM Board DLPM980E2 PLM Evaluation Module (EVM) DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 17 Figure 2-7. Front End Female HPC FMC Connector Figure 2-8. Fully Assembled DLPC641 Controller Board With Front End DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 DLPM980E2 PLM Evaluation Module (EVM) Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 18 Make sure the toggle switch (SW1) on the controller board shown is switched toward the main IC of the board, the DLPC641. DLPM980E2 PLM Evaluation Module (EVM) DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 19 (DLPM980E2EVM) or with the front end device (AMD Xilinx VC707 EVM). DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 DLPM980E2 PLM Evaluation Module (EVM) Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 20 Using the DLPC964 GUI, go to the DLPC964 tab and select 1x1 Horizontal Lines pattern and enable under Pattern Generator. Be sure Pattern Cycle is disabled. Figure 3-4. Enable 1x1 Horizontal Lines Pattern DLPM980E2 PLM Evaluation Module (EVM) DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 Submit Document Feedback...
  • Page 21 3. Power off the front end such as the AMD Xilinx VC707 board 4. Turn off/disconnect Mirror Bias DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 DLPM980E2 PLM Evaluation Module (EVM) Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 22 DLPC964 Tab • DLPC964 Registers Tab • Apps FPGA Tab • Apps FPGA Registers Tab Figure 4-1. DLPC964 GUI DLPM980E2 PLM Evaluation Module (EVM) DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 23 About DLP® LightCrafter DLPC964 GUI displays the Software Version (X.X.X) and USB DLL Version information box: Figure 4-3. DLPC964 GUI About Box DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 DLPM980E2 PLM Evaluation Module (EVM) Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 24 • The DLPC964 driver in Device Manager with the .inf file provided from the GUI software installation. Note The .inf file is located under the directory: C:\Program Files\Texas Instruments\DLPC964REF-SW- VX.X.XX\Driver\Win10\x64. DLPM980E2 PLM Evaluation Module (EVM) DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 Submit Document Feedback Copyright ©...
  • Page 25 – Hard Error - Indicates if the HSS requires a reset to recover from a hard error condition. – Channel Up - Determines if the Aurora Channels 0-3 are up and running. DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 DLPM980E2 PLM Evaluation Module (EVM) Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 26 C address is 0x0C. To communicate with the alternate I2C addresses, please see Table 2-3 for information regarding the jumpers that must be populated. DLPM980E2 PLM Evaluation Module (EVM) DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 27 GUI are going to determine what blocks are going to be reset and loaded with new data from the PLM. DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 DLPM980E2 PLM Evaluation Module (EVM) Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 28 Please visit the DLPC964 data sheet for detailed descriptions of each DLPC641 register offered in the DLPC964 GUI. DLPM980E2 PLM Evaluation Module (EVM) DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 29 HSS Lane Status Up - The HSS Lane Status Up indicates the status of each individual lane of the Aurora 64B/66B input to the DLPC641 Controller. DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 DLPM980E2 PLM Evaluation Module (EVM) Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 30 C address is 0x0D. To communicate with the alternate I2C addresses, please see Table 2-3 for information regarding the jumpers that must be populated. DLPM980E2 PLM Evaluation Module (EVM) DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 31 GUI are going to determine what blocks are going to be reset and loaded with new data to the PLM. DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 DLPM980E2 PLM Evaluation Module (EVM) Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 32 Please visit the DLPC964 data sheet for detailed descriptions of each Apps FPGA register offered in the DLPC964 GUI. DLPM980E2 PLM Evaluation Module (EVM) DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 33 4. In the Hardware Manager window, select Open Target > Auto Connect to find the target device being programmed. DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 DLPM980E2 PLM Evaluation Module (EVM) Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 34 8. Once the appropriate flash device is selected, a dialog box is going to pop up asking if the user wants to program the configuration device (SPI Flash). Click OK. DLPM980E2 PLM Evaluation Module (EVM) DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 Submit Document Feedback Copyright ©...
  • Page 35 Done (D4) is going to illuminate green and the DLPC641 Heartbeat (D5) has a heartbeat that flashes on/off. DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 DLPM980E2 PLM Evaluation Module (EVM) Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 36 2. Make sure to set SW11 to 00010 (1 = on, Position 1 → Position 5, left to right). Figure 4-19. FPGA Configuration Mode DLPM980E2 PLM Evaluation Module (EVM) DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 Submit Document Feedback...
  • Page 37 11. Once completed, power cycle the AMD EVM, and the DLPC641 Apps Bitstream automatically loads onto the AMD EVM. DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 DLPM980E2 PLM Evaluation Module (EVM) Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 38 The schematics are available for download on the DLPM980E2EVM Tool Folder. 5.2 PCB Layout Figure 5-1. DLPM980E2EVM PCB (Front) Figure 5-2. DLPM980E2EVM PCB (Back) DLPM980E2 PLM Evaluation Module (EVM) DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 39 LTST-C155GEKT FB1,FB2,FB3,FB4,FB5,FB6,FB7,FB8 Laird 35F0121-1SR-10 FB9,FB10,FB11,FB19,FB20 Laird HI0603P600R-10 FMC 400POS CONNECTOR SAMTEC SEAM-40-11.0-S-10-2-A- K-TR J1,J2 SEAM-40-11.0-S-10-2-A-K- SAMTEC SEAM-40-11.0-S-10-2-A- K-TR DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 DLPM980E2 PLM Evaluation Module (EVM) Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 40 R69,R89,R90,R226,R227,R228,R229,R2 Samsung RC1005F101CS 51,R252 80.6K Panasonic ERJ-2RKF8062X 160k Panasonic ERJ-2GEJ164X R232,R233,R234,R235 Rohm LTR18EZPFU10L0 SW SPST C&K GT12MSCBE COMPONENTS DLPM980E2 PLM Evaluation Module (EVM) DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 41 Texas Instruments TXB0108PWR SN74AUC245 Texas Instruments SN74AUC245RGYR CY7C65211A Infineon CY7C65211A X1,X2 PLMK6CE02400CDLFT Texas Instruments PLMK6CE02400CDLFT PLMK6CE02812CDLFT Texas Instruments PLMK6CE02812CDLFT DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 DLPM980E2 PLM Evaluation Module (EVM) Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 42 VHDL Verification and Hardware Description Language 6.2 Trademarks ® is a registered trademark of Texas Instruments. All trademarks are the property of their respective owners. DLPM980E2 PLM Evaluation Module (EVM) DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 Submit Document Feedback...
  • Page 43 DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 DLPM980E2 PLM Evaluation Module (EVM) Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 44 Schematic, BOM, and PCB Layout of the DLPM980E2EVM..............................38 • Added a hyperlink in Section 7 for the DLPM980E2EVM Tools folder on TI.com..........DLPM980E2 PLM Evaluation Module (EVM) DLPU138A – MARCH 2024 – REVISED FEBRUARY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
