EVM User's Guide: DRV8000-Q1EVM, DRV8001-Q1EVM, DRV8002-
Q1EVM

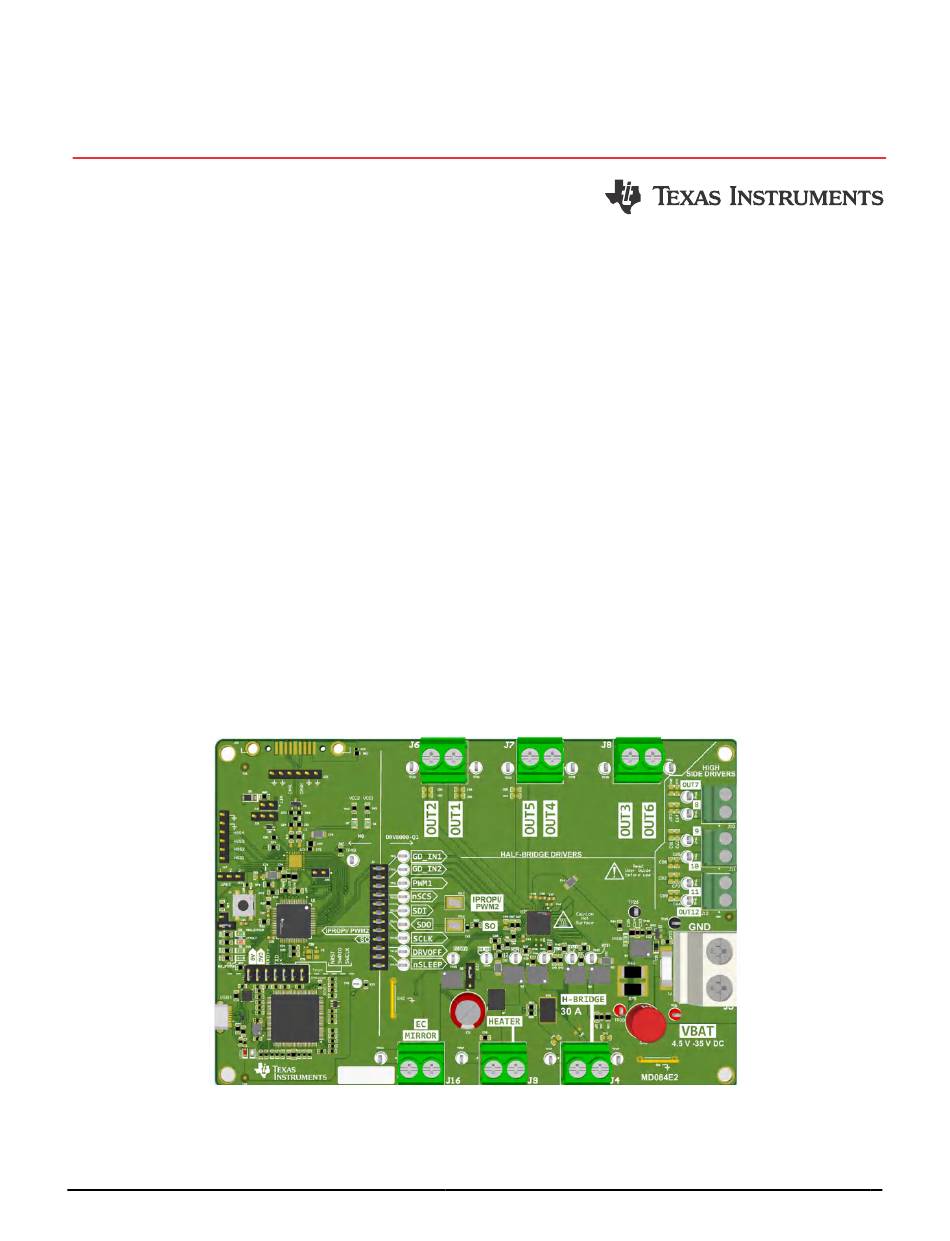

DRV8000-Q1 Evaluation Module
Description

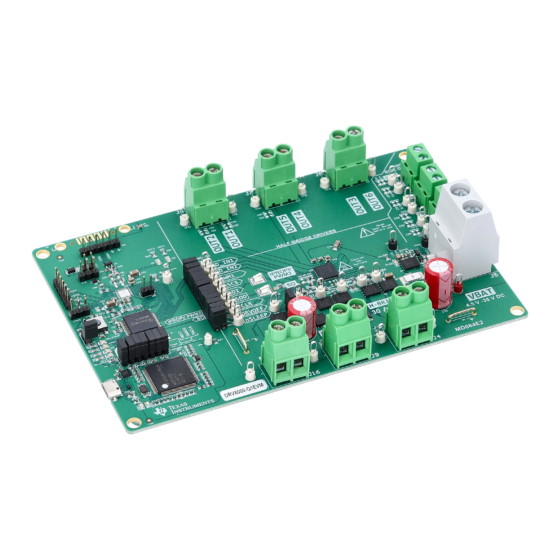

The DRV8000-Q1 evaluation module (EVM) allows
for easy evaluation of the DRV8000-Q1 device. The
EVM has been programmed and configured to work
out of the box and begin driving loads right away.
The EVMs showcase an integrated driver with a
H-bridge gate driver, six integrated half-bridges, six
integrated high-side drivers, one external high-side
gate driver for heater, one external high-side gate
driver for electrochromic charge and one integrated
low-side driver for electrochromic load discharge. The
device features protection features such as under
and over voltage monitors, offline open load and
short circuit diagnostics, and zone-based thermal
monitoring and shutdown protection. The device also
has a muxable sense output (IPROPI) and integrate
current regulation (ITRIP). The EVM is accompanied
by a GUI application for easy control of the motor
driver.
SLVUCZ2 – MAY 2024
Submit Document Feedback
Get Started
1. Order the EVM from tools page on ti.com
(DRV8000EVM
2. Use the web-based GUI:
view/MotorDriversBSM/DRV800x-Q1/
3. Connect USB and external power supply
4. Launch DRV800x-EVM-GUI and select the EVM
variant on the home page
Features
XDS110 USB-based on-board emulator for
ease of programming and debugging MSPM0
microcontroller
Main signal header with removable shunts to
disconnect main signals going to the motor driver
IC from the MCU
GUI software to control EVM and DRV IC
Applications
Door module
Body control modules
Zonal module
DRV8000-Q1EVM
Copyright © 2024 Texas Instruments Incorporated
Description
https://dev.ti.com/gallery/
DRV8000-Q1 Evaluation Module
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DRV8000-Q1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments DRV8000-Q1

  • Page 1 Description Get Started The DRV8000-Q1 evaluation module (EVM) allows 1. Order the EVM from tools page on ti.com for easy evaluation of the DRV8000-Q1 device. The (DRV8000EVM EVM has been programmed and configured to work 2. Use the web-based GUI: https://dev.ti.com/gallery/...
  • Page 2: Kit Contents

    3ft White USB-A to Micro-USB Cable 1.3 Specification The DRV8000-Q1 EVM connects to a local computer USB port through a USB-A to Micro-USB cable. An onboard XDS110 USB emulator allows for programming and debugging the main MSPM0 microcontroller without the need for an external debugger. A 3.3V LDO generates a 3.3V rail from the USB 5V supply. This 3.3V is used to power the XDS110 MCU, main MSPM0, and motor driver DVDD pin.
  • Page 3 EVM. Avoid touching the marked hot surface area when driving high currents to prevent potential burn damage. Figure 2-2. DRV8000-Q1EVM Header and Test Point Information SLVUCZ2 – MAY 2024 DRV8000-Q1 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 4 EC FET Drain • PVDD - If jumper is set between PVDD and EC FET Drain, then PVDD is the drain of the EC FET DRV8000-Q1 Evaluation Module SLVUCZ2 – MAY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 5: Connector Information

    3V3: OFF when 3.3V is not active. ON when 3.3V is active C/ D10 PVDD: OFF when PVDD is not provided. ON when PVDD is provided SLVUCZ2 – MAY 2024 DRV8000-Q1 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 6: Hardware Setup

    3. Connect the micro-USB cable to micro-USB receptacle in the XDS110 section. LED2 illuminates. 4. Provide VBAT voltage through VBAT connector. 5. Set up is now complete. See Figure 2-5 for setup image. Figure 2-5. Hardware Setup DRV8000-Q1 Evaluation Module SLVUCZ2 – MAY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 7 The following steps outline how to connect the EVM to GUI: 1. With the EVM connected to the PC, open the GUI. The home page is shown in Figure 3-2. SLVUCZ2 – MAY 2024 DRV8000-Q1 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 8 5. The GUI setup is now complete. The following section provides an overview of the GUI and how to use the GUI to control EVM. DRV8000-Q1 Evaluation Module SLVUCZ2 – MAY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 9: Gui Overview

    Access the IPROPI & Diagnostics pane at any time by clicking the blue control on the right side of the screen. Figure 3-6 below shows the pane opened. Figure 3-6. Driver Control Panel SLVUCZ2 – MAY 2024 DRV8000-Q1 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 10 2. To recall the register configurations, click on the File tab and then the click Load Registers. Select the saved .json file to load the register values. DRV8000-Q1 Evaluation Module SLVUCZ2 – MAY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 11 SVN Rev: Assembly Variant: Sheet: warrant that this design will meet the specifications, will be suitable for your application or fit for any particular purpose, or will operate in an implementation. Texas Instruments and/or its Drawn By: Keerthi Kumanan File: MD084_DRV800x.SchDoc...
  • Page 12 Unknown revision Assembly Variant: Sheet: warrant that this design will meet the specifications, will be suitable for your application or fit for any particular purpose, or will operate in an implementation. Texas Instruments and/or its Drawn By: Keerthi Kumanan File: MD084_M0.SchDoc...
  • Page 13 PCB layers of the EVM. The Altium source files can be downloaded in the aforementioned Hardware Design Files for a given EVM. Figure 4-3. Top View Figure 4-4. Top Layer SLVUCZ2 – MAY 2024 DRV8000-Q1 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 14 Hardware Design Files www.ti.com Figure 4-5. Bottom View Figure 4-6. Bottom Layers DRV8000-Q1 Evaluation Module SLVUCZ2 – MAY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 15 8.60021E+11 Wurth Elektronik Radial, THT, D10 x H12.5mm, 220µF, 50V C33, C36 0.01uF CAP, CERM, 0.01µF, 50V,+/- 10%, X7R, 0603 0603 8.85012E+11 Wurth Elektronik SLVUCZ2 – MAY 2024 DRV8000-Q1 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 16 0603 C0603X103K1RACTU Kemet 0603 D1, D2, D3, D6, D7, Green LED, Green, SMD LED_0603 150060VS75000 Wurth Elektronik LED, Red, SMD LED_0603 150060RS75000 Wurth Elektronik DRV8000-Q1 Evaluation Module SLVUCZ2 – MAY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 17 Through Hole J13, J19, J23 Header, 100mil, 3x1, Gold, TH 3x1 Header TSW-103-07-G-S Samtec J17, J22 Header, 100mil, 6x1, Gold, TH 6x1 Header TSW-106-07-G-S Samtec SLVUCZ2 – MAY 2024 DRV8000-Q1 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 18 RES, 51, 5%, 0.063 W, AEC-Q200 Grade 0, 0402 CRCW040251R0JNED Vishay-Dale 0402 RES, 470, 5%, 0.063 W, AEC-Q200 Grade 0, R19, R20 0402 CRCW0402470RJNED Vishay-Dale 0402 DRV8000-Q1 Evaluation Module SLVUCZ2 – MAY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 19 SH-J11, SH-J12, SH- Shunt, 2.54mm, Gold, Black Shunt, 2.54mm, Black 60900213421 Wurth Elektronik J13, SH-J14, SH- J15, SH-J16, SH- J17, SH-J18, SH- J19, SH-J20, SH-J21 SLVUCZ2 – MAY 2024 DRV8000-Q1 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 20 MSP432E401YTPDTR Texas Instruments NX3225GA-16.000M-STD- Crystal, 16MHz, 8pF, SMD 3.2x0.75x2.5mm CRG-1 WCAP-CSGP Multilayer Ceramic Chip Capacitor, General Purpose, size 0603, X7R, Wurth Elektronik 100nF, 100VDC DRV8000-Q1 Evaluation Module SLVUCZ2 – MAY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 21 RES, 0, 5%, 0.1 W, 0603 0603 RC0603JR-070RL Yageo Crystal 40MHz ±10ppm (Tol) ±20ppm (Stability) 12pF FUND 40Ohm 4-Pin Mini- TSX-3225 X1E0000210179 Seiko Epson CSMD T/R SLVUCZ2 – MAY 2024 DRV8000-Q1 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 22: Additional Information

    Additional Information www.ti.com 5 Additional Information 5.1 Trademarks All trademarks are the property of their respective owners. DRV8000-Q1 Evaluation Module SLVUCZ2 – MAY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 23 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
  • Page 24 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
  • Page 25 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
  • Page 26 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
  • Page 27 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2023, Texas Instruments Incorporated...
  • Page 28 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2024, Texas Instruments Incorporated...
