DRV2605L Multi-Driver ERM, LRA Haptic Driver Evaluation
1
Introduction
The DRV2605L device is a haptic driver designed for linear resonant actuators (LRA) and eccentric
rotating mass (ERM) motors. The device has many features that help eliminate the design complexities of
haptic motor control including:
•
Reduced solution size
•
High-efficiency output drive
•
Closed-loop motor control
•
Quick device startup
•
Embedded waveform library
•
Auto-resonance frequency tracking
The DRV2605LEVM-MD evaluation module (EVM) is an evaluation platform for the DRV2605LDGS. The
kit includes an MSP430F5510 microcontroller (MCU), terminal output support for up tight LRAs or ERMs,
sample waveforms provided by Immersion, and capacitive touch buttons which demonstrate the
capabilities of the DRV2605L.
This user's guide contains instructions for setting up and operating the DRV2605LEVM-MD.
Code Composer Studio is a trademark of Texas Instruments.
All other trademarks are the property of their respective owners.
SLOU400 – September 2014
Submit Documentation Feedback

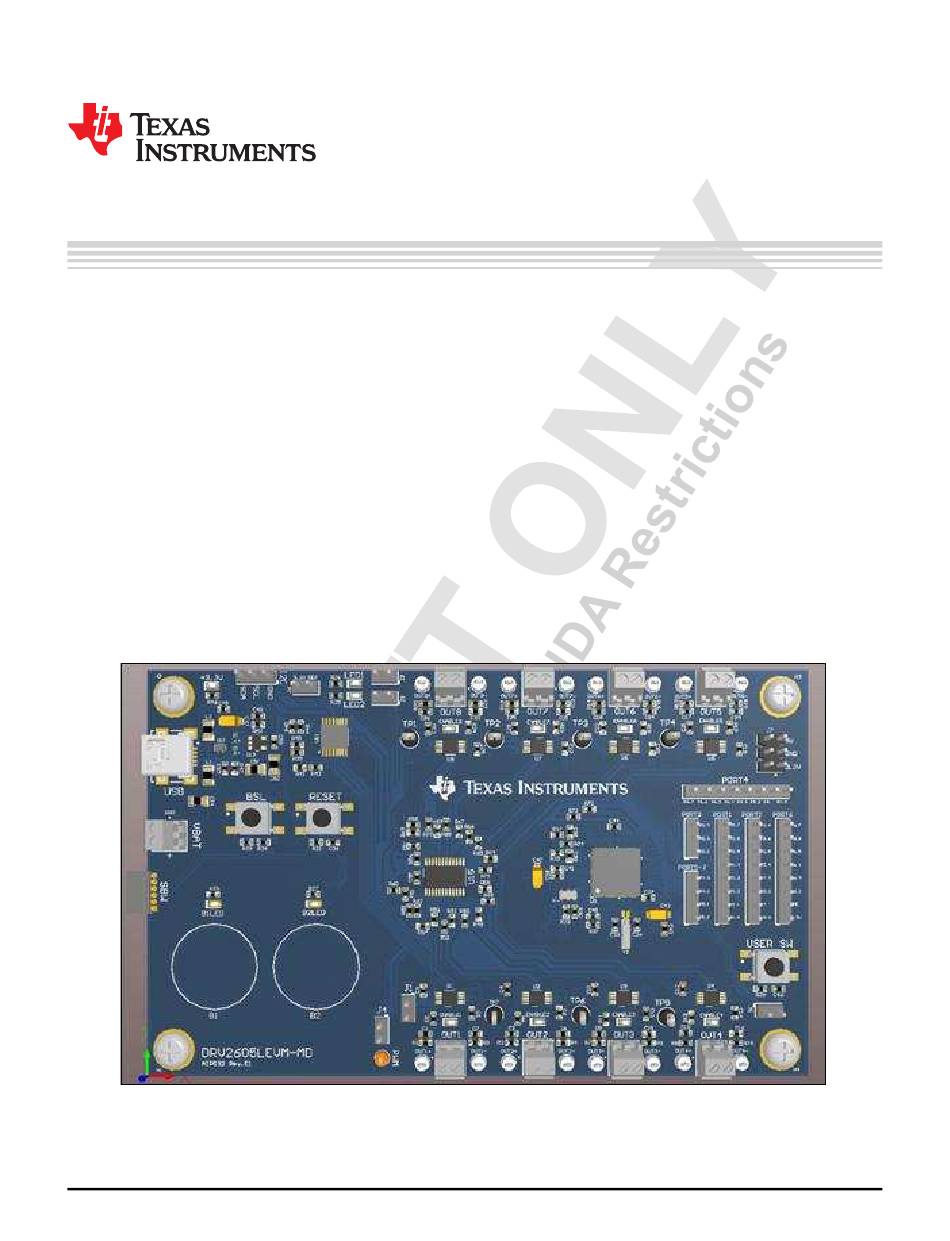

Figure 1. DRV2605LEVM
DRV2605L Multi-Driver ERM, LRA Haptic Driver Evaluation Kit User's Guide
Copyright © 2014, Texas Instruments Incorporated
User's Guide
SLOU400 – September 2014
Kit User's Guide
1
Advertisement
Related Manuals for Texas Instruments DRV2605LEVM-MD
Summary of Contents for Texas Instruments DRV2605LEVM-MD
- Page 1 • Auto-resonance frequency tracking The DRV2605LEVM-MD evaluation module (EVM) is an evaluation platform for the DRV2605LDGS. The kit includes an MSP430F5510 microcontroller (MCU), terminal output support for up tight LRAs or ERMs, sample waveforms provided by Immersion, and capacitive touch buttons which demonstrate the capabilities of the DRV2605L.
- Page 2 Getting Started www.ti.com Getting Started The DRV2605LEVM-MD demonstrates how the DRV2605L device can be used in applications that require multiple haptic drivers (same slave addresses) to be setup independently but be played simultaneously. The board integrates the TCA9548A I C switch to control which I...
- Page 3 3. Verify that the jumper connections on the board are correct as listed in Table 4. Turn on the power supply. If the DRV2605LEVM-MD is powered correctly, the button LEDs turn on and flash indicating that the board has been successfully initialized.
- Page 4 C lines. An external host processor can be connected to the I C headers to allow communication to the DRV2605L devices without having to use the on-board MSP430F5510. DRV2605L Multi-Driver ERM, LRA Haptic Driver Evaluation Kit User’s Guide SLOU400 – September 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
- Page 5 TCA9554A and TCA9548A devices to enable the DRV2605L devices and connect the I C lines of the drivers to the master I C bus properly. SLOU400 – September 2014 DRV2605L Multi-Driver ERM, LRA Haptic Driver Evaluation Kit User’s Guide Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
- Page 6 CT the ERM was operated in open-loop mode while the LRA was operated in auto-resonance (closed loop) mode. Figure 6. TripleClick and StrongClick Waveform Played at the Same Time DRV2605L Multi-Driver ERM, LRA Haptic Driver Evaluation Kit User’s Guide SLOU400 – September 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
- Page 7 156.1 mV or 1.37 G. Figure 7. Pulsing Strong waveform for ERM in Open-Loop Mode SLOU400 – September 2014 DRV2605L Multi-Driver ERM, LRA Haptic Driver Evaluation Kit User’s Guide Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
- Page 8 Figure 8. Strong Buzz Waveform for LRA in Auto-Resonance Mode Figure 9. Strong Buzz Waveform for LRA in Open-Loop Mode DRV2605L Multi-Driver ERM, LRA Haptic Driver Evaluation Kit User’s Guide SLOU400 – September 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
- Page 9 5, and (corresponds to drivers 1, 4, 5, 8). TCA9548A - I C Switch The DRV2605LEVM-MD is designed for multi-driver applications. The TCA9548A I C switch was used to independently setup haptic drivers and play the waveforms simultaneously. The pseudo code listed in...
- Page 10 (channel 7) and is then sent the same read command. Figure 10 shows proper operation of the switch in the case of isolating specific channels. DRV2605L Multi-Driver ERM, LRA Haptic Driver Evaluation Kit User’s Guide SLOU400 – September 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
- Page 11 Power Supply Selection www.ti.com Power Supply Selection The DRV2605LEVM-MD can be powered by USB or an external power supply (VBAT). Jumpers DRV and MSP are used to select USB or VBAT for the DRV2605L and MSP430F5510 devices, respectively. Table 8 lists the different supply configurations and supply voltages that the DRV2605L devices and MSP430 device could have.
- Page 12 Deassert the EN pin for driver 1 Write TCA9548A 0x70 0x00 No driver I C channels connected DRV2605L Multi-Driver ERM, LRA Haptic Driver Evaluation Kit User’s Guide SLOU400 – September 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
- Page 13 3. Rebuild the project. The text image file can be found in debug folder with the name AIP032.txt 4. Hold the BSL button on the DRV2605LEVM-MD and connect the EVM to the computer through the USB mini cable to initiate it as a USB device.
- Page 14 7. Exit the debugger when the firmware has been uploaded to the board. Figure 14. Build Properties of Firmware Project DRV2605L Multi-Driver ERM, LRA Haptic Driver Evaluation Kit User’s Guide SLOU400 – September 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
- Page 15 P3.0/UCB0SIMO/UCB0SDA P3.1/UCB0SOMI/UCB0SCL P3.2/UCB0CLK/UCA0STE P3.3/UCA0TXD/UCA0SIMO P3.4/UCA0RXD/UCA0SOMI DVSS2 DVCC2 3.3 V P4.0/PM_UCB1STE/PM_UCA1CLK P4.1/PM_UCB1SIMO/PM_UCB1SDA SDA_IN P4.2/PM_UCB1SOMI/PM_UCB1SCL SCL_IN P4.3/PM_UCB1CLK/PM_UCA1STE P4.4/PM_UCA1TXD/PM_UCA1SIMO P4.5/PM_UCA1RXD/PM_UCA1SOMI SLOU400 – September 2014 DRV2605L Multi-Driver ERM, LRA Haptic Driver Evaluation Kit User’s Guide Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
- Page 16 USER LED1, can be disconnected PJ.3/TCK USER LED2, can be disconnected nRST/NMI/SBWTDIO ResistorET button, SBW programmer QFN PAD DRV2605L Multi-Driver ERM, LRA Haptic Driver Evaluation Kit User’s Guide SLOU400 – September 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
- Page 17 Figure 15. Xray Image of Top and Bottom Layer Traces Figure 16. Top Layer Figure 17. Middle Power Layer SLOU400 – September 2014 DRV2605L Multi-Driver ERM, LRA Haptic Driver Evaluation Kit User’s Guide Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
- Page 18 Layout www.ti.com Figure 18. Middle Ground Layer Figure 19. Bottom Layer DRV2605L Multi-Driver ERM, LRA Haptic Driver Evaluation Kit User’s Guide SLOU400 – September 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
- Page 19 1.5k Green 1.5k Green DRV2605LDGS DRV2605LDGS OUT7- OUT8- 100k 100k 470pF 470pF Figure 20. Schematic page 1 SLOU400 – September 2014 DRV2605L Multi-Driver ERM, LRA Haptic Driver Evaluation Kit User’s Guide Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
- Page 20 USER SW PJ.3 P6.3 P6.4 0.68µF P6.5 +3.3V +3.3V P6.6 P6.7 VBAT VBAT Figure 21. Schematic page 2 DRV2605L Multi-Driver ERM, LRA Haptic Driver Evaluation Kit User’s Guide SLOU400 – September 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
- Page 21 3.3k 3.3k 3.3k 3.3k Note: Slave Addr for TCA9548A - 0x70 (7-bit) Figure 22. Schematic page 3 SLOU400 – September 2014 DRV2605L Multi-Driver ERM, LRA Haptic Driver Evaluation Kit User’s Guide Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
- Page 22 PORT5_J 5-146278-4 Header, 100-mil, 4 × 1, Tin, TH Header, 4 × 1, 100-mil, TH TE Connectivity DRV2605L Multi-Driver ERM, LRA Haptic Driver Evaluation Kit User’s Guide SLOU400 – September 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
- Page 23 Abracon Corportation MS3V-T1R 32.768KHZ ±20PPM 12.5PF Crystal, 32.768-kHz, 12.5-pF, SMD 1.4 × 1.4 × 5-mm SMD MicrCrystal AG SLOU400 – September 2014 DRV2605L Multi-Driver ERM, LRA Haptic Driver Evaluation Kit User’s Guide Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
