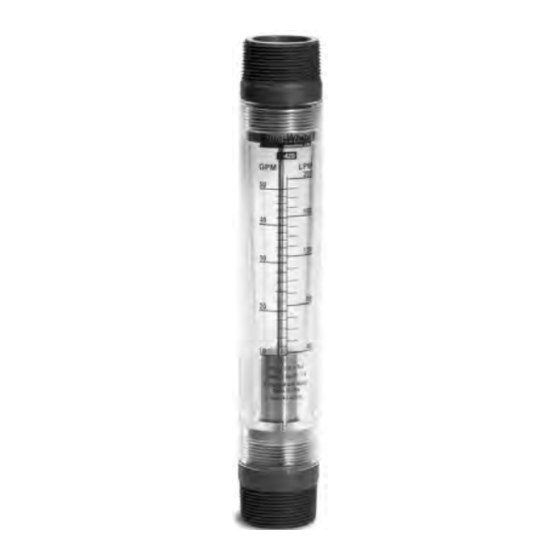

Your Blue-White F-420 Series In-Line Flowmeter
Your Blue-White flowmeter was designed to be easy to install.
Please read the Instruction Guideline on the next page before installing your flowmeter.
This flowmeter is an instrument, and special care should be taken when installing.
Check for damage while unpacking the flowmeter.
Remove the plastic tube that has been inserted during packaging for shipping reasons.
Be sure the meter is suitable for your application.
The maximum temperature and pressure is shown on the following page.
Although the meter may be suitable for other chemicals, Blue-White meters are tested
with water and air only. If you are unsure of the meters compatibility with your chemical,
consult the factory.
Blue-White guarantees the meter is suitable with air and water only.
Blue-White
1.800.561.8187
SPECIFICATIONS
Meter Body: Acrylic, clear
Floats: #316 Stainless Steel (optional Hastelloy)
Adapters: PVC
Guidewire: #316 Stainless Steel (optional Hastelloy)
O-Rings: Viton
Scale: Permanent Silkscreen
Max. Pressure: See Temperature vs. Pressure chart*
Max. Temperature: See Temperature vs. Pressure chart*
®
Unpacking the Flowmeter
®
®
Industries, Ltd.
Industries, Ltd.
www.
F-420
F-420N Series
LETTER
A
B
®
.com
DIMENSIONS
12" (305.0mm)
2" (51.0mm)
In. (mm)
®
80000-360
information@itm.com
B
A
5/12/2003
Rev. A
Advertisement
Table of Contents
Related Manuals for Blue-White F-420 Series
Summary of Contents for Blue-White F-420 Series
- Page 1 The maximum temperature and pressure is shown on the following page. ® Although the meter may be suitable for other chemicals, Blue-White meters are tested with water and air only. If you are unsure of the meters compatibility with your chemical, consult the factory.
- Page 2 5. Maximum working pressure not to exceed recommended psi at fluid temperature (see Temperature Vs. Pressure chart). Blue-White ® Industries, Ltd. Industries, Ltd.
- Page 3 Application Note Flowmeters are tested and calibrated for water or air only. Although meters may be suitable for other chemicals, Blue-White cannot guarantee their suitability. It is the responsibility of the user to determine the suitability of the flowmeter in their application.
- Page 4 Warranty coverage is limited to repair or replacement of the defective flowmeter only. Blue-White Industries does not assume responsibility for any other damage that may occur. This warranty does not cover damage to the flowmeter that results from misuse or alterations, nor damage that...
