Blue-White

F-461 Flowmeter

Instruction Manual

Industries, Ltd.

Building Reliable

Products that

Enhance the

Quality of Life

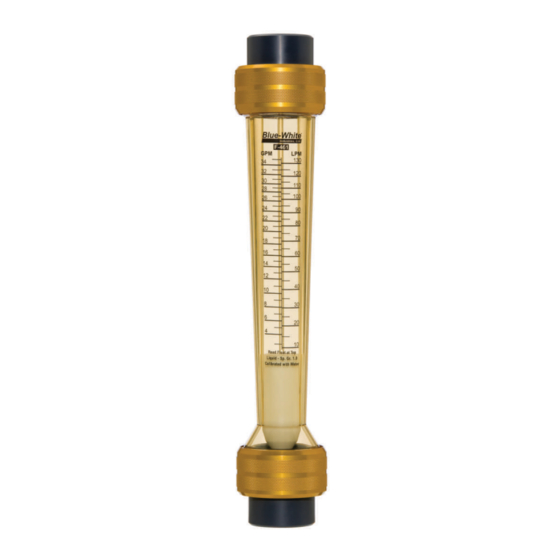

Your Blue-White F-461 Series

In-Line Flowmeter

This flowmeter was designed to be easily

installed. Please read this Instruction guideline

before installing your flowmeter.

Do not install the meter in direct sunlight.

The meter can be damaged by UV light.

Table of Contents

Need help?

Do you have a question about the F-461 and is the answer not in the manual?

Page 1 Building Reliable Products that Enhance the Quality of Life ® Your Blue-White F-461 Series In-Line Flowmeter This flowmeter was designed to be easily installed. Please read this Instruction guideline before installing your flowmeter. Do not install the meter in direct sunlight.
Page 2 F-461 Page 2 Installation Guideline 1 The flowmeter must be installed in a vertical plane to ensure accuracy. Misalignment may damage the flowmeter and also may cause the o-ring seals to leak. 2 Use only PTFE tape on the threaded adapters.
Page 3 Flowmeters are tested and calibrated for water only. MAINTENANCE The “Exploded View” drawing illustrates assembly of the F-461 series meter. If your flowmeter needs to be cleaned refer to this drawing when reassembling the unit. The tapered tube may be cleaned with a soft bottle brush.
Page 4 12 months from the date of factory shipment. Warranty coverage is limited to repair or replacement of the defective flowmeter only. Blue-White Industries does not assume responsibility for any other damage that may occur.
