F-460 Flowmeter

Instruction Manual

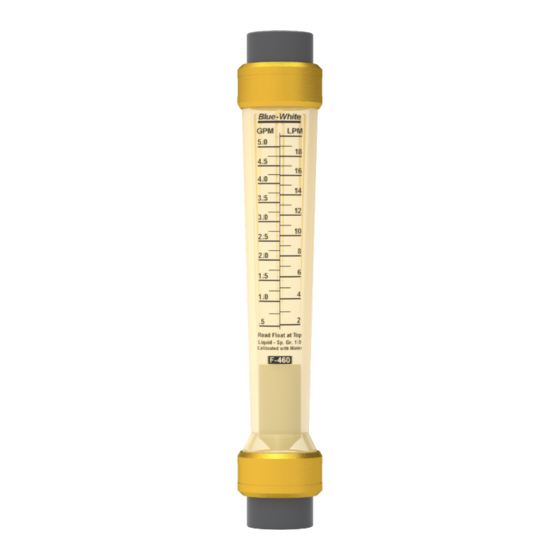

Your Blue-White F-460 Series

In-Line Flowmeter

This flowmeter was designed to be easily

installed. Please read this Instruction guideline

before installing your flowmeter.

Do not install the meter in direct sunlight.

The meter can be damaged by UV light.

Note: Plastic tubing inserted into flowmeter

is used to prevent damage during shipping.

Remove before installing.

MADE IN THE

ISO 9001:2015

USA

CERTIFIED

Table of Contents

Need help?

Do you have a question about the F-460 Series and is the answer not in the manual?

Page 1 F-460 Flowmeter Instruction Manual ® Your Blue-White F-460 Series In-Line Flowmeter This flowmeter was designed to be easily installed. Please read this Instruction guideline before installing your flowmeter. Do not install the meter in direct sunlight. The meter can be damaged by UV light.
Page 2 F-460 Page 2 INSTALLATION GUIDE 1 The flowmeter must be installed in a vertical plane to ensure accuracy. Misalignment may damage the flowmeter and also may cause the o-ring seals to leak. 2 Use only PTFE tape on the threaded adapters.
Page 3 Flowmeters are tested and calibrated for water only. MAINTENANCE The “Exploded View” drawing illustrates assembly of the F-460 series meter. If your flowmeter needs to be cleaned refer to this drawing when reassembling the unit. The tapered tube may be cleaned with a soft bottle brush.
Page 4 BLUE-WHITE LIMITED WARRANTY Your Blue-White product is a quality product and is warranted for a specific time from date of purchase (proof of purchase is required). The product will be repaired or replaced at our discretion. Failure must have occurred due to defect in material or workmanship and not as a result of operation of the product other than in normal operation as defined in the product manual.
