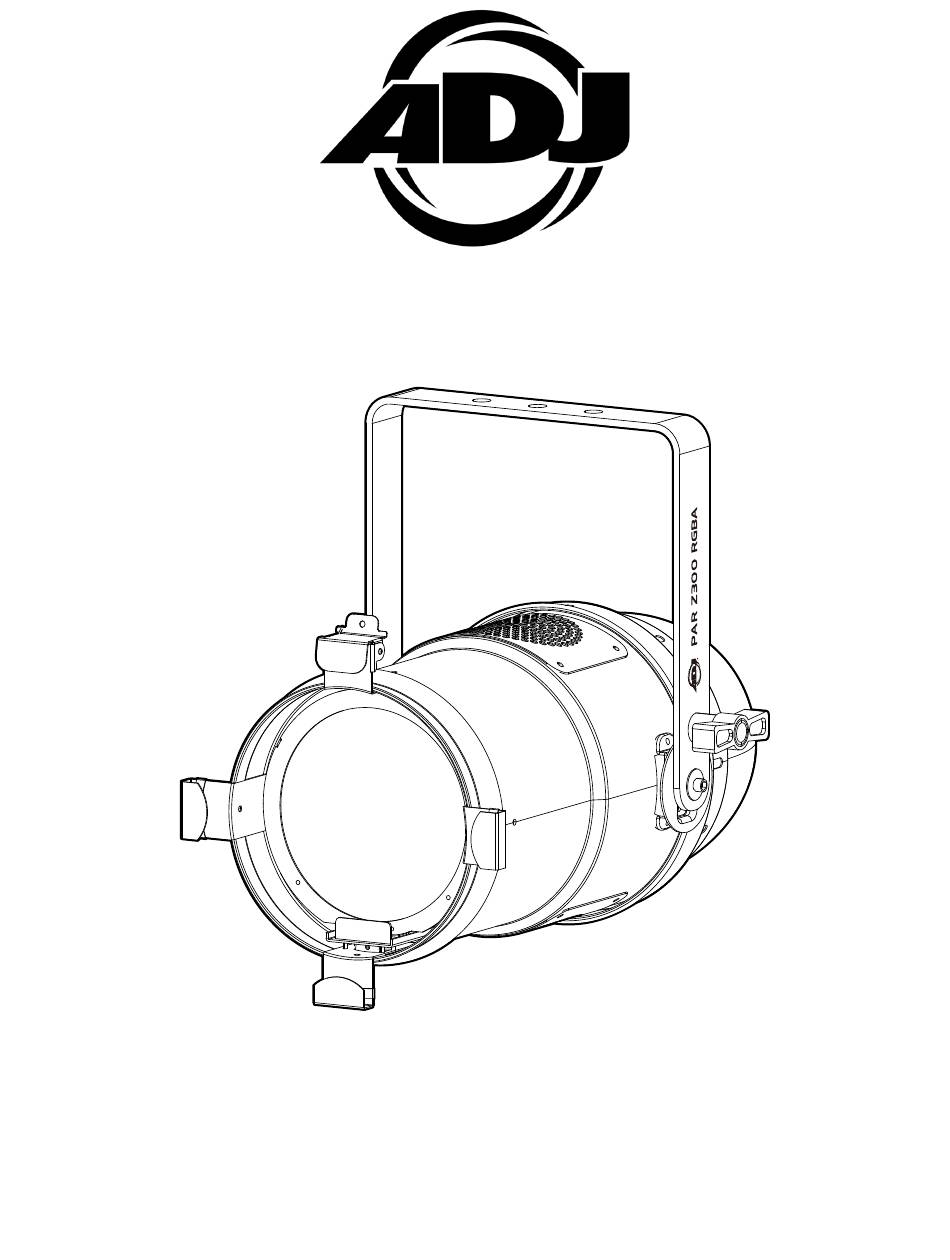

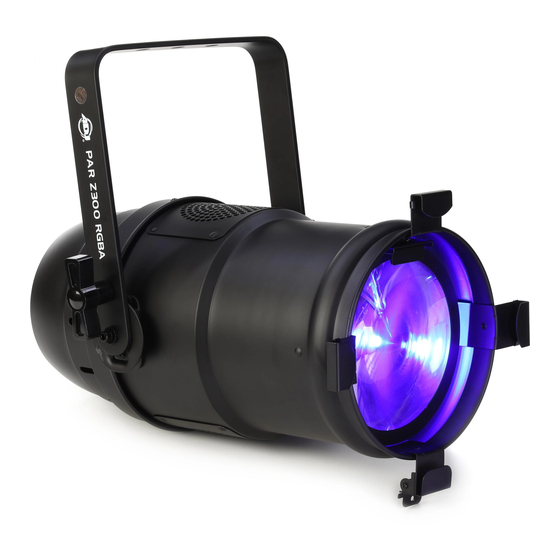

  • Page 1 PAR Z300 RGBA User Manual...
  • Page 2 ©2025 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

  • Page 3: Specifications

    C O N T E N T S General Information Limited Warranty (USA Only) Safety Guidelines Overview Installation Guidelines Accessory Installation: Gel Frame System Menu Dimmer Modes and Curves DMX Setup DMX Traits Color Temperature Chart Color Macro Chart Remote Device Management (RDM) UC IR Remote IR Default Values | Editing IR Button Values Maintenance Guidelines...

  • Page 4: General Information

    • UCIR24 Wireless Remote • Power Cord CUSTOMER SUPPORT Contact ADJ Service for any product related service and support needs. Also visit forums.adj.com with questions, comments or suggestions. ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-2650 | support@adj.com...

  • Page 5: L I M I T E D Wa R R A N T Y ( U S A O N Ly )

    All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. No accessories should be shipped with the product.

  • Page 6: Safety Guidelines

    This device is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. ADJ PRODUCTS, LLC. is not responsible for injury and/or damages resulting from the misuse of this device due to the disregard of the information printed in this manual.
  • Page 7 S A F E T Y G U I D E L I N E S DO NOT TOUCH the fixture housing during operation. Turn OFF the power and allow approximately 15 minutes for the fixture to cool down before serving. DO NOT shake fixture, avoid brute force when installing and/or operating fixture.
  • Page 8 O V E R V I E W Truss Clamp Mounting Hole Adjustable Mounting Bracket (Yoke) Gel Frame Latch Bracket Adjustment Knob Gel Frame Bracket OLED Menu Display Safety Cable Anchor Point...

  • Page 9: Electrical Connections

    I N S TA L L AT I O N G U I D E L I N E S FLAMMABLE MATERIAL WARNING Keep fixture minimum 3.3 feet (1m) away from flammable materials and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. WHEN POWER LINKING, ONLY CONNECT THIS FIXTURE TO OTHER FIXTURES OF THE SAME MAKE AND MODEL.
  • Page 10 I N S TA L L AT I O N G U I D E L I N E S When mounting fixture to truss, be sure to secure an appropriately rated professional grade rigging clamp to the Adjustable using an M10 screw fitted through the center hole of the Adjustable Mounting Bracket.
  • Page 11 I N S TA L L AT I O N G U I D E L I N E S RIGGING Overhead rigging requires extensive experience, including among others, calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the fixture.

  • Page 12: Stand Mounting

    I N S TA L L AT I O N G U I D E L I N E S STAND MOUNTING This fixture can also be installed atop a tripod stand. Simply insert the threaded bolt on the top of the tripod stand through the hole in the mounting yoke.
  • Page 13 LEDs. This issue is not specific only to ADJ lighting fixtures, but rather it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the guidelines below can reduce the risk of potential damage.
  • Page 14 A C C E S S O R Y I N S TA L L AT I O N : G E L F R A M E 1. Flip open the retaining clip. 2. Slide the Gel Frame into place. 3.

  • Page 15: System Menu

    S Y S T E M M E N U The PAR Z300 RGBA features a display screen with a 4-button control pad, which can be used to easily adjust any device settings. • The MODE button cycles through main menu options, or returns to the previous menu without making changes.
  • Page 16 S Y S T E M M E N U OPTIONS / VALUES (Default Settings in BOLD) MAIN MENU DMX Address 001 - 512 Channel Mode 4ch, 5ch, 9ch A, 9ch B, 13ch, 15ch DMX Settings No DMX Hold Last, Blackout, Manual, Internal Programs Primary / Secondary Primary / Secondary DMX or Aria...
  • Page 17 S Y S T E M M E N U OPTIONS / VALUES (Default Settings in BOLD) MAIN MENU 000-255 Green 000-255 Blue 000-255 Amber 000-255 Color Macros 000-255 Color Temperature Linear 000-255 Manual Color Temperature Presets Off, 2300k, 2400k, 2500k, 2600k… 9900k Shutter 000-255 Dimmer...
  • Page 18 D I M M E R M O D E S A N D C U R V E S DIMMER 100% Time (ms) 0 Sec Rise Time Down Time 0 sec Fade Time 1 sec Fade Time Dimming Curve Ramp Effect Rise Time (ms) Down Time (ms) Rise Time (ms) Down Time (ms) Standard (default)

  • Page 19: D M X S E T U P

    D M X S E T U P Power Supply: The ADJ PAR Z300 RGBA incorporates an electronic ballast, which automatically senses the voltage when it is plugged into the power source. With the electronic ballast, this unit can be plugged in anywhere.
  • Page 20 2 and 3 of a male XLR connector (DATA + and DATA -). Insert this unit into the female XLR connector of the last unit in one’s daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior.
  • Page 21 D M X T R A I T S CHANNEL FUNCTION 5Ch 9Ch A 9Ch B 13Ch 15Ch VALUE 0-255 Red, 0~100% 0-255 Green, 0~100% 0-255 Blue, 0~100% 0-255 Amber, 0~100% 0-255 Color Macros 0-255 Color Temperature 2300-9900K Linear, 0~100% White Color Temperature Presets 0-22 Open...
  • Page 22 D M X T R A I T S CHANNEL FUNCTION 5Ch 9Ch A 9Ch B 13Ch 15Ch VALUE Dim Mode 000-020 Default to Unit Setting 021-040 Standard 041-060 Stage 061-080 TV 081-100 Architectural 101-120 Theatre 121-140 Stage 2 Dim Speed 0.1 s 0.2 s 0.3 s...

  • Page 23: Color Temperature

    C O L O R T E M P E R AT U R E Colors shown are an approximate representation. https://www.luxalight.eu/en/cie-convertor DMX VALUE COLOR TEMPERATURE (K) DMX VALUE COLOR TEMPERATURE (K) 2300 6200 2400 6300 2500 6400 2600 6500 2700 6600 2800...

  • Page 24: C O L O R M A C R O S

    C O L O R M A C R O S RGBW COLOR INTENSITY RGBW COLOR INTENSITY Color DMX Value Color DMX Value RED GREEN BLUE RED GREEN BLUE WHITE Color Macro 33 129-132 Color Macro 1 Color Macro 34 133-136 Color Macro 2 Color Macro 35 137-140 Color Macro 3...

  • Page 25: R E M O T E D E V I C E M A N A G E M E N T ( R D M )

    R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems.
  • Page 26 U C I R R E M O T E This unit can be operated using the ADJ UC IR24 remote control. The unit can only be controlled when it has been set to Primary mode. The unit will NOT respond to commands when it has been set to Secondary mode.
  • Page 27 I R D E FA U LT VA L U E S BUTTON GREEN BLUE AMBER E D I T I N G I R B U T T O N VA L U E S These fixtures allow the user to create custom RGBAL+UV values and assign them to the numbered keys (0-15) on the remote control.

  • Page 28: Maintenance

    Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer.
  • Page 29 S P E C I F I C AT I O N S Optical: • 300-Watt Quad RGBA C.O.B. LED (Chip On Board - Red, Green, Blue & Amber) • Life expectancy: rated at 50,000 hrs. • Manual Zoom: 9, 15, 20, 25, 30, 35 or 40-degrees •...

  • Page 30: Dimension Drawings

    D I M E N S I O N D R AW I N G S Drawings not to scale 18.09in. [460mm] Ø8.84in. [Ø225mm] 12.92in. [328mm] 18.15in. [461mm] 20.62in. [524mm] Ø0.51in. [Ø13mm] 17.15in. [436mm] Ø7.56in. [Ø192mm] 9.76in. [248mm] 8.47in. [215mm] 5in.

  • Page 31: Ordering Information

    O R D E R I N G I N F O R M AT I O N ORDER CODE ITEM PAR843 PAR Z300 RGBA TRIGGER CLAMP N/A Heavy Duty Wrap Around Hook Style Clamp TOU027 5 ft. (1.5m) 5pin PRO DMX Cable...
