- Page 1 PAR Z150 RGBA User Manual...
- Page 2 ©2024 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying prod- uct names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
-
Page 3: Table Of Contents
C O N T E N T S Introduction Limited Warranty (USA Only) Warranty Registration | Features Safety Precautions Overview Installation Accessory Installation Remote Device Management (RDM) Control Panel System Menu DMX Set Up DMX Traits Dim Modes and Curves Color Macros Table Color Temperature Table Primary-Secondary Set Up... -
Page 4: Introduction

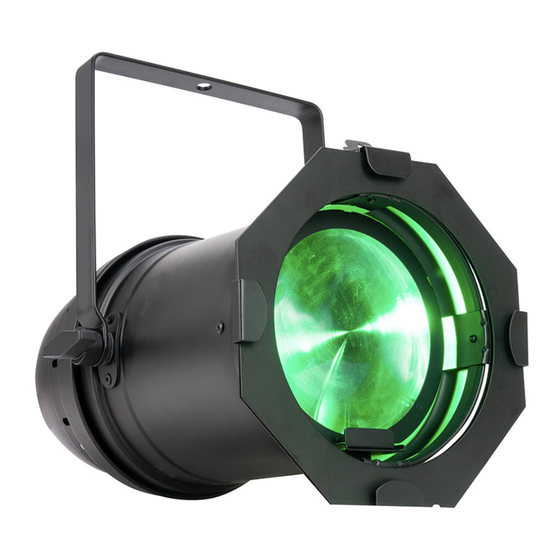

Introduction: A modern twist on the classic halogen Par Can, the Par Z150 RGBA combines a potent 150-Watt C.O.B. LED light source with a traditional Par 64 enclosure. Offering a choice of beam angles and full color mixing, including white light with a color temperature of between 2300K and 9900K, it is ideal for washing both stages and dancefloors of all shapes and sizes. -
Page 5: Limited Warranty (Usa Only)
The sole responsibility of ADJ Products, LLC under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of ADJ Products, LLC. All products covered by this warranty were manufactured after August 15, 2012, and bear identifying marks to that effect. -
Page 6: Warranty Registration | Features
W A R R A N T Y R E G I S T R A T I O N Please fill out the enclosed warranty card to validate your purchase. All returned service items, whether under warranty or not, must be freight pre-paid and accompanied by a return authorization (R.A.) number. -
Page 7: Safety Precautions
S A F E T Y P R E C A U T I O N S PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED. THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT. DO NOT ATTEMPT ANY REPAIRS YOURSELF, AS DOING SO WILL VOID YOUR MANUFACTURER’S WARRANTY. -
Page 8: Overview
O V E R V I E W Display Screen Mode Setup Down Button Button Button Button Power Fuse Power 250V Gel Frame Latch Safety Cable Loop Gel Frame Holder Yoke Mounting Adjustment Yoke Knob... -
Page 9: Installation
I N S T A L L A T I O N DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO! Fixture MUST be installed following all local, national, and country commercial electrical and construc- tion codes and regulations. When installing the unit, the trussing or area of installation must be able to hold 10 times the weight of the unit and any attached accessories without any deformation. - Page 10 I N S T A L L A T I O N CLAMP MOUNTING This fixture features mounting holes on the top of the yoke for the attachment of mounting clamps. When mounting the fixture to a truss or any other suspended structure, be sure to use a clamp that is rated to support the weight of the fixture and any associated accessories.
- Page 11 I N S T A L L A T I O N STAND MOUNTING This unit can also be installed atop a tripod stand. Simply secure the Omega bracket to the bottom face of the device, then insert the threaded bolt on the top of the tripod stand through the hole in the Omega bracket.
- Page 12 I N S T A L L A T I O N The unit is fully operational in three different mounting positions: hanging upside-down from the ceil- ing or trussing, sideways on trussing, or set on a flat level surface. Be sure this fixture is kept at least 12m (40ft) away from any flammable materials (decorations, etc).
- Page 13 LEDs. This issue is not specific only to ADJ lighting fixtures, it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the guidelines below can prevent any potential damage from occurring if followed.
-
Page 14: Accessory Installation
A C C E S S O R Y I N S T A L L A T I O N GEL FRAME A removable gel frame is included with this fixture. To install the gel frame, simply open the gel frame latch located at the top of the fixture’s lens frame, slide the gel frame into the gel frame slot, and secure in place by flipping the latch back down into the closed position. -
Page 15: Remote Device Management (Rdm)
R E M O T E D E V I C E M A N A G E M E N T ( R D M ) R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems. -
Page 16: Control Panel
C O N T R O L P A N E L This unit features a display screen with a 4-button control pad, which can be used to easily adjust any device settings. Pressing the MODE button will cycle through the various Main Menu options. When the desired Main Menu option is displayed on the screen, press the SETUP button to enter the sub-menu, then use the UP AND DOWN buttons to navigate through sub-menu options. -
Page 17: System Menu
S Y S T E M M E N U MAIN MENU OPTIONS / VALUES DESCRIPTION Select DMX starting ad- 001 - 512 DMX Address dress Channel Mode Select DMX channel mode 10Ch 11Ch 12Ch Fixture takes all channels Black Out to zero when DMX signal is lost or interrupted SETTINGS... - Page 18 S Y S T E M M E N U MAIN MENU OPTIONS / VALUES DESCRIPTION Screen saver activates after Off, 1 - 10sec Saver Delay selected period of inactivity Control panel and screen Off - 30sec, 1min, Screen Lock lock after selected period of Display 2min...10min...
-
Page 19: Dmx Set Up
D M X S E T U P DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of commu- nication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions from the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN”... - Page 20 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will reduce the risk of erratic behavior. DMX ADDRESSING.
-
Page 21: Dmx Traits
D M X T R A I T S CHANNEL FUNCTION VALUES 9Ch 10Ch 11Ch 12Ch 0 - 255 Green 0 - 255 Blue 0 - 255 Amber 0 - 255 Color Macros, refer to 0 - 255 Color Macros Table sec- tion Color Temperature Lin- 0 - 255... - Page 22 D M X T R A I T S CHANNEL FUNCTION VALUES 9Ch 10Ch 11Ch 12Ch Color Temperature Pre- sets (continued) 4800K 4900K 5000K 5100K 5200K 5300K 5400K 5500K 5600K 5700K 5800K 5900K 6000K 6100K 6200K 6300K 6400K 6500K 6600K 6700K 6800K 6900K...
- Page 23 D M X T R A I T S CHANNEL FUNCTION VALUES 9Ch 10Ch 11Ch 12Ch Color Temperature Pre- sets (continued) 8300K 8400K 8500K 8600K 8700K 8800K 8900K 9000K 9100K 9200K 9300K 9400K 9500K 9600K 9700K 9800K 9900K 100 - 255 No Function Strobe 0 - 31 LED Off...
- Page 24 D M X T R A I T S CHANNEL FUNCTION VALUES 9Ch 10Ch 11Ch 12Ch Dim Modes 0 - 20 Standard 21 - 40 Stage 41 - 60 61 - 80 Architectural 81 - 100 Theatre 101 - 120 Stage 2 121 - 255 Default to Unit Setting Dim Curves 0 - 20...
-
Page 25: Dim Modes And Curves
D I M M O D E S A N D C U R V E S 100% 100% 100% 100% DMX % DMX % DMX % DMX % LINEAR SQUARE INVERSE SQUARE S-CURVE... -
Page 26: Color Macros Table
C O L O R M A C R O S T A B L E MACRO NO. DMX VALUES GREEN BLUE AMBER 1 - 4 5 - 8 9 - 12 13 - 16 17 - 20 21 - 24 25 - 28 29 - 32 33 - 36... - Page 27 C O L O R M A C R O S T A B L E MACRO NO. DMX VALUES GREEN BLUE AMBER 153 - 156 157 - 160 161 - 164 165 - 168 169 - 172 173 - 176 177 - 180 181 - 184 185 - 188...
-
Page 28: Color Temperature Table
C O L O R T E M P E R A T U R E T A B L E DMX VALUE COLOR TEMPERATURE (K) DMX VALUE COLOR TEMPERATURE (K) 2300 6200 2400 6300 2500 6400 2600 6500 2700 6600 2800 6700... -
Page 29: Primary-Secondary Set Up
P R I M A R Y - S E C O N D A R Y S E T U P This function allows you to link units together to run in a Primary-Secondary set-up, in which one unit will act as the controlling unit and the others will react to the controlling unit’s built-in programs. -
Page 30: Multi Unit Power Linking | Fuse Replacement
M U L T I U N I T P O W E R L I N K I N G This features allows you to connect the fixtures to one another using the power cable input and output sockets. The maximum number of units that can be linked in this manner is as follows: •... -
Page 31: Maintenance Guidelines
Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer. -
Page 32: Dimensional Drawings
D I M E N S I O N A L D R A W I N G S 8.8in (224.5mm) 10.9in (277.7mm) 7.7in (195mm) 10.7in (272.4mm) 11.0in (278.5mm) 17.4in (442.9mm) 16.4in (417.6mm) 9.3in (236mm) -
Page 33: Specifications
S P E C I F I C A T I O N S Optical: Electrical: • 150 Watt Quad RGBA C.O.B. LED (Chip On • Power Draw Total (All LED’s @ Full On): 157W Board - Red, Green, Blue & Amber) •... -
Page 34: Fcc Statement
F C C S T A T E M E N T Please note that changes or modifications to this product that are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. - Page 35 This page intentionally left blank.
