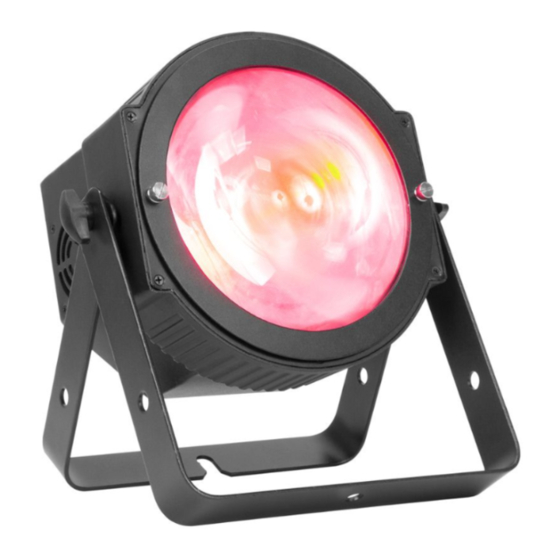

Summary of Contents for ADJ Dotz Par 100

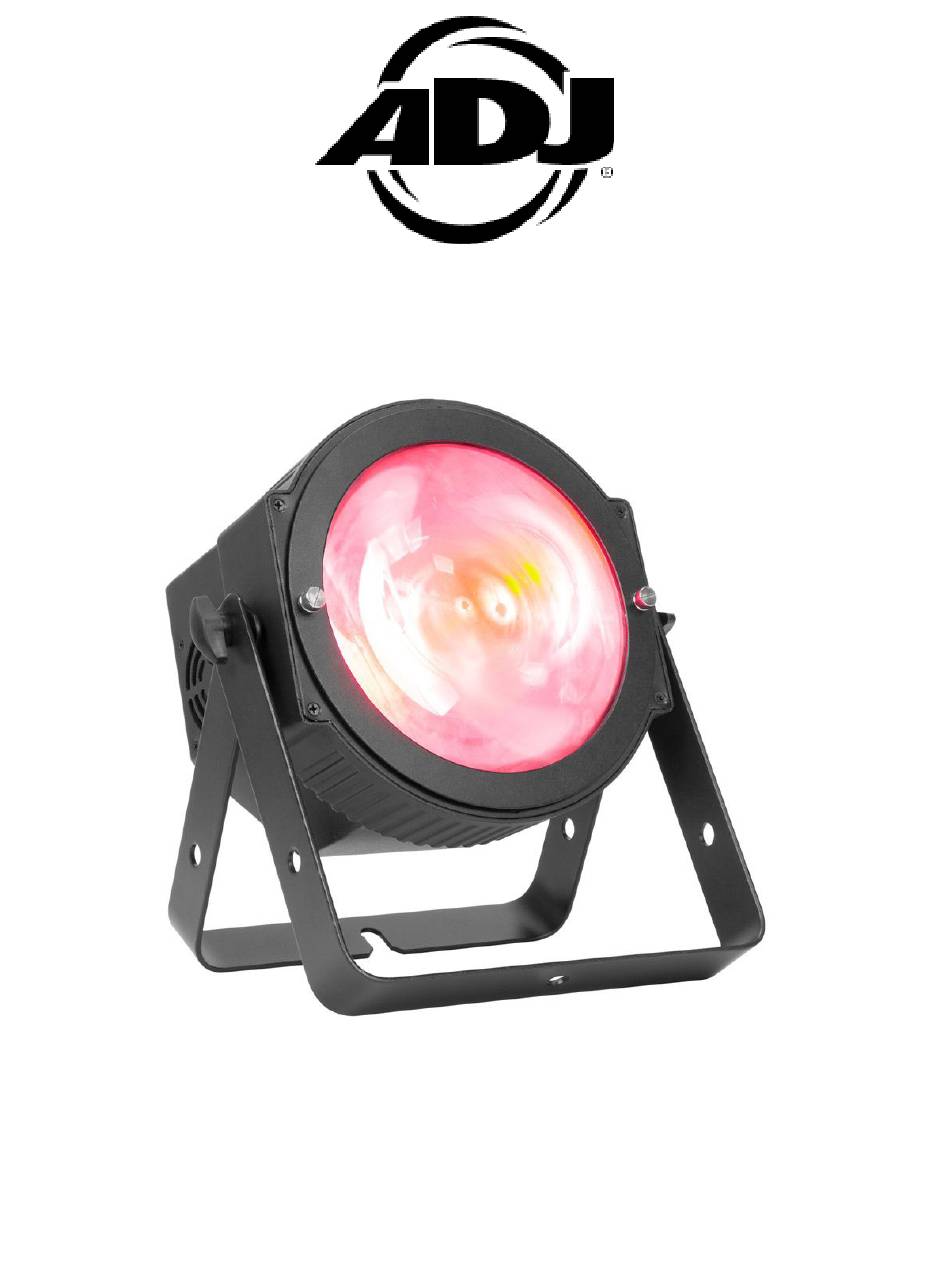

- Page 1 DOTZ PAR 100 User Manual...
- Page 2 Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction General Instruction | Features | Warranty Registration Safety Precautions Setup System Menu Universal DMX Control | Primary-Secondary Configuration Dotz Par RF Remote DMX Traits Color Macro Chart Photometrics Dimmer Curve Chart | Power Cord Daisy Chain Fuse Replacement | Cleaning | Trouble Shooting Limited Warranty (USA Only) Specifications... -
Page 4: Introduction
Customer Support: ADJ Products, LLC provides a toll free customer support line to answer any question s that may arise during set up or initial operation. You may also visit us on the web at www.adj.com for any comments or suggestions. Service Hours are Monday through Friday 8:00 a.m. to 4:30 p.m. Pacific Standard Time. -
Page 5: General Instruction | Features | Warranty Registration
• WARRANTY REGISTRATION The Dotz Par 100 carries a 2 year (730 days) limited warranty. Please fill out the enclosed warranty card to validate your purchase and warranty. You may also register your product online at our web site: www.adj.com. All returned service items, whether under warranty or not, must be freight pre-paid and accompanied by a return authorization (R.A.) number. -
Page 6: Safety Precautions
SAFETY PRECAUTIONS • To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture. • Do not spill water or other liquids into or on to your unit. • Be sure that the power outlet that is used matches the required voltage for your unit. •... -
Page 7: Setup
Data Cable (DMX Cable) Requirements (For DMX Operation): The Dotz Par 100 can be controlled via DMX-512 protocol. The Dotz Par 100 has 4 DMX Channel Modes. The DMX address is set on the rear panel of the Dotz Par 100. Your unit and your DMX controller require a approved DMX-512 110 Ohm Data cable for data input and data output (Figure 1). - Page 8 XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the risk of erratic behavior. 5-Pin XLR DMX Connectors. Some manufacturers use 5-pin XLR connectors for DATA transmis- sion in place of 3-pin.
-
Page 9: System Menu
SYSTEM MENU Control Panel Lock: The control panel will lock itself after 30 seconds if nothing is pressed. To unlock the control panel, press the MODE button for 3 seconds. DMX Mode - Set the DMX Address and DMX Channel Mode. 1. - Page 10 SYSTEM MENU RGB Dimmer Mode - Select your desired color to remain static or adjust the RGB colors to create your desired color. 1. Plug the fixture in and press the MODE button until “Manual Dimmer” is displayed, then press ENTER.
-
Page 11: Universal Dmx Control | Primary-Secondary Configuration
A DMX controller allows you to create unique programs tailored to your indi- vidual needs. The Dotz Par 100 has 4 DMX channel modes; a 3 Channel Mode, 4 Channel Mode, 5 Channel Mode, & 9 Channel Mode. See the DMX Traits section of this manual for detailed informa- tion. -
Page 12: Dotz Par Rf Remote
DOTZ PAR RF REMOTE The Dotz Par 100 RF remote has many different functions and allows you to control your Dotz Par 100 remotely. The remote can control your system from a distance of up to 25 meters. To use the remote you must first activate the fixture’s receiver, as directed in the System Menu section of this... -
Page 13: Dmx Traits
DMX TRAITS CHANNEL DMX VALUES FUNCTION Red, 0% to 100% 000 - 255 Green, 0% to 100% 000 - 255 Blue, 0% to 100% 000 - 255 Master Dimmer, 0% to 100% 000 - 255 Color Macros (NOTE: Use of this channel disables the Red, Green, and Blue channels) 001 - 007 Bastard Amber... - Page 14 DMX TRAITS CHANNEL DMX VALUES FUNCTION Color Macros (continued) (NOTE: Use of this channel disables the Red, Green, and Blue channels) 240 - 247 Full Blue 248 - 255 White Programs 001 - 020 Color Fade/Change 021 - 040 7 Color Change 041 - 060 7 Color Fade 061 - 080...
-
Page 15: Color Macro Chart
COLOR MACRO CHART COLOR GREEN BLUE Bastard Amber Medium Amber Pale Amber Gold Gallo Gold Golden Amber Light Red Medium Red Medium Pink Broadway Pink Follies Pink Light Lavender Special Lavender Lavender Indigo Hemsley Blue Tipton Blue Light Steel Blue Light Sky Blue Sky Blue Brilliant Blue... -
Page 16: Photometrics
PHOTOMETRICS... -
Page 17: Dimmer Curve Chart | Power Cord Daisy Chain
DIMMER CURVE CHART POWER CORD DAISY CHAINING This feature allows the devices to be linked together via the power input and output sockets. The maximum number of units that can be connected in this manner are as follows: • 9 fixtures maximum with 120V power. • 19 fixtures maximum with 230V power. -
Page 18: Fuse Replacement | Cleaning | Trouble Shooting
The way in which the input and output are connected can affect the operation of the device. Unit does not respond to sound: Quiet or high pitched sounds will not activate the unit. If problems are not resolved, contact ADJ Products, LLC for service. 1-800-322-6337... -
Page 19: Limited Warranty (Usa Only)
LIMITED WARRANTY (USA ONLY) A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products to be free of manufacturing defects in material and workmanship for a prescribed period from the date of purchase (see specific warranty period on reverse). This warranty shall be valid only if the product is purchased within the United States of America, including possessions and territories. -
Page 20: Specifications
Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. ADJ Products, LLC 6122 S. Eastern Ave. Los Angeles, CA 90040 USA Tel: 323-582-2650 / Fax: 323-725-6100 Web: www.adj.com / E-mail: info@adj.com A.D.J. Supply Europe B.V. Junostraat 2 6468 EW Kerkrade Netherlands service@adjgroup.eu / www.adj.eu...
