GreenWorks SNB403 Operator's Manual
Hide thumbs Also See for SNB403:

Advertisement

Quick Links

EN

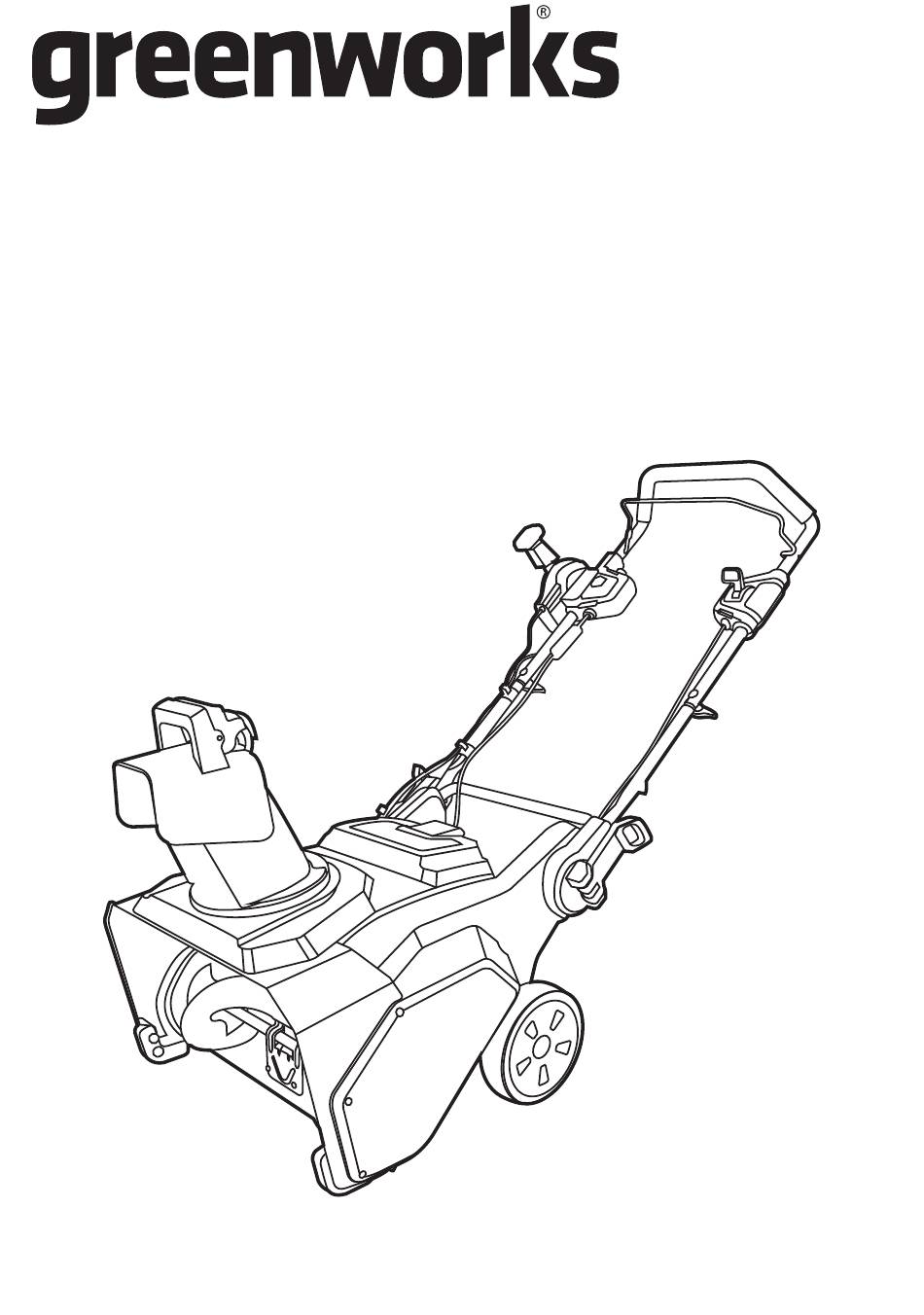

SNOW BLOWER
OPERATOR MANUAL
SNB403
www.greenworkstools.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SNB403 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GreenWorks SNB403

  • Page 1 SNOW BLOWER OPERATOR MANUAL SNB403 www.greenworkstools.com...
  • Page 3: Table Of Contents

    English Introduction......4 Stop the product......11 6.10 Cold weather operation....11 Product description......4 6.11 Prevent freeze-up after use...11 Intended use........4 6.12 Recommendations for Overview......... 4 effective snow throwing....11 Symbols on the product....4 Maintenance......12 California Proposition 65....4 Safety........
  • Page 4: Introduction

    English INTRODUCTION SYMBOLS ON THE PRODUCT PRODUCT DESCRIPTION Symbol Explanation This product is a battery-powered snow blower that is Direct current used to remove snow from the ground. We are committed to continuously improving our products, and reserve the right to modify the design Important Safety Precautions.
  • Page 5: Safety

    English • Adjust the housing height to clear gravel or crushed SAFETY rock surface. • Never attempt to make any adjustments while SAFETY DEFINITIONS the appliance is running (except where specifically Warnings, cautions, and notes are used to point out recommended by manufacturer).
  • Page 6: Maintenance

    English • Never operate the appliance without proper guards, • Always refer to owner’s guide instructions for keep other safety protective devices in place and important details if the appliance is to be stored for working. an extended period. • Never direct the discharge toward people or areas •...
  • Page 7: Safety Instructions For Maintenance

    English SAFETY INSTRUCTIONS FOR MAINTENANCE • Make sure to stop the motor before you do any maintenance on the product. • Impeller blades are sharp. Wear protective gloves when doing any blade maintenance. • Only use accessories that have been approved by the manufacturer.
  • Page 8: Install The Chute-Rotation Controller

    English INSTALL THE CHUTE DEFLECTOR WARNING Align the grooves of the discharge chute with the slot on the chute housing. Gently push the Be careful not to pinch, crimp, or damage the control discharge chute into its designated position. cable when installing the handle. INSTALL THE CHUTE-ROTATION CONTROLLER Align the holes in the panel of the chute-rotation...
  • Page 9: Before Using The Product

    English Lower the chute deflector to decrease the WARNING distance or raise it to increase the distance. Carefully read and understand the safety chapter and operation instructions before you operate the product. BEFORE USING THE PRODUCT 6.1.1 CONNECT THE BATTERY CHARGER Connect the battery charger to the voltage and frequency that is specified on the rating plate.
  • Page 10: Blue Led Icon

    English Open the battery door. Align the ribs on the battery with the grooves in the battery compartment. Push the battery into the battery compartment until the battery locks into place. NOTE Lower the scraper to the ground to remove the snow. When you hear a click, the battery is installed.
  • Page 11: Stop The Product

    English • To increase the speed, slide the speed control WARNING lever towards the Rabbit Symbol. • To decrease the speed, pull the speed control Do not store or charge battery outside. lever towards the Turtle Symbol. Battery must be charged and stored indoors before using the product.
  • Page 12: Maintenance

    English MAINTENANCE IMPORTANT Carefully read and understand the safety regulations and the maintenance instructions before you clean, repair, or do any maintenance on the product (Reference Safety regulations and maintenance instructions). WARNING • Remove battery or batteries from the product before you do any maintenance. •...
  • Page 13: Clean The Battery And Battery Charger

    English CAUTION • Keep water away from battery compartment while washing to avoid damaging the electrical components. • DO NOT clean with alcohol, gasoline, acetone, or other corrosive/volatile solvents. These substances may damage the external and internal structure of your mower. •...
  • Page 14: Replace The Belt

    English Install and tighten the bolts that you removed. REPLACE THE BELT Begin by loosening the screws that secure the belt cover to the frame, then remove the belt cover. Rotate the large pulley counterclockwise as you carefully remove the existing belt. Place the new belt onto the pulleys, ensuring it is properly aligned.
  • Page 15 English Remove the 4 sets of nuts and bolts from each side. Remove the impellers. Install the new impellers. Tigthten the 8 sets of nuts and bolts.
  • Page 16: Replace The Skid Plates

    English REPLACE THE SKID PLATES Note: The range of adjustable height for skid plates is 1.5mm, when putting the bolts through the U-hole on the skid plates. Loosen the 2 sets of bolts, spacers, and nuts that attach the skid plates to the snow blower housing. Remove the skid plates.
  • Page 17: Troubleshooting

    English TROUBLESHOOTING Problem Possible cause Solution The handle is not in position. The bolts are not installed Adjust the height of the handle and make sure that correctly. the knobs and bolts are aligned correctly. The product does not start. The battery is not charged.
  • Page 18: Recommended Ambient Temperature Ranges

    Product storage 1.4 ˚F (-17 ˚C) ~ 113 ˚F (45 ˚C) requested in writing by Greenworks. Product operation 1.4 ˚F (-17 ˚C) ~ 113 ˚F (45 ˚C) USA address: Battery charging 39 °F (4 °C) ~ 104 °F (40 °C)
  • Page 19 www.greenworkstools.com Rev B1...
