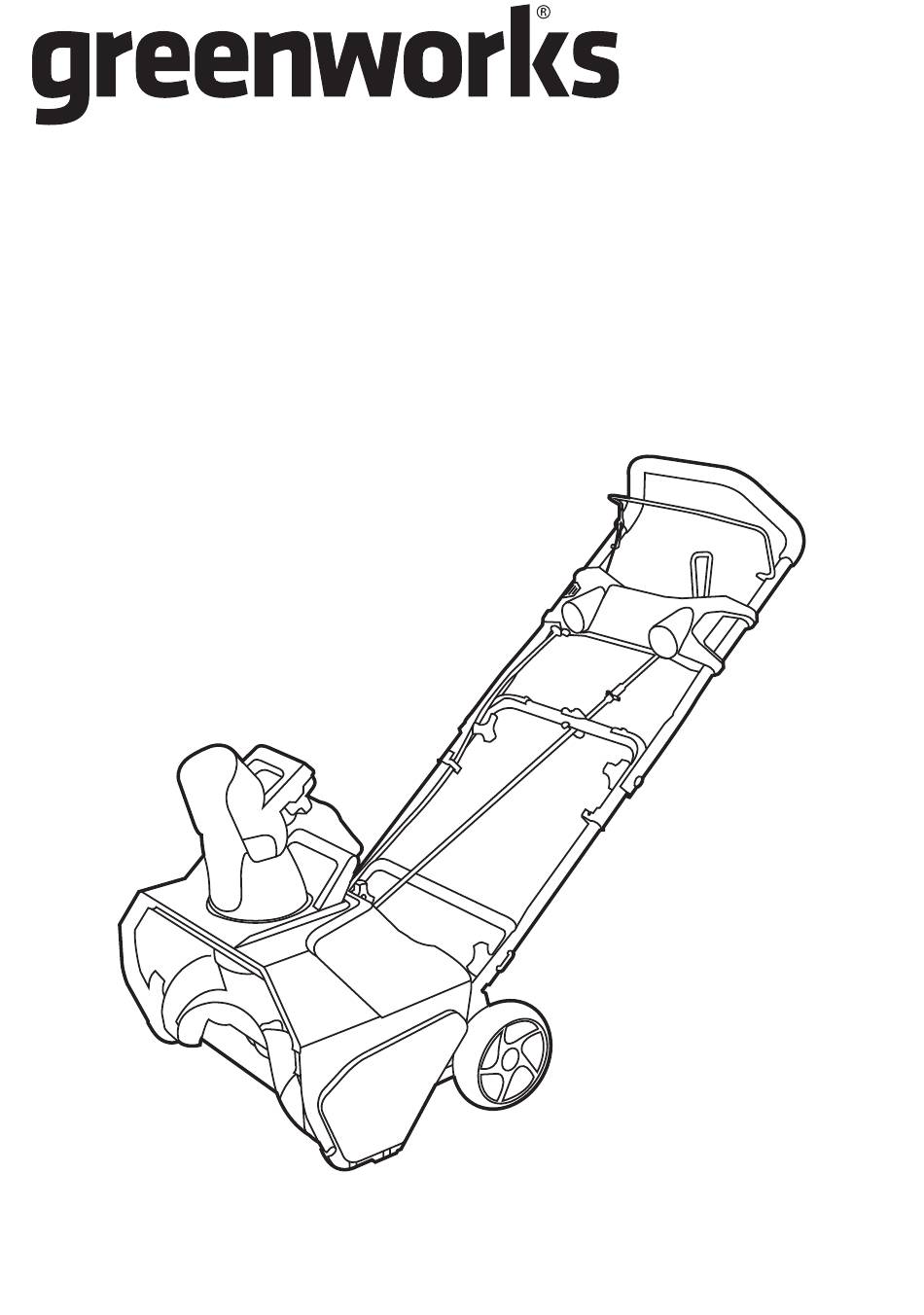

SN80L1420
EN
SNOW THROWER
OPERATOR MANUAL
SNB401
www.greenworkstools.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SN80L1420 and is the answer not in the manual?

Questions and answers

Related Manuals for GreenWorks SN80L1420

Summary of Contents for GreenWorks SN80L1420

  • Page 1 SN80L1420 SNOW THROWER OPERATOR MANUAL SNB401 www.greenworkstools.com...

  • Page 3: Table Of Contents

    English Description......4 Install the chute deflector....8 Install the chute control rod.....8 Purpose...........4 Install the battery pack....9 Overview......... 4 Remove the battery pack....9 General power tool Operation........ 9 safety warnings......4 Cold weather operation....9 Training........... 4 Start the machine......9 Preparation........

  • Page 4: Description

    English DESCRIPTION TRAINING • Do not allow children under the age of 14 to operate PURPOSE this tool. Children who are 14 years of age or older This machine is used to remove and clear away must read and understand the operating instructions snow from pavements, gardens, driveways and other and safety rules in this manual and must be trained ground-level surfaces.

  • Page 5: Operation

    English nails, screws, and other small metal objects that can • Never operate the appliance without good visibility make a connection from one terminal to another. or light. Always be sure of your footing, and keep a Shorting the battery terminals together may cause firm hold on the handles.

  • Page 6: Recommended Ambient Temperature Range

    English Charging improperly or at temperatures outside of Symbol Explanation the specified range may damage the battery and increase the risk of fire. Read and understand all instruc- tions before operating the prod- • Recharge only with the charger specified by the uct, and follow all warnings and manufacturer.

  • Page 7: Environmentally Safe Battery Disposal

    English ENVIRONMENTALLY SAFE BATTERY PROPOSITION 65 DISPOSAL WARNING This product contains a chemical known to the state of California to cause cancer, birth defects or other reproductive harm. Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive The toxic and corrosive materials below are in the harm.

  • Page 8: Install The Upper Handle

    English Discard the box and package in compliance with local regulations. INSTALL THE UPPER HANDLE Align the holes in the middle handle and the upper handle. Insert the bolt through the middle handle and upper handle. Tighten the handle knob onto the bolt. Once you have engaged one tab on one slot push until you hear a click.

  • Page 9: Install The Battery Pack

    English Push and hold the battery release button. INSTALL THE BATTERY PACK WARNING • If the battery pack or charger is damaged, replace the battery pack or the charger. • Stop the machine and wait until the engine stops before you install or remove the battery pack. •...

  • Page 10: Stop The Machine

    English ADJUST THE DISCHARGE CHUTE WARNING You can adjust the discharge chute 180° to change the snow direction. Keep bystanders a safe distance from the machine. Turn the grip handle left to move the discharge chute to the left. WARNING Turn the grip handle right to move the discharge chute to the right.

  • Page 11: Led Headlights

    English • When you complete the work, let the machine operate for a while to prevent ice formation in the discharge chute. • If the snow is deeper than 8", decrease the speed and let the machine work at its own rhythm. •...
  • Page 12 English Remove the nut. Using a socket wrench, remove the large pulley. Remove the 5 screws (5). skid plate (6) and side wear pad (7) that secure the left side cover (8). Remove the screws that secure the left side plate.

  • Page 13: Replace The Impeller

    English Remove the nut. Reinstall the nut and right side cover. Reinstall the left side plate (12), large pulley (11), belt (10) and left side cover (8). Remove the 5 screws and side wear pad that secure the left side cover. 11 10 REPLACE THE IMPELLER WARNING...

  • Page 14: Store The Machine

    English Reinstall the nut and right side cover. Using a socket wrench, remove the large pulley. Reinstall the left side plate, large pulley, belt and left side cover. Remove the screws that secure the left side plate. STORE THE MACHINE •...

  • Page 15: Troubleshooting

    English TROUBLESHOOTING TECHNICAL DATA Voltage 80 V Problem Possible Solution cause No load speed 1900 RPM The handle is The bolts are Adjust the Clearing width 20 in. (50.8 cm) not in position. not engaged height of the correctly. handle and Clearing depth 10 in.
  • Page 16 It is the purchaser’s responsibility to pay transportation charges for any part submitted for replacement under this warranty unless such return is requested in writing by Greenworks. USA address: Greenworks Tools P.O. Box 1238, Mooresville, NC 28115 Canadian address: Greenworks Tools Canada, Inc.
  • Page 17 www.greenworkstools.com P0805107-00 Rev B...
