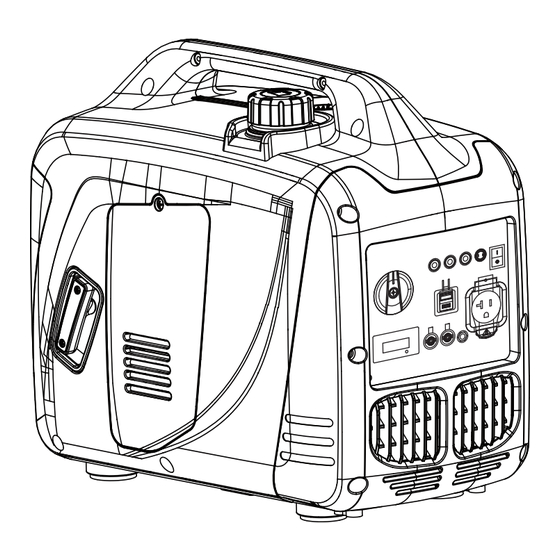

Promate PM2000i Operator's Manual

Portable inverter generator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operator Manual
PORTABLE INVERTER GENERATOR
IMPORTANT – Make sure everyone who uses this equipment reads and understands the
instructions as well as any additional instructions provided before using it.
Record the model and serial numbers of your Generator below:
Model No._____________________ Serial No._______________________

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PM2000i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Promate PM2000i

Summary of Contents for Promate PM2000i

  • Page 1 Operator Manual PORTABLE INVERTER GENERATOR IMPORTANT – Make sure everyone who uses this equipment reads and understands the instructions as well as any additional instructions provided before using it. Record the model and serial numbers of your Generator below: Model No._____________________ Serial No._______________________...

  • Page 2: Table Of Contents

    FOREWORD Thank you for purchasing Promate PM2000i. This operator manual is for proper handling, minor checking and maintenance of the PM2000i. Before using your generator: Please read these instructions completely and carefully in order to operate it safely and make the best use of it. Due to...
  • Page 3 Diagram Title Page Generator Parts ………………………………………………………………………………………….. Control Panel Features…………………………………………………………………………………. Display Function………………………………………………………………………………………….. Recommended Engine Oil Type…………………………………………………………………….. Removing the Maintenance Cover…………………………………………………………………. Adding Oil Procedure…………………………………………………………………………………… Outside Operation ……………………………………………………………………………………… Fuel Cap Vent “ON” Position……….………………………………………………………………… Disconnecting Electrical Loads………………………………………………………………………. Start Position…………………..………………………………………………………………………….. Recoil Starter………………………………………………………………………………………………. Run Position….……………………………………………………………………………………………. Connecting Electrical Loads………………………………………………………………………….. Removing Electrical Loads…………………………………………………………………………….

  • Page 4: Refueling Precautions

    1. SAFETY PRECAUTIONS This manual provides safety information for Promate PM2000i, including preparation, operation, and maintenance instructions. Before running this generator, please read and observe all warnings and instructions that are provided both on the generator labels and in this instruction manual. Failure to follow the guidelines below may cause personal injury.

  • Page 5: Controls And Features

    2. CONTROLS AND FEATURES Read this owner's manual before operating your generator. Familiarize yourself with the location and function of the controls and features. Save this manual for future reference. Generator PM2000i Diagram 1. Generator Parts Handle Fuel Cap Control Panel...

  • Page 6: Control Panel Features

    Multi-Function Rotary Button Output Indicator Overload Indicator Oil Warning Indicator (RED) Reset Button Eco Mode Button AC 230V- 20A Grounding Terminal Parallel Operation Outlet 5V USB/ Type C 3 in 1 LCD Multi-meter Diagram 2. Control Panel Features 2.2 3 in 1 LCD Multi-meter Function Diagram 3.

  • Page 7: Specifications

    3. SPECIFICATIONS Table 1. General Specifications Model PM2000i Surge Power 2000W Rated Power 1600W Rated AC Voltage 230V Rated DC Voltage 5V (USB & TYPE-C) Rated Frequency 60Hz Phase Single Grounding System (AC) Neutral Floating Engine Type Single Cylinder, 4-Stroke OHV Air Cooled...

  • Page 8: Before Starting

    The Promate PM2000i is designed and rated for continuous operation at ambient temperatures of up to 40°C. If needed, this product can be operated at temperatures ranging from 15°C - 50°C for short periods. If the product is exposed to temperatures outside of this range during storage, it should be brought back within this range before operation.

  • Page 9: Adding Fuel

    The generator should be connected properly to an appropriate ground to help prevent electric shock. We consider the first 5 hours of runtime to be the The generator has a system ground that unit's break-in period. During the break-in period, connects its frame components to the ground keep the load at or below 50% of the running watt terminals on the AC output outlets.

  • Page 10: Starting The Generator

    7. Allow the generator to operate at zero load for a few minutes after each initial start-up to allow the engine and generator to stabilize. Promate PM2000i is equipped with LOW IDLE/ECO MODE Button (Diagram 2, No.11). Engaging this switch allows the system to regulate the engine Diagram 9.

  • Page 11: Connecting Electrical Loads

    5.2 Connecting Electrical Loads 2. Let the generator run at no-load for two minutes to stabilize the internal temperatures The Promate PM2000i has undergone pre-testing of both the engine and the generator. and adjustment to handle its full capacity. Before 3.

  • Page 12: Fuel Cap Vent "Off" Position

    Low Oil Shutdown generator is overloaded. You must disconnect your device and press the reset button Promate PM2000i is equipped with low oil (Diagram 2, No. 5) immediately. shutdown. When the engine oil is lower than the alarm value, the generator will not start and the To extend the life of your generator and connected Oil Warning Indicator (Diagram 2, No.

  • Page 13: Parallel Connection

    3. Put the parallel connection wires 1 and 2 into the parallel connection sockets 3 and 4 (Diagram 18, black to black & red to red). Only use the parallel cables provided with the unit. Never connect or disconnect the parallel cord leads when the generator is running.

  • Page 14: Maintenance Storage

    Change engine oil Clean Air Filter Inspect/Adjust/Replace Spark plug Inspect/Clean/Replace Spark Arrester Every 200 Hours or 12 Months Replace Air filter Replace Spark Plug Inspect/Adjust Valve Clearance* Diagram 22. Correct Spark Plug Gap * To be performed by Promate Service.

  • Page 15: Engine Oil Level Check

    The spark plug must be properly gapped and free 1. Loosen bolts remove maintenance cover (Diagram 5). of deposits in order to ensure proper engine 2. Remove the oil filler cap. operation. To check: 3. Screw the oil funnel onto the filling neck to 1.

  • Page 16: Spark Arrestor Maintenance

    2. TIP: DO NOT use a garden hose to clean the generator. Water can enter the generator through Contact Promate Service purchase the cooling slots which might damage the replacements for your consumable parts. generator windings.

  • Page 17: Storage

    Use a soft bristle brush to remove dirt and oil. 2. Pull the recoil slowly until resistance is felt. This close the valves so moisture cannot enter the Use an air compressor with 25 PSI (172 kPa) to engine cylinder. Gently release the recoil. clean dirt and debris.

  • Page 18: Troubleshooting

    10. Flooded 10. Wait 5 minutes and re-crank engine. 11. Excessively rich fuel mixture. 11. Contact Promate Service. 12. Intake valve stuck open or closed. 12. Contact Promate Service. 13. Engine has lost compression. 13. Contact Promate Service.

  • Page 19: How To Order Replacement Parts

    The Company will not pay for repairs or To order replacement parts and consumable parts, adjustments to the product, or for any costs of please contact Promate Service and be ready with labor performed without the Company's prior the following information: authorization.

  • Page 20: Exploded Diagram & Part List

    11.EXPLODED DIAGRAM AND PART LIST Model: PM2000i...
  • Page 21 Engine Exploded Diagram...

  • Page 22: Generator Part List

    PART LIST Table 5. Generator Part List Part Number Description Qty. 33089-00512-00 ENGINE BASE BOARD 34030-00230-00 SHOCK ABSORBING MOUT 34030-00231-00 SHOCK ABSORBING MOUT 30125-00002-02 HEX NUT 30132-00005-00 T-TYPE NUT 33275-00122-01 SHELL RUBBER PAD 30101-00042-01 HEX BOLT 30101-00070-00 HEX BOLT 20136-00668-02 INVERTER 20260-05552-04 ENGINE...

  • Page 23: Engine Part List

    Table 6. Engine Part List Part No. Description Qty. Part No. Description Qty. CYLINDER COVER 20260-05552-04 ENGINE 33048-00495-00 GASKET CRANKSHAFT 34011-00179-01 20021-00072-00 CYLINDER COVER CASE AIR INTAKE 30101-00066-00 HEX BOLT 34013-00129-00 VALVE 20027-00023-00 SPARK PLUG AIR EXHAUST 33155-00161-00 34013-00130-00 VALVE 30125-00009-00 HEX NUT 34018-00019-00...
  • Page 24 Part No. Description Qty. 20005-00396-00 STATOR 30101-00530-00 HEX BOLT 33593-00421-00 WIRE BOARD 30101-00066-00 HEX BOLT 20006-00175-00 ROTOR 30125-00009-00 HEX NUT 20028-00137-00 TRIGGER 30101-00070-00 HEX BOLT 33099-00251-00 IMPELLER 30101-00070-00 HEX BOLT 34021-00310-00 WIND SHIELD 30101-00068-00 HEX BOLT LOWER WIND 34021-00319-00 SHIELD 30101-00070-00 HEX BOLT...
