Mentor USB Probes
Operating Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Waygate Technologies and is the answer not in the manual?

Questions and answers

Related Manuals for Baker Hughes Waygate Technologies

Summary of Contents for Baker Hughes Waygate Technologies

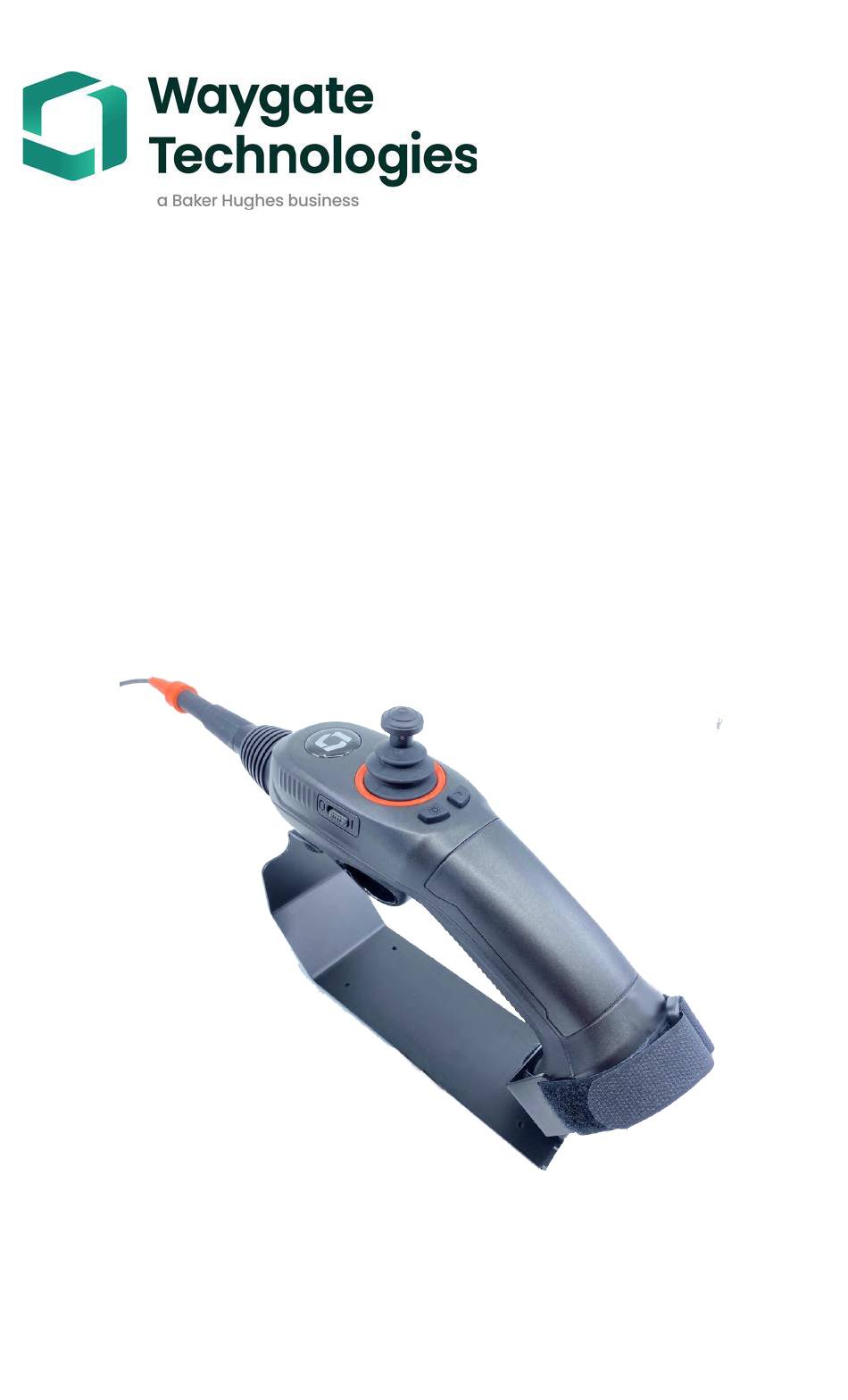

  • Page 1 Mentor USB Probes Operating Manual...

  • Page 3: Table Of Contents

    Table of Contents 1 Overview .....................4 2.2 mm and 3.0 Probe: 4-Way Articulation ....5 2 Safety Information ................6 Environmental ..................6 3 Getting Started ..................7 Unpacking the System ..............7 Packing the Equipment ..............7 Connecting the Probe..............8 Probe Adjustments .................9 4 Specifications ..................

  • Page 4: Overview

    Remote Visual Inspection equipment, please contact the following: Technical Support Contact Information Global Phone: 1-866-243-2638 Email: RemoteService@BakerHughes.com Note: Contact information is subject to change. Please visit the Waygate Technologies website for the latest information.

  • Page 5: Mm And 3.0 Probe: 4-Way Articulation

    2.2 mm and 3.0 Probe: 4-Way Articulation 1. Articulation Control - Used for 4-way articulation control. 2. Light Source Power - This button turns the light source on/off. 3. Illumination Button - This button is used to adjust the intensity of the LED light source.

  • Page 6: Safety Information

    Safety Information To ensure operators safety, be sure to read and understand this manual before using any of this equipment! The borescope and its accessories are not explosion-proof, pressurized, or intrinsically-safe. Do not use in hazardous environments. This product was not rated for use in explosive atmospheres.

  • Page 7: Getting Started

    Getting Started Unpacking the System Caution: Small diameter (sub <4.0mm) probes need to be handled carefully to avoid accidental damage. The probe’s insertion tube is stored inside the case’s foam. To remove, lift the probe’s handset and slowly withdrawal the insertion tube from the storage tube, inside the case foam.

  • Page 8: Connecting The Probe

    Connecting the Probe The probe connects to the Waygate VideoProbe handset using the attached USB cable. The probe is also powered over USB. When plugged in to the instrument, video from the probe is auto- matically selected as the active video source. To resume video from a standard Mentor, simply unplug the probe.

  • Page 9: Probe Adjustments

    Probe Adjustments The probe’s tip position can be adjusted using the manual con- trols on the probe. No power is required to adjust the tip’s posi- tion. Illumination for the probe is provided by an integrated LED light source. LED brightness level can be adjusted using the manual dial knob or buttons on the probe(see Overview).

  • Page 10: Specifications

    Specifications Probe Diameter 2.2 mm: 4-way 3.0 mm Interface Still Image MViQ Flame MViQ Flame Resolution 400x400 1280x800 MViQ Gray MViQ Gray 400x400 640x480 MViQ+ MViQ+ 400x400 1280x800 Video MViQ Flame MViQ Flame Resolution 400x400 1024x768 MViQ Gray MViQ Gray 400x400 1024x768 MViQ+...

  • Page 11: Maintenance And Troubleshooting

    For best image quality, clean the camera frequently. If you discover conditions that require evaluation or repair, return the system to Waygate Technologies. Caution: Do not immerse or soak the handset or the USB connector.

  • Page 12: Inspecting And Cleaning A Probe

    Inspecting and Cleaning a Probe – Check the probe for damage or contamination. Look for excessive wear in the bending neck, loose strands of the braided weave, or separation of the bonding joints. – Clean the probe‘s camera, including the lens on the camera head.

  • Page 13: Environmental Compliance

    6 Environmental Compliance The equipment purchased has required the extraction and use of nat- ural resources for its production. It may contain hazardous substances that could impact health and the environment. In order to avoid the dissemination of those substances in the envi- ronment and to diminish the pressure on the natural resources, we encourage the use of appropriate take-back systems.

  • Page 14: Customer Support Centers

    India GE Oil & Gas India Pvt. Ltd, China Building No 430 A, Plot No 11 & 25 Baker Hughes Sensing & Inspection Co., Ltd. Badhalwadi, MAWAL, Pune, Maharashtra, 410507 No. 8 Xi hu Road, Wu jin high-tech zone Tel: +91 (0)2114662277 Changzhou, Jiang Su 213164 E-mail: India.Service@bakerhughes.com...
