Summary of Contents for Stratasys Origin CureLite

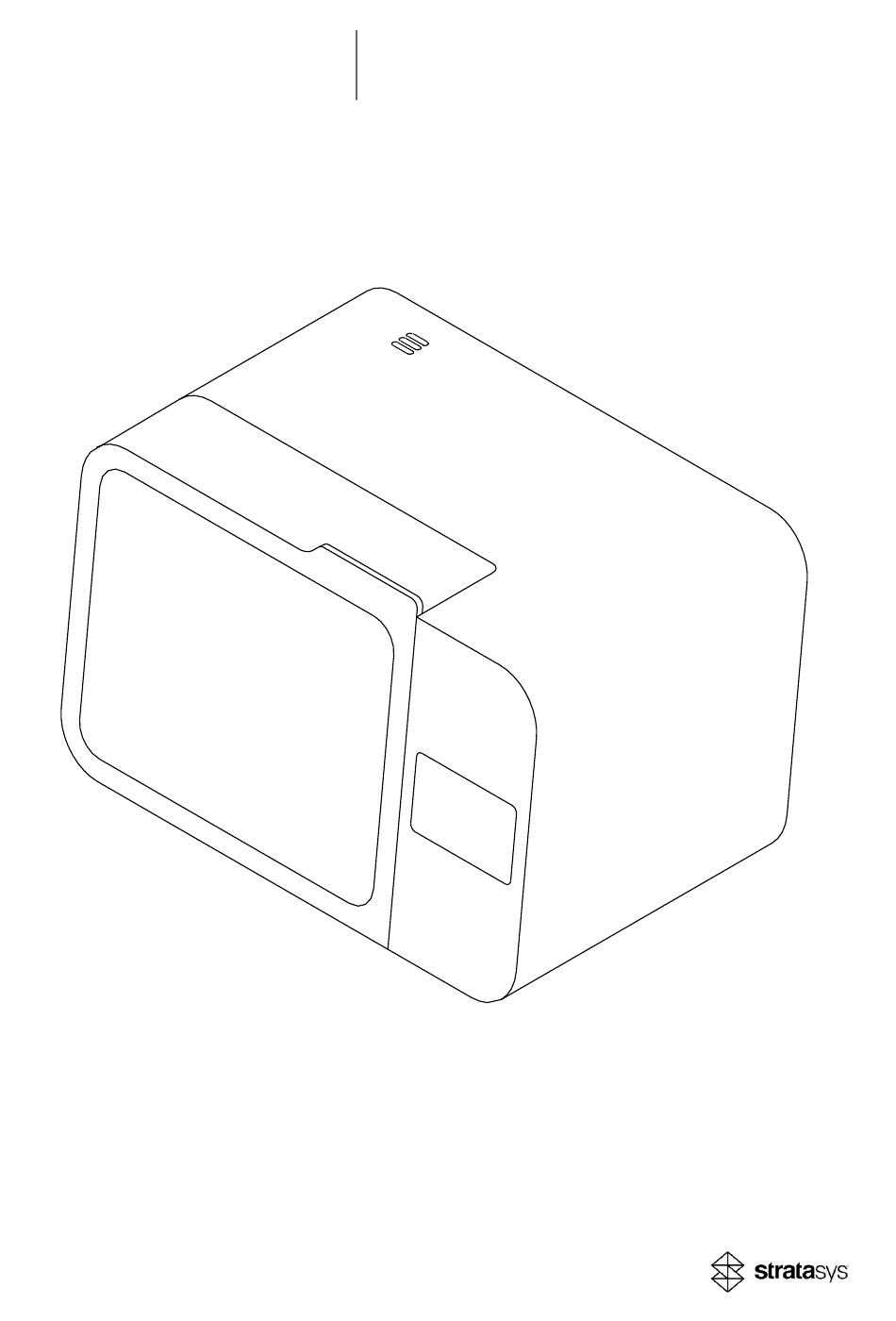

- Page 1 Stratasys Origin CureLite™ User Guide UV Curing Box DOC-09981 Rev. C...
- Page 3 Installation and Usage Instructions Stratasys Origin CureLite™ UV Curing Box Large-format desktop 3D printing post-cure chamber Original English instructions Read this manual carefully and keep it for future reference. June 2025 © Stratasys...
-
Page 4: Table Of Contents
Table of Contents Preface ..........................6 1. 1 Read and retain instructions ................6 1. 2 Obtaining documentation and information............6 Introduction ......................8 2. 1 Intended use ...................... 8 2. 2 Technical specifications ..................9 2. 3 Product components..................10 2. - Page 5 6. 2 Inspection and maintenance ................27 6. 3 Tasks between uses ..................27 6. 4 Periodic maintenance ..................27 Troubleshooting ....................30 7. 1 Collecting diagnostic logs ..................30 7. 2 Performing a factory reset ..................30 7. 3 Troubleshooting errors or abnormal activity ............30 Disassembly and repair ..................34 8.
-
Page 7: Document Revisions
Read and understand this manual and its safety instructions before using the Stratasys Origin CureLite . Failure to do so can result in serious injury or death. WARNING DISCLAIMER Stratasys has made every effort to make these instructions as clear, complete, and correct as possible. -
Page 8: Preface
The Stratasys Origin CureLite™ is a large-format 3D printing post-cure chamber. Post-curing printed parts in the Stratasys Origin CureLite™ strengthens them with heat and as well as 365 nm and 395 nm light and brings them to their optimal mechanical properties. Post- curing is also a required step in workflows using Stratasys dental or medical resins to make biocompatible parts. - Page 9 This product is protected under warranty. Stratasys offers a warranty for all Stratasys-branded hardware. Unless otherwise expressly stated, the Terms of Service, including the Warranty, constitute the entire agreement between you and Stratasys with respect to the Service and any product you purchase from Stratasys and supersedes all prior or contemporaneous communications, proposals, and agreements, whether electronic, oral, or written, between you and Stratasys.
-
Page 10: Introduction
Introduction Intended use The Stratasys Origin CureLite™ post-cures 3D printed parts with a combination of heat and light. The final performance characteristics of cured photopolymer resin may vary according to your compliance with the instructions for use, application, operating conditions, material combined with, end use, or other factors. -
Page 11: Technical Specifications
Technical specifications Parameter Unit Unit Stratasys Origin CureLite™ Installation surface Benchtop unit Minimum dimensions for convenient 90 × 85 × 55 cm access 35.5 × 33.5 × 21.7 in (W × D × H) Product dimensions (W × D × H) 69 ×... -
Page 12: Product Components
Power cable: Provides power to the Stratasys Origin CureLite™ Wi-Fi antenna: Allows the machine to connect to a network via Wi-Fi. User interface For detailed guidance and visual assistance, visit https://support.stratasys.com/en/Printers/ Cleaning-Systems/OriginCureLite. The Stratasys Origin CureLite™ display is a touchscreen interface. The touchscreen displays... - Page 13 The touchscreen serves as the user interface for the machine. The home screen displays the preheating time and temperature, post-cure time and temperature, current resin, device status, and serial number. The following screens and options are accessible via the home screen on the Stratasys Origin CureLite™ display: Settings...
-
Page 14: Safety
Safety Read and understand this manual and its safety instructions before using the Stratasys Origin CureLite . Failure to do so can result in serious injury or death. WARNING Supervise young or inexperienced users to ensure enjoyable and safe operation. -
Page 15: Component And Subsystem Safety
Accumulation of cured material creates the possibility of malfunction. The Stratasys Origin CureLite™ uses heat as well as 365 nm and 395 nm light to post-cure 3D printed parts. The door includes an interlock system that is designed to automatically pause heating and extinguish the cure lights when the door is open. -
Page 16: Fcc Caution
Changes or modifications to this product not authorized by Stratasys could void the electromagnetic compatibility (EMC) and wireless compliance and negate your authority to operate the product. -
Page 17: Personal Protective Equipment (Ppe)
We also recommend that you wear protective gloves when working with tripropylene glycol monomethyl ether. Personal protective equipment (PPE) Safe operation of the Stratasys Origin CureLite™ can be achieved by using the following equipment: • Non-reactive nitrile gloves NOTICE •... -
Page 18: Sensitive Components
• LED modules The Stratasys Origin CureLite™ uses three LED modules to expose printed parts to a mix of 365 nm and 395 nm light during post-curing. Refer to section 6.4.2 Maintaining the light diffusers for more information. •... - Page 19 1. Immediately disconnect the machine from its power source. 2. If the door of the Stratasys Origin CureLite™ is open, close its door if possible. If a part inside the Stratasys Origin CureLite™ is on fire, do not close its door. Place a °...
-
Page 20: Preparation And Setup
Preparation and setup Location and environs Prepare a space to install and operate the Stratasys Origin CureLite™ and house the necessary accessories and consumables. To prepare the workspace: • Ensure that the workspace meets the following requirements: Dry, indoor location °... -
Page 21: Accessing The Serial Number
4. Use the provided handles on the carrying slings to lift the machine out of its carrier tray. 5. Carefully move the machine onto its workspace. If you need to readjust the Stratasys Origin CureLite , use the carrying slings to pick the machine back up. Do not pick up the Stratasys Origin CureLite... -
Page 22: Setting Up A Network Connection
on the touchscreen, followed by the onboarding process. Follow the on-screen prompts to finish setting up the machine. To turn off the machine, refer to section 5.5.2 Turning off. Setting up a network connection Connect the machine to a secure network via Wi-Fi or Ethernet, providing it internet access for remote monitoring and receiving firmware updates. -
Page 23: Updating Firmware
Updating firmware Stratasys regularly releases updated firmware to fix bugs and improve functionality. To update the firmware automatically: 1. The machine may automatically recognize that you have sent a firmware update. Tap Continue on the touchscreen to finish the installation. - Page 24 Do not ship the Stratasys Origin CureLite™ with any loose items stored inside the machine. Loose items can shift during transit and damage sensitive components, which may result in additional fees or void the warranty. When shipping a machine to Stratasys or a support representative for replacement NOTICE 4.
-
Page 25: Usage
Many resin types require post-curing to achieve their optimal mechanical properties or as a step in producing a biocompatible printed part. The Stratasys Origin CureLite™ helps ensure consistent post-curing by rotating printed parts during the post-cure cycle and exposing the part to light from all directions. - Page 26 Stratasys Origin CureLite , because the turntable may be hot. 5. 2 . 2 Setting the time and temperature The Stratasys Origin CureLite™ has presets for each resin type that you can select through the touchscreen. When Stratasys releases new resins, new resin formulations, or new layer...
-
Page 27: Considerations For Specific Geometries
4. Tap Done to confirm your selection. 5. Tap Start. The Stratasys Origin CureLite™ heats to the selected temperature first. The LEDs activate and the timer starts once the heaters have reached the target temperature. Once a post-cure cycle has started, use the touchscreen or open the door to pause the post-curing cycle. -
Page 28: Managing The Machine
5. 5 . 1 Turning off The Stratasys Origin CureLite™ is designed to remain powered on when not in use. Flip the breaker switch on the back of the unit to the OFF position to turn off the machine completely and conserve power. -
Page 29: Maintenance
To maintain the most efficient and long-lasting machine, ensure regular conservation. Stratasys provides instructions to advise in installing, operating, and maintaining the machine. The Stratasys Origin CureLite™ shall only be maintained by a qualified and trained person. Unauthorized disassembly or repair procedures may damage the machine. -
Page 30: Inspection And Maintenance
6.4.4 Tasks between uses Over time, debris or contaminants may collect in the Stratasys Origin CureLite™ or on its internal surfaces, particularly if printed parts are not fully dried before post-curing. In order to preserve the reliability of the Stratasys Origin CureLite™, it is important to regularly inspect and clean its various components and assemblies. - Page 31 6. 4 . 2 Maintaining the light diffusers The 365 nm and 395 nm LEDs in the Stratasys Origin CureLite™ are covered by frosted light diffusing panels. These light diffusers spread the light from the LEDs and ensure that parts post-cure evenly. If the light diffusers are damaged or covered, parts may not post-cure properly.
- Page 32 6. 4 . 3 Maintaining the door Visually inspect the door for traces of resin, cracks, or other damage. Clean the door with a non-abrasive microfiber cloth and soapy water or a general purpose cleaner, such as glass cleaner. 6. 4 . 4 Maintaining the touchscreen Visually inspect the touchscreen for any traces of resin.
-
Page 33: Troubleshooting
Troubleshooting errors or abnormal activity In the case of errors or abnormal activity with the Stratasys Origin CureLite™, reference the following errors, causes, and proposed solutions. Complete the initial troubleshooting steps and carefully document all results. Contact Stratasys support at https://support.stratasys. - Page 34 Fully dry all solvent off of parts fully dried before post- before post-curing. curing 7. 3 . 2 Resolving errors If errors persist after following these steps, contact Stratasys support at https://support. stratasys.com/en/Contact-Us or a support representative for additional guidance. Error Cause...
- Page 35 Disconnect and reconnect the power. fault occurred. CureLite™ thermistor • Disconnect the power. Remove reported an error. the Stratasys Origin CureLite™ top shell and check that the thermistor wiring is secure. Contact Stratasys support at https://support.stratasys. com/en/Contact-Us or a support representative for more information.
- Page 36 Error Cause Solution The door is open. The door is open while the Close the Stratasys Origin CureLite™ Please close. Stratasys Origin CureLite™ is door. trying to begin a cycle. The device failed to reach The Stratasys Origin Disconnect the power. Remove the the required temperature.
-
Page 37: Disassembly And Repair
Disassembly and repair All steps that involve opening the machine and/or investigating internal components should be done by skilled persons under the guidance of Stratasys support or a WARNING support representative. Any damage resulting from attempting disassembly and/or repair without prior authorization from Stratasys support or a support representative is not covered by warranty. -
Page 38: Recycling And Disposal
Recycling and disposal For detailed guidance and visual assistance, visit https://support.stratasys.com/en/Printers/ Cleaning-Systems/OriginCureLite. Disposal of electronic components The symbol on the product, the accessories, or packaging indicates that this device shall not be treated as nor disposed of with household waste. When you decide to dispose of this product, do so in accordance with environmental laws and guidelines. -
Page 39: Index
Index clean 13, 16, 20, 27, 28, 35 cleaning 13, 16, 20, 27, 28, 35 comply 8, 13, 35 compliance 8, 13, 35 display 10, 11, 26, 29, 30, 35, 36 disposal 5, 33, 34, 35 door 16, 18, 22, 23, 27, 28, 29, 31, 35, 36 environment 4, 9, 13, 17, 22, 27, 30, 34, 35 error 10, 29, 30, 31, 35 Ethernet 9, 18, 19, 20, 35, 36... - Page 40 solvent 5, 13, 14, 21, 22, 26, 30, 33, 34, 35 specifications 4, 8, 9, 35 technical data 8, 35 temperature 4, 9, 10, 11, 17, 22, 23, 24, 25, 29, 30, 31, 35, 36 heat 4, 9, 10, 11, 17, 22, 23, 24, 25, 29, 30, 31, 35, 36 touchscreen 9, 10, 18, 19, 20, 22, 23, 25, 26, 27, 28, 29, 35 tripropylene glycol monomethyl ether 14, 36...
-
Page 41: Glossary
CureLite™ turntable. Double walls insulate the cure chamber and internal surfaces reflect light. Ethernet port The Stratasys Origin CureLite™ can connect to a network via Ethernet. The port is connected to the motherboard and can be accessed from the back of the machine. -
Page 42: Product Compliance
Meaning Wi-Fi antenna The Wi-Fi antenna enables the machine’s wireless connectivity. Product compliance The Stratasys Origin CureLite™ complies with the following electronics and safety standards: UL 61010-1:2012 Low Voltage (LVD) Directive 2014/35/EU CSA C22.2 No. 61010-1-12:2012 Radio Equipment Directive 2014/53/EU...
