Site Preparation Guide
Origin® Two
3D Printing System
DOC-71001 Rev. C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Origin Two and is the answer not in the manual?

Questions and answers

Related Manuals for Stratasys Origin Two

Summary of Contents for Stratasys Origin Two

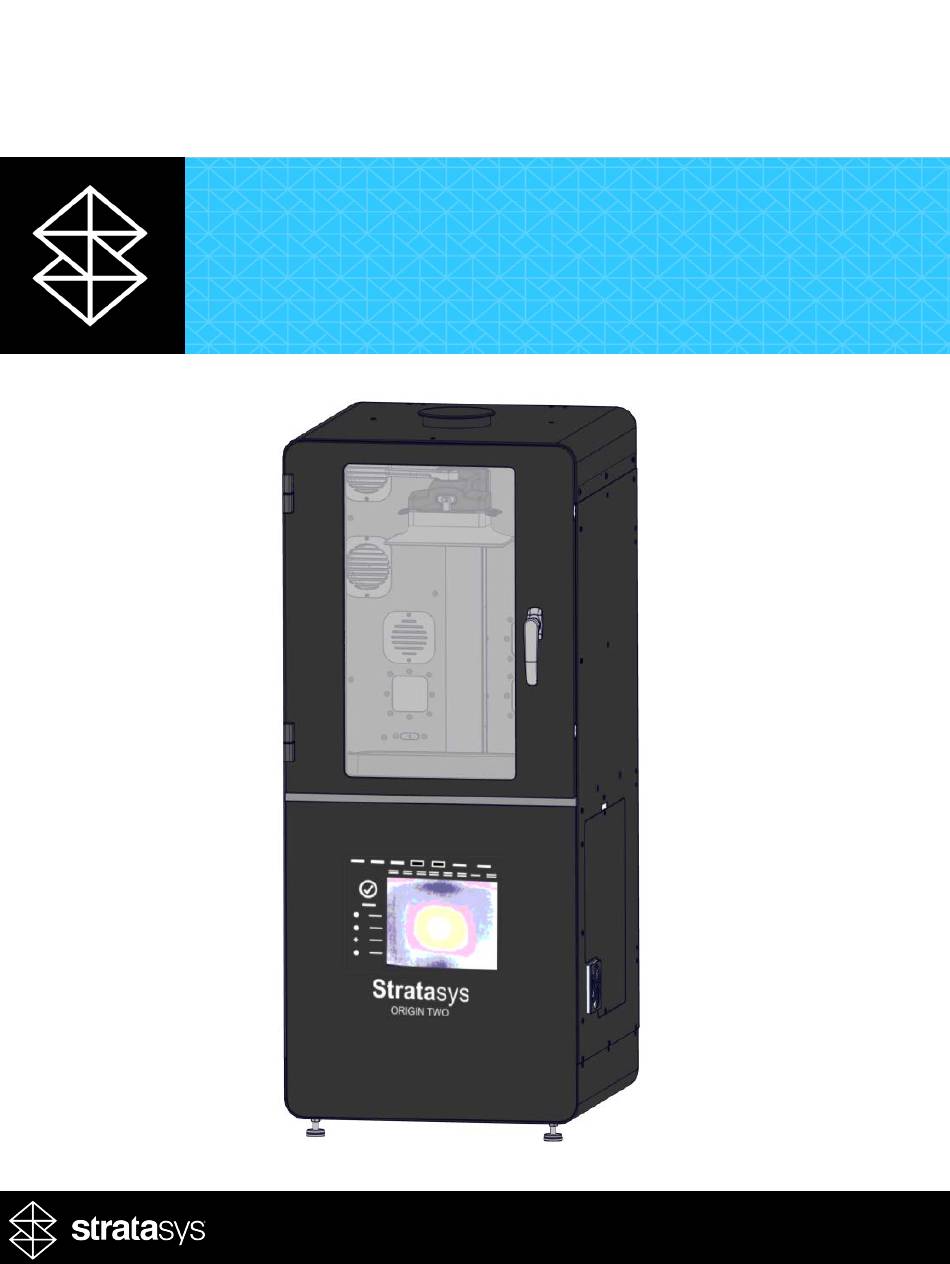

  • Page 1 Site Preparation Guide Origin® Two 3D Printing System DOC-71001 Rev. C...
  • Page 2 This documentation contains proprietary information of Stratasys Ltd. This information is supplied solely to assist authorized users of this Stratasys 3D printing system. No part of this document may be used for other purposes, and it may not be disclosed to other parties. The specifications on which this document is based are subject to change without notice.

  • Page 3: Table Of Contents

    Space and Positioning Requirements................. 4 Environmental Requirements....................8 Electrical Requirements ...................... 8 System Ventilation Requirements ..................8 LAN Requirements......................9 Origin Two Local Requirements ..................11 Origin Local Hub Requirements..................12 Software Setup ..................12 Installing GrabCAD Print....................12 Post Processing Equipment ..............13 Additional Tools and Supplies..............

  • Page 4: Revision Log

    The following basic safety tips are given to ensure safe installation, operation, and maintenance of Stratasys equipment and are not to be considered as comprehensive on matters of safety. Although the Origin Two printer is designed to be safe and reliable, access to areas of the printer are potentially dangerous.
  • Page 5 It is recommended to install an eyewash station near the printer, for emergency use. • For more in-depth information regarding the safe use of 3D printing resins, please review the resin handling safety guidelines here. © Copyright 2024 Stratasys. All rights reserved. Page v...

  • Page 6: About The Printer

    Features About the Printer The Stratasys Origin Two is a manufacturing-grade printer that enables additive mass production of end-use parts. Programmable Photopolymerization (P³) precisely orchestrates light, temperature, a pneumatic separation mechanism for the best possible results. The printer can produce detailed features with high-accuracy materials, and parts produced can be post- processed in minutes.

  • Page 7: Main Components

    Power switch Resin Tray (shipped separately Power cable connection Touchscreen Fuse receptacle Lever (closed position) Fans Build arm USB port Build platform ProAero control cable connection Chamber vents (4 total) Ethernet port © Copyright 2024 Stratasys. All rights reserved. Page 2...

  • Page 8: How To Use This Guide

    Select the installation site for the printer based on the following: 1. Space Requirements 2. Environmental Requirements 3. Electrical Requirements 4. System Ventilation Requirements 5. LAN Requirements The information needed for the above considerations is provided in the following sections. © Copyright 2024 Stratasys. All rights reserved. Page 3...

  • Page 9: Space And Positioning Requirements

    Height: 55 inches (1397 mm) Width: 20.2 inches (512 mm) Printer Uncrated 180 pounds (81.6 kg) Depth: 22.6 inches (575 mm) Height: 46.8 inches (1189 mm) Figure 1: Printer overall dimensions © Copyright 2024 Stratasys. All rights reserved. Page 4...
  • Page 10 Figure 2: Minimum Printer Clearances (Top view) 4 inches (10.2 cm) 6 inches (15.2 cm) Printer Rear Front Overhead: 6 inches (15.2 cm) 19.5 inches 4 inches (49.5 cm) (10.2 cm) © Copyright 2024 Stratasys. All rights reserved. Page 5...
  • Page 11 It is recommended to install the printer on one of the following mounting configurations, specified below. Custom Stand Assembly The customer can mount the printer on a stand supplied by Stratasys at specific customer request. For information on how to install the stand, refer to the User Guide. Bench Mounting A customer’s individual setup configuration will depend on the application and how many...
  • Page 12 Alternatively, use a separate, easily-accessible power strip with individual switches. Figure 5: Multiple Post-Processing Setup Example 30” 72” (183 cm) © Copyright 2024 Stratasys. All rights reserved. Page 7...

  • Page 13: Environmental Requirements

    100-120 or 200-240 VAC, 50/60 HZ, 700 W, 1 phase • Only operate the Origin Two printer with the 110V (IEC 320-C13) or 220V (CEE7/7RA TO IEC320-C13) grounded power connector provided with the printer. Do not replace the detachable power supply cord with an inadequately rated cord.

  • Page 14: Lan Requirements

    Communication is through ChaCha20 symmetric 256-bit encryption with Poly1305 for message authentication. Stratasys connects the printer to the Origin cloud platform via VPN because it is secure and robust, simple to configure, and has zero maintenance overhead. With this method, all communication is protected by an additional layer of end-to-end encryption, while in motion and at rest, and authentication.
  • Page 15 The printers use 10.144.0.0/16 internally for VPN communication. DHCP must not assign addresses in the 10.144.0.0/16 subnet, otherwise address conflicts will be created. Locally, the printers may have SSH port 22 open, to support authorized onsite service by Origin personnel. © Copyright 2024 Stratasys. All rights reserved. Page 10...

  • Page 16: Origin Two Local Requirements

    Origin Local Hub rather than the Origin Cloud. The Origin Local Hub and up to 10 Origin Two Local printers must be able to connect to the same network switch as the computer workstation sending print jobs. The network switch is not required to be connected to the Internet, as the devices only communicate locally.

  • Page 17: Origin Local Hub Requirements

    Origin Local Hub Requirements Origin Local Hub Requirements The Origin Local Hub is an industrial computer containing proprietary firmware which interacts with the Origin Two Local printer on the LAN, replacing the requirement to access the Origin Cloud. Space •...

  • Page 18: Post Processing Equipment

    Stratasys recommends the Branson CPX8800H. • UV and thermal post-curing equipment: • Stratasys recommends using the Stratasys Origin Cure LED UV post-cure unit for optimal material properties and accuracy. • For dental and medical applications, the Dreve PCU LED N2 cure box is...

  • Page 19: Additional Tools And Supplies

    Hazardous material trash cans with foot pedals • Compressed air source and controlled nozzle Other Storage • Tool storage bins • WorPart storage shelves and bins • Sealed hazardous waste storage bins © Copyright 2024 Stratasys. All rights reserved. Page 14...

  • Page 20: Frequently Asked Questions (Faq)

    Origin Local Hub. Q: How can I order new materials? A: Contact your Stratasys representative to discuss our array of specialized resins. Q: How much material do I need for a print? A: We recommend filling the tray with enough material resin based on the volume of your print job, plus an additional buffer of at least 300 mL of resin.

  • Page 21: Site Preparation Key Points

     Origin account within GrabCAD Print has been set up and is accessible to the customer, unless the customer has purchased an Origin Two Local printer.  The Welcome Kit and startup materials have been removed from the shipping crate.
  • Page 22 _____ c-support@stratasys.com Copyright © 2024 Stratasys Ltd. All rights reserved. DOC-71001 Rev. C...
