Summary of Contents for Zline RSM-W

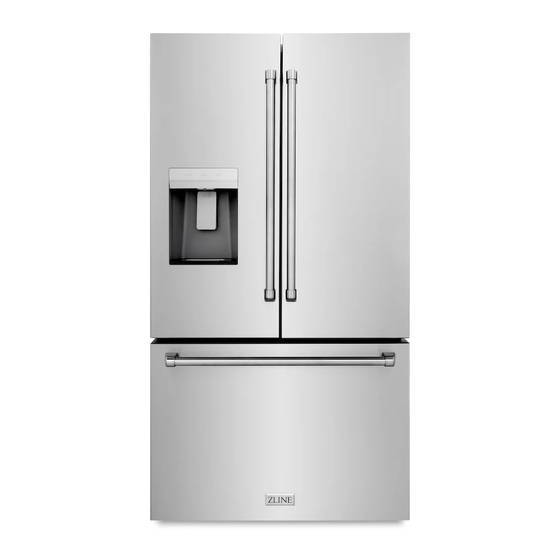

- Page 1 Installation Manual FREESTANDING REFRIGERATION 36" RSM W MODELS www.zlinekitchen.com...
- Page 2 ZLINE Kitchen and Bath provides Attainable Luxury, where the kitchen and bath of your dreams is never out of reach. Through our unique designs and unparalleled quality, we’re dedicated to providing you an elevated experience in the heart of your home. With an endless selection of...
- Page 3 ZLINE is fueled by a passion for innovation; A relentless pursuit of bringing the highest end luxury designs and professional features into everyone’s homes. Because we continually strive to improve our products, we may change specifications and designs without prior notice.
-
Page 4: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ....1 General Safety ........1 Food Safety . -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS This warning symbol indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. WARNING This unit's installation and user manuals contain important safety information. Failure to follow these instructions may result in death, fire, or electric shock. WARNING GENERAL SAFETY •... - Page 6 IMPORTANT SAFETY INSTRUCTIONS When positioning the appliance at its installation location, ensure the electrical supply cord is not kinked or damaged. WARNING • Do not use extension cords or ungrounded (2-prong) adapters when connecting this appliance to electricity. • The refrigerator must be fully disconnected from electricity before installing accessories or when servicing the product.
-
Page 7: Food Safety
IMPORTANT SAFETY INSTRUCTIONS FOOD SAFETY • To avoid food contamination, please read the following instructions and information: • Opening the door for long periods of time can cause a significant increase in the temperatures inside the appliance. • Users should regularly clean surfaces and accessible drainage systems that come in contact with food. -
Page 8: Warnings For Disposal
IMPORTANT SAFETY INSTRUCTIONS ENERGY WARNINGS • Refrigerating appliances might not operate consistently (for example: defrosting of food or warming temperatures inside the freezer compartment) when set below the cold end of the range of temperatures designed for the appliance. • Effervescent drinks should not be stored in the freezer compartment or in low-temperature chambers or cabinets. -
Page 9: Electrical Connection
IMPORTANT SAFETY INSTRUCTIONS Failure to follow these instructions may result in death, fire, or electric shock. WARNING ELECTRICAL CONNECTION • Do not pull on the power cord unplugging the refrigerator. Firmly grasp the plug and pull out it from the socket directly. •... -
Page 10: Before Installation
BEFORE INSTALLATION TOOLS AND PARTS PARTS PROVIDED • Fastener Rings (3) — to adjust door height as necessary (see page 13) • Anchor Bolts (6) — to install door handles (see page 14) • Allen Wrench / Hex Key (1) — to secure door handles (see page 14) •... -
Page 11: Product Dimensions
Height: Recess height: 9 7/8" 67 3/4" 75 mm) (1721 mm) BEFORE INSTALLATION PRODUCT DIMENSIONS Depth w/ doors, Depth w/ doors, no handles: no handles: Width: Width: 34" (863 mm) 34" (863 mm) 35 3/4" (908 mm) 35 3/4" (908 mm) Depth w/ no 29 1/2"... - Page 12 BEFORE INSTALLATION Depth w/ doors, no handles: 34" (863 mm) PRODUCT DIMENSIONS Depth w/ doors open at 135°: 46 1/8" (1 172 mm) 48 1/8 Recess height: 67 3/4" (1721 mm) Width w/ doors open at 135° (no handles): 62 3/4" (1593 mm) Width w/ doors open at 135°...
-
Page 13: Cutout Dimensions And Clearances
135°. • Cabinets can be shorter; just note the unit will extend beyond the cabinet depth. Since kitchen layouts vary, ZLINE recommends consulting with a professional installer to verify cabinet dimensions and electrical connections before installing the appliance. -
Page 14: Disassembling The Doors
BEFORE INSTALLATION DISASSEMBLING THE DOORS NOTE: Refrigerators are shipped with doors already installed; units are roughly 34" (863 mm) deep. Depending on the size of your home's doorways, you may need to remove the doors to transport the unit inside prior to installation. It's recommended to remove the freezer door first, as this allows easier access to remove the refrigerator doors. - Page 15 BEFORE INSTALLATION LEFT REFRIGERATOR DOOR 1. With both doors closed remove the 3 screws from the top hinge cover that connects both doors (see Figure 2). Set the screws aside. Use a step ladder for easier access. 2. Pop off the panel, revealing 2 small wire harnesses above both hinges and the main white electrical harness and plastic water line connection on the left hinge.
-
Page 16: Replacing The Freezer Door
BEFORE INSTALLATION REPLACING THE REFRIGERATOR DOORS 1. Position the right door at roughly 90° and insert the metal pin at the bottom of the door so it fits into the lower hinge receptacle (see Figure 4). Close the door. 2. Re-secure the upper black hinge removed earlier with the same 3 Phillips-head screws. 3. -
Page 17: Leveling The Feet
BEFORE INSTALLATION 2.2 Levelling feet LEVELING THE FEET • Leveling screws can be turned easily by tipping the cabinet slightly to gain access. • The front should be slightly higher than the rear to aid in door closing. • Turn the feet clockwise to raise (R) the appliance. •... -
Page 18: Installation
INSTALLATION DOOR HANDLE INSTALLATION Precautions should be taken to prevent handles from falling and causing personal injury. WARNING Refrigerator door handle Refrigerator Refrigerator door handle door handle Handle screw Handle screw Handle screw Hole for Hole for door anchor door anchor Hole for Location of door anchor... -
Page 19: Water Filter Replacement / Installation
A water filter icon on the display screen will signify when the filter needs to be replaced. When installing a new filter, drain 2–3 gallons of water from the dispenser to rid it of any debris. Only use a ZLINE filter. Otherwise, issues may occur. Scan to follow along with a video detailing... -
Page 20: Installing The Water Line
INSTALLATION INSTALLING THE WATER LINE Risk of electric shock and damage to the appliance. Disconnect the appliance from the electrical power source before performing any work on the water WARNING connection. Only a qualified technician may connect the appliance to the water supply in accordance with plumbing and local regulations. - Page 21 INSTALLATION INSTALLING THE WATER LINE NOTE: A water line installation kit is required to complete water line installation. Kits are available at most local hardware stores. Installing the Water Line Installing the Water Line 1. Turn off the main water supply and attach the new 1/4" stainless steel braided line in the •...
-
Page 22: Warranty
ZLINE warranty periods begin from the original date of product delivery and solely cover the original purchaser of the product, delivered new and in its original carton. The limited warranty covers all parts and labor for necessary repairs if any part of the product, or the product itself, proves to be defective in materials or workmanship. - Page 23 If a product qualifies within the service window provided under these warranty terms, and ZLINE is unable to repair the product or a defective part of the product after a reasonable number of attempts, ZLINE reserves the right to offer to replace the defective part or the...
-
Page 24: Serial Number Location
Always check the ZLINE website for the most up-to-date version of its product manuals: www.zlinekitchen.com/pages/manuals. Do not install or operate any ZLINE product if it has missing or broken parts or if it arrives damaged due to shipping. If ZLINE products arrive damaged, contact ZLINE Customer Experience at 1-614-777-5004 for help. - Page 25 Customer Experience Portal. Scan the QR code to view the most up-to-date version of our Installation Manual and User Manual. Need to purchase a part or accessory for your ZLINE product? Visit www.zlineparts.com, ZLINE's official parts distribution partner.
- Page 26 2.0.3 1-614-777-5004 www.zlinekitchen.com contact@zlinekitchen.com...
