Zline ATTAINABLE LUXURY RBIVZ-BS-60-G Installation Manual

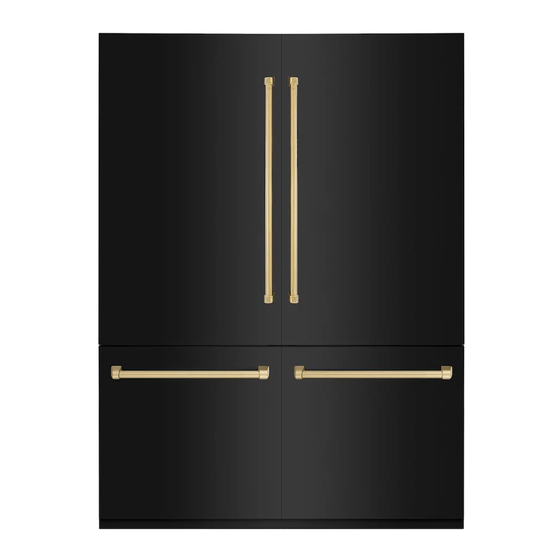

Dual built-in refrigerator

Hide thumbs

page of 26

/ 26
Bookmarks

Quick Links

Download this manual

Installation Manual

DUAL BUILT-IN

REFRIGERATOR

www.zlinekitchen.com

Need help?

Do you have a question about the ATTAINABLE LUXURY RBIVZ-BS-60-G and is the answer not in the manual?

Questions and answers

Summary of Contents for Zline ATTAINABLE LUXURY RBIVZ-BS-60-G

Page 1 Installation Manual DUAL BUILT-IN REFRIGERATOR www.zlinekitchen.com...
Page 2 ZLINE Kitchen and Bath provides Attainable Luxury, where the kitchen and bath of your dreams is never out of reach. Through our unique designs and unparalleled quality, we’re dedicated to providing you an elevated experience in the heart of your home. With an endless selection of...
Page 3 ZLINE is fueled by a passion for innovation; A relentless pursuit of bringing the highest end luxury designs and professional features into everyone’s homes. Because we continually strive to improve our products, we may change specifications and designs without prior notice.
Page 4 TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS BEFORE INSTALLATION INSTALLATION WARRANTY...
Page 5 RBIV-30 model refrigerators to create one RBIV-60 unit. • Always follow allow applicable safety instructions in this manual as well as the manuals for ZLINE's built-in refrigeration models (RBIV-30 and RBIV-36). • IMPORTANT: This is a complex installation procedure that should only be per- formed by qualified professionals and technicians.
Page 6 The User and Installation manuals for WARNING ZLINE's built-in refrigeration models (RBIV-30 and RBIV-36) must also be taken into consideration, as they contain important information about operation and safety. You may get seriously injured and your products damaged if you ignore the warnings given in these manuals.
Page 7 IMPORTANT SAFETY INSTRUCTIONS INSTALLATION ENCLOSURE REQUIREMENTS • The floor on which the dual refrigerator will be installed must be capable of bearing a minimum of 2,400 pounds (1,089 kg). • The kitchen floor and bottom of the product must be level. Otherwise, air flow for the unit's cooling system may be impeded or reduced.
Page 8 For the best installation, clearances between cabinets and the product must be in compliance with the values specified in this manual and in the Installation Manual for ZLINE's built-in refrigeration models (RBIV-30 and RBIV-36). Side walls must be free of any obstructions and their surfaces must be flat. Note: Minimum thickness of the side walls is 5/8"...
Page 9 RBIV-30 model refrigerators to create one RBIV- 60 unit. Scan the QR code to access the Installation Manual for ZLINE's built-in refrigeration models (RBIV-30 and RBIV-36). ELECTRICAL CONNECTION • Never use an extension cable or cord with this unit.
Page 10 BEFORE INSTALLATION CABINET DIMENSIONS • Much like ZLINE's RBIV-30 and RBIV-36 built-in refrigerators, the RBIV-60 model is a panel-ready appliance designed to be a permanent fixture in your custom kitchen; therefore, precise cabinet cutouts and superior attention to detail are required for seamless integration.
Page 11 BEFORE INSTALLATION RBIV-60 ELECTRICAL AND WATER REQUIREMENTS • Each RBIV-30 appliance is provided with a NEMA 5-15P plug and a 3-pin power cable designed to be connected to a 120VAC, 60HZ power receptacle. • Therefore, we recommend both RBIV-30 units be plugged into independent circuits.
Page 12 BEFORE INSTALLATION WATER SYSTEM LOCATION • The water connected to the dual refrigeration unit must be potable. • Location of the water system must be within the range outlined in the graphic at the bottom of this page. • The unit's water system must be connected to the main water system in the house. The user must be able to switch the water system on/off with a valve when necessary.
Page 13 BEFORE INSTALLATION !"#$%&'()#$$#)&*'%+*,-*'.')( DUAL INSTALLATION COMPONENTS Divider Trim Plastic Upper Bracket Adhesive Foam Divider Metal Lower Bracket "...
Page 14 INSTALLATION PARTS PROVIDED PART IMAGE DESCRIPTION 1. Adhesive Foam Divider 1/8” x 15 3/4" x 68 7/8" 2. Plastic Mounting Bracket 1/8” x 2" x 4 1/2" 3. Metal Mounting Bracket 1/16" x 1 5/8" x 2 1/4" 4. Screws Phillips head 5.
Page 15 INSTALLATION MOUNT UPPER BRACKETS AND LOWER BACK BRACKET TO CONNECT THE REFRIGERATORS On the back of one unit near the top, find the location for one plastic mounting bracket (Item No. 2) and fasten into place with two screws (Item No. 4), ensuring the small arm is pointed in.
Page 16 INSTALLATION CONNECT UPPER BRACKETS TO CONNECT THE REFRIGERATORS Realign both refrigerators so they are flush and line up with the opening where 1'2'() "--./%0/#+1.)(%)*%+*''.+)%)4.%/.5/&6./#)*/( they will be installed. 2. Finish installing the plastic mounting bracket on the back with the other two A 4)?"E7'C37':(7)3H)?E3)&'()7#?D37GI7#?D3, screws to connect both units.
Page 17 INSTALLATION ATTACHING THE CABINET MOUNTING BRACKETS • With both units connected, you need to install cabinet mounting brackets provided with your RBIV-30 parts kit before you can push the dual unit into place. • Three cabinet mounting brackets go on the outer left and right sides of the dual RBIV- 60 unit, while four total brackets go on top of the dual unit —...
Page 18 Width of cabinet cutout: 59 7/8” Width of dual unit: 59 5/8” 1/8” ZLINE RBIV-30 refrigerators are top-heavy and weigh 342 pounds. The dual unit weighs close to 700 pounds. Take care when installing WARNING the product; two-person assembly is highly recommended.
Page 19 INSTALLATION ADJUSTING THE REFRIGERATOR HEIGHT • With the dual unit now pushed into the cabinet, the feet need to be raised in order to secure the product to the anti-tip brackets. • You may use a drill with a 1/4" hex bit or a socket wrench to adjust leg height; we recommend using a socket wrench by hand to avoid the risk of stripping the legs.
Page 20 INSTALLATION SECURING THE DUAL UNIT INTO THE CABINET CUTOUT • With the dual unit now pushed into the cabinet and perfectly level, you can finalize flush installation be securing the cabinet mounting brackets installed on page 13. • If you have difficulty tightening the screws, opening a reference hole with a drill will make this procedure easier, as shown in the images below.
Page 21 INSTALLATION ATTACHING THE TRIM PIECES • Attach the side trim pieces provided with the RBIV-30 parts kit onto the outer sides of each unit, covering the cabinet mounting brackets as shown below. • Attach the top trim pieces provided with the RBIV-30 parts kit onto the tops of both units, covering the cabinet mounting brackets as shown below.
Page 22 INSTALLATION INSTALL DIVIDER TRIM • After ensuring both units are flush and everything is level, insert the center divider 1'2'()*% .')./%)/&,%0.)3..'%/.5/&6./#)*/( trim (Item No. 5 in the dual unit parts list) between both units and lightly pound into place with the back of your fist. A BH'3)79&6?"E7#$)37'C&'7'C3I7&)37?"7&%?E"93"'7?"#3)'753"'3)7')?97G3':33"7)3H)?E3)&'(),...
Page 23 INSTALLATION 7*,-$.)&*'%&'()#$$#)&*' INSTALLATION COMPLETE • IMPORTANT: Refer to your RBIV-30 installation manual as needed for other installation procedures. A >(98%3'37?"#'&%%&'?("75("H3)7'(78)3@?($#78&E3#7)3E&)D?"E7&#7('C3)7?"#'&%% Scan the QR code to view the most up-to-date version of our RBIV-30 / RBIV-36 user manual and installation manual.
Page 24 WARRANTY COVERAGE ZLINE Kitchen and Bath built-in refrigerators have a two year parts and service warranty and a five year parts warranty on the sealed system. This is from the original purchase date for the original purchaser of the product.
Page 25 SERVICE For warranty service, please contact our Customer Service team at 1-614-777-5004 or visit www.zlinekitchen.com/contact to utilize our online Customer Experience Portal. Need to purchase a part or accessory for your ZLINE product? Visit www.zlineparts.com, ZLINE's official parts distribution partner.
