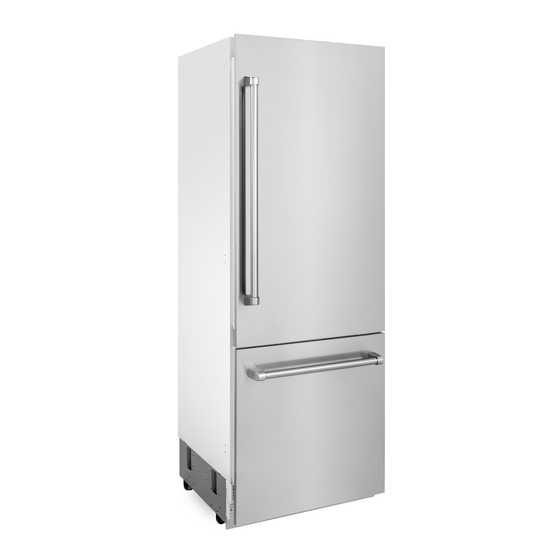

Zline ATTAINABLE LUXURY RBIV-30 Installation Manual
  1. Manuals
  2. Brands
  3. Zline Manuals
  4. Refrigerator
  5. RBIV-30
  6. Installation manual

Zline ATTAINABLE LUXURY RBIV-30 Installation Manual

Hide thumbs Also See for ATTAINABLE LUXURY RBIV-30:

Advertisement

Quick Links

Download this manual
Installation Manual
BUILT-IN REFRIGERATORS
www.zlinekitchen.com

Advertisement

loading

Related Manuals for Zline ATTAINABLE LUXURY RBIV-30

Summary of Contents for Zline ATTAINABLE LUXURY RBIV-30

  • Page 1 Installation Manual BUILT-IN REFRIGERATORS www.zlinekitchen.com...
  • Page 2 ZLINE Kitchen and Bath provides Attainable Luxury, where the kitchen and bath of your dreams is never out of reach. Through our unique designs and unparalleled quality, we’re dedicated to providing you an elevated experience in the heart of your home. With an endless selection of...
  • Page 3 ZLINE is fueled by a passion for innovation; A relentless pursuit of bringing the highest end luxury designs and professional features into everyone’s homes. Because we continually strive to improve our products, we may change specifications and designs without prior notice.
  • Page 4 TABLE OF CONTENTS SAFETY INSTRUCTIONS PRE-INSTALLATION PROCEDURES INSTALLATION Electrical Wiring Location Product Specifications Parts Provided Anti-Tip Brackets Cabinet Installation Door Panel Preparation WARRANTY...
  • Page 5 IMPORTANT SAFETY INSTRUCTIONS PLEASE READ THIS MANUAL BEFORE USING THE PRODUCT • Always follow the applicable safety instructions. • The installer should leave these instructions with the consumer who should retain for local inspectors’ use and for future reference. • Please read all other documents provided with this product. •...
  • Page 6 IMPORTANT SAFETY INSTRUCTIONS R600A REFRIGERANT WARNING This product contains R600a isobutane refrigerant, which is a very eco- friendly natural gas. However, it is also flammable. Please follow the warnings and installation instructions below: • If the product has been transported horizontally, you must wait a minimum of 4 hours after standing it upright before plugging it in.
  • Page 7 IMPORTANT SAFETY INSTRUCTIONS DISPOSING OF THE PACKAGING MATERIALS The package has been designed to protect the product during transport and shipping. The packaging materials used are designed to not harm the environment and should be recycled after the appliance is installed. All plastic packaging materials, bags, etc., must be disposed of safely and kept out of the reach of children.
  • Page 8 BEFORE INSTALLATION CLIMATE CLASS AMBIENT TEMPERATURE This appliance has been CLIMATE RANGE OF THE ROOM designed to be used in Between 61 F (16 C) and certain climate ranges Northern Hemisphere F (32 (ambient temperatures). It must not be used out of Between 61 F (16 C) and...
  • Page 9 BEFORE INSTALLATION INSTALLATION ENCLOSURE You must follow the instructions below: • The floor on which the product will be installed must be capable of bearing a minimum of 1,200 pounds (544 kg). • The kitchen floor and bottom of the product must be at the same level. Otherwise, the air flow for the unit's cooling system may be impeded or reduced.
  • Page 10 BEFORE INSTALLATION Please observe the following rules: • The dedicated circuit breaker for this unit must be easily accessible in case of an emergency; it must not be hidden behind the product. • The electrical plug and cord must not touch the back surface of the product. Otherwise, it may get damaged due to the vibration of the product.
  • Page 11 BEFORE INSTALLATION Failure to follow these instructions may result in death, fire, or electric shock. Connecting the grounding conductor of the equipment to an ATTENTION improper place may lead to electric shock. Please have the grounding checked by a qualified electrician or service technician. Installation, repair, and other procedures performed by unqualified persons may cause danger.
  • Page 12 BEFORE INSTALLATION VENTILATION Ventilation panels where the air enters and exits the unit must not be blocked or obstructed. In addition, you must periodically clean the dust and dirt that accumulates on the vent holes to ensure adequate ventilation. ELECTRICAL CONNECTION •...
  • Page 13 INSTALLATION TOOL LIST Tools to be used when installing the product are as follows (additional tools that may assist in installation are not listed here): TOOLS REQUIRED (NOT PROVIDED) • Cordless Drill • Safety Gloves • Safety Goggles • Tape Measure •...
  • Page 14 INSTALLATION • Dual cabin installation methods Scan the QR code for the Dual Built-In Refrigerator manual. Scan the QR code to watch an installation video.
  • Page 15 INSTALLATION PREPARATION FOR INSTALLATION The instructions below have been prepared for a built-in type of refrigerator defined as: the appliance and panels are flush with the front and side of the cabinetry. The most common installation scenario is the refrigerator is mounted in its own box between two kitchen cabinets or decorative columns.
  • Page 16 INSTALLATION LOCATION OF THE ELECTRICAL WIRING The location of the electrical wiring must be within the range provided below. Do not use extension cables or cords or 2-pin adaptors, and do not remove the ground terminal of the grounding cable. CAUTION A qualified electrician must ensure that the poles of the socket are connected correctly.
  • Page 17 INSTALLATION LOCATION OF THE WATER SYSTEM • The water connected to the water mains must be potable. • The location of the water system must be within the range provided below. • The unit's water system must be connected to the main water system in the house. The user must be able to switch the water system on/off with a valve when necessary.
  • Page 18 INSTALLATION • Check if the floor where the appliance will be installed is perfectly level. Use a level. WARNING • Check if the cabinet flanges are upright and straight using a level. • If the product is not level and plumb, problems may arise with installation and eventual operation of the unit.
  • Page 19 INSTALLATION PRODUCT DIMENSIONS RBIV-30...
  • Page 20 INSTALLATION RBIV-36...
  • Page 21 INSTALLATION CATEGORY RBIV-30 RBIV-36 15 1/4" (388mm) 15 1/4" (388mm)
  • Page 22 INSTALLATION RBIV-30...
  • Page 23 INSTALLATION RBIV-30...
  • Page 24 INSTALLATION RBIV-36...
  • Page 25 INSTALLATION RBIV-36...
  • Page 26 INSTALLATION...
  • Page 27 INSTALLATION RBIV-30 RBIV-36...
  • Page 28 INSTALLATION HEIGHT OF THE KITCHEN COUNTERTOP BASED ON THE MIN/MAX. HEIGHT OF THE CABIN Standard 4” (102mm) 32 1 1/16” (831mm) 84” (2134mm) Minimum 3 13/16” (97mm) 32 1/2“ (826mm) 83 13/16“ (2129mm) Maximum 5 3/8“ (137mm) 34 1/8“ (866mm) 85 3/8“...
  • Page 29 INSTALLATION UNPACKING Due to refrigerators weighing between 342 and 355 pounds, at least two people must move units when unpacking and installing. WARNING • Use a box cutter to remove tape on the box packaging. • Cut the box packaging with a box cutter through the section illustrated in dotted lines and remove it.
  • Page 30 INSTALLATION REMOVE ALL THE POLYSTYRENE PACKAGING MATERIAL Do not remove the tape of the upper door on the product until the refrigerator is fully placed into the cabin, or you run the risk of the unit tipping over. ATTENTION...
  • Page 31 INSTALLATION THE REFRIGERATOR TRIM PARTS ARE BOXED AND SECURED TO THE REAR OF THE REFRIGERATOR PART NAME SPECIFICATION RBIV-30 RBIV-36 Trim fridge cabinet side 24 5/16", 49 9/16" Trim fridge door side 44 3/4" Trim freezer door side 21 7/8" Trim fridge cabinet top 30", 36"...
  • Page 32 INSTALLATION REMOVE MOUNTING PARTS FROM THE FREEZER COMPARTMENT PART NAME SPECIFICATION RBIV-30 RBIV-36 Door panel template Anti-tip bracket Anchor Screw anti-tip bracket screws M8x60mm 10 Position adjustment gauge 1 1 90° limiting pins 12 Spacer freezer door panel 13 Screw freezer door panel top ST M4.8x16mm 14 Bracket freezer door panel top T1.0...
  • Page 33 INSTALLATION REMOVING MOUNTING PARTS IN THE FREEZER COMPARTMENT PART NAME SPECIFICATION RBIV-30 RBIV-36 17 Bracket cabinet 18 Screw cabinet bracket ST M4x14mm 19 Cover door panel bracket 20 Screw door panel bracket M4x12 21 Bracket door panel T1.0 22 Screw door panel bracket ST M4x14mm 23 Screw door panel hanger bracket ST M4x14mm...
  • Page 34 INSTALLATION We recommend removing the lower freezer drawer and door for easier kickplate and feet access. REMOVING THE LOWER FREEZER DRAWER • To remove the lower freezer drawer, unscrew the four thumb screws as shown and put them in a safe place. •...
  • Page 35 INSTALLATION REMOVING THE FREEZER DOOR • Locate and remove the two screws near the front section of the support rails that connect to the freezer door. While supporting the freezer door, pull it forward while freeing it from the rear rail lock tabs to remove it.
  • Page 36 INSTALLATION REMOVING THE LOWER VENT PANEL • Remove the two screws to take out the lower vent panel assembly. REMOVING THE UPPER VENT PANEL • Remove the two screws to take out the trim piece part.
  • Page 37 INSTALLATION PRE-INSTALLATION NOTES Continue to install the product according to the instructions below. Additionally, consider national and local codes and instructions regarding installation. Please observe the following: • For the USA, National Electrical Code, ANSI/NFPA 70-latest version; state or municipality directives; and/or regional directives. •...
  • Page 38 INSTALLATION • Mark the wall for anti-tip brackets (Item No. 7). CATEGORY RBIV-30 RBIV-36 29 3/4" (756mm) 35 3/4" (908mm) 23 5/8" (600mm) 23 5/8" (600mm) 3 3/16" (81mm) 6 3/16" (157mm) • Use a drill to create holes for anchors (Item No. 8) at the marked points (5/16” / 8mm).
  • Page 39 INSTALLATION • Use the hammer to fit the anchors (Item No. 8). • Fit the brackets (Item No. 7) into their places, using four screws for each. You must use both brackets to ensure safety of the product. • If you are not sure whether the existing connection parts are fastened to the wall as securely as they should be, you can use WARNING alternative anti-tip methods.
  • Page 40 INSTALLATION ALTERNATIVE ANTI-TIP METHOD • If the anti-tip brackets cannot be connected securely, you must use the alternative method below. • In this method, you can use wooden blocks to avoid the risk of the unit tipping over. They must be installed as illustrated in the figure below. •...
  • Page 41 INSTALLATION PREPARING THE WATER HOSE AND POWER PLUG • You will need a hose with a minimum length of 60" (1524mm) and a diameter of 1/4" (6.4mm) for water connections during installation. • A connector that has a thread with an external diameter of 1/4" (6.4mm) must be used to connect the hose end to the product.
  • Page 42 INSTALLATION CABINET INSTALLATION MOVING THE UNIT FROM THE WOODEN PALLET • Remove the brackets that connect the refrigerator to the wooden pallet. • With at least two people, recline the refrigerator slowly and pull back with the help of a dolly/hand truck, then slowly lower the refrigerator to the floor. Do not open doors, as the weight of the unit's doors can cause the appliance to tip over while in a reclined or free standing position.
  • Page 43 INSTALLATION PLACING THE REFRIGERATOR INTO THE CABINET • Route the water line through the channel of the refrigerator to the front of the unit. • Apply the below method to prevent the cable from getting jammed. INFO • Plug in the refrigerator to make sure the power is working and that the display has been activated.
  • Page 44 INSTALLATION SCREWING THE SIDE BRACKETS • Affix the brackets (Item No. 17) to the unit, with two on the top and three on each side. Use the screws (Item No. 18) to tighten. • After the product is in the cabinet and leveled, use 12 of the long screws (Item No.
  • Page 45 INSTALLATION If you have difficulty tightening the screws, opening a reference hole with the drill will make this procedure easier. INFO SCREWING THE UPPER BRACKET • Attach the upper bracket to the cabinets using the remaining 4 screws (Item No16).
  • Page 46 INSTALLATION You can use tape and similar protectors on parts you think are necessary to protect the edges of the cabinets when placing the INFO product. The plug of the product must be easily accessible after installation. If the plug is not accessible after installation, then the power must be cut off WARNING from the main switch of the home.
  • Page 47 INSTALLATION ADJUSTING THE REFRIGERATOR HEIGHT After carefully pushing the product into the cabinet, the feet need to be raised in order to secure the product to the anti-tip brackets. First, raise the front feet to reduce the risk of the product falling frontward. WARNING A/D –Turn the key clockwise to lift the front B/C –Turn the key clockwise to lift the rear...
  • Page 48 INSTALLATION ALIGNING THE REFRIGERATOR Adjust the refrigerator according to the cabinet flange. INFO • For products with clad doors, the position of the refrigerator is adjusted so that the door and the cabinet surface are flush. You can also use a position alignment gauge (Item No. 10) if necessary. •...
  • Page 49 INSTALLATION It is very important to align the upper edge of the freezer door when aligning. All the other edges can be adjusted with the adjustment mechanisms. INFO • For products with clad doors, the position of the refrigerator is adjusted so that the door and the cabinet surface are flush.
  • Page 50 INSTALLATION Once the water line connection is complete, you must turn on the main water valve and make sure there is no leakage. INFO Attaching the upper vent cover • Use two screws to attach the upper vent cover. Attaching the lower vent panel assembly •...
  • Page 51 INSTALLATION Forward-backward travel distance of the lower kick plate must be 5/16" (23mm). As you can see in the figure on the previous page, the WARNING decorative kick plate must not be in front of the trim piece level. ATTACHING THE DECORATIVE PARTS Attach the side closing parts (Item No.
  • Page 52 INSTALLATION CHOOSING THE DOOR THICKNESS WARNING The door of your refrigerator can open by 1 15° maximum. If the door is going to open to this degree, you can choose the following thickness levels: • If the door thickness is more than 1 1/2" (38mm), the door should not open more than 90°.
  • Page 53 INSTALLATION REMOVING THE MECHANISM COVERS WARNING • Remove one screw to take out the Upper Cover. Note: There is a magnet in the cover of the top refrigerator door hanger bracket. This is a functional part for the operation of the product.
  • Page 54 INSTALLATION REMOVING THE PANEL ADJUSTMENT MECHANISMS WARNING • Remove the upper and lower adjusting mechanism assemblies from the refrigerator door(s). • Remove the panel adjustment mechanisms from the lower part of the freezer door.
  • Page 55 INSTALLATION PREPARING DOOR PANELS You must take the dimensions into account when grouping the door panel brackets on the door panels. When marking, you can use the INFO "door panel template" (Item No. 6) provided with the product. Handle connection holes must be adjusted according to the handle orientation you plan to use in your kitchen design.
  • Page 56 INSTALLATION PREPARING THE REFRIGERATOR DOOR PANEL CATEGORY RBIV-30 29 3/4“ (756mm) 1 7/16” (38mm)
  • Page 57 INSTALLATION RBIV-36...
  • Page 58 INSTALLATION You must use screws suitable for the door thickness. WARNING • Install two door panel brackets using the chipboard screws (Item No. 23). You can also use the door panel template (Item No. 6) provided with the product to align these parts. It is recommended to keep this template for future reference.
  • Page 59 INSTALLATION PREPARING THE FREEZER DOOR PANEL RBIV-30...
  • Page 60 INSTALLATION PREPARING THE FREEZER DOOR PANEL RBIV-36 Handle connection holes must be adjusted according to the handle orientation you plan to use in your kitchen design. WARNING Minimum thickness of the door must be 3/4" (19 mm). WARNING...
  • Page 61 INSTALLATION You must use screws suitable for the door thickness. WARNING • Install one cradle using the chipboard screws (Item No. 23). You can also use the door panel template (Item No. 6) provided with the product to align these parts. It is recommended to keep this template for future reference.
  • Page 62 INSTALLATION • Lay down the door panel and place the freezer door onto it • Put the screws back — but do not tighten WARNING • Use the three screws (Item No. 13) to fix the bracket. Spacers (Item No. 12) are provided if needed. •...
  • Page 63 INSTALLATION You will find more crescent washers than you need in the mounting box. You can use them if your kitchen design requires so. WARNING INSTALLING THE REFRIGERATOR DOOR PANEL • Attach the door panel to the refrigerator door. • Use the two screws removed from here to fix onto the adjusting bolts.
  • Page 64 INSTALLATION • Adjust from the lower part of the door with two screws removed from here together with two slotted screws. WARNING • Use the bracket (Item No. 21) to join the door panel and fridge door, then use two screws (Item No. 20) and one screw (Item No. 22) to fix.
  • Page 65 INSTALLATION • Adjust from the lower part of the door with two screws removed from here together with two slotted screws. WARNING • Use the bracket (Item No. 2) to join the door panel and fridge door, then use two screws (Item No. 20) and one screw (Item No. 22) to fix.
  • Page 66 INSTALLATION • Clip the decoration cover (Item No. 19). WARNING...
  • Page 67 INSTALLATION • Use the four screws removed from here to fix the upper/lower decoration cover. WARNING • Note: The upper decoration cover must contain the magnet for the magnetic door switch. Note: Do not dispose of any spare or extra parts as they may be required should you have need to reverse the opening orientation of the door at a later date.
  • Page 68 INSTALLATION INSTALLING THE FREEZER DOOR PANEL WARNING • Install the freezer door panel assembly onto the rails, noting where the rear rail locating lock tabs are lined up. • Fix the freezer door panel assembly onto the rails with the two screws removed earlier.
  • Page 69 INSTALLATION • Position the drawer onto the rail and tighten the four thumb screws removed earlier. WARNING...
  • Page 70 INSTALLATION If you need to adjust the door panels, the operating principle of the mechanisms are shown below. WARNING PANEL ADJUSTMENT FOR REFRIGERATOR DOOR Use the double-threaded bolts to align the door panel 2. Engage set screw 1 (see the graphic) to shift the panel side to side. 3.
  • Page 71 INSTALLATION WARNING PANEL ADJUSTMENT FOR FREEZER DOOR Use the freezer door panel adjustment washer to align the top part of the door panel. 2. Engage set screw 1 (see the graphic) to shift the panel side to side. 3. Select fixing hole (see the graphic) to shift the panel forward/ backward;...
  • Page 72 INSTALLATION • Attach the side closing seals (Item Nos. 2 and 3). WARNING...
  • Page 73 INSTALLATION HINGE ADJUSTMENT WARNING • To adjust the tension of the door hinges, use a drill to adjust the hardness of the upper and lower hinges of the refrigerator door. Set the hinge adjustment screw to position "I" from position "O". The door must be fully open during this adjustment.
  • Page 74 INSTALLATION CHANGING THE DIRECTION OF THE REFRIGERATOR DOOR WARNING • To remove the refrigerator door assembly, use a 1/4" / T25 Torx bit to adjust the tension level to “0”.
  • Page 75 INSTALLATION Failure to set the hinge to "0" and continuing the installation like that may cause injury. ATTENTION • Remove the side closing seals. • Loosen two screws of the upper cover of the fridge door and remove it. • Remove the upper adjustment kits...
  • Page 76 INSTALLATION • Loosen two screws of the lower cover of the fridge door and remove it. ATTENTION • Remove lower and upper bracket screws. • Remove the screw of upper and lower mechanisms.
  • Page 77 INSTALLATION The refrigerator door assembly will be free once these screws are removed. It will be heavy; be sure to take measures to prevent the door WARNING from falling or causing any damage or injury. • You can tape the door panel to the inner door or ask for help from another person.
  • Page 78 INSTALLATION INSTALLATION • Take out the door and lay it down on a table remove the fixing parts and screw them to the opposite side of the door. • Attach the hanger sheet using two screws. ATTENTION • Take out the door and lay it down on a table remove the fixing parts and screw them to the opposite side of the door.
  • Page 79 INSTALLATION REPLACING THE HINGES • Remove the hinge caps located at the other side where you will fix ATTENTION the hinges.
  • Page 80 INSTALLATION • Remove the lower right hinge by loosening its two screws and fix it to its slot at the upper left side. ATTENTION...
  • Page 81 INSTALLATION • Remove the upper right hinge by loosening its two screws and fix it to its slot at the lower left side. ATTENTION...
  • Page 82 INSTALLATION • Attach the hinge slot caps removed from the left side to the hinge caps at the right side. ATTENTION...
  • Page 83 INSTALLATION INSTALLING THE REFRIGERATOR DOOR • Place the refrigerator inner door to the unit and affix it with four ATTENTION screws.
  • Page 84 WARRANTY COVERAGE ZLINE Kitchen and Bath refrigerators have a two year parts and service warranty and a five year parts warranty on the sealed system. This is from the original purchase date for the original purchaser of the product. TERMS This warranty applies only to the original purchaser of the product installed for normal residential use.
  • Page 85 WARRANTY WHAT IS NOT COVERED 1. Start-up damages or problems caused by improper installation or use. 2. Damage related to unauthorized service or unauthorized parts. 3. Installation in any commercial or non-residential application. 4. Aesthetic damage, scratches, or natural wear caused by normal use. 5.
  • Page 86 For warranty service, please contact our Customer Service team at 1-614-777-5004 or visit www.zlinekitchen.com/contact to utilize our online Customer Experience Portal. Scan the QR code for the Dual Built-In Refrigerator manual. Need to purchase a part or accessory for your ZLINE product? Visit www.zlineparts.com, ZLINE's official parts distribution partner.
