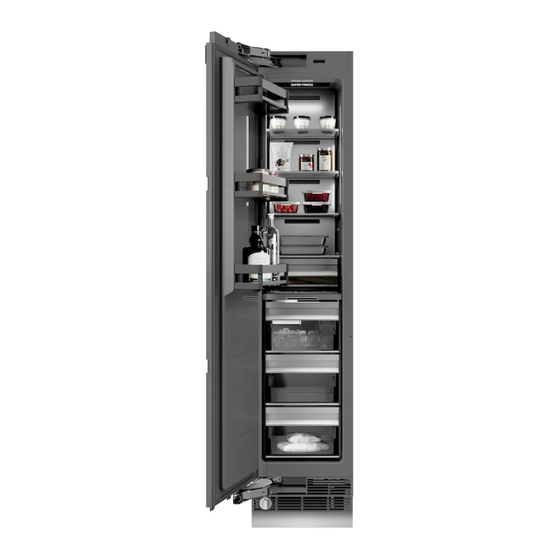

- Page 1 User Manual COLUMN REFRIGERATION RBCFVL-18, RBCFVR-18, RBCFV-24, RBCRV-24, & RBCRV-30 MODELS www.zlinekitchen.com...
- Page 2 ZLINE Kitchen and Bath provides Attainable Luxury, where the kitchen and bath of your dreams is never out of reach. Through our unique designs and unparalleled quality, we’re dedicated to providing you an elevated experience in the heart of your home. With an endless selection of features and...
- Page 3 ZLINE is fueled by a passion for innovation; A relentless pursuit of bringing the highest end luxury designs and professional features into everyone’s homes. Because we continually strive to improve our products, we may change specifications and designs without prior notice.
-
Page 4: Table Of Contents
OPERATION ..........9 Product Specifications (RBCFVL-18/RBCFVR-18/RBCFV-24) ..9 Product Specifications (RBCRV-24/RBCRV-30) . -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury, or death. WARNING GENERAL SAFETY • Before installation and operation, please read and follow these important instructions for the safety of your home and the people living in it. - Page 6 IMPORTANT SAFETY INSTRUCTIONS • Never wash the appliance by spreading or pouring water onto it, as you run the risk of electric shock. • Never touch the plug with wet hands. • To disconnect the appliance from power, firmly grip the plug and pull it from the electrical outlet.
- Page 7 IMPORTANT SAFETY INSTRUCTIONS • Never use steam or steam cleaners to clean or defrost the refrigerator or freezer. Steam may infiltrate your unit's electrical system, increasing risk of a short circuit or electric shock. • Do not use mechanical devices or other means to accelerate the defrosting process other than those recommended by the manufacturer.
-
Page 8: Intended Use
IMPORTANT SAFETY INSTRUCTIONS INTENDED USE • This product has been designed for domestic use. It is not suitable for commercial use and it must not be used outside of its intended use. It must be used only for storing food and beverages. -
Page 9: Compliance With The Rohs Directive
• If damaged, keep the product away from potential fire sources that may cause it to catch fire and ventilate the room where the product is placed. • Never use an appliance with a damaged cooling system. If the system is damaged upon delivery, contact ZLINE at 1-614-777-5004. - Page 10 IMPORTANT SAFETY INSTRUCTIONS If the product is damaged and if you see gas leak, please keep away from the gas. It may cause frostbite when it gets into contact with the skin ATTENTION (including R600a). The type of gas used in the product is stated on the unit's label, which is located on the left wall inside the refrigerator.
-
Page 11: Energy Saving Tips
IMPORTANT SAFETY INSTRUCTIONS ENERGY SAVING TIPS Connecting your refrigerator or freezer to systems that save energy is dangerous and may cause damage to the product. WARNING • Do not leave the doors of your refrigerator or freezer open for a long time. •... -
Page 12: Initial Use
IMPORTANT SAFETY INSTRUCTIONS RECOMMENDATIONS FOR THE REFRIGERATOR COMPARTMENT • Make sure that the food does not touch the temperature sensor in the refrigerator or freezer compartment. To allow the unit to maintain its ideal storage temperature, the sensor must not be hindered by food. •... -
Page 13: Operation
OPERATION FREEZERS 8"3(&')10"40)(,'0+ ( !"##$#" PRODUCT SPECIFICATIONS (RBCFVL-18/RBCFVR-18/RBCFV-24) !""#$%&' Door bin (4.,5&'1 Shelving (")*$+,"-.$-/0,,$%&' Soft-close small drawer 2+.$/03.# Ice maker Soft-close (")*$+,"-.$&+.$%&' ice drawer (")*$+,"-.$%&1$%&' Soft-close big drawer Adjustable shelves (3) • Heat-treated safety glass. Q'##>#' 41,31-#-)% Stationary shelf (1) !#$#*8,2$# 5"#$0 "#&("859... -
Page 14: Product Specifications (Rbcrv-24/Rbcrv-30)
OPERATION REFRIGERATORS 8"3(&')10"40)(,'0+ 8"3(&')10"40)(,'0+ ( 2#3"45#"678" ( 2#3"45#"678" PRODUCT SPECIFICATIONS (RBCRV-24/RBCRV-30) !""#$%&' !""#$%&' (4.,5&'1 (4.,5&'1 Shelving 60,,"'$%"**,.$7""#$$%&' 60,,"'$%"**,.$7""#$$%&' Gallon bottle door bin (")*$+,"-.$-/0,,$%&' (")*$+,"-.$-/0,,$%&' Soft-close small drawer !""#$%&' !""#$%&' Door bin @9A:$;9<8:$$="'. @9A:$;9<8:$$="'. REF. TEMP. zone SPE. TEMP. zone (89:$;9<8:$="'. (89:$;9<8:$="'. -
Page 15: Control Panel - Freezer
OPERATION 9" :.+%;)5"<)*0; ( !"##$#" CONTROL PANEL – FREEZER & !" " Figures in this user manual are schematic and may not match the product !#.%#5 84 5I&8*" 8"# I"4$# ,11$&,'*# G' ,'; G009 exactly. If your product does not have relevant parts and/or exact figures, the J.#55 8"# 2@884' 84 5I&8*"... - Page 16 OPERATION 4. Lock • The lock icon will be illuminated when the control panel is in the locked state. • To unlock the controls, press and hold the MENU button for 3 seconds. • The control panel will automatically lock itself after 3 minutes have passed with no interaction with the control panel.
- Page 17 OPERATION 9. Water Filter (if applicable) • The Water Filter symbol flashes and beeps to advise the user to replace the water filter. • After the replacement is completed, reset the symbol by pressing SELECT for 5 seconds while the control panel is locked. •...
-
Page 18: Control Panel - Refrigerator
OPERATION 9" :.+%;)5"<)*0; ( 2#3"45#"678" CONTROL PANEL – REFRIGERATOR !& " & !" Figures in this user manual are schematic and may not match the product exactly. !#.%#5 84 5I&8*" 8"# I"4$# ,11$&,'*# G' ,'; G009 J.#55 8"# 2@884' 84 5I&8*" 4' 8"# 1.4;@*8K If your product does not have relevant parts and/or exact figures, the information G'HG00 2@884' INFO... - Page 19 OPERATION 5. Temp. Display • Displays the set temperature of the SPE. TEMP. zone. • Fahrenheit or Celsius icons will illuminate here. 6. Lock • The lock icon will be illuminated when the control panel is in the locked state. •...
- Page 20 OPERATION 1 1. Water Filter (if applicable) • The Water Filter symbol flashes and beeps to advise the user to replace the water filter. • After the replacement is completed, reset the symbol by pressing SELECT for 5 seconds while the control panel is unlocked. •...
- Page 21 OPERATION E""/0%;)-0$0*(""F)(0'"4.;(0'" INSTALLING/REPLACING THE WATER FILTER S9:&G$)#'&0+")#'&$"$', Water Filter Replacement E3" 1#,"$ 72',"$ +4.6-' 7'#+3"+ #:) 6""8+ ,- #)@2+" ,3" (+"$ ,- $"8'#9" ,3" 1#,"$ E""/0%;)-0$0*(""F)(0'"4.;(0'" The water filter symbol flashes and beeps to advise the user to replace the filter. After the 72',"$= C7,"$ ,3"...
- Page 22 OPERATION AFTER REPLACING THE WATER FILTER Refrigerators • Run 2-3 gallons of water to remove air from the system and to ensure any potential debris is cleared from water lines. • NOTE: A newly installed filter cartridge will cause water to spurt and dribble until the air is out of the system —...
-
Page 23: Food Storage
OPERATION FOOD STORAGE REFRIGERATORS – DUAL COOLING SYSTEM Refrigerators are equipped with two separate cooling systems to cool the upper refrigerator compartment and the lower flex compartment. Thus, the air and odor in the refrigerator compartment and the flex compartment do not get mixed. Thanks to these two separate cooling systems, cooling speeds are much higher than that of other refrigerators. -
Page 24: Operating Temperatures
OPERATION OPERATING TEMPERATURES FREEZER UPPER REFRIGERATOR ZONE LOWER REFRIGERATOR FLEX ZONE 0 °F (-18 °C) 39 °F (4 °C) 34 °F (1 °C) This is the recommended operating temperature for each zone. SUPER COOL MODE: 36 °F (2 °C) Use this function when you place fresh groceries into the refrigerator or when you need to cool your food quickly. -
Page 25: Shelves And Drawers
OPERATION SHELVES AND DRAWERS GLASS SHELVES To remove a shelf • Fully open the door of the refrigerator or freezer to gain better access. • Hold the front of the shelf, and then gently lift up and slide out (see Figure 1). To reinsert •... - Page 26 OPERATION DRAWERS To remove the drawers 1. Pull the drawer out until it stops. A"6B,.%$0*( A"6B,.%$0*( 2. Doors must be fully opened to remove/install the drawer. 3. Slightly unclip the front section of the drawer and take it out completely. M9C&Z+-% M9C&Z+-% 61&'#,1?#&)*#&/+-&...
-
Page 27: Maintenance And Cleaning
MAINTENANCE AND CLEANING CARE & CLEANING • The service life of your product will extend and frequently encountered problems will decrease if the product is cleaned periodically. • Never use gasoline, benzene, or similar substances for cleaning purposes. • Never use any sharp abrasive instruments, soap, household cleaners, detergent, or wax polish for cleaning. - Page 28 MAINTENANCE AND CLEANING SURFACE CLEANING AND PROTECTION Plastic Surfaces • Do not put liquid oils or oil-cooked meals in your refrigerator or freezer in unsealed containers as they damage the plastic surfaces of your appliance. • If oil is spilled or smeared onto the plastic surfaces, clean and rinse the relevant part of the surface with warm water immediately.
-
Page 29: Troubleshooting
• Your product may not have some of the features described here. If a problem cannot be resolved after following the instructions in the manuals, please contact ZLINE customer service at 1-614-777-5004. Never attempt WARNING to repair or disassemble a faulty refrigerator sealed system as there are no user-serviceable parts. - Page 30 POSSIBLE SOLUTION The unit will start running The internal protector approximately after 6 of the compressor will minutes. Please call ZLINE open, protecting the at 1-614-777-5004 if the compressor, and it will reset unit does not start at the automatically.
- Page 31 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION If you notice that the unit shakes when moved The floor may not be slightly, make sure that the stable or level. floor is level and capable Vibration or noise. of carrying the unit. Adjust feet as necessary.
- Page 32 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION Air might be humid. Condensation will This is quite normal in disappear as the humidity humid weathers. level decreases. Condensations occurs on the There might be external outer surface of the refrigerator This is normal. condensation at the section or between the doors.
- Page 33 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION Food packages may Re-locate the packages be preventing the door obstructing the door. from closing. Adjust the refrigerator feet The unit may be unstable as required to keep the The door cannot be closed. on the floor.
- Page 34 Ambient Temperature it after a few minutes. Probe Error If those does not work, service may be required, please call ZLINE Communication Failure Customer Service at 1-614-777-5004. Freezer Fan Error Condenser Fan Error Make sure the doors...
- Page 35 Ambient Temperature If those does not work, Probe Error service may be required, Communication Failure please call ZLINE Customer Service at Fridge Fan Error 1-614-777-5004. Condenser Fan Error Make sure the doors The refrigerator opens for...
-
Page 36: Warranty
ZLINE-certified service providers unless otherwise specified by ZLINE. Service will be provided during normal business hours. Products must be unobstructed and accessible to the service provider at the time of service. ZLINE’s liability is limited to the original purchase price of the product. Additional injuries, losses, damages, or other inconveniences caused by product malfunction or defects in materials are not covered under the terms of this warranty. - Page 37 ZLINE reserves the right to offer to replace the defective part or the product or provide the original purchaser a full refund of the purchase price of the product (not including installation, removal, or other charges that were not included in the original purchase price).
-
Page 38: Serial Number Location
Always check the ZLINE website for the most up-to-date version of its product manuals: www.zlinekitchen.com/pages/manuals. Do not install or operate any ZLINE product if it has missing or broken parts or if it arrives damaged due to shipping. If ZLINE products arrive damaged, contact ZLINE Customer Experience at 1-614-777-5004 for help. - Page 39 1-614-777-5004 or visit www.zlinekitchen.com/contact to utilize our online Customer Experience Portal. Scan the QR code to view the most up-to-date version of our user manual and installation manual. Need to purchase a part or accessory for your ZLINE product? Visit www.zlineparts.com, ZLINE's official parts distribution partner.
- Page 40 1.1.2 1-614-777-5004 www.zlinekitchen.com contact@zlinekitchen.com...
