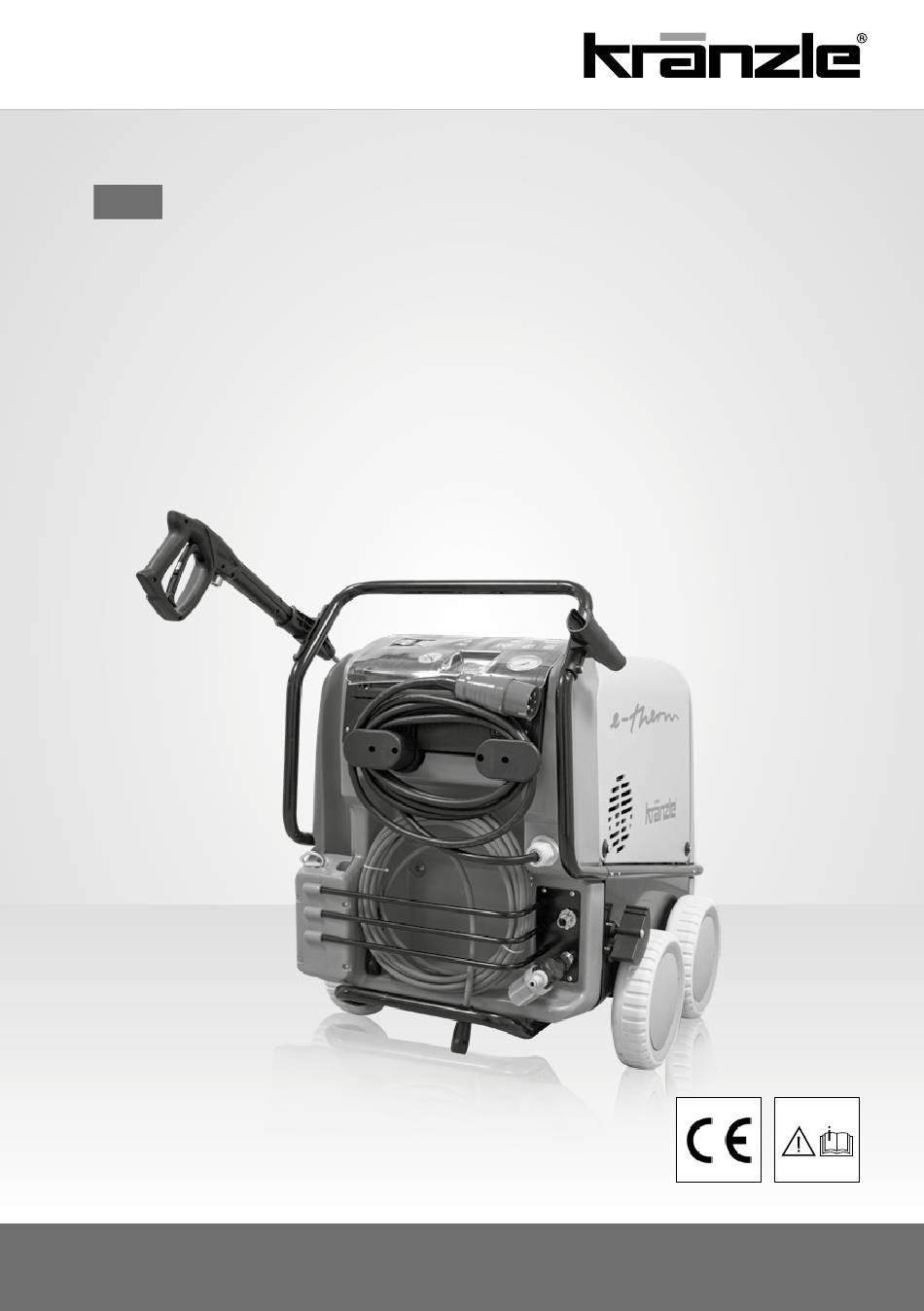

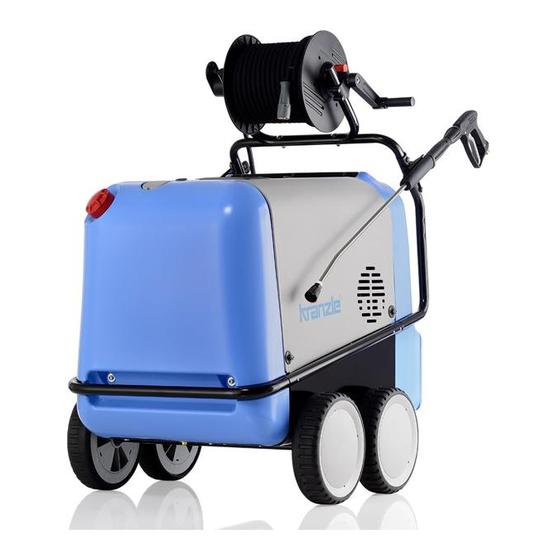

- Page 1 Operating manual Cold and hot water high-pressure cleaner – electrically heated e-therm 500 M 18 e-therm 500 M 24 e-therm 603 M 36 e-therm 873 M 48 www.kraenzle.com...
- Page 2 Operating manual Cold and hot water high-pressure cleaner – electrically heated e-therm 500 M 18 e-therm 500 M 24 e-therm 603 M 36 e-therm 873 M 48 Operating manual! This manual is a translation of the original manual. Read and conform safety instructions before use! Technical data will be found in the Spare parts list.
-
Page 3: Table Of Contents
Contents Explanatory symbols Dear customer, Explanatory symbols used in the operating manual Failure to observe this note may entail we would like to congratulate you on the purchase of your new high-pressure environmental damage. cleaner and thank you for your confidence in our products! Note on the use of the high-pressure cleaner that failure to Your choice has fallen on an absolute quality product! Kränzle high-pressure cleaners are characterized by their high suitability... - Page 4 Explanatory symbols Explanatory symbols Explanatory symbols used on the control panel Attention: For safety reasons switch off main Step 3: switch after completing the washing procedure Connect to circuit (see technical data). (= supply isolation) Prior to putting the machine into operation make sure that all safety instructions be observed.
-
Page 5: Safety Notes
Safety notes Safety notes - This is prohibited! User operating the high-pressure cleaner should wear the necessary protective Replacement of the power supply cables is only permitted by use of an original clothing, i.e. waterproof clothing, rubber boots, safety goggles, ear protection power supply cable of the manufacturer and must be performed by a qualified headwear etc. - Page 6 Safety notes - This is prohibited! Safety notes - This is prohibited! Never allow children or untrained persons to Apply the safety catch on the safety trigger gun use the high-pressure cleaner or to play with it! after each use in order to prevent unintentional Children must be kept under supervision to spraying! prevent them from playing with the equipment.
- Page 7 The e-therm is a mobile high-pressure cleaner with an advanced arrangement system. Please see construction scheme for more details. 1. Kränzle high-pressure cleaner 1. Ergonomically shaped handle e-therm 500 M 18 e-therm 500 M 24 2. Holder for trigger gun with e-therm 603 M 36...
- Page 8 The e-therm is a mobile high-pressure cleaner with an advanced arrangement system. Please see construction scheme for more details. 1. Kränzle high-pressure cleaner 1. Ergonomically shaped handle e-therm 500 M 18 e-therm 500 M 24 2. Holder for trigger gun with e-therm 603 M 36...
-
Page 9: Description Of High-Pressure Cleaner
7. Connecting hose between high- 4. Pressure gauge (water pressure) 3. Oil drain hose pressure pump and water tank (all types except e-therm 500 M 18 4. Water tank (all types and e-therm 500 M 24) except e-therm 500 M 18 and e-therm 500 M 24) ... -
Page 10: General Rules
General rules General rules Intended use Oil change This high-pressure cleaner is to be used solely for high-pressure water jet cleaning applications without detergents or low-pressure cleaning work with detergents The first oil change should be carried out after approximately 50 operating hours, (e.g. - Page 11 General rules Notes Decalcifying Calcified heat exchanger use an unnecessary amount of energy because the water can only be heated slowly and the excess pressure valve feeds a part of the water back into the high-pressure pump circuit. The calcified heat exchanger is known by the increased pipeline resistance. Check pipeline resistance by disconnecting the lance from the trigger gun with safety catch and switching the high-pressure cleaner on.
-
Page 12: Functional Details
Functional details Functional details Thermostat The thermostat controls the spray water tem- This means that the temperature increases far above the desired value or falls perature. After you switch on the device, "888" far below the desired value. The innovative new percent mode now lets the user appears in both displays for approx. - Page 13 Functional details Functional details Was Sie unbedingt beachten müssen: Problem Wassermangel Insufficient quantity of electricity Lack of water occurs more often than you If there are too many collectors in your probably believe. The more powerful a high- proximity connected to the network at the pressure cleaner is the greater is the danger same time, the available voltage and the that a lack of water occurs.
- Page 14 Functional details Functional details Water and cleaning system (e-therm 500 M 18) Pressure control valve/safety valve Water must be supplied to the high-pressure pump under pressure or directly sucked The pressure control valve/safety valve protects the high-pressure cleaner from in out of a pressureless container. The water is then forced under pressure by the a build up of excess pressure, and is designed not to permit an excess pressure high-pressure pump to the lance.
- Page 15 Functional details Putting into operation Safety shutdown Install the water inlet filter (available as an option) at the water inlet. If the high-pressure cleaner is accidentally not turned off after use or the trigger gun with safety catch is not used for 20 minutes, the high-pressure cleaner auto- matically changes into safety state by deactivation.
-
Page 16: Putting Into Operation
Putting into operation Putting into operation For high-pressure cleaners with hose Prior to insertion, check plug coupling connection of lance for drum, please loosen the fixation and cleanliness (sand, dirt ..) and use clear water to clean, if necessary. then completely unwind the high-pres- Impurities may damage the sealing in the plug coupling. - Page 17 Putting into operation Putting into operation 10. Connect to circuit (see technical data). Usage as a cold water high-pressure cleaner Switch on high-pressure cleaner with opened trigger gun (trigger pulled). Bleeding of the high-pressure cleaner: Pull and release trigger of trigger gun with safety catch several times.
-
Page 18: Direct Suction
Putting into operation Direct suction Usage as a hot water high-pressure cleaner Direct water extraction Due to the suction capacity of its high-pressure pump (up to 2.5 m suction height, Hochdruckreiniger bei geöffneter max. hose length 3 m) this high-pressure cleaner can suck in water for cleaning Sicherheits-Abschaltpistole einschal- purposes from separate containers or ponds. -
Page 19: Taking Out Of Operation
(e.g., safety valves, hose and electric cables, spray equipment etc.) Frost protection (e-therm 500 M 18, e-therm 500 M 24) For protecting the high-pressure cleaner against frost please empty it completely. Separate high-pressure cleaner from water supply and switch it on. By opening Yearly, or after approx. -
Page 20: Small Repairs - Do It Yourself
Small repairs - do it yourself Small repairs - do it yourself Problem Problem No water from nozzle although the high-pressure cleaner is running. Irregular jet from nozzle. The stainless steel pressure gauge shows full pressure. The stainless steel pressure gauge shows low pressure. Cause Cause Most likely the nozzle is blocked. - Page 21 Small repairs - do it yourself Small repairs - do it yourself Problem Problem After closing the safety trigger gun the high-pressure cleaner After closing the safety trigger gun the high-pressure cleaner keeps switching on and off. keeps switching on and off. The stainless steel pressure gauge continuously displays full pressure.
- Page 22 Small repairs - do it yourself Small repairs - do it yourself Summary of additional causes of malfunction Oil drops from the transmission Check/replace oil seals. Check plunger and plunger guides. Problem Possible cause High-pressure cleaner start/stop Water supply High-pressure cleaner Check return body and O-ring in does not switch off unloader of the valve housing.
- Page 23 Small repairs - do it yourself Notes Displayed malfunctions Display in the field Cause Action Soll Water temperature at heating Operate appliance without chamber outlet above 100 °C heating „Heating OFF“ until the temperature has dropped below 100 °C. Switch main switch „OFF“ and then back „ON“...
-
Page 24: Kränzle Accessories
Item no. double lance: 12133 Splash guard Order nozzle separately: L: 280 mm x W: 190 mm e-therm 500 M 18, 24: D2503 For all washing lances e-therm 603 M 36: D2504 e-therm 873 M 48: D2505 Item no.: 132600... -
Page 25: Eu Declaration Of Conformity
Defects attributable to long and frequent use of the product, typically arising Nominal flow: e-therm 500 M 18: 480 l/h due to the age of the high-pressure cleaner and intensity of its use are defined e-therm 500 M 24: 480 l/h as normal wear in respect of product components. -
Page 26: Inspection Reports
Inspection reports Inspection reports High-pressure cleaners for industrial use have to be checked by an expert every Inspection data determined value set value 12 months! Inspection report on annually carried out Labour Safety Inspection High-pressure nozzle (UVV) according to the Guidelines for Liquid Spray Equipment. (This inspection Operating pressure ....bar sheet serves as proof for the completion of the retest and must be kept carefully!) Switch off pressure ....bar... -
Page 27: Kränzle Final Report
Kränzle Final report Kränzle Final report High-pressure cleaner (device type): ..................Start/Stop automatic and re-run delay checked Thermostat function checked Heating checked for function All lines connected Hose clamps tight Water inlet temperature in °C 5 6 7 8 9 10 11 12 13 14 15 Screws all installed and tightened Visual check carried out Water outlet temperature in °C... - Page 28 Notes Notes...
- Page 29 Josef Kränzle GmbH & Co. KG Rudolf-Diesel-Straße 20 89257 Illertissen (Germany) sales @ kraenzle.com Made Germany www.kraenzle.com...
