- Page 1 Original operating manual with spare parts list High-pressure cleaner Quickly www.kraenzle.com...
- Page 2 Original operating manual with spare parts list High-pressure cleaner Quickly Operating manual with spare parts list! Read and observe safety instructions before use! Keep the booklet for later use or subsequent users.
- Page 3 Technische Daten Technical data Technische Daten Quickly Technical data Quickly Arbeitsdruck 130 bar / 13 MPa Operating press. 130 bar / 13 MPa/ 1885PSI Düsengröße Nozzle size Max. zulässiger Überdruck 145 bar / 14,5 MPa Permissible overpressure 145 bar / 14,5 MPa/ 2103PSI Wasserleistung bei 2.800 U/min 6,3 l/min...
- Page 4 In case of improper use, the high-pressure jets can be very dangerous. Do not direct jet at persons, animals or Technical data - Quickly ..............4 active electrical equipment or the high-pressure cleaner itself. Contents ....................6 Water supply: See page 12 Explanatory symbols ...............
- Page 5 Safety precautions Safety notes - This is prohibited! Persons operating the machine should wear the necessary protective clothing, i.e. The high pressure cleaner is to be properly used. The user is required to adhere safety goggles, headwear etc. It must be ensured that the high-pressure cleaner is only to local requirements and to watch out for any persons in the danger zone.
- Page 6 Safety notes - This is prohibited! General rules Intended Use This high-pressure cleaner is to be used solely for high-pressure water jet cleaning Do not direct the high-pressure jet at sockets or other applications without detergents or low-pressure cleaning work with detergents electrical equipment! Within the working area, all live (e.g.

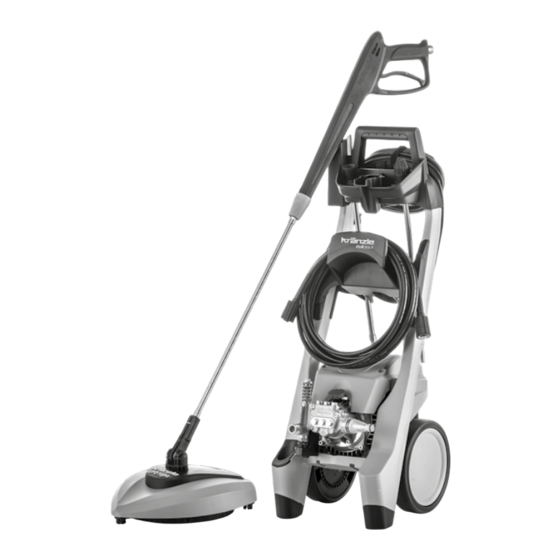

- Page 7 Description of high-pressure cleaner Structure: Quickly (with holder for 8 m high-pressure hose) This is what you have purchased The Quickly is a mobile high-pressure cleaner with an advanced arrangement system. Please see construction scheme for more details. 1. Kränzle high-pressure cleaner...
- Page 8 Functional details Functional details Please note - important: Lack of water Insufficient quantity of electricity Lack of water occurs more often than you If there are too many collectors in your probably believe. The more powerful a proximity connected to the network at the high-cleaner is the greater is the danger that same time, the available voltage and the a lack of water occurs.
- Page 9 The high-pressure cleaner can only be operated when the trigger of the safety The Quickly is equipped with a total stop system. If the main switch is switched deactivation trigger gun's trigger is actuated. When the trigger is pulled, the safety on, the motor is started via a pressure switch when opening the trigger gun with deactivation trigger gun opens.
- Page 10 Tightly screw together high-pressure hose and trigger gun with safety catch. Neither set up or operate the Quickly in rooms where there is a risk of fire or explosion nor put it into puddles. Do not use the high-pressure cleaner under water. If, none the less, the high-pressure cleaner is operated in a hazardous area, the applicable safety regulations are to be observed.
- Page 11 Check the water inlet sieve for damage. Do not operate the high-pressure cleaner without or with a damaged filter. 12. The Quickly features a holder for holding the trigger gun with safety Connect the water hose to water inlet catch and lance during work breaks.
- Page 12 Taking out of operation Small repairs - do it yourself! Switch off the high-pressure cleaner Problem No water from nozzle although the high-pressure cleaner is running. 2. Cut off the water supply Open the trigger gun with safety catch briefly until the pressure is released Cause Most likely the nozzle is blocked.
- Page 13 Small repairs - do it yourself! Small repairs - do it yourself! Problem Problem An irregular jet comes out of the nozzle. After closing of the trigger gun with safety catch the high pressure cleaner keeps switching on and off. Cause Possible cause no.1: Most likely the valves are soiled or sticky.
- Page 14 Small repairs - do it yourself! EU Declaration of Conformity We hereby declare that the design of Problem the high pressure cleaners: Quickly After closing of the trigger gun with safety catch the high pressure cleaner keeps switching on and off. Nominal flow: 378 l/h Possible cause no.
- Page 15 Warranty Tecnical data Dieser Kränzle Hochdruckreiniger ist nur für die ausschließliche und typische Floor cleaner Anwendung des Privatanwenders rund um Haus und Garten (zum Reinigen von Round Cleaner UFO light Fassaden, Terrassen, Gartengeräten, Werkzeugen, Fahrzeuge und Maschinen sowie Bauwerken) konzipiert und nicht für den gewerblichen Einsatz bestimmt. Die Gewährleistungspfl...
- Page 16 Safety notes Assembly Explanatory symbols used on the accessories Read and observe safety instructions in the operating manual before use! There is a risk of injury from the rotating arm of the Round Cleaner light. Pull out the clip with needle-nose pliers Never reach under the Round Cleaner light when the high-pressure cleaner is running.
- Page 17 Application Taking out of operation Floor cleaning Taking out of operation The Round Cleaner is particularly suitable for cleaning plane surfaces like Switch off the high pressure cleaner carriage gateways, terraces etc. 2. Cut off the water supply Mount the Round Cleaner instead of the spray lance to the high-pressure gun of Open the trigger gun with safety catch briefl...
- Page 18 Small repairs - do it yourself Warranty Warranty Problem No water comes from the nozzle but the pressure gauge shows full pressure. Our warranty obligation is understood to exclusively cover material and manufacturing defects, wear is not covered by warranty. Cause Most probably the nozzle is clogged.
- Page 19 Kränzle accessories Kränzle accessories Rotating washing brush 210 mm Dirtkiller lance Stainless steel extension 400 mm Brush head ∅ 180 mm Nozzle system 028 Nozzle size 2,5 mm Art. no.: 42403-028 Art. no.: 12800 Splash guard L: 280 mm x W: 190 mm Lance extension For all washing lances 400 mm...
- Page 20 Schaltplan Notizen Notes Wiring diagram Schaltplan Quickly 230 V 1~/50 Hz Kondensator 30 µF Klemme Motor 39 5...
- Page 21 Ersatzteilliste Komplettaggregat Ersatzteilliste Komplettaggregat Spare parts list complete assembly Spare parts list complete assembly Position Bezeichnung Stck. Bestell-Nr. Description Qty. Item no. Holm kpl. 497000 Standfuss links + rechts 497005 Kunststoff schraube 5,0 x 30 43418 Schlauchhalter 497007 Gegenhalter Schlauchhalterung 497008 Kabelklemme Netzanschlusskabel 43431...
- Page 22 Item no. Motor 230V / 50 Hz komplett ohne Elektrik 497040 Schaltkasten Unterteil 491041 Deckel Schaltkasten 49105 Dichtung für Deckel 49113 Haube Quickly 497065 Lüsterklemme 3-pol. 43326 Schraube 3,5 x 20 43415 Innensechskantschraube M6 x 20 420121 Überstromauslöser 1-polig 14 A 491250 Kondensator 30µF...
- Page 23 Getriebeteil Transmission Transmission Oil change If oil needs to be changed during repair, the high-pressure cleaner must be turned 180 °C from a horizontal position so that the dipstick is pointing towards the ground. The oil is to be captured in a container and subsequently properly disposed of.
- Page 24 Druckfeder grau 14124 Federdruckmutter 492430 Wasserfi lter klarsicht mit Filter 13311 Hochdruckdichtung 12 x 20 x 5,2mm 49226 Distanzring 12 mm Quickly mit Abstüzung 497011 Messinghülse mit Tefl onsitz 12127 Steuerkolben Motorabschaltung 497029 Stopfen M10x1 (durchgebohrt) 133851 Druckfeder 1,0 x 8,6 x 30 40520 Stützscheibe...
- Page 25 Ersatzteilliste Lanze Ersatzteilliste Schmutzkiller Spare parts list lance Spare parts list dirtkiller Position Bezeichnung Stck. Bestell-Nr. Position Bezeichnung Stck. Bestell-Nr. Description Qty. Item no. Description Qty. Item no. Jet-Düse 028 26020-028 Sprühkörper 41950 Düsenschutz Jet-Düse 26021 O-Ring 16 x 2 13150 Nippel für Steckkupplung DN10;...
- Page 26 Ersatzteilliste Roundcleaner Ersatzteilliste Roundcleaner Spare parts list roundcleaner Spare parts list roundcleaner Position Bezeichnung Stck. Bestell-Nr. Description Qty. Item no. Schutzscheibe 13.860 Anschlussrohr 13.861 5 Bürstengleiter 13.816 Halteklammer Gelenk 13.862 Halteklammer Anschlussrohr 13.863 O-Ring 8 x 1,5 13.864 O-Ring 7,65 x 1,78 13.867 Schraube 3,9 x 13 41.078...
- Page 27 Josef Kränzle GmbH & Co. KG Rudolf-Diesel-Straße 20 89257 Illertissen (Germany) sales @ kraenzle.com Made Germany www.kraenzle.com...
