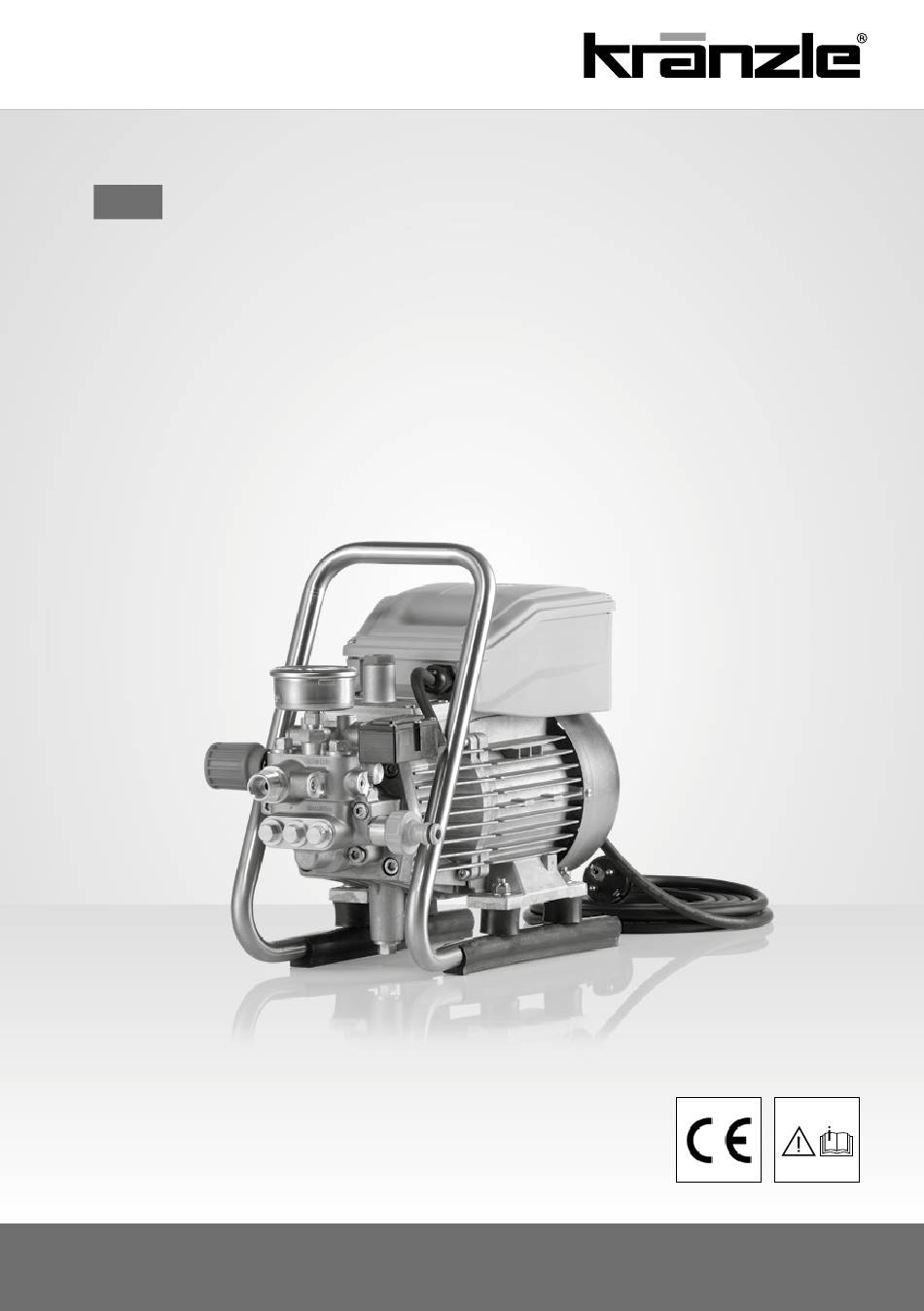

- Page 1 Operating manual with spare parts list High-pressure cleaner HD 8/92 www.kraenzle.com...
- Page 2 Operating manual High-pressure cleaner HD 8/92 Operating manual! This manual is a translation of the original manual. Read and conform safety instructions before use! Technical data will be found in the Spare parts list. Please be aware that the spare part list is part of the operating manual.
-
Page 3: Table Of Contents
Your choice has fallen on an absolute quality product! adhere to the instructions may cause excessive wear or total Kränzle high-pressure cleaners are characterized by their convenient breakdown of the HD 8/92. and compact design as well as their high suitability for everyday use. Warning! -
Page 4: Safety Notes
Safety notes Safety notes - This is prohibited! User operating the high-pressure cleaner should wear the necessary protective Replacement of the power supply cables is only permitted by use of an original clothing, i.e. waterproof clothing, rubber boots, safety goggles, ear protection power supply cable of the manufacturer and must be performed by a qualified headwear etc. - Page 5 Safety notes - This is prohibited! Safety notes - This is prohibited! Never direct the high-pressure jet at the high- Never direct the high-pressure jet at people or pressure cleaner itself! The high-pressure cleaner animals! Never direct the high-pressure jet at may not be placed within reach of the high- yourself or other persons, not even to clean pressure jet spray mist!
-
Page 6: General Rules
General rules General rules Intended use Oil change This high-pressure cleaner is to be used solely for high-pressure water jet cleaning applications without detergents or low-pressure cleaning work with detergents The first oil change should be carried out (e.g. with a foam injector or washing brush). after approximately 50 operating hours, then every year or after 250 operating Environmental, refuse disposal and water protection regulations... -
Page 7: Functional Details
Functional details Functional details Please note: Lack of water Insufficient quantity of electricity Lack of water occurs more often than you If there are too many collectors in your probably believe. The more powerful a high- proximity connected to the network at the pressure cleaner is the greater is the danger same time, the available voltage and the that a lack of water occurs. - Page 8 Totalstop-System The HD 8/92 features a totalstop system. If the main switch is switched on, the motor is started via a pressure switch when opening the safety trigger gun. When...
-
Page 9: Putting Into Operation
Putting into operation Putting into operation Check water inlet filter for cleanliness 10. Connect to circuit (see technical data). prior to putting the high-pressure cleaner into operation. Manually unscrew plug-in coupling. Take out the water inlet filter using needle nose pliers and thoroughly rinse it with clear water and clean it with the other parts. -
Page 10: Taking Out Of Operation
Notes Taking out of operation Switch off the high-pressure cleaner 2. Cut off the water supply Open the safety trigger gun catch briefly until the pressure is released 4. Apply safety catch on the trigger gun Remove high-pressure hose and safety trigger gun 6. -
Page 11: Small Repairs - Do It Yourself
Small repairs - do it yourself Small repairs - do it yourself Problem Problem No water from nozzle although the high-pressure cleaner is running. Irregular jet from nozzle. The stainless steel pressure gauge shows full pressure. The stainless steel pressure gauge shows low pressure. Cause Cause Most likely the nozzle is blocked. - Page 12 Small repairs - do it yourself Small repairs - do it yourself Problem Problem After closing the safety trigger gun, the pressure control valve-safety valve keeps After closing the safety trigger gun, the pressure control valve-safety valve keeps switching. The stainless steel pressure gauge continuously displays full pressure. switching.
-
Page 13: Eu Declaration Of Conformity
Any changes made to the safety devices of the product or instances of Noise pressure level, typical: HD 8/92: 81.7 dB (A) maloperation – such as exceeding the temperature and speed limits, undervoltage, insufficient water supply and sewage water, or failure to... -
Page 14: Technical Data
Technische Daten Technical data Technische Daten HD 8/92 Technical data HD 8/92 Arbeitsdruck, stufenlos regelbar 10-90 bar / 1 - 9 MPa Operating press. fully adjustable 10-90 bar / 1 - 9 MPa Düsengröße Nozzle size Max. zulässiger Überdruck 105 bar / 10,5 MPa... -
Page 15: Wiring Diagram
Schaltplan Notes Wiring diagram Schaltplan 115 V, 60 HZ Schurter-switch with 14,5A excess current release blue brown brown blue green/yellow * 80 µF terminal strip ** white brown green/ black yellow motor... -
Page 16: Spare Parts List
Ersatzteilliste Motor Ersatzteilliste Motor Spare parts list motor Spare parts list motor Position Bezeichnung Stck. Bestell-Nr. Description Qty. Item no. Ölgehäuse mit Dichtung, Deckel 445013 Öldichtung, Schulterlager Stator 284310 Motorwelle mit Rotor 43104 Passfeder 6 x 6 x 20 414831 Motor-Lager B-Seite Z-Lager 43025 Motor-Lager A-Seite Schulterl. - Page 17 Getriebeteil Getriebeteil Transmission Transmission Position Bezeichnung Stck. Bestell-Nr. Description Qty. Item no. Gehäuseplatte 43003 Öldichtung 14 x 24 x 7 41631 O-Ring 83 x 2 43039 Plungerfeder 43040 Federdruckscheibe 14 mm 43041 Plunger 14 mm AZ-L 49021 Sprengring 14 mm 41635 Taumelscheibe 12.,0 41028-12,0...
- Page 18 Ersatzteilliste Ventilgehäuse Ersatzteilliste Ventilgehäuse Spare parts list valve housing Spare parts list valve housing Position Bezeichnung Stck. Bestell-Nr. Description Qty. Item no. Ventilgehäuse 490201 Ventilstopfen 41011 Ventilstopfen mit R1/4“ IG 410111 Ventile (rot) 41612 Dichtstopfen M 8 x 1 13158 Dichtstopfen M 10 x 1 43043 O-Ring 12 x 2...
-
Page 19: Inspection Reports
Inspection reports Inspection reports High-pressure cleaners for industrial use have to be checked by an expert every High-pressure cleaners for industrial use have to be checked by an expert every 12 months! Inspection report on annually carried out Labour Safety Inspection (UVV) 12 months! Inspection report on annually carried out Labour Safety Inspection (UVV) according to the Guidelines for Liquid Spray Equipment. - Page 20 Notes Notes...
- Page 21 Josef Kränzle GmbH & Co. KG Rudolf-Diesel-Straße 20 89257 Illertissen (Germany) sales @ kraenzle.com Made Germany www.kraenzle.com...
