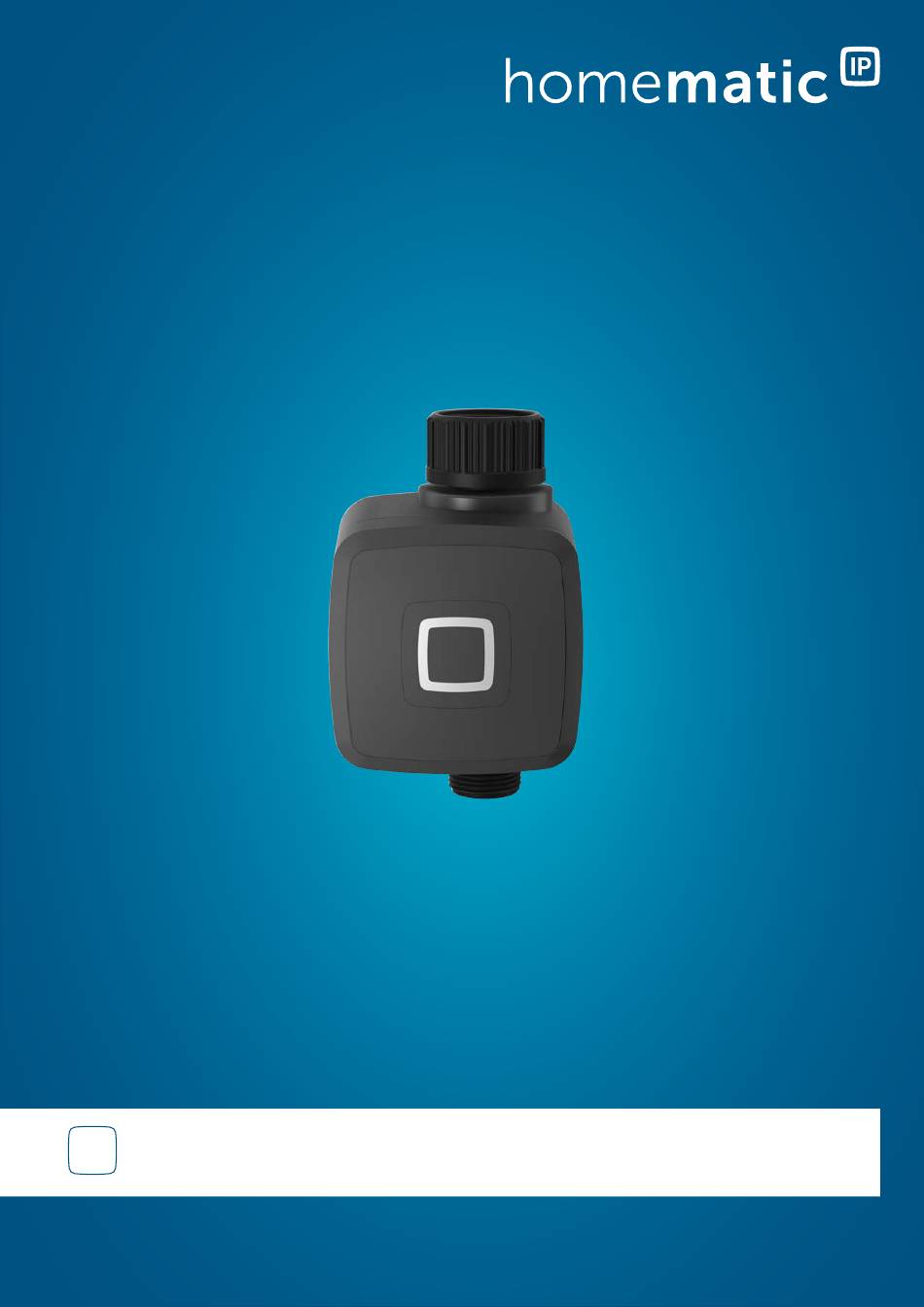

- Page 1 Watering Actuator HmIP-WSM Installation and Operating Manual...
-
Page 2: Table Of Contents
Table of contents Table of contents 1 Package contents....................3 2 Information about this manual................. 3 3 Hazard information....................3 4 Function and device overview................5 5 General system information................5 6 Start-up........................5 6.1 Pairing with a control centre..................6 6.2 Installation........................6 6.3 Fitting the valve adapter (3/4-inch male thread to 1-inch female thread)............................7 7 Operation....................... -
Page 3: Package Contents
Package contents Package contents Risk of injury from leaking or dam- 1x Watering Actuator aged batteries. These can cause chemical burns if 1x Valve adapter (1" to 3/4" reducer) they come into contact with skin. 2x 1.5 V LR6/Mignon/AA batteries Wear suitable protective gloves. - Page 4 Hazard information Do not operate the Water Actua- tor in drinking water systems. The appliance is only suitable for use in garden watering systems. Only operate the Water Actuator with untreated, clear fresh water at a maximum temperature of 50°C. Only connect the device to a pro- fessionally installed external out- let valve with hose fitting / external...
-
Page 5: Function And Device Overview
Figure 2 With protection class IP44, the Watering 5 General system information Actuator is ideal for outdoor use and en- This device is part of the Homematic IP sures reliable operation, regardless of the Smart Home System and communicates weather conditions. -
Page 6: Pairing With A Control Centre
Homematic IP Homematic IP • Your device will automatically ap- App so that you can use devices in pear in the Homematic IP App. the system. Homematic IP Detailed • Enter the last four digits of the de- information on this is to be found in... -
Page 7: Fitting The Valve Adapter (3/4-Inch Male Thread To 1-Inch Female Thread)
Start-up Once the batteries have been in- serted, the device will perform a self-test for approx. 2 seconds. Af- terwards, initialisation is carried out. The LED test display will indicate that initialisation is complete by lighting up orange and green. •... -
Page 8: Operation
Operation • Ensure that the threads on the Wa- If there is a risk of frost (< 5°C), the de- tering Actuator and the tap are free vice automatically closes the water valve. of dirt and residues. The safety switch-off is displayed with an error message using the app. -
Page 9: Maintenance And Cleaning
The cloth can be slightly dampened with lukewarm water Germany, hereby declares that the to remove more stubborn marks. Do not wireless system type Homematic IP HmIP-WSM complies with Directive use any detergents containing solvents 2014/53/EU. The full text of the EU de- for cleaning purposes. -
Page 10: Disposal
Disposal 11 Disposal If you have any technical questions This symbol means that the device about the appliance, please contact and the batteries or accumulators your specialist dealer. must not be disposed of as house- hold waste, general waste, or in a yellow bin or yellow sack. -
Page 11: Technical Specifications
Technical specifications 12 Technical specifications Short description HmIP-WSM Supply voltage 2x 1.5 V LR6/Mignon/AA Battery life 1 year (typ.) Degree of protection IP44 Ambient temperature 5 - 55°C Weight (incl. batteries) 365 g Dimensions (W x H x D) 137 x 82 x 88 mm Current consumption 1000 mA max. - Page 12 Free download of the Homematic IP app! Bevollmächtigter des Herstellers: Manufacturer’s authorised representative: eQ-3 AG Maiburger Straße 29 26789 Leer / GERMANY www.eQ-3.de...
