Model
Description
Main Breaker
Generator Breaker
Only qualified personnel should be working on the panel box
An amateur should NEVER open the panel box
Please follow all rules and regulations of the National Electric Code

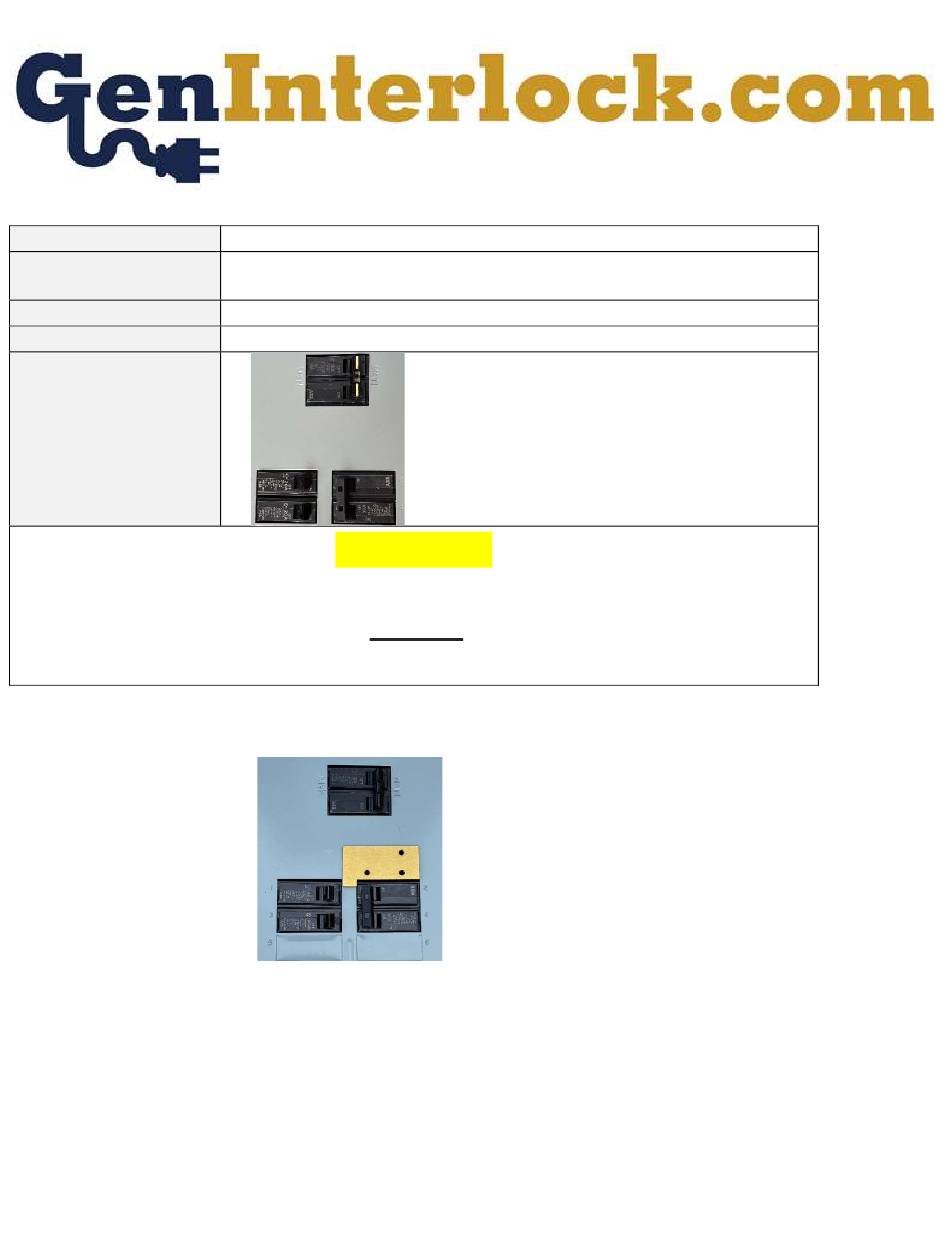

Step 1: Disassemble the interlock. Place the bottom plate (holes only) above the top right breaker and mark
holes. The plate is parallel to top right breaker.
Step 2: Turn off the main breaker and remove panel cover.
Step 3: Drill holes as marked on panel cover with supplied 3/16 drill bit and remove all burs from drilling cover.
Step 4: Insert screws from rear of cover, install bottom plate, and install top plate (slotted) install thread lock to
screws and install retaining nuts. Ensure proper movement.
Step 5: Install 2 pole Generator breaker on top right side and place Generator Warning Sticker on Generator
breaker.
GEN1-ABB
Generator Interlock Kit General Electric GE or ABB 100 and 125
Amp Panels with 1 3/8- 2 3/8 spacing
Horizontal throw left (off) to right (on)
Top right side 2 positions
WARNING
Advertisement
Related Manuals for GenInterlock GEN1-ABB
Summary of Contents for GenInterlock GEN1-ABB
- Page 1 GEN1-ABB Model Generator Interlock Kit General Electric GE or ABB 100 and 125 Description Amp Panels with 1 3/8- 2 3/8 spacing Horizontal throw left (off) to right (on) Main Breaker Top right side 2 positions Generator Breaker WARNING Only qualified personnel should be working on the panel box...
- Page 2 Thank You for your support, GenInterlock Team DISCLAIMER: GenInterlock.com is NOT responsible for misuse or improper installation. All electrical equipment should be installed and maintained by qualified personnel. Any consequences arising from improper use is the responsibility of the user.
