GenInterlock CCH-100 Quick Start Manual

Table of Contents

Download this manual

Model

Main Breaker

Generator Breaker

Only qualified personnel should be working on the panel box

An amateur should NEVER open the panel box

Please follow all rules and regulations of the National Electric Code

Step 1: Disassemble the interlock. Place the bottom plate (holes only) above the top left breaker and mark all holes as in

the picture below.

Step 3: Drill holes as marked on panel cover with supplied 3/16 drill bit and remove all burs from drilling cover.

Step 4: Insert screws from rear of cover, install bottom plate, and install top plate (slotted) install thread lock to screws

and install retaining nuts. Ensure proper movement.

Step 5: Install 2 pole Generator breaker on top left side and place Generator Warning Sticker on Generator

CCH-100

100 amp single handle Horizontal throw left (on) to right (off) ½ inch

gap between main and first breaker

Top left side 2 positions

WARNING

breaker.

Table of Contents

Need help?

Do you have a question about the CCH-100 and is the answer not in the manual?

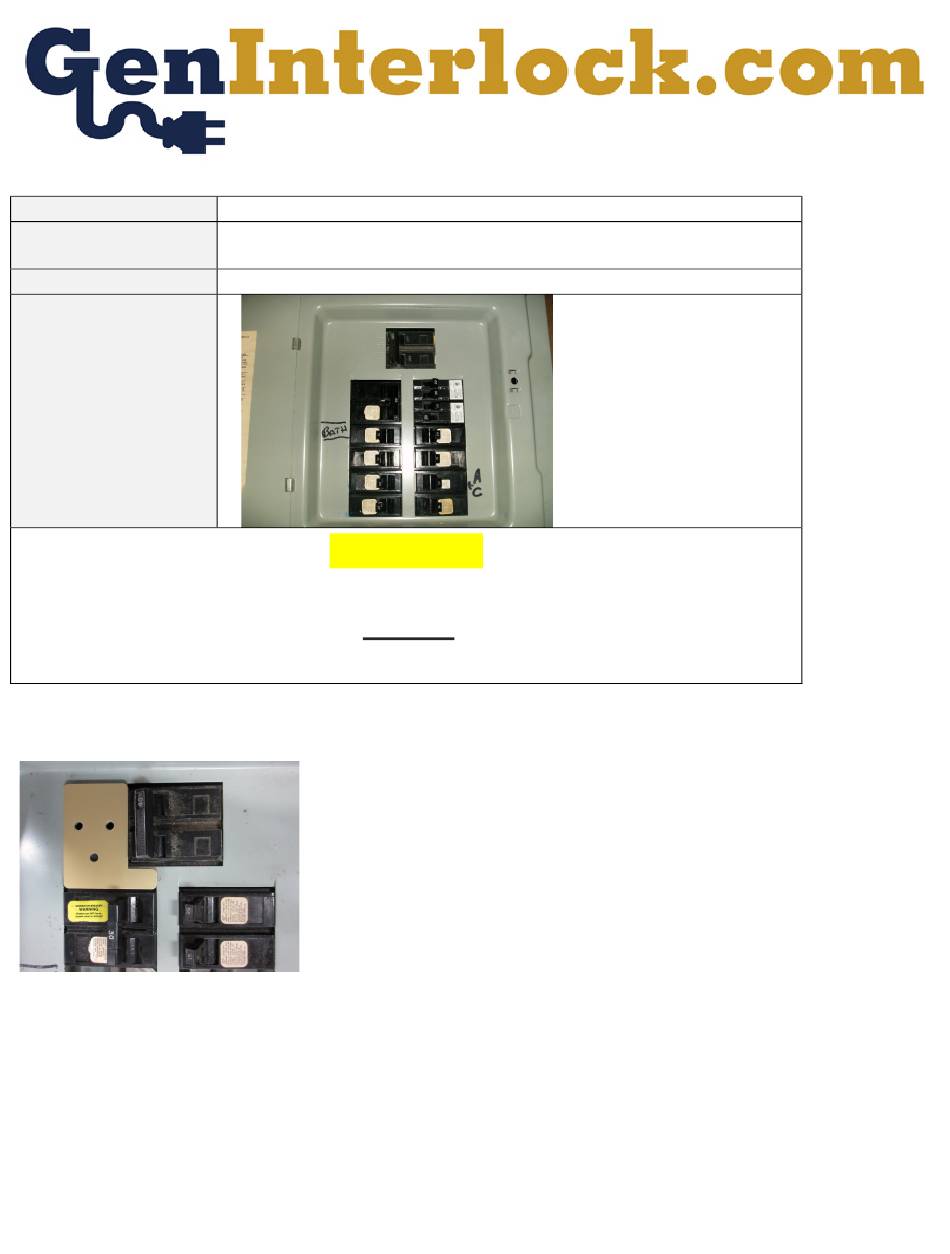

Page 1 CCH-100 Model 100 amp single handle Horizontal throw left (on) to right (off) ½ inch Main Breaker gap between main and first breaker Top left side 2 positions Generator Breaker WARNING Only qualified personnel should be working on the panel box...
Page 2 Thank You for your support, GenInterlock Team DISCLAIMER: GenInterlock.com is NOT responsible for misuse or improper installation. All electrical equipment should be installed and maintained by qualified personnel. Any consequences arising from improper use is the responsibility of the user.
