Model
Main Breaker
Generator Breaker
Only qualified personnel should be working on the panel box
Please follow all rules and regulations of the National Electric Code
Step 1: Disassemble the interlock. Place the bottom plate (holes only) above the top right breaker and mark holes.
Step 2: Turn off main breaker and remove panel cover.
Step 3: Drill holes as marked on panel cover with supplied 3/16 drill bit and remove all burs from drilling cover.
Step 4: Insert screws from rear of cover, install bottom plate, and install top plate (slotted) install thread lock to screws and install
retaining nuts. Ensure proper movement.
Step 5: Install 2 pole Generator breaker on top right side and place Generator Warning Sticker on Generator breaker.
SIE-V2 MIRROR
150 or 200 amp single handle Vertical throw up (on) down (off)
Spacing between main and the first breaker is 2 1/4 - 2 5/8 inches
Top right side 2 positions
An amateur should NEVER open the panel box
WARNING
Advertisement
Table of Contents
Related Manuals for GenInterlock SIE-V2 MIRROR
Summary of Contents for GenInterlock SIE-V2 MIRROR

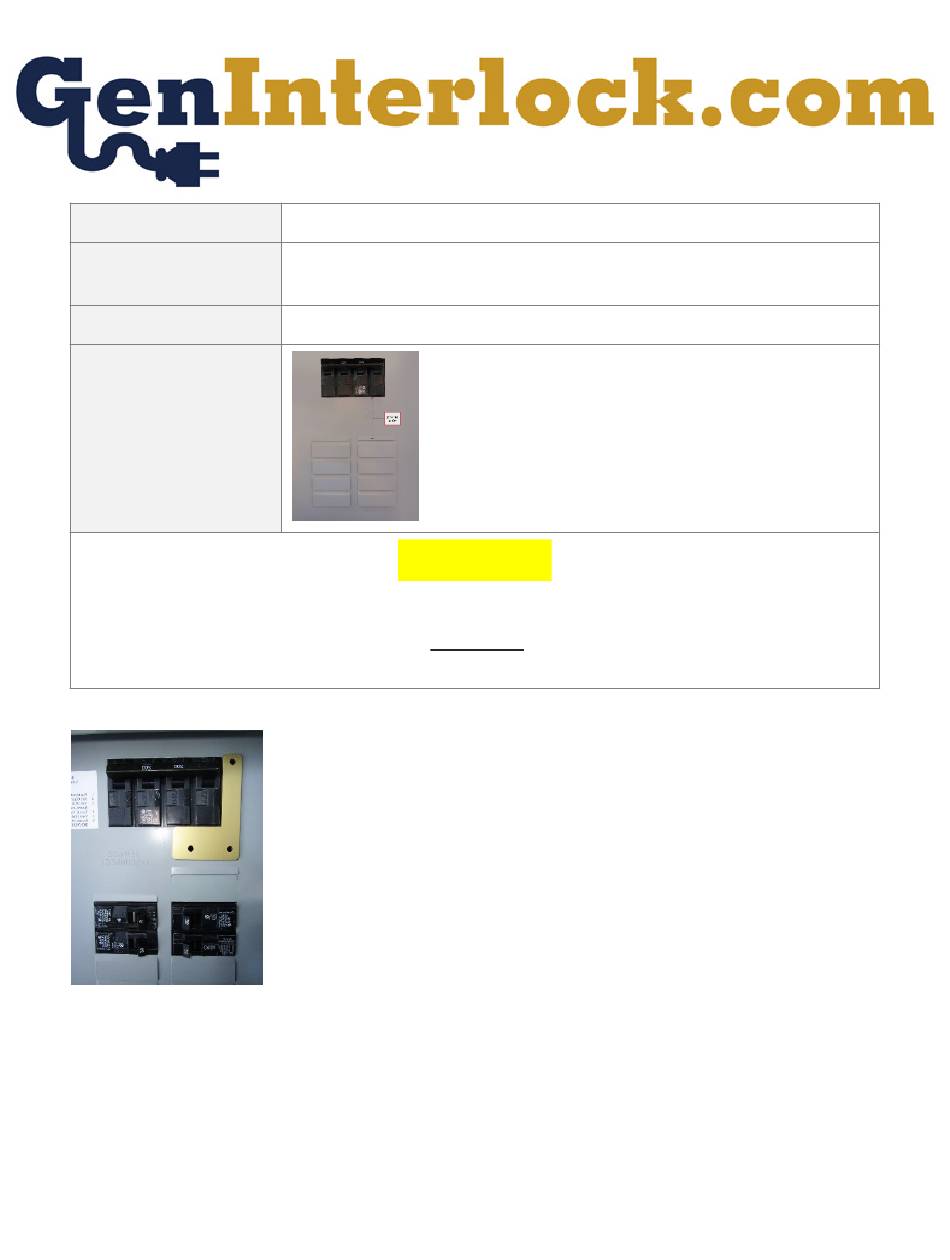

- Page 1 SIE-V2 MIRROR Model 150 or 200 amp single handle Vertical throw up (on) down (off) Main Breaker Spacing between main and the first breaker is 2 1/4 - 2 5/8 inches Top right side 2 positions Generator Breaker WARNING Only qualified personnel should be working on the panel box...
