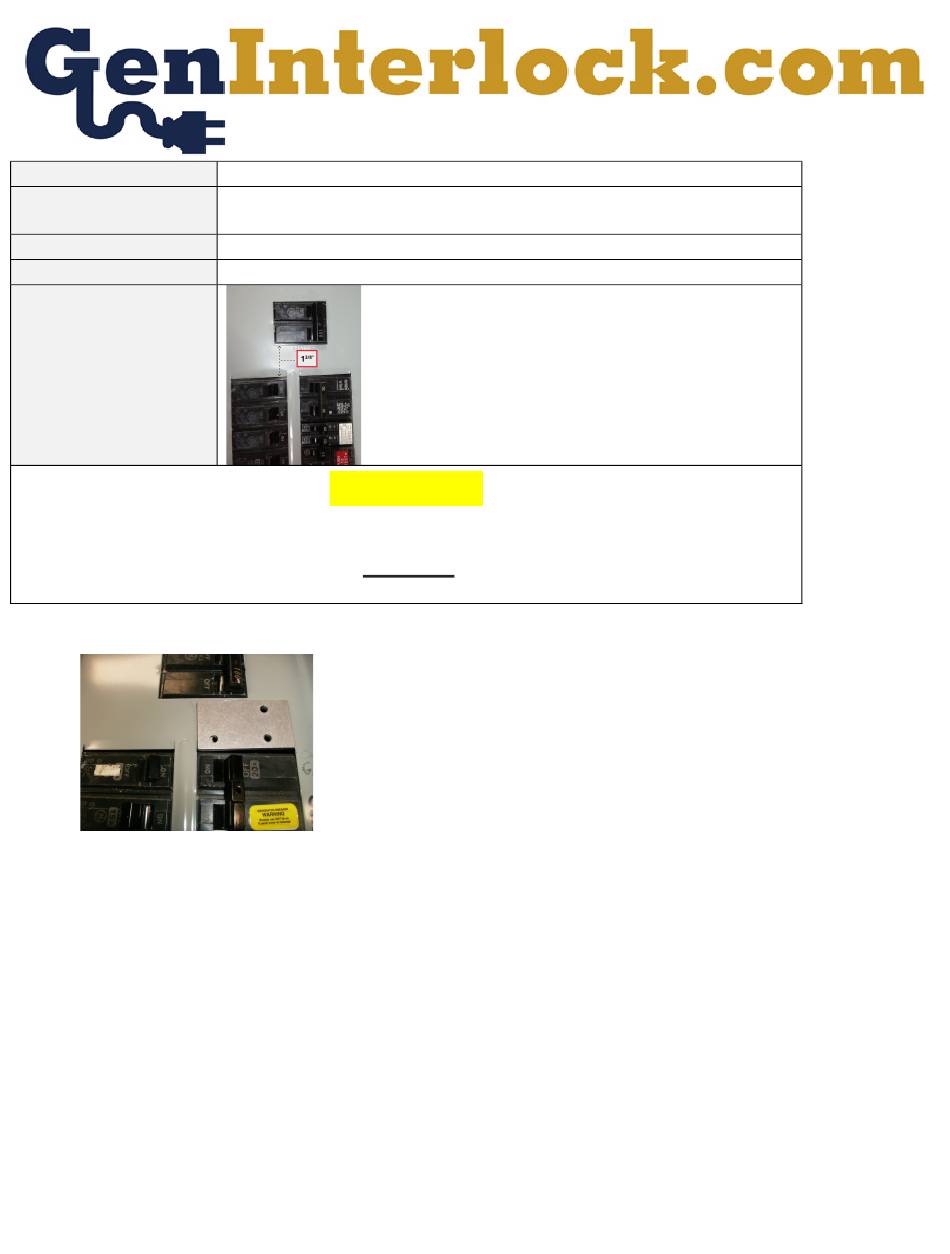

GenInterlock GE-100A Instructions

Model

Only qualified personnel should be working on the panel box

An amateur should NEVER open the panel box

Please follow all rules and regulations of the National Electric Code

Step 1: Disassemble the interlock, place the bottom plate (holes only) above the top right breaker and mark holes.

Step 2: Turn off main breaker and remove panel cover.

Step 3: Drill holes as marked on panel cover with supplied 3/16 drill bit and remove all burs from drilling cover.

Step 4: Insert screws from rear of cover, install bottom plate, and install top plate (slotted) install thread lock to screws and install

retaining nuts. Ensure proper movement.

Step 5: Install 2 pole Generator breaker on top right side and place Generator Warning Sticker on Generator breaker.

Step 6: Combine the zip ties to make a loop and install zip ties around top set of breakers in panel as shown in picture below. Pull on

ends to make tight around breakers. Trim zip ties as needed and Install Warning label next to release tab on zip tie at

generator breaker.

GE-100A

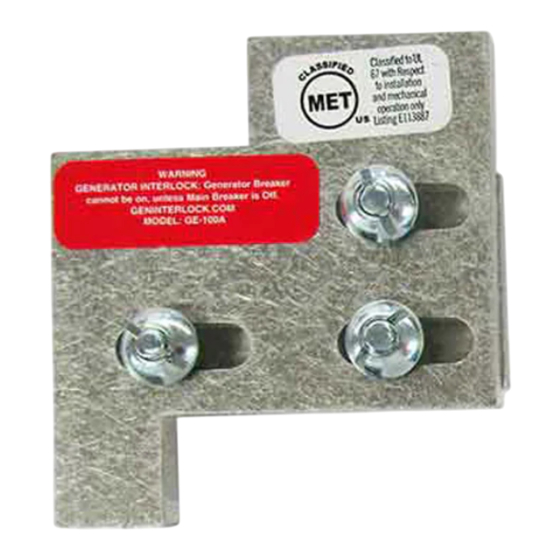

Generator interlock kit General Electric GE 100 Amp Panels

spacing between main and first breaker

100 amp single handle Horizontal throw right (on) left (off)

Top right side 2 positions

1 3/8

Table of Contents

Do you have a question about the GE-100A and is the answer not in the manual?

Page 1 GE-100A Model Generator interlock kit General Electric GE 100 Amp Panels 1 3/8 Description spacing between main and first breaker 100 amp single handle Horizontal throw right (on) left (off) Main Breaker Top right side 2 positions Generator Breaker WARNING...
Page 2 Thank You for your support, GenInterlock Team DISCLAIMER: GenInterlock.com is NOT responsible for misuse or improper installation. All electrical equipment should be installed and maintained by qualified personnel. Any consequences arising from improper use is the responsibility of the user.
