GenInterlock GE-200XL Instructions

Model

Main Breaker

Generator Breaker

Only qualified personnel should be working on the panel box

An amateur should NEVER open the panel box

Please follow all rules and regulations of the National Electric Code

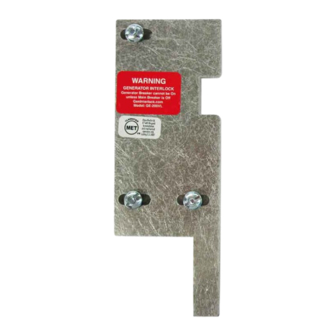

Step 1: Disassemble the interlock. Place the bottom plate (holes only) following the contour of the main breaker

above the left top usable breaker position, as in the picture. And mark holes.

Step 3: Drill holes as marked on panel cover with supplied 3/16 drill bit and remove all burs from drilling cover.

Step 4: Insert screws from rear of cover, install bottom plate, and install top plate (slotted) with retaining nuts.

Ensure proper movement.

Step 5: Install 2 pole Generator breaker on top left side and place Generator Warning Sticker on Generator

breaker.

GE-200XL Pat. Pending

200 amp single handle Vertical throw down (off), up (on) 3 ¼ inches

spacing between Main and first usable breaker slot

Top left side 2 positions

WARNING

Table of Contents

Do you have a question about the GE-200XL and is the answer not in the manual?

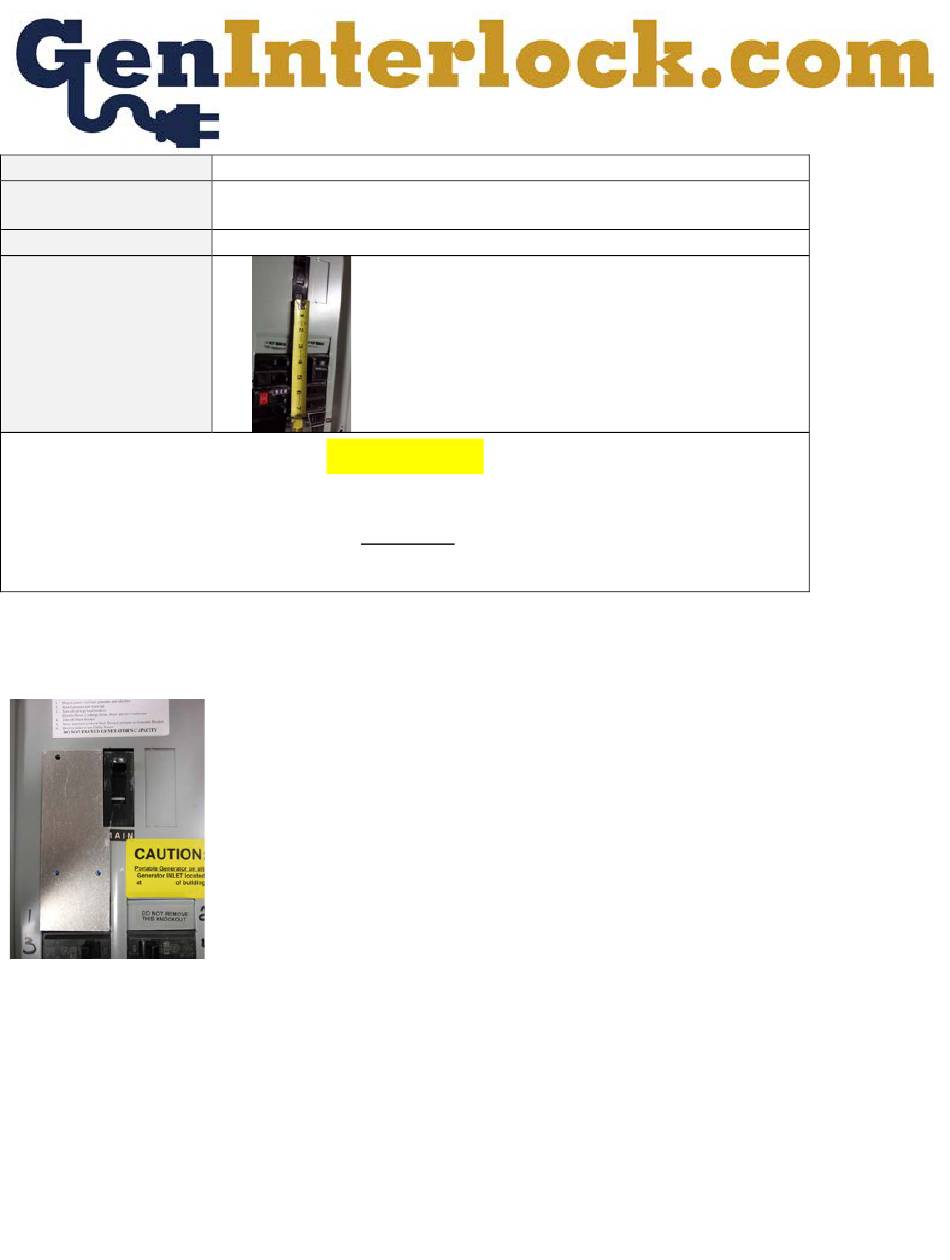

Page 1 GE-200XL Pat. Pending Model 200 amp single handle Vertical throw down (off), up (on) 3 ¼ inches Main Breaker spacing between Main and first usable breaker slot Top left side 2 positions Generator Breaker WARNING Only qualified personnel should be working on the panel box...
Page 2 Thank You for your support, GenInterlock Team DISCLAIMER: GenInterlock.com is NOT responsible for misuse or improper installation. All electrical equipment should be installed and maintained by qualified personnel. Any consequences arising from improper use is the responsibility of the user.
