Model
Main Breaker
Generator Breaker
Only qualified personnel should be working on the panel box
An amateur should NEVER open the panel box
Please follow all rules and regulations of the National Electric Code
Step 1: Disassemble the interlock. Place the bottom plate (holes only) above the top left breaker and mark holes.
Step 2: Turn off main breaker and remove panel cover.
Step 3: Drill holes as marked on panel cover with supplied 3/16 drill bit and remove all burs from drilling cover.
Step 4: Insert screws from rear of cover, install bottom plate, and install top plate (slotted) with retaining nuts.
Ensure proper movement.
Step 5: Install 2 pole Generator breaker on top left side and place Generator Warning Sticker on Generator
breaker.
ITE-100 Pat. Pending
100 amp single handle Vertical throw up (on) down (off)
1 ¼ spacing from bottom of main to first breaker
Top left side 2 positions
WARNING
Advertisement
Related Manuals for GenInterlock ITE-100
Summary of Contents for GenInterlock ITE-100

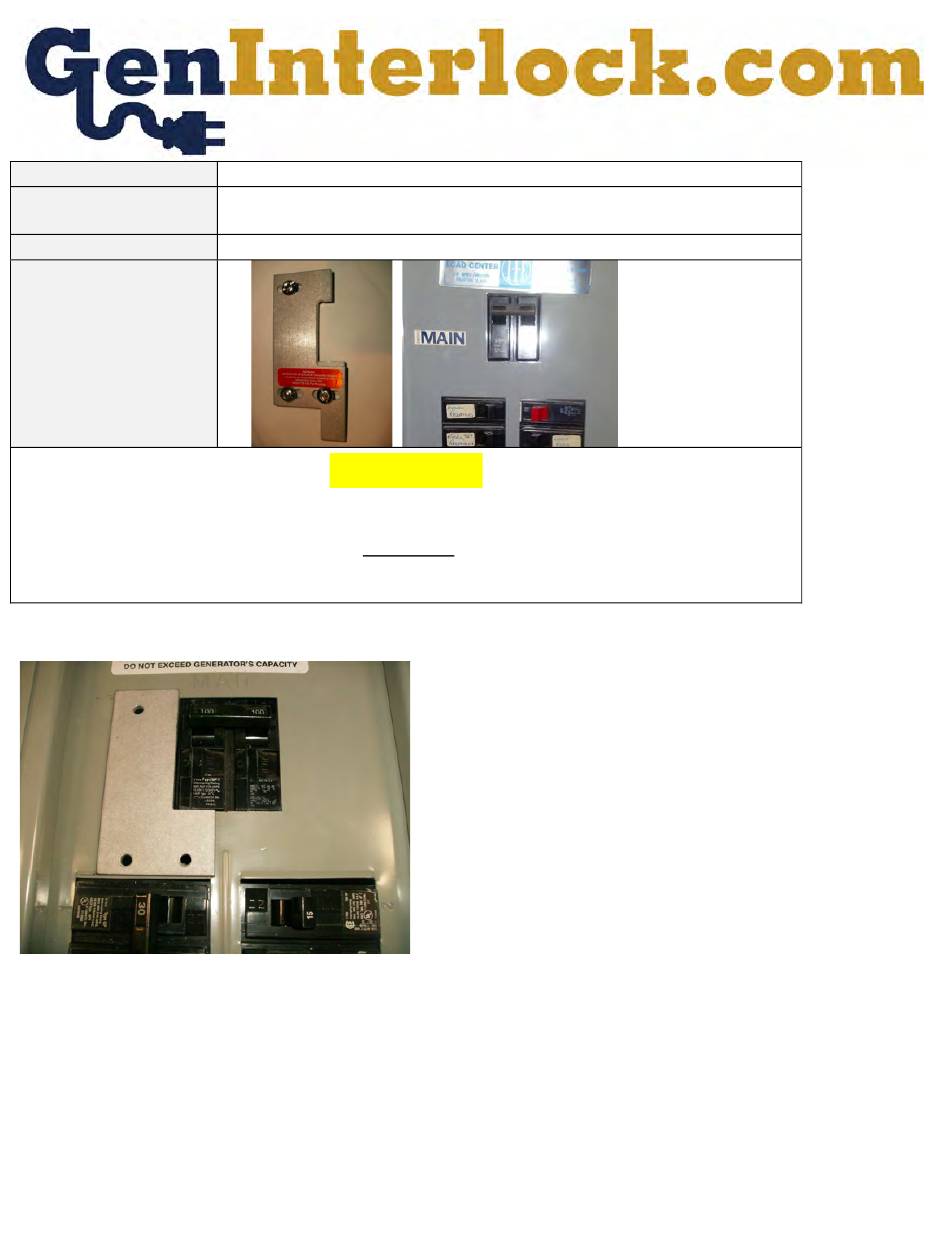

- Page 1 ITE-100 Pat. Pending Model 100 amp single handle Vertical throw up (on) down (off) Main Breaker 1 ¼ spacing from bottom of main to first breaker Top left side 2 positions Generator Breaker WARNING Only qualified personnel should be working on the panel box...
- Page 2 Thank You for your support, GenInterlock Team DISCLAIMER: GenInterlock.com is NOT responsible for misuse or improper installation. All electrical equipment should be installed and maintained by qualified personnel. Any consequences arising from improper use is the responsibility of the user.
