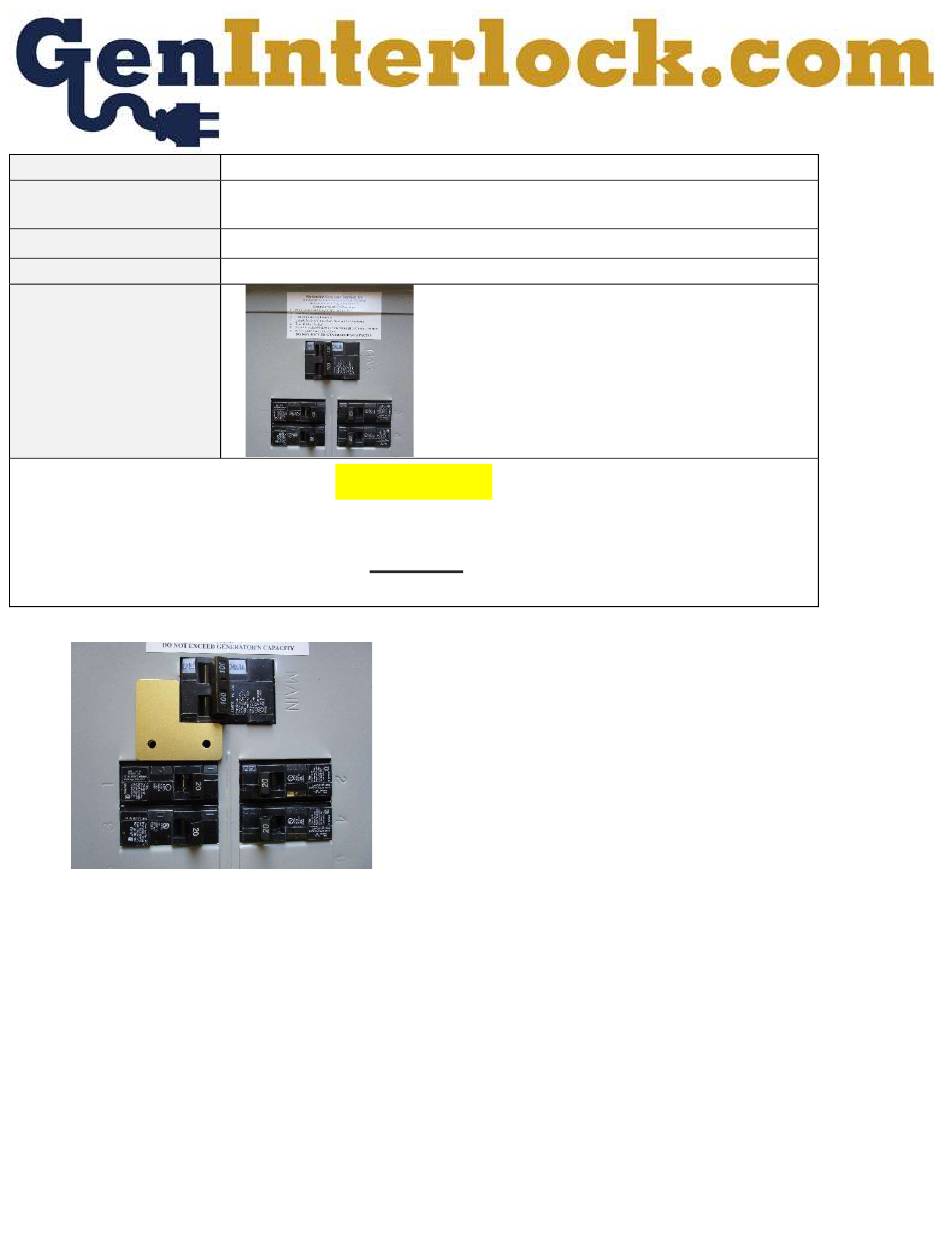

GenInterlock SIE-P1 Instructions

Model

Description

Main Breaker

Generator Breaker

Only qualified personnel should be working on the panel box
An amateur should NEVER open the panel box
Please follow all rules and regulations of the National Electric Code
Step 1: Disassemble the interlock. Place the bottom plate (holes only) and follow cutout of the main breaker as in picture
Step 2: Turn off main breaker and remove panel cover.
Step 3: Drill holes as marked on panel cover with supplied 3/16 drill bit and remove all burs from drilling cover.
Step 4: Insert screws from rear of cover, install bottom plate, and install top plate (slotted) install retaining nuts, and thread lock. And
Ensure proper movement.
Step 5: Install 2 pole Generator breaker on top left side and place Generator Warning Sticker on Generator breaker.
Step 6: Combine the zip ties to make a loop and install zip ties around top set of breakers in panel as shown in picture on the next
page. Pull on ends to make tight around breakers. Trim zip ties as needed and install Warning label next to release tab on zip
tie at generator breaker.
SIE-P1
Generator interlock kit Siemens and Murray 100 Amp Panel with
Spacing 7/8 to 1 ¼ between Main and Generator breaker
100 amp single handle Horizontal throw Left (on) Right (off)
Top Left side 2 positions
WARNING
