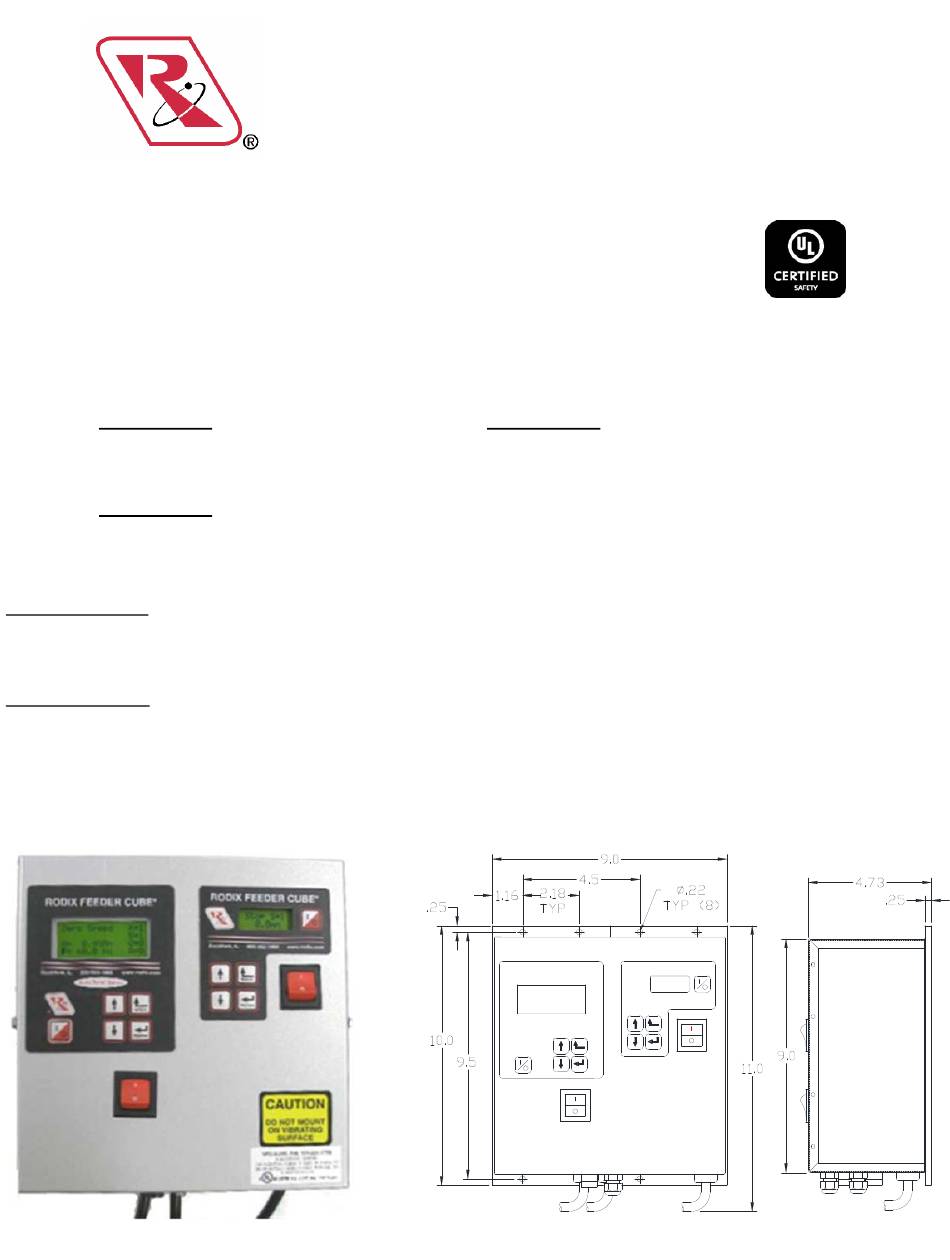

FEEDER CUBE ®
VFC-9-200-AB, P/N 121-200-0794
GENERAL PURPOSE MODEL
IMPORTANT: APPLICATION NOTE
Input: 120 VAC, 50/60 HZ.
(Operating range 90-130 VAC)
Outputs: 0 - 120 VAC
Unit A ratings
Input Fuse Size: 5 amps
Output Frequency: 5 - 180Hz
Rated Output Current: 9 Amps
Unit B ratings
Input Fuse Size: 8 amps
Output Frequency: Same as Utility Frequency
Output Current: 100% Duty Cycle 0.6-6.4A, 80% for 7-8A
Unit A Information: The Autotune Series of Variable Frequency Feeder Cubes® generates an output frequency for feeding
that is independent from the power line frequency. An optional vibration sensor, P/N 123-215, can be used to maintain the
vibratory feeder at a constant feed rate. The start/stop operation of the output can be controlled with an optional parts
sensor. For more information on this control, refer to the enclosed Adjustments and Set Up pages.
Unit B Information: This unit is based on the FC-200 Series Part Sensing Feeder Cube®. The start/stop operation of the
output can be controlled with an optional parts sensor. For more information on this unit, refer to the enclosed Adjustments
and Set Up pages. Unit B is interlocked (subordinate) to the operation of Unit A so that Unit B operates only when Unit A
is feeding parts. The interlock can be reconfigured.
Unit C Information: This unit is based on the AB-2 Timer/Logic Board. The Air Blow control board is used for multi-feeder
bowl applications to blow excess parts on a lane back into the bowl. The AB-2 control board can drive the 24 VDC air valves
on 2 lanes, and send an On/Off control signal to Unit A. PNP parts sensors are required for each lane used.
© 2013, 2024 RODIX
INC
RODIX INCORPORATED
TOLL FREE (800) 562-1868, FAX (815) 316-4701
E-mail custserve@rodix.com
.
rodix.com
Unit C ratings
Output Voltage: 24 VDC
Output Current per valve: 100mA
File No. E183233
4/17/24
Page 1
