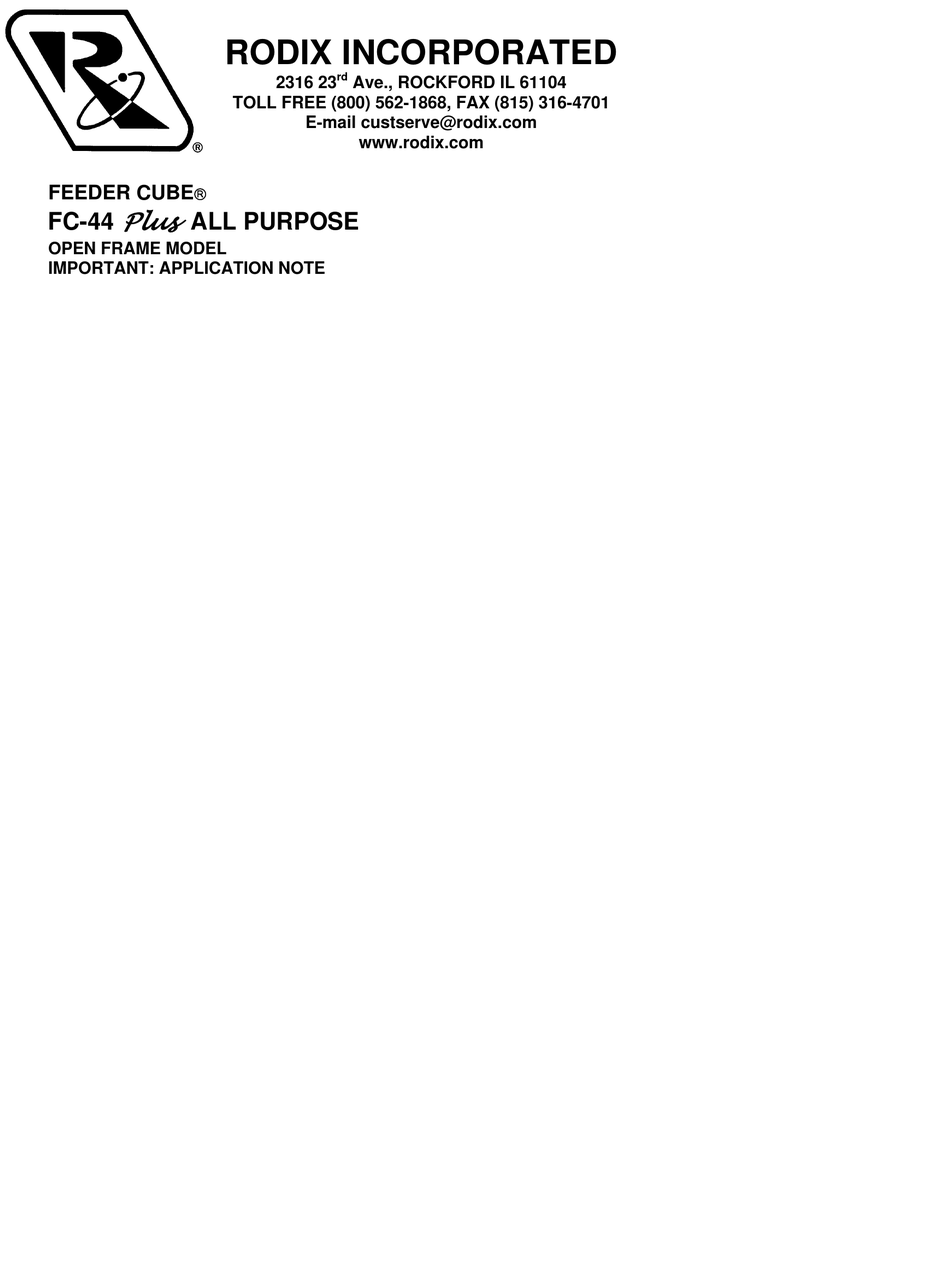

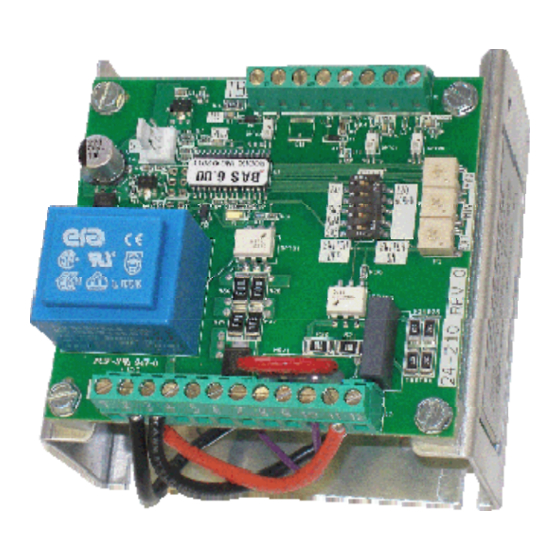

- Page 1 RODIX INCORPORATED 2316 23 Ave., ROCKFORD IL 61104 TOLL FREE (800) 562-1868, FAX (815) 316-4701 E-mail custserve@rodix.com www.rodix.com FEEDER CUBE Plus FC-44 ALL PURPOSE OPEN FRAME MODEL IMPORTANT: APPLICATION NOTE...
-
Page 2: Adjustments & Set Up
12 of TB2 is controlled by the interlock Output: 0-120 VAC output of a "Parts Sensing Feeder Bowl 80% Duty Cycle at Rated AMPS Plus Control" such as an FC-90 © 2000, 2011 RODIX FC-44 Plus 24-210.doc 8/30/2011 Page 1... -
Page 3: Warranty
Remove jumper "J1" of this control from terminals 6 Rodix Inc., ATTN: Repair Department 9. SUPPLEMENTARY FEATURES If under warranty, Rodix will repair or replace your and 7. Connect the Hopper Paddle switch to Special supplementary software features can be control at no charge;... - Page 4 RODIX INC. AUX FEATURE FEEDER CUBE JUMPER TERM. STRIP Plus Series O P T IO NA L FC-40 (SMALL) MA IN WIRING DIAGRAM C O NT RO L P O T External 4 -2 0 mA Interlock OFF/ON CONTROL GUIDE...
-
Page 5: Rodix Solution
Rodix controls have been designed with a AUX output. The shield “drain” wire high degree of immunity to electrical RECTIFIER should be tied to the chassis in the Rodix noise; however, depending on the control RELAY DIODE control. The drain wire should be kept...
