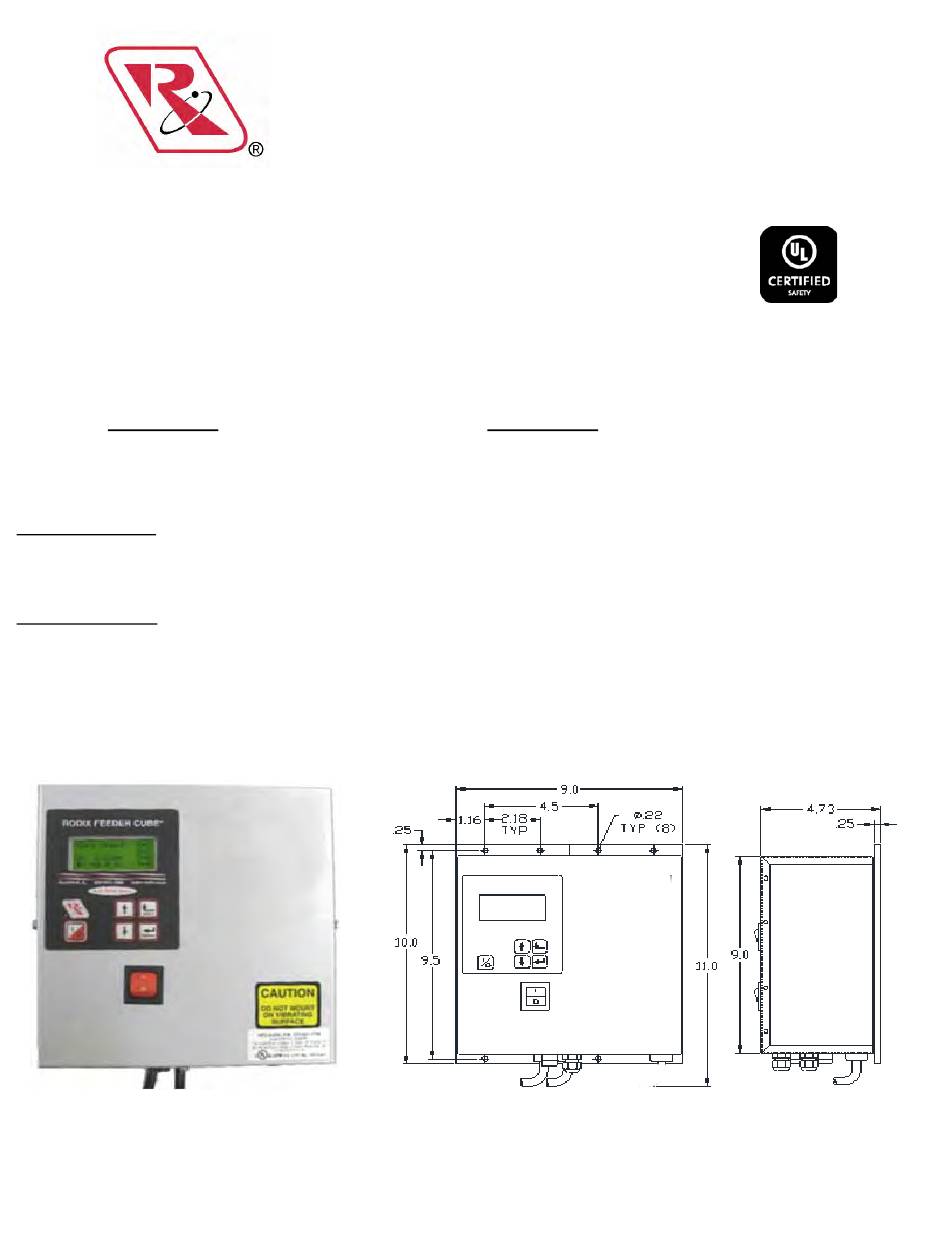

FEEDER CUBE ®
VF-9-AB, P/N 121-200-0799
GENERAL PURPOSE MODEL
IMPORTANT: APPLICATION NOTE
Input: 120/240 VAC, 50/60 HZ.
(Operating range 90-130 VAC)
Outputs: 0 - 120 VAC
Unit A ratings
Input Fuse Size: 5 amps
Output Frequency: 5 - 180Hz
Rated Output Current: 9 Amps
Unit A Information: The Autotune Series of Variable Frequency Feeder Cubes® generates an output frequency for feeding
that is independent from the power line frequency. An optional vibration sensor, P/N 123-215, can be used to maintain the
vibratory feeder at a constant feed rate. The start/stop operation of the output can be controlled with an optional parts
sensor. For more information on this control, refer to the enclosed Adjustments and Set Up pages.
Unit B Information: This unit is based on the AB-2 Timer/Logic Board. The Air Blow control board is used for multi-feeder
bowl applications to blow excess parts on a lane back into the bowl. The AB-2 control board can drive the 24 VDC air valves
on 2 lanes, and send an On/Off control signal to Unit A. PNP parts sensors are required for each lane used.
© 2013, 2023 RODIX
RODIX INCORPORATED
TOLL FREE (800) 562-1868, FAX (815) 316-4701
E-mail custserve@rodix.com
rodix.com
.
INC
Unit B ratings
Output Voltage: 24 VDC
Output Current per valve: 100mA
File No. E183233
6/28/2023
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Rodix FEEDER CUBE VF-9-AB
Summary of Contents for Rodix FEEDER CUBE VF-9-AB
- Page 1 The AB-2 control board can drive the 24 VDC air valves on 2 lanes, and send an On/Off control signal to Unit A. PNP parts sensors are required for each lane used. © 2013, 2023 RODIX 6/28/2023...
- Page 2 RODIX INC. FEEDER CUBE VF Series WIRING DIAGRAM VF-9-AB H.docx Figure 1 Page 2...
- Page 3 Control Menu Layout for VF Series Normal Operation Display Press and hold ‘Enter’ key to enter the program menu or get to the security menu. Then use the “Enter” key to move right from Main Menu to Sub Menu to the Adjustable Setting.
-
Page 4: Adjustments & Set Up
Bowl/Hopper Interlock “sig” and “-“ (see TB2 on the hoppers and linear inline feeders. The VF Series for proper cooling. wiring diagram) can be connected to a Rodix FC-40 output frequency can be adjusted to match the Plus All-Purpose Series control (TB2-11(-) &... - Page 5 E. The “1/0” key allows the user to temporarily stop The variable frequency control is energy efficient menu. The soft start can be set from 0.0 to 10.0 or to start the control’s operation. When the LCD because it recaptures energy from the feeder coils seconds.
- Page 6 14. Frequency Settings 15. Resonate Threshold Level The Min Frequency adjustment specifies the The “Frequency” menu contains the portion of the The “Resonate Threshold Level” setting sets the frequency used when the 0-10VDC input is at minimum level of vibration that the control considers menu that controls the frequency settings.
- Page 7 “Inv Al” to activate it. 24. Language Feeder Cube® and Auto Tune® are registered TM of Rodix Inc. E. The auxiliary output can be set so that an air Banner is a registered Trademark of Banner Engineering Corp,...
- Page 8 How to Interlock Two VF Series Controls together 4/8/20 Page 8 1. Remove the run jumper from TB2 terminals 8 & 9 of the subordinate control. 2. Add a wire from term. TB2-1 of the master control to terminal 7 of the subordinate control. 3.
- Page 9 The cable should is in the same direction as the vibration of the E-mail custserve@rodix.com, rodix.com hang straight down from the sensor without touching feeder. The double-ended arrow in figure 1 shows © 2005, 2020 RODIX INC. 123-215 VF-9 CFRsensor .doc...
- Page 10 Output: 0-24 VDC S1 must be set to the ON position. lane instead of a hopper sensor. The “INV S” switch will control the invert sensor logic for all three lanes. © 2016, 2017 RODIX AB-2 121-1391.doc 4/3/2017 Page 1...
- Page 11 Rodix Inc., ATTN: Repair Department If under warranty, Rodix will repair or replace your control at no charge; If out of warranty, we will repair it and you will be billed for the repair charges (Time and Material) plus the return freight.
- Page 12 RODIX INC. FEEDER CUBE Air Blow Series WIRING DIAGRAM RODIX, INC. www.rodix.com Toll Free (800) 562-1868, FAX (815) 316-4701 MODEL INPUT VAC OUTPUT email custserve@rodix.com AB-2 120 VAC 24VDC AB-2 121-1391.doc 1/26/2016 Page 3...
-
Page 13: Rodix Solution
Rodix controls have been designed with a AUX output. The shield “drain” wire high degree of immunity to electrical should be tied to the chassis in the Rodix RECTIFIER noise; however, depending on the control RELAY DIODE control. The drain wire should be kept...
