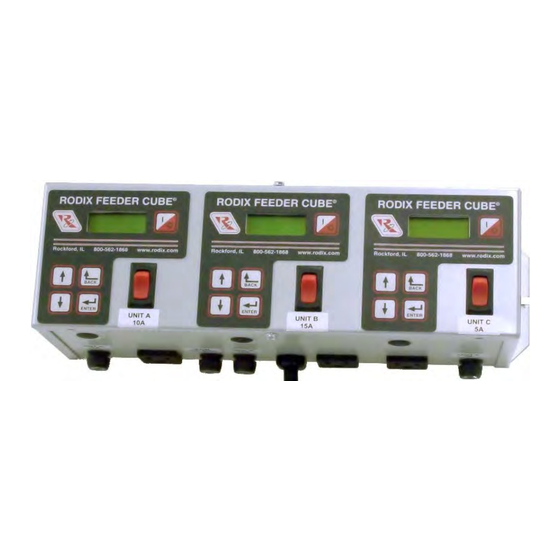

FEEDER CUBE ®
FC-200-3, P/N 121-000-2002
GENERAL PURPOSE MODEL
IMPORTANT: APPLICATION NOTE
Input: 120 VAC, 50/60 HZ.
(Operating range 90-130 VAC)
Triple Unit Fuse Sizes:
Main 20 Amps Maximum
Unit A 10A, Unit B 15A, Unit C 5A
Output: 0-120 VAC
Circuit Board P/N 24-200
Unit A Information: This unit is based on the FC-200 Series Part Sensing Feeder Cube®. The start/stop operation of the
output can be controlled with an optional parts sensor. For more information on this unit, refer to the enclosed Adjustments
and Set Up pages. Unit A is interlocked (subordinate) to the operation of Unit B so that Unit A operates only when Unit B is
feeding parts.
Unit B Information: This unit is based on the FC-200 Series Part Sensing Feeder Cube®. The start/stop operation of the
output can be controlled with an optional parts sensor. For more information on this unit, refer to the enclosed Adjustments
and Set Up pages.
Unit C Information: This unit is based on the FC-200 Series Part Sensing Feeder Cube®. The start/stop operation of the
output can be controlled with an optional parts sensor. For more information on this unit, refer to the enclosed Adjustments
and Set Up pages. The Unit C operation is independent of the other units.
© 2009, 2020 RODIX
RODIX INCORPORATED
TOLL FREE (800) 562-1868, FAX (815) 316-4701
E-mail custserve@rodix.com
rodix.com
.
INC
File No. E183233
FC-200-3 G.docx 8/3/20 Page 1
