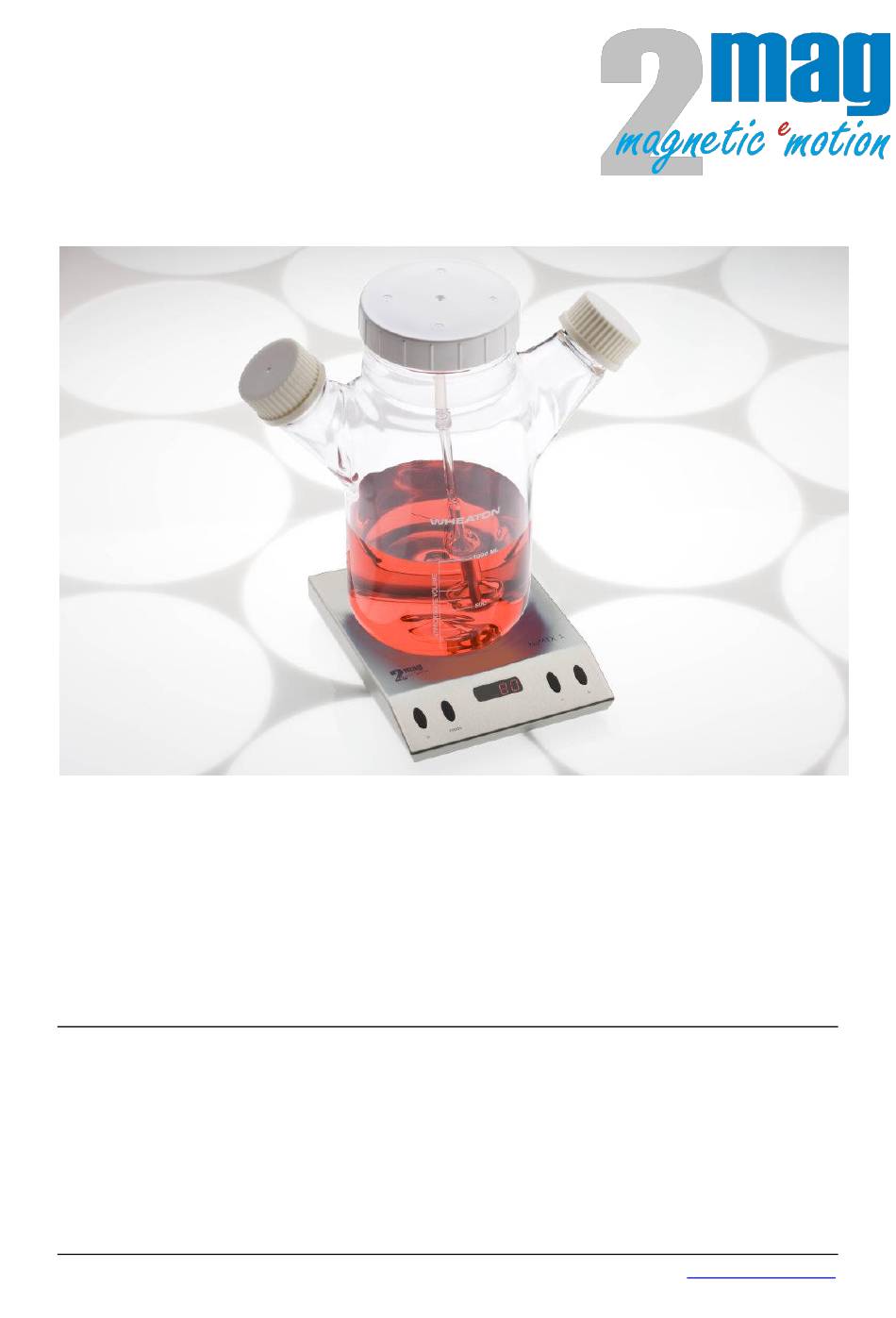

- Page 1 Operation Manual English bioMIX 1 Order no.: 85001 Includes Quick start Operation Manual Technical Documentation Specifications Version 6.0 Issue 08/2019 www.2mag.de...
- Page 2 For any enquiries, questions or suggestions please do not hesitate to contact us at info@2mag.de. 2mag Main competence of 2mag is based upon mixing, tempering and measuring/controlling. In these fields we are offering support with our products to the modern laboratory within the standardized daily business as well as for the implementation of highly complex processes in the state-of-the-art research.
-
Page 3: Table Of Contents
3. Installation _____________________________________________ 8 3.1 Safety advice ________________________________________ 8 3.2 Installation, connection to power supply unit ________________ 9 4. Operating of the magnetic stirrer bioMIX 1 ___________________ 10 4.1 Description operating elements __________________________ 10 4.2 Stirring operation and stirrer control _____________________ 11 4.3 Warning notices _____________________________________ 13... -
Page 4: A Quick Start
A Quick start 1. Overview of your product Magnetic stirrer bioMIX 1 Image 1: 1-position magnetic stirrer bioMIX 1 (without power supply unit 100-240 volts) Your product contains at despatch: A modern inductive magnetic stirring system (bioMIX 1) consisting of a stainless steel stirring plate with 1 stirring point. -
Page 5: Application Fields
2. Application fields 2.1 Operator The 100% maintenance- and wear-free magnetic stirrer bioMIX 1 is used in the fields of chemistry, medicine, pharmacy, microbiology and biotechnology. The operators are generally working in research and development, production and quality assurance. 2.2 Basic functions Basic function is stirring of liquids in suitable and chemically resistible and biological applicable vessels. -
Page 6: Combinations Of Vessels
(single or double spinner systems). The magnetic stirrer bioMIX 1 is optimized for both cell culture vessel types. Stirring System Stirring Vessels Nominal Max. -
Page 7: Stirring Bars
(single or double spinner systems). The magnetic stirrer bioMIX 1 is optimized for using both cell culture vessel types. 2.7 Tips and hints to the topic stirring The culture flasks should be filled max. -
Page 8: Installation
To increase the operation safety, the power supply unit should be placed apart from chemical materials and reactions as well as away from thermal influences. For special requirements please contact info@2mag.de. ATTENTION! The power supply unit has to be disconnected, BEFORE you connect or disconnect the unit plug. -
Page 9: Installation, Connection To Power Supply Unit
The magnetic stirrer is now connected to the power supply unit and ready for operation. Image 2: Installation, rear side of the magnetic stirrer bioMIX 1 Description functional elements of control unit - backside Power supply unit (100-240 volts) -
Page 10: Operating Of The Magnetic Stirrer Biomix 1
4. Operating of the magnetic stirrer bioMIX 1 Image 3: Operating elements, magnetic stirrer bioMIX 1 4.1 Description operating elements Magnetic stirrer bioMIX 1 Stirrer control ON/OFF key for magnetic stirrer MODE-key for power adjustment of the magnetic stirrer Display for speed indicator and power indicator... -
Page 11: Stirring Operation And Stirrer Control
Operating of the magnetic stirrer After the cables have been installed correctly according to Installation, connection to the magnetic stirrer, the magnetic stirrer bioMIX 1 will be ready for operation. 4.2 Stirring operation and stirrer control Turning On and Off Please press the On/OFF-key (8) once. - Page 12 © 2mag AG Page 12 of 17 Version: 6.0...
-
Page 13: Warning Notices
4.3 Warning notices The magnetic stirrer bioMIX 1 is not suitable for using in water baths, incubators, ovens and humid atmosphere. Please ensure BEFORE you connect the power supply unit again that the socket is 100% dried! The maximum ambient temperature is +50°C in air. -
Page 14: B Maintenance, Cleaning And Care
The magnetic stirrer must not be dipped in water or any cleaning solutions. 2mag devices are generally maintenance-free. Due to their construction the 2mag devices are very robust and designed for the professional daily use. We recommend cleaning the devices’ surfaces with e.g. cleaning agents containing tensides or isopropyl alcohol regularly. -
Page 15: C Service Case And Customer Service
Web: www.2mag.de Warranty: Due to their construction, the 2mag devices are very robust and designed for the professional daily use. Should in any case, despite our strict quality control, a system part not work without any fault, it can be repaired or exchanged by our customer service without any problems. -
Page 16: D Errors
Please get into contact with us. In general, we are ready to help you in case of problems. For any enquiries, questions or suggestions please do not hesitate to contact us at info@2mag.de © 2mag AG Page 16 of 17 Version: 6.0... -
Page 17: E Technical Details
E Technical details Magnetic stirrer bioMIX 1 bioMIX 1 Order no. 85001 Stirring points Stirring volume 5 – 5,000 ml Speed range 5 – 250 rpm Stirring power (max.) 6 watts Power setting 10-steps (10-100%) Material housing stainless-steel Material sealing... - Page 20 DE-80992 Muenchen GERMANY Hereby declares that the product bioMIX 1 is conform to the appropriate regulations of the EU-guideline of the electromagnetic compatibility (EU-guideline 2014/30/EU) as well as the low voltage directive (2014/35/EU) incl. their changes and the laws for the realization of the guideline into national law.
