Operation Manual
English
Includes:
Quick start
Operation Manual
Technical Documentation
Specifications
Version 6.0

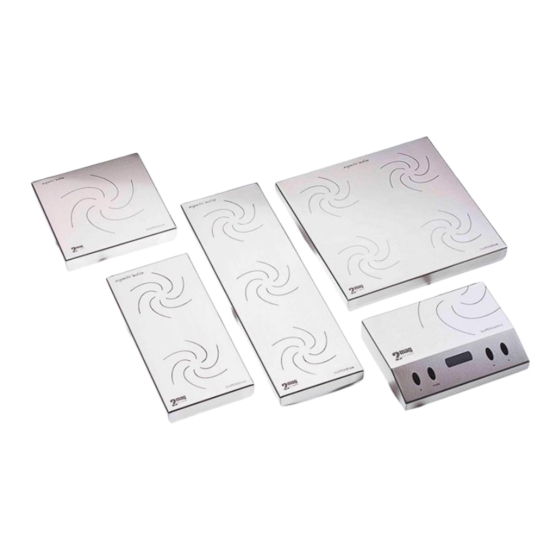

bioMIXdrive 1
bioMIXdrive 2
bioMIXdrive 3
bioMIXdrive 4
bioMIXcontrol
bioMIXcontrol S
bioMIXcontrol 4MS
Issue 08/2019
Order no.: 80001
Order no.: 80002
Order no.: 80003
Order no.: 80004
with
Order no.: 98400
Order no.: 98500
Order no.: 98604
www.2mag.de
Advertisement
Table of Contents
Related Manuals for 2mag bioMIXdrive 1
Summary of Contents for 2mag bioMIXdrive 1
- Page 1 Operation Manual English bioMIXdrive 1 Order no.: 80001 bioMIXdrive 2 Order no.: 80002 bioMIXdrive 3 Order no.: 80003 bioMIXdrive 4 Order no.: 80004 with bioMIXcontrol Order no.: 98400 bioMIXcontrol S Order no.: 98500 bioMIXcontrol 4MS Order no.: 98604 Includes: Quick start...
- Page 2 For any enquiries, questions or suggestions please do not hesitate to contact us at info@2mag.de. 2mag Main competence of 2mag is based upon mixing, tempering and measuring/controlling. In these fields we are offering support with our products to the modern laboratory within the standardized daily business as well as for the implementation of highly complex processes in the state-of-the-art research.
-
Page 3: Table Of Contents
5. External heating operation in incubators and water baths ________ 19 6. Maximum operation temperatures __________________________ 19 B Maintenance, Cleaning and Care _______________________ 20 C Service case and customer service _____________________ 21 D Errors ____________________________________________ 22 E Technical details____________________________________ 23 © 2mag AG Page 3 of 25 Version: 6.0... -
Page 4: A Quick Start
A Quick start 1. Overview of your product Magnetic stirrer bioMIXdrive with control unit bioMIXcontrol Image 1: 1-position magnetic stirrer bioMIXdrive 1 with control unit bioMIXcontrol Your product contains at despatch: A modern inductive magnetic stirring system (bioMIXdrive) consisting of a stainless steel stirring plate with 1, 2, 3 or 4... -
Page 5: Application Fields
Stirring and warming of flammable liquids Warming of pressure-tight closed and NOT pressure- resistant vessels or glasses (e.g. Erlenmeyer flasks, lab flasks) At general atmosphere or danger of explosion © 2mag AG Page 5 of 25 Version: 6.0... -
Page 6: Combinations Of Vessels
The 2mag is offering special products for the just mentioned application combinations. More information for this can be found at www.2mag.de info@2mag.de 2.5 Combinations of vessels Please use round, chemical resistant and biological applicable and where required heat-resistant vessels made of glass or non-magnetic metal. You can use vessels up to the maximum size stated in the spreadsheet 1. -
Page 7: Stirring Bars
Place one magnetic stirring bar in each stirring flask or use the stirring system of the cell- resp. tissue culture system. Place the stirring flasks right in the centre of the stirring point. © 2mag AG Page 7 of 25 Version: 6.0... -
Page 8: Installation
To increase the operation safety, the control unit should be placed apart from chemical materials and reactions as well as away from thermal influences. For special requirements please contact info@2mag.de. ATTENTION! The control unit has to be switched off, BEFORE you connect or disconnect the plugs. -
Page 9: Installation, Connection To Control Unit Biomixcontrol (S)
Connector of the stirrer control cable Socket for the stirrer control cable Power socket Power cable Power switch Control unit 2mag – bioMIXcontrol Stirring drive unit 2mag – bioMIXdrive 1 (or bioMIXdrive 2/3/4) © 2mag AG Page 9 of 25 Version: 6.0... -
Page 10: Installation, Connection To Control Unit Biomixcontrol 4Ms
(4)! The stirrer control cable (1a-d) of the magnetic stirrer bioMIXdrive 1 has now to be connected to the 8-pin socket of the control unit (2a-d). Please secure this plug connection by turning the screw nut situated at the plug. - Page 11 Power switch Control unit 2mag – bioMIXcontrol Please note: Up to 4x stirring drive bioMIXdrive 1 can be connected. Please do not connect bioMIXdrive 2, bioMIXdrive 3, bioMIXdrive 4 or bioMIXdrive 6 with control unit bioMIXcontrol 4MS. Risk of damage of the controller! ©...
-
Page 12: Operating Of The Control Units
Image 4: Control unit bioMIXcontrol Image 5: Close-up, operating elements control unit bioMIXcontrol and bioMIXcontrol S 4.1.1 Description operating elements bioMIXcontrol (S) Control unit 2mag - bioMIXcontrol Stirrer control ON/OFF key for magnetic stirrer MODE-key (M) for power adjustment of the magnetic stirrer... -
Page 13: Stirring Operation And Stirrer Control Biomixcontrol (S)
(8) afterwards. The start speed “5” will be set. Setting the Maximum Speed Press the PLUS-key (12) permanently and press shortly the ON/OFF-key (8) afterwards. The maximum speed “250” will be set. © 2mag AG Page 13 of 25 Version: 6.0... - Page 14 © 2mag AG Page 14 of 25 Version: 6.0...
-
Page 15: Operating Of The Control Unit Biomixcontrol 4Ms
4.2 Operating of the control unit bioMIXcontrol 4MS Control unit with Master-Slave function, up to 4x bioMIXdrive 1 Image 6: Control unit bioMIXcontrol 4MS Image 7: Close-up, operating elements control unit bioMIXcontrol 4MS 4.2.1 Description operating elements bioMIXcontrol 4MS Control unit 2mag – bioMIXcontrol 4MS... -
Page 16: Stirring Operation And Stirrer Control Biomixcontrol Ms4
“3.150” stirrer no. 3 set speed is 150 rpm “4.150” stirrer no. 4 set speed is 150 rpm “A.150” ALL stirrers (synchronous mode) set speed is 150 rpm © 2mag AG Page 16 of 25 Version: 6.0... - Page 17 © 2mag AG Page 17 of 25 Version: 6.0...
-
Page 18: Accessory - Extension Cord For Biomixdrive
4.3 Accessory – Extension Cord for bioMIXdrive With the accessory Extension Cord for bioMIXdrive series (order no. 46200) the control wire of the stirrer can be extended by 3m. Other lengths on request. © 2mag AG Page 18 of 25 Version: 6.0... -
Page 19: External Heating Operation In Incubators And Water Baths
Please note the maximum operation temperature +50 °C in air for the standard versions Water bath operation: Please note the maximum operation temperature +50 °C in water immersed for the standard versions © 2mag AG Page 19 of 25 Version: 6.0... -
Page 20: B Maintenance, Cleaning And Care
The control unit must not be dipped in water or any cleaning solutions. 2mag devices are generally maintenance-free. Due to their construction the 2mag devices are very robust and designed for the professional daily use. We recommend cleaning the devices’ surfaces with e.g. cleaning agents containing tensides or isopropyl alcohol regularly. -
Page 21: C Service Case And Customer Service
Web: www.2mag.de Warranty: Due to their construction, the 2mag devices are very robust and designed for the professional daily use. Should in any case, despite our strict quality control, a system part not work without any fault, it can be repaired or exchanged by our customer service without any problems. -
Page 22: D Errors
Please get into contact with us. In general, we are ready to help you in case of problems. For any enquiries, questions or suggestions please do not hesitate to contact us at info@2mag.de © 2mag AG Page 22 of 25 Version: 6.0... -
Page 23: E Technical Details
E Technical details Magnetic stirrer bioMIXdrive 1 and 2 bioMIXdrive 1 bioMIXdrive 2 Order no. 80001 80002 Stirring points Stirring point distance 140 mm Stirring volume 5 – 5,000 ml Speed range 5 – 250 rpm Stirring power/ position 5 watts... - Page 24 Weight (gross) approx. 1.9 kg Permitted operation conditions 0 up to +40 °C (at 80% humidity) Protection category IP20 Electrical data 100-240 V/50-60 Hz/1.5 A Image 8: Control unit bioMIXcontrol S © 2mag AG Page 24 of 25 Version: 6.0...
- Page 25 Permitted operation conditions 0 up to +40 °C (at 80% humidity) Protection category IP20 Electrical data 100-240 V/50-60 Hz/1.5 A Image 9: Control unit bioMIXcontrol 4MS with 4x bioMIXdrive 1 Accessory Extension Cord for bioMIXdrive Extension Cord bioMIXdrive Order no. 46200 Material...
- Page 28 Schragenhofstraße 35 J DE-80992 Muenchen GERMANY Hereby declares that the product bioMIXdrive 1 / 2 / 3 / 4 incl. bioMIXcontrol / bioMIXcontrol S / bioMIXcontrol 4MS is conform to the appropriate regulations of the EU-guideline of the electromagnetic compatibility (EU-guideline 2014/30/EU) as well as the low voltage directive (2014/35/EU) incl.
