Summary of Contents for 2mag steriMIXdrive

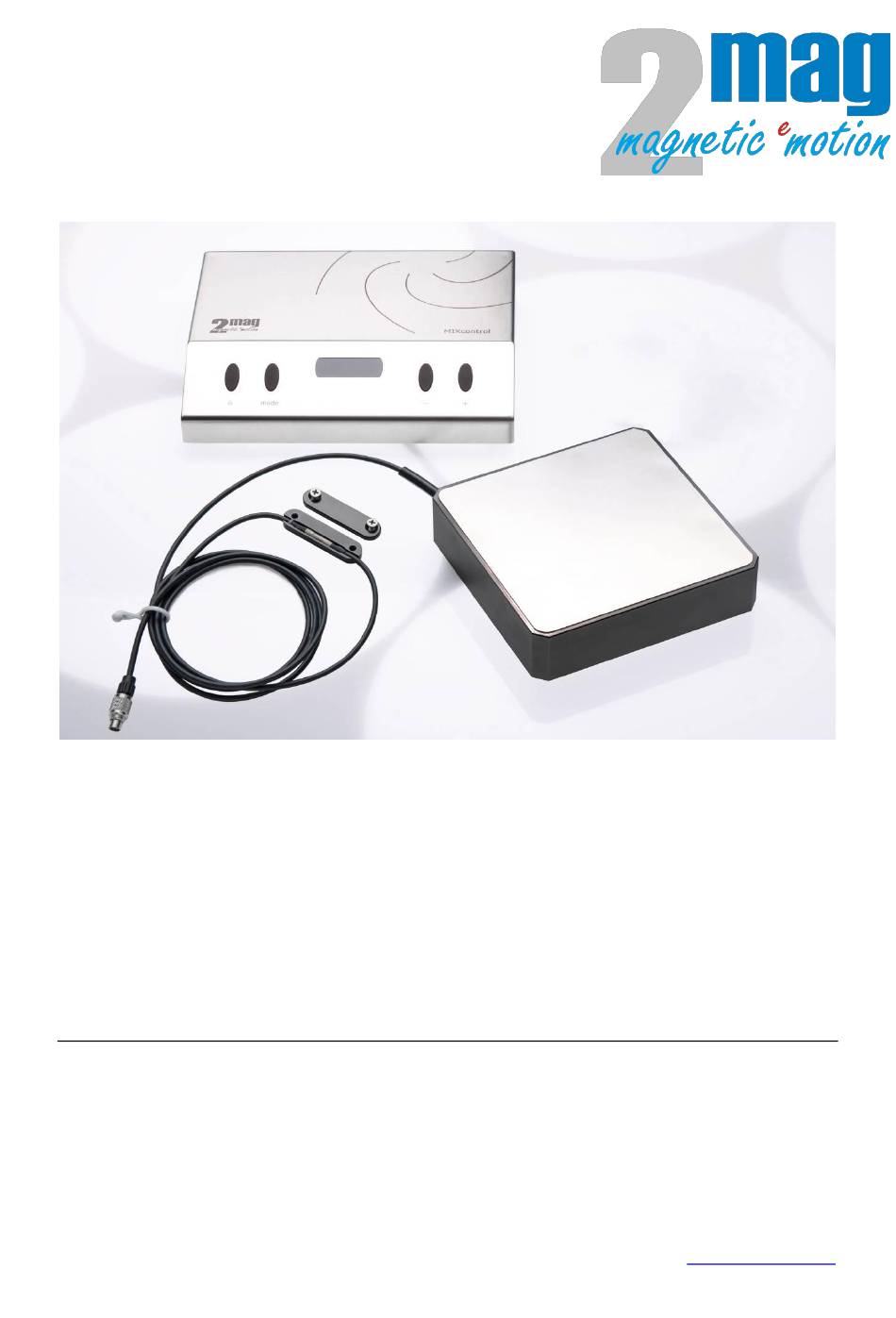

- Page 1 Operation Manual English steriMIXdrive Order no.: 40700 with steriMIXcontrol Order no.: 95200 Includes: Quick start Operation Manual Technical Documentation Specifications ___________________________________________________________ Version 6.1 Issue 09/2020 www.2mag.de...
- Page 2 For any enquiries, questions or suggestions please do not hesitate to contact us at info@2mag.de. 2mag Main competence of 2mag is based upon mixing, tempering and measuring/controlling. In these fields we are offering support with our products to the modern laboratory within the standardized daily business as well as for the implementation of highly complex processes in the state-of-the-art research.
-
Page 3: Table Of Contents
4.3 Accessory – Extension Cord for MIXdrive __________________ 17 5. Maximum operation temperatures __________________________ 18 B Maintenance, Cleaning and Care _______________________ 19 C Service case and customer service _____________________ 20 D Errors ____________________________________________ 21 E Technical details____________________________________ 22 © 2mag AG Page 3 of 23 Version: 6.1... -
Page 4: A Quick Start

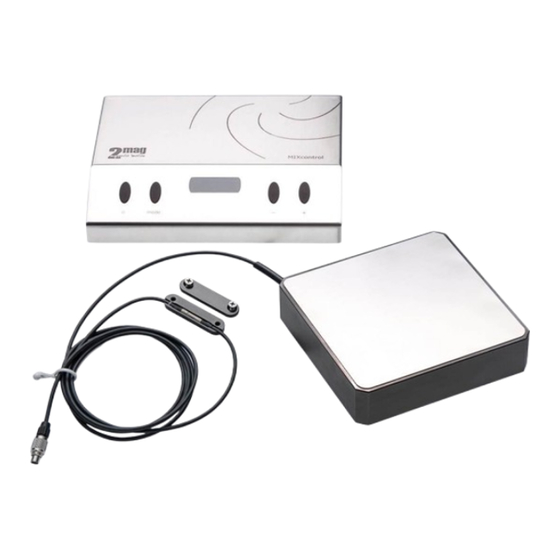

A Quick start 1. Overview of your product Magnetic stirrer steriMIXdrive with control unit steriMIXcontrol Image 1: magnetic stirrer steriMIXdrive with control unit steriMIXcontrol Your product contains at despatch: A modern magnetic stirring system (steriMIXdrive) consisting of a stainless steel stirring plate with 1 stirring point with fixed stirrer control cable (4-pin plug, with screw nut) ... -
Page 5: Applications
The pressure and steam tight grommet, located on the wall of the sterilizer, allows the steriMIXdrive cable to pass through into the pressurized autoclave chamber, while maintaining the pressure within the chamber. -
Page 6: Application Not For The Intended Use
Please see chapter “5 External heating operations in incubators and water baths”. 2.4 Application not for the intended use The magnetic stirrer steriMIXdrive is explicitly not intended for the application: Stirring and warming of flammable liquids ... -
Page 7: Stirring Bars
Increase the speed or Use a smaller magnetic stirring bar or Decrease the stirring power. In case the magnetic stirring bar will not be centred or leaves the centre permanently: © 2mag AG Page 7 of 23 Version: 6.1... - Page 8 In case the stirring activity is too weak: Use commercial magnetic stirring bars with SamariumCobalt-core. Use a longer stirring bar or a stirring flask with smaller diameter. We recommend using 2mag – ASTEROID stirring bars to increase the stirring performance. © 2mag AG Page 8 of 23 Version: 6.1...
-
Page 9: Installation
To increase the operation safety, the control unit should be placed apart from chemical materials and reactions as well as away from thermal influences. For special requirements please contact info@2mag.de. ATTENTION! The control unit has to be switched off, BEFORE you connect or disconnect the plugs. - Page 10 (length 50 cm) can be unplugged, the stirrer cable (150 cm) can be passed through the steam and pressure tight grommet and both cable parts can be reconnected. © 2mag AG Page 10 of 23 Version: 6.1...
-
Page 11: Installation Into A Steam Sterilizer - Easymount Plug Coupling
Pull apart the cable part with the plug from the cable part which is firmly fixed to the stirring drive by pull apart of the small plug- in connector. Positioning of the steriMIXdrive in the chamber of the sterilizer. Pass the stirrer cable through the pressure and steam tight grommet. -
Page 12: Installation, Connection To The Control Unit Sterimixcontrol
(5) and disconnect the power cable (4)! The stirrer control cable (1) of the magnetic stirrer steriMIXdrive has now to be connected to the 4-pin socket of the control unit (2). -
Page 13: Description Operating Elements Sterimixcontrol
MODE-key (M) for power adjustment of the magnetic stirrer Display for speed indicator and power indicator MINUS-key (-) for reduction of stirrer speed PLUS-key (+) for increase of the stirrer speed © 2mag AG Page 13 of 23 Version: 6.1... -
Page 14: Stirring Operation And Stirrer Control Sterimixcontrol
Operating of the control unit After the cables have been installed correctly according to “Installation, Connection to the control unit”, the magnetic stirrer system steriMIXdrive will be ready for operation. 4.2 Stirring operation and stirrer control steriMIXcontrol Turning On and Off Please turn on the power switch (5) at the rear side of the control unit steriMIXcontrol. - Page 15 Press the MODE-key until the letter “A” is shown in the display. The acceleration can be set in 4 steps by seconds (20/30/60/120 seconds) by pressing the MINUS- (11) resp. PLUS-key (12) afterwards. © 2mag AG Page 15 of 23 Version: 6.1...
- Page 16 MODE-key (9) again. mixWATCH – Stirring Bar Monitoring The Magnetic Stirrer steriMIXdrive is equipped as standard with a newly developed stirring bar control. In case of the magnetic coupling’s separation between the magnetic stirrer and the stirring bar during the acceleration phase, the magnetic stirrer will be stopped and started again with the same stirring speed.
-
Page 17: Accessory - Extension Cord For Mixdrive
46100) the control wire of the stirrer can be extended by 3m. Other lengths on request! Hint: The extension cord is only allowed to be used outside the steam chamber of the sterilizer! © 2mag AG Page 17 of 23 Version: 6.1... -
Page 18: Maximum Operation Temperatures
Higher temperatures can cause damage of the stirring drive! If using a sterilizer with bottom heating, do not place the steriMIXdrive directly on the bottom plate of the sterilizer (minimal distance 5 mm)! Water or oil bath operation: Please note the maximum operation temperature +150 °C... -
Page 19: B Maintenance, Cleaning And Care
The control unit must not be dipped in water or any cleaning solutions. 2mag devices are generally maintenance-free. Due to their construction the 2mag devices are very robust and designed for the professional daily use. We recommend cleaning the devices’ surfaces with e.g. cleaning agents containing tensides or isopropyl alcohol regularly. -
Page 20: C Service Case And Customer Service
Web: www.2mag.de Warranty: Due to their construction, the 2mag devices are very robust and designed for the professional daily use. Should in any case, despite our strict quality control, a system part not work without any fault, it can be repaired or exchanged by our customer service without any problems. -
Page 21: D Errors
Please get into contact with us. In general, we are ready to help you in case of problems. For any enquiries, questions or suggestions please do not hesitate to contact us at info@2mag.de © 2mag AG Page 21 of 23 Version: 6.1... -
Page 22: E Technical Details
-40 °C bis +70 °C, 10 – 95 %, 500 - 1060 hPa Protection category IP68 IP20 Operating voltage (max.) / 100-240 V 24 VDC Electrical date 50-60 Hz/1,5 A Image 6: Magnetic stirrer steriMIXdrive with steriMIXcontrol © 2mag AG Page 22 of 23 Version: 6.1... - Page 23 0.15 kg Image 7: Stirring bar ASTEROID 40 Image 8: Stirring bar SATELLITE 70 2mag AG Schragenhofstr. 35 J Fon: +49 89 38153110 DE-80992 Muenchen E-Mail: info@2mag.de GERMANY Web: www.2mag.de © 2mag AG Page 23 of 23 Version: 6.1...
- Page 24 EU-DECLARATION OF CONFORMITY FOR TECHNICAL DEVICES (acc. to EU-guideline of the electromagnetic compatibility 2014/30/EU and the low voltage directive 2014/35/EU) 2mag AG Schragenhofstraße 35 J DE-80992 Muenchen GERMANY Hereby declares that the product steriMIXdrive incl. steriMIXcontrol is conform to the appropriate regulations of the EU-guideline of the electromagnetic compatibility (EU-guideline 2014/30/EU) as well as the low voltage directive (2014/35/EU) incl.
