  • Page 1 Operation Manual English MIX 1 Order No.: 30001 MIX 6 Order No.: 30006 MIX 15 Order No.: 30015 MIX 15 eco Order No.: 30115 MIX 8 XL Order No.: 30208 MIX 12 XL Order No.: 30212 Includes Quick start Operation Manual...

  • Page 2: Table Of Contents

    3. Installation ____________________________________________ 10 3.1 Safety advice _______________________________________ 10 3.2 Installation, connection to the magnetic stirrer _____________ 11 4. Operating of the magnetic stirrer MIX 1/6/15/15 eco ___________ 12 4.1 Description operating elements __________________________ 12 4.2 Stirring operation and stirrer control _____________________ 13 4.3 Operation differences of MIX 15 eco ______________________ 15...
  • Page 3 © 2mag AG Page 3 of 20 Version: 5.1...

  • Page 4: A Quick Start

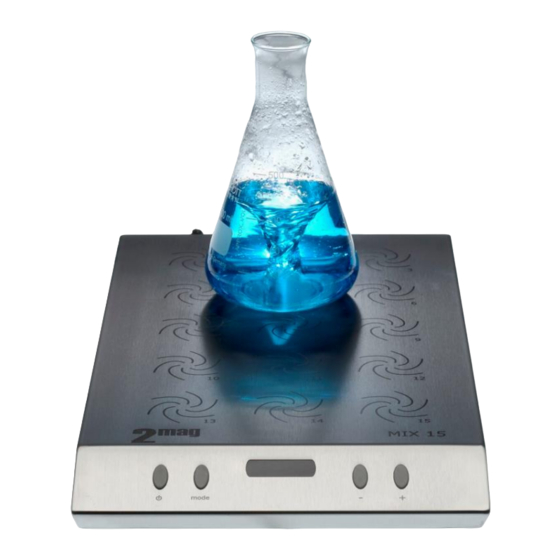

    Image 2: 15-position magnetic stirrer MIX 15 (without power supply unit 100-240 volts) Your product contains at despatch:  A modern inductive magnetic stirring system (MIX 1, MIX 6, MIX 15, MIX 15 eco, MIX 8 XL or MIX 12 XL) consisting of a stainless steel stirring plate with 1, 6, 8, 12 or respectively 15 stirring points.

  • Page 5: Application Fields

    2.1 Operator The 100% maintenance- and wear-free magnetic stirrers MIX 1 / MIX 6 / MIX 15 / MIX 15 eco / MIX 8 XL / MIX 12 XL are used in the fields of chemistry, medicine, pharmacy, microbiology and biotechnology.

  • Page 6: Combinations Of Vessels

    The magnetic stirring bar can then be centred better. Magnetic Stirrer Stirring vessels Nominal content Max. amount MIX 1 Erlenmeyer flasks max. 10.000 ml Beaker glass Lab flasks MIX 6...

  • Page 7: Stirring Bars

    2.6.1 ASTEROID Stirring Bars We recommend using 2mag –ASTEROID stirring bars to increase the stirring performance at enhanced requirements. ASTEROID stirring bars a newly developed, high-effective and ideal for: ...

  • Page 8: Tips And Hints To The Topic Stirring

     stirring over wide distances  at disadvantageous vessel bottoms. 2mag ASTEROID stirring bars transmit more than 4x higher torque. Therefore the bars creating an unbeatable increased mixing effect in comparison to conventional stirring bars. The high energetic and long- term stable magnetic field does not have any demagnetization effect.
  • Page 9 In case the stirring activity is too weak:  Use commercial magnetic stirring bars with SamariumCobalt-core.  Use a longer stirring bar or a stirring flask with smaller diameter. We recommend using 2mag – ASTEROID stirring bars to increase the stirring performance. © 2mag AG Page 9 of 20 Version: 5.1...

  • Page 10: Installation

    To increase the operation safety, the power supply unit should be placed apart from chemical materials and reactions as well as away from thermal influences. For special requirements please contact info@2mag.de. ATTENTION! The power supply unit has to be disconnected, BEFORE you connect or disconnect the unit plug.

  • Page 11: Installation, Connection To The Magnetic Stirrer

    Description functional elements of control unit - backside Power supply unit (100-240 volts) Low voltage cable between power supply unit and magnetic stirrer Low voltage plug Low voltage socket at magnetic stirrer Power cord Magnetic stirrer © 2mag AG Page 11 of 20 Version: 5.1...

  • Page 12: Operating Of The Magnetic Stirrer Mix 1/6/15/15 Eco

    The operation of the stirrers MIX1, MIX 6, MIX 15, MIX 15 eco, MIX 8 XL and MIX 12 XL is identical! Image 4: Operating elements, magnetic stirrer MIX 1/6/15/15 eco 4.1 Description operating elements Magnetic stirrer MIX 15 (operation identical with MIX 1/6/15 eco/8 XL/12 XL) Stirrer control ON/OFF key for magnetic stirrer...

  • Page 13: Stirring Operation And Stirrer Control

    Operating of the magnetic stirrer After the cables have been installed correctly according to Installation, connection to the magnetic stirrer, the magnetic stirrer MIX 1/6/15/15 eco will be ready for operation. 4.2 Stirring operation and stirrer control Turning On and Off Please press the On/OFF-key (8) once.
  • Page 14 The speed range can be adjusted between 100 and 2000 rpm in steps by 10 for the magnetic stirrers MIX 1, MIX 6 and MIX 15. For the magnetic stirrers MIX 8 XL and MIX 12 XL it is adjustable between 100 and 1600 rpm and for magnetic stirrer MIX 1 eco between 100 and 1200 rpm.

  • Page 15: Operation Differences Of Mix 15 Eco

    All other functions are unlimited available. 4.4 Warning notices:  The magnetic stirrers MIX 1, MIX 6, MIX 15, MIX 15 eco, MIX 8 XL and MIX 12 XL are not suitable for using in water baths, incubators, ovens and humid atmosphere! ©...

  • Page 16: B Maintenance, Cleaning And Care

    The magnetic stirrer must not be dipped in water or any cleaning solutions. 2mag devices are generally maintenance-free. Due to their construction the 2mag devices are very robust and designed for the professional daily use. We recommend cleaning the devices’ surfaces with e.g. cleaning agents containing tensides or isopropyl alcohol regularly.

  • Page 17: C Service Case And Customer Service

    Web: www.2mag.de Warranty: Due to their construction, the 2mag devices are very robust and designed for the professional daily use. The magnetic drive works without any mechanically moved parts as e.g. belts, bearings or motors. Therefore a maximum of reliability within daily use is achieved.

  • Page 18: D Errors

    Please get into contact with us. In general, we are ready to help you in case of problems. For any enquiries, questions or suggestions please do not hesitate to contact us at info@2mag.de © 2mag AG Page 18 of 20 Version: 5.1...

  • Page 19: E Technical Details

    E Technical details Magnetic stirrer MIX 1 MIX 1 Order no. 30001 Stirring points Stirring volume 1 – 10,000 ml Speed range 100 – 2,000 rpm Stirring power (max.) 20 watts Power setting 4-steps (25/50/75/100%) Material housing stainless-steel Material sealing...
  • Page 20 Permitted storage -40 °C up to +70 °C, 10–95 %, 500-1060 hPa conditions Protection category IP64 Operating voltage 48 VDC Electrical data 100-240 V / 50-60 Hz / 1.5 A © 2mag AG Page 20 of 20 Version: 5.1...
  • Page 21 Ø 28 x 40 mm Weight ca. 0.06 kg Image 5: Stirring bar ASTEROID 40 2mag AG Fon: +49 89 14334252 Schragenhofstr. 35 J Fax: +49 89 14334369 DE-80992 Muenchen E-Mail: info@2mag.de GERMANY Web: www.2mag.de © 2mag AG Page 21 of 20 Version: 5.1...
  • Page 24 GERMANY Hereby declares that the product MIX 1 / 6 / 15 / 15 eco / MIX 8 XL / MIX 12 XL is conform to the appropriate regulations of the EU-guideline of the electromagnetic compatibility (EU-guideline 2014/30/EU) as well as the low voltage directive (2014/35/EU) incl.
